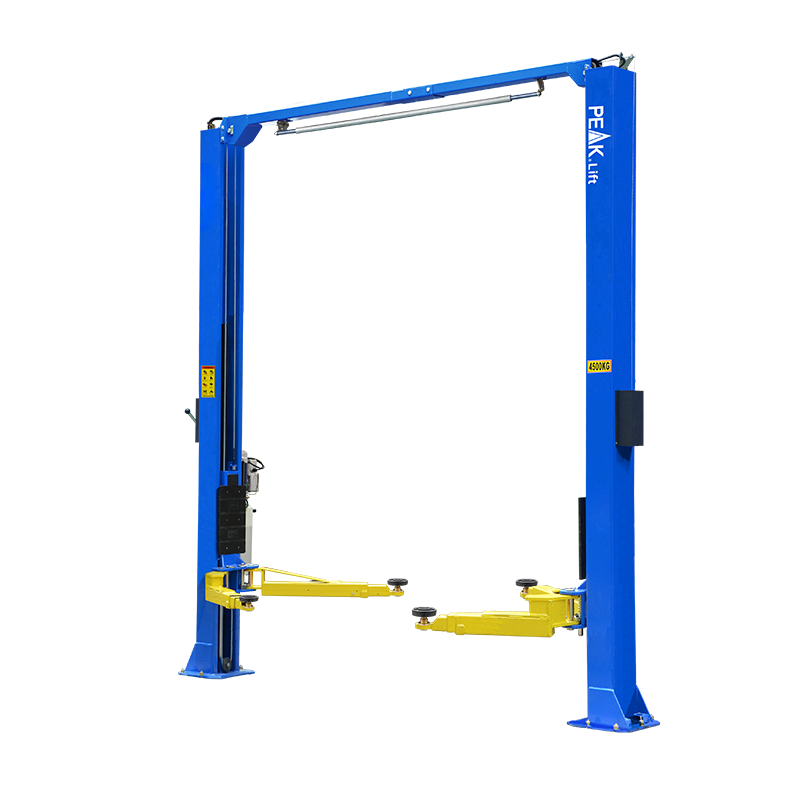

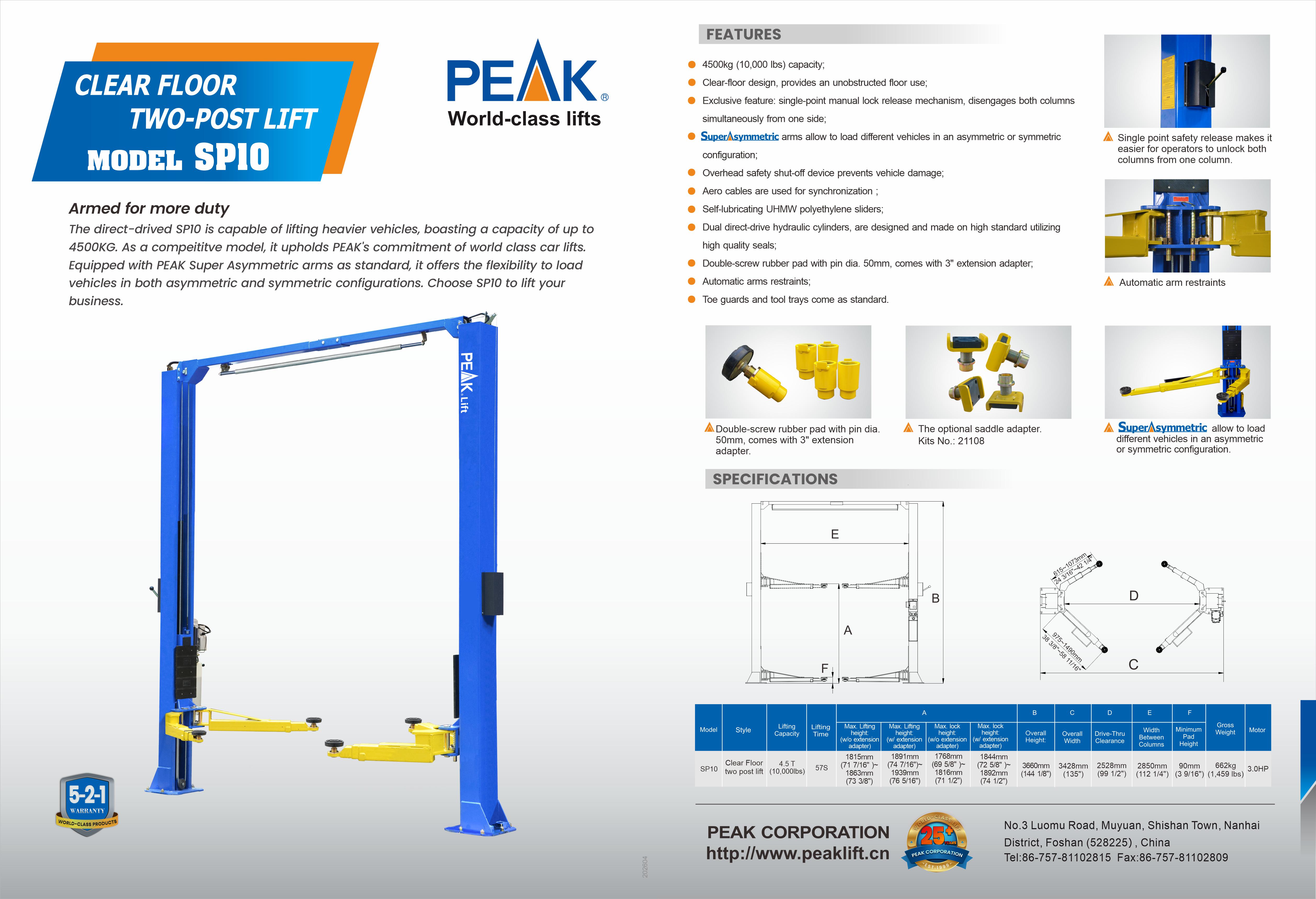

SP10
Clear Floor Two Post Lift
Armed for more duty
The direct-drived SP10 is capable of lifting heavier vehicles, boasting a capacity of up to 4500KG. As a compeititve model, it upholds PEAK's commitment of world class car lifts. Equipped with PEAK Super Asymmetric arms as standard, it offers the flexibility to load vehicles in both asymmetric and symmetric configurations. Choose SP10 to lift your business.
- 4500kg (10,000lbs) capacity.
- Clear-floor design, provides an unobstructed floor use;
- Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
arms allow to load different vehicles in an asymmetric or symmetric configuration;- Overhead safety shut-off device prevents vehicle damage;
- Aero cables are used for synchronization ;
- Self-lubricating UHMW polyethylene sliders;
- Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
- Double-screw rubber pad with pin dia. 50mm, comes with 3" extension adapter;
- Automatic arms restraints;
- Toe guards and tool trays come as standard.
| Model SP10 | Clear Floor two post lift | |
| Lifting Capacity | 4500kg(10,000 Ibs) | |
| Lifting Time | A | 57s |
| Max.Lifting height:(w/o extension adapter) | 1821mm(71 11/16")~1869mm(73 9/16") | |
| Max.Lifting height:(w/ extension adapter) | 1897mm(74 11/16")~1945mm(76 9/16") | |
| Max.lock height(w/o extension adapter) | 1774mm(69 13/16")~1822mm(71 3/4") | |
| Max.lock height(w/ extension adapter) | 1850mm(72 13/16")~1898mm(74 3/4") | |
| Overall Height | B |
3660mm(144 1/8") |
| Overall Width | C | 3428mm(135") |
| Drive-Thru Clearance | D | 2528mm(99 1/2") |
| Width Between Columns | E | 2850mm(112 1/4") |
| Minimum Pad Height | F | 95mm(3 3/4") |
| Gross Weight | 662kg(1,459 Ibs) | |
| Motor | 3.0HP | |
| QTY of Container | 15 Units/20'GP 40 Units/40'GP |
|
| Packing Dimension | 3670 X 450 X 770 mm |
-

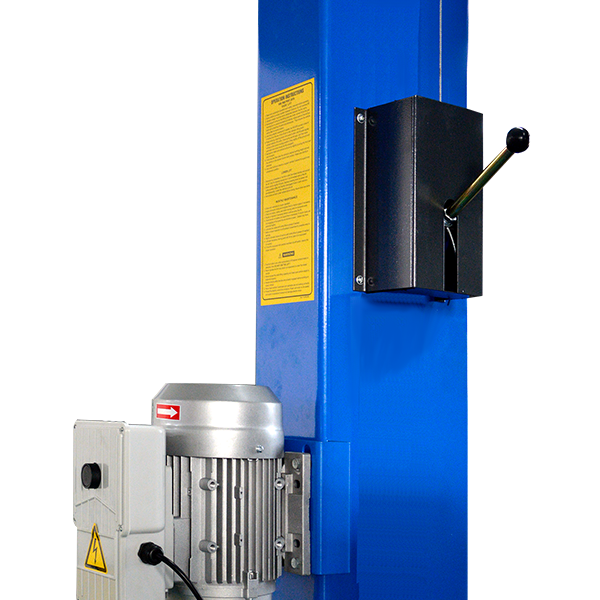

Single point safety release makes it easier for operators to unlock both columns from one column.
-

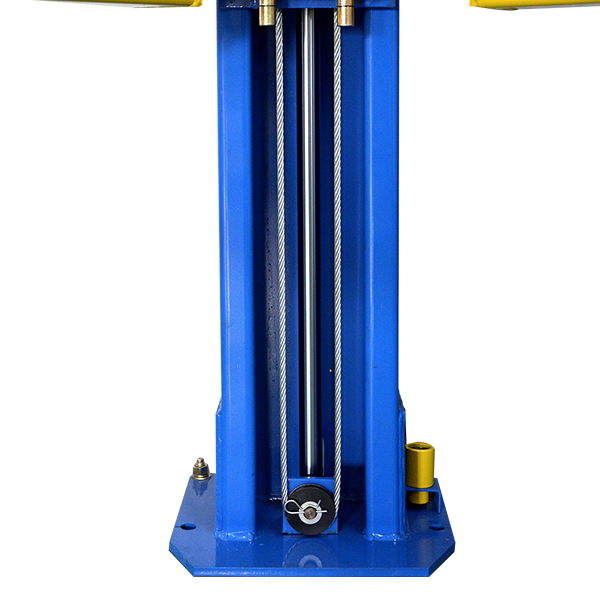

Hydraulic direct-drived cylinders.
-

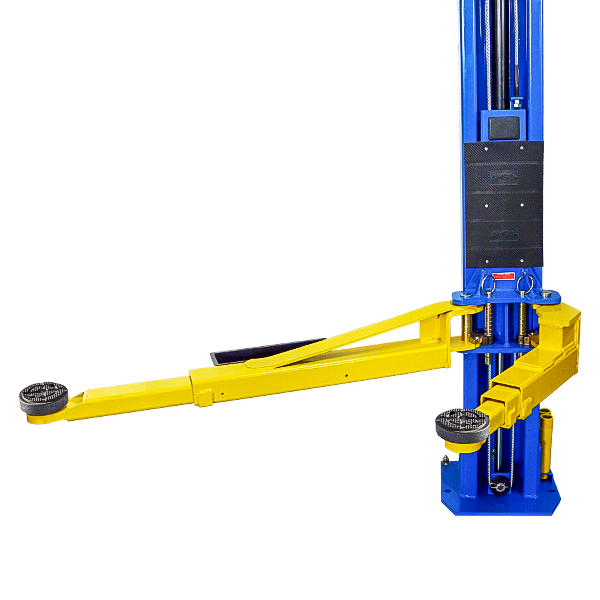

arms allow to load different vehicles in an asymmetric or symmetric configuration. -

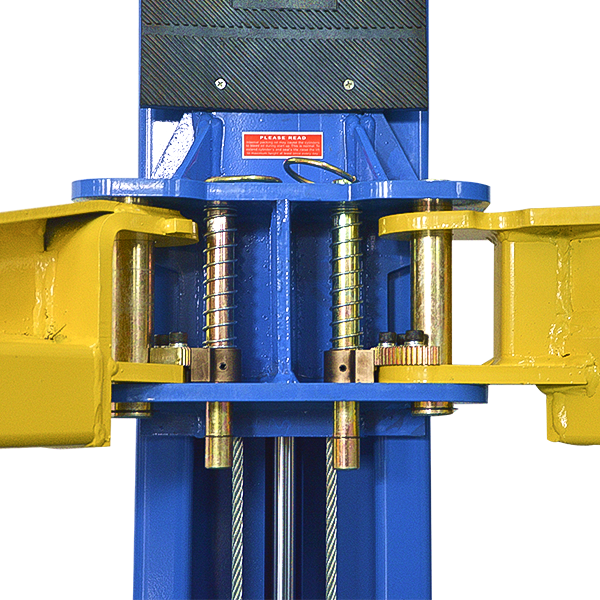

Automatic arm restraints.
-

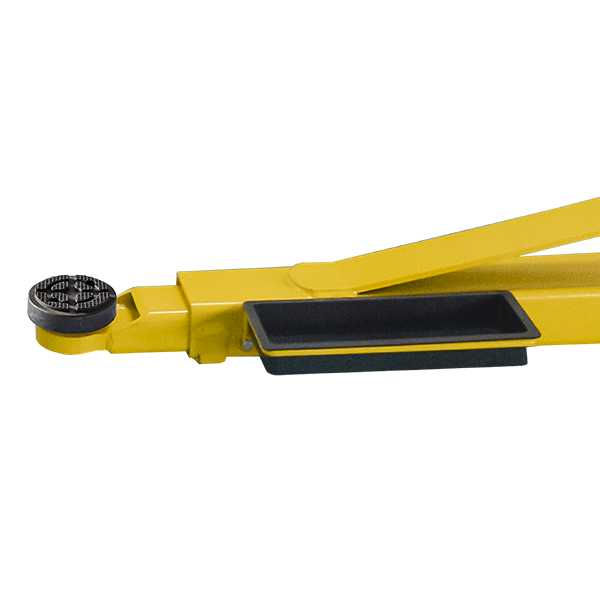

Toe guards and tool trays come as standard.
-

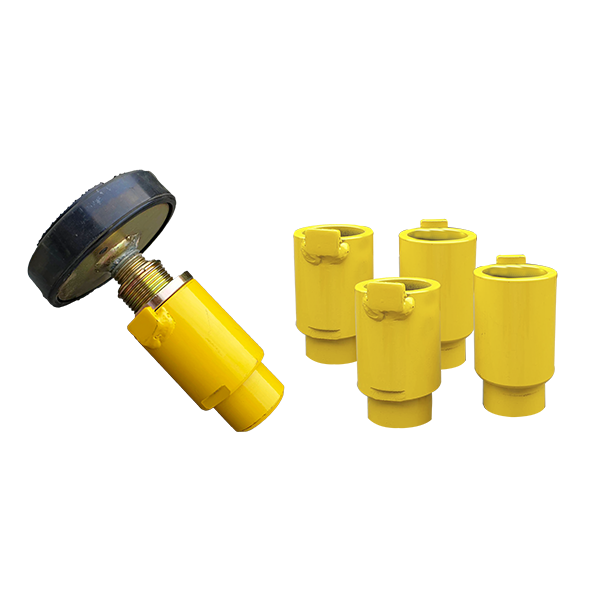

Double-screw rubber pad with pin dia. 50mm,comes with 3" extension adapter.
-

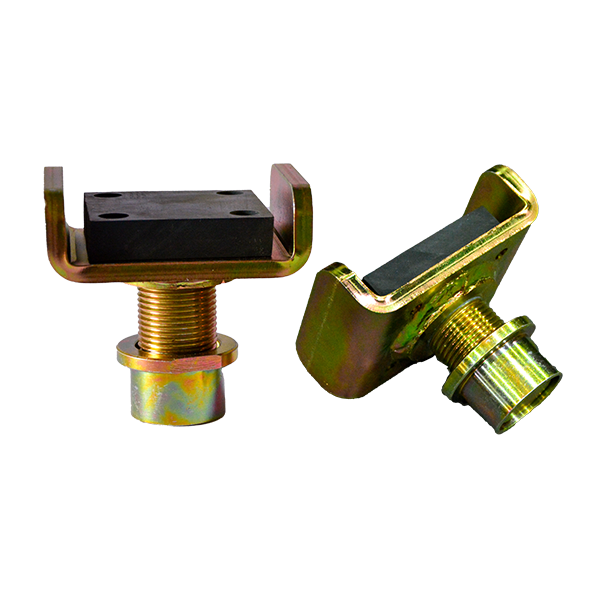

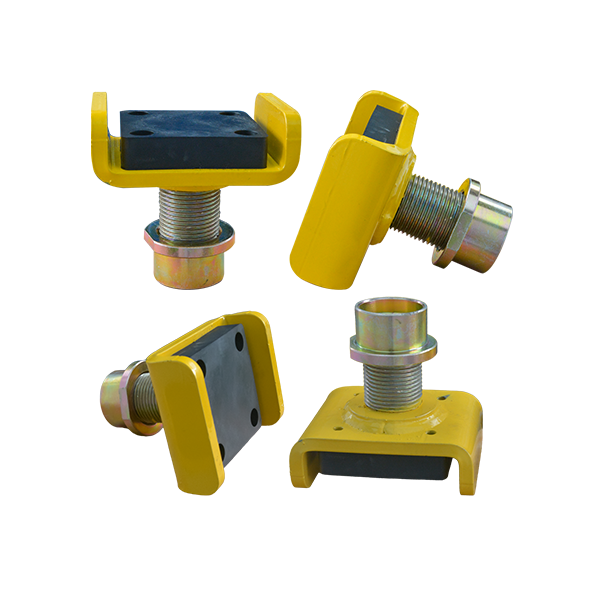

The optional saddle adapter.
Kits No.: 1102185006C -

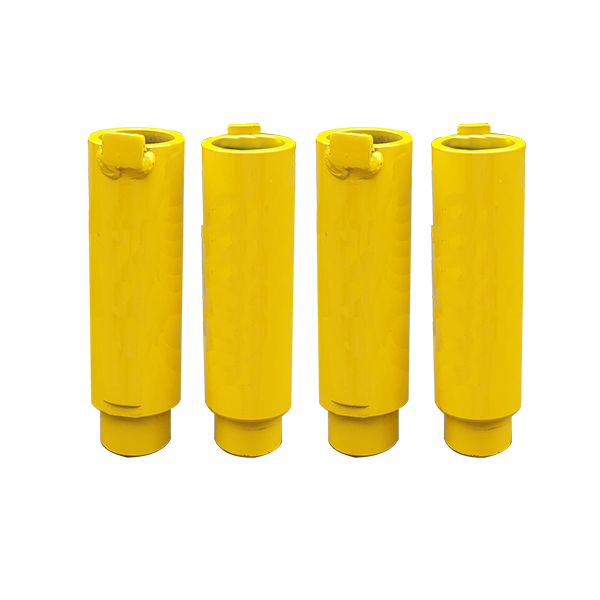

6" extension adapter comes as optional.
P/N: 1102504001. -
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for SP10: 662kgs , include power unit gross weight 25kgs.
- 20' container can load 15 units.
- 40' container can load 40 units.
- Attention to forklift loading and unloading.
-

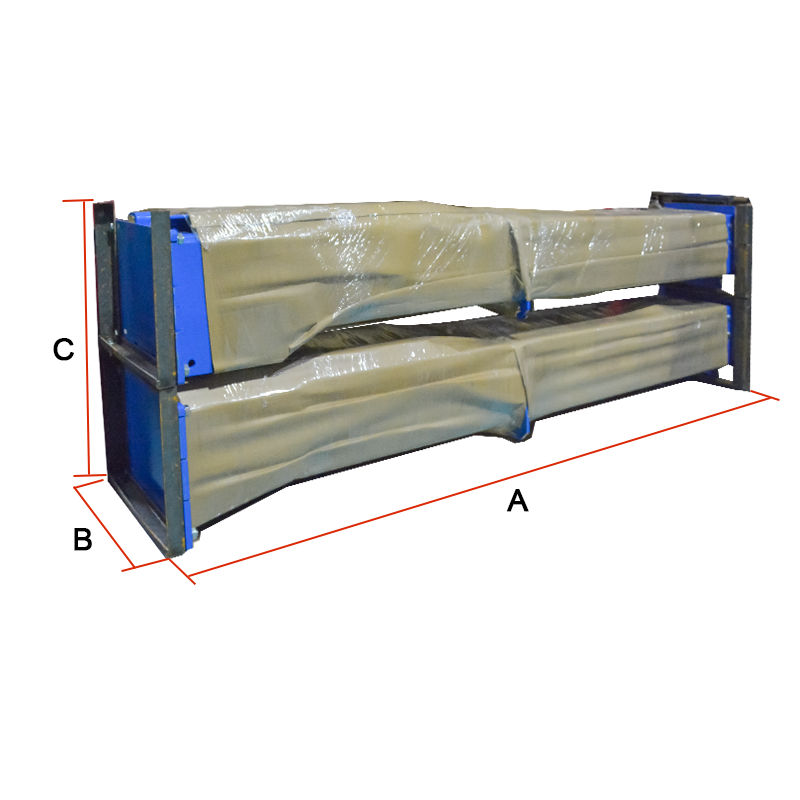

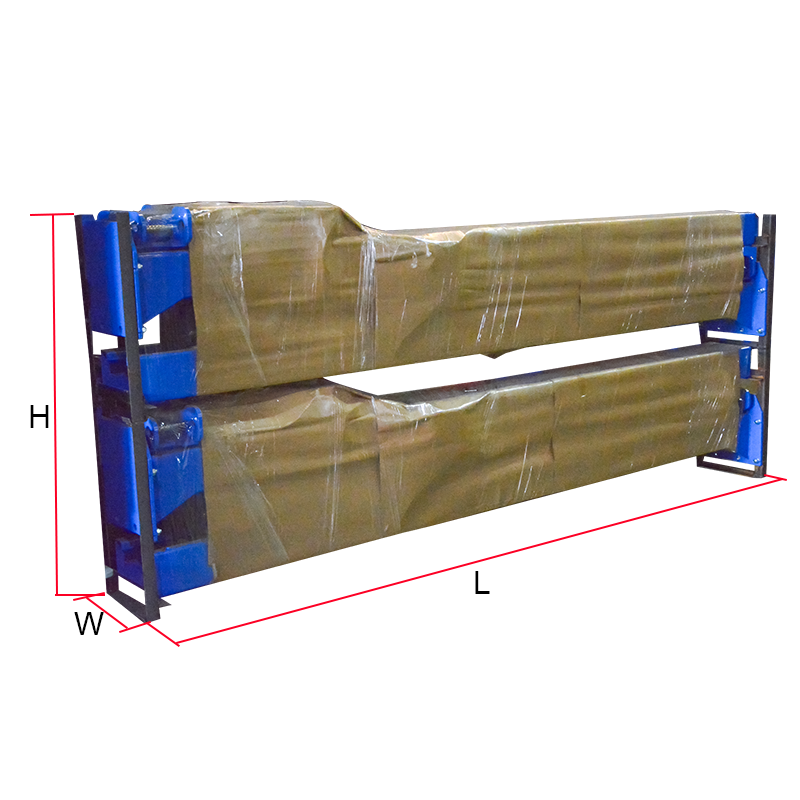

2 units/package,packing measurement (LxWxH):3792x450x1525mm
-

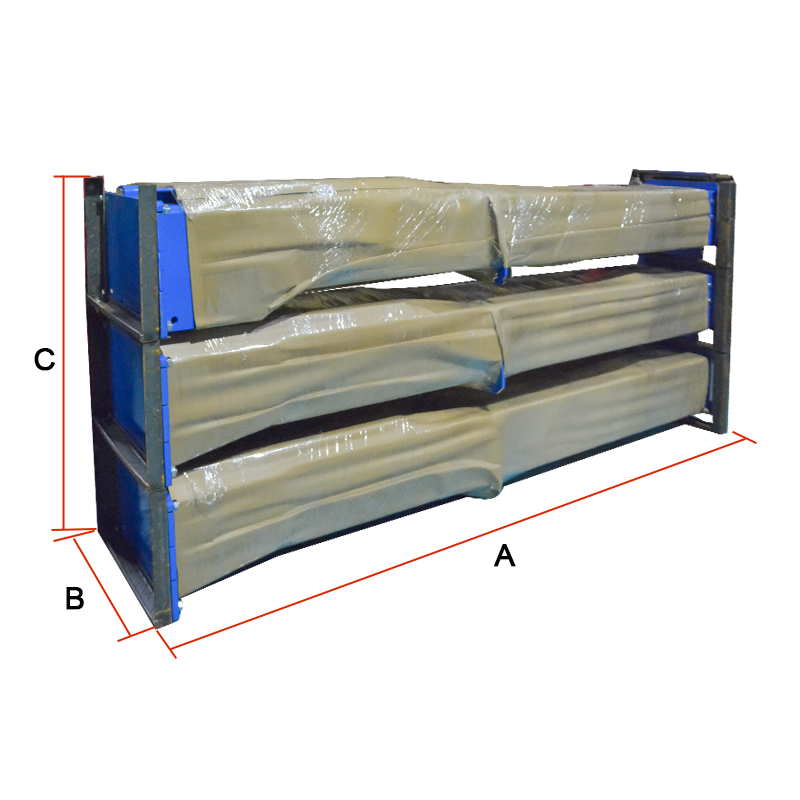

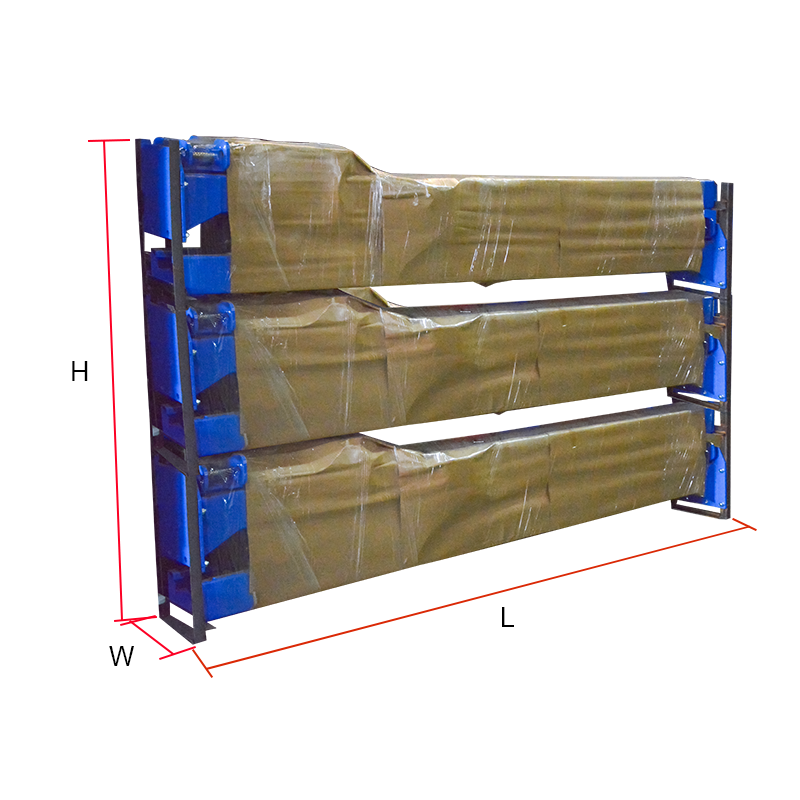

3 units/package, packing measurement (LxWxH): 3817x450x2260mm
-

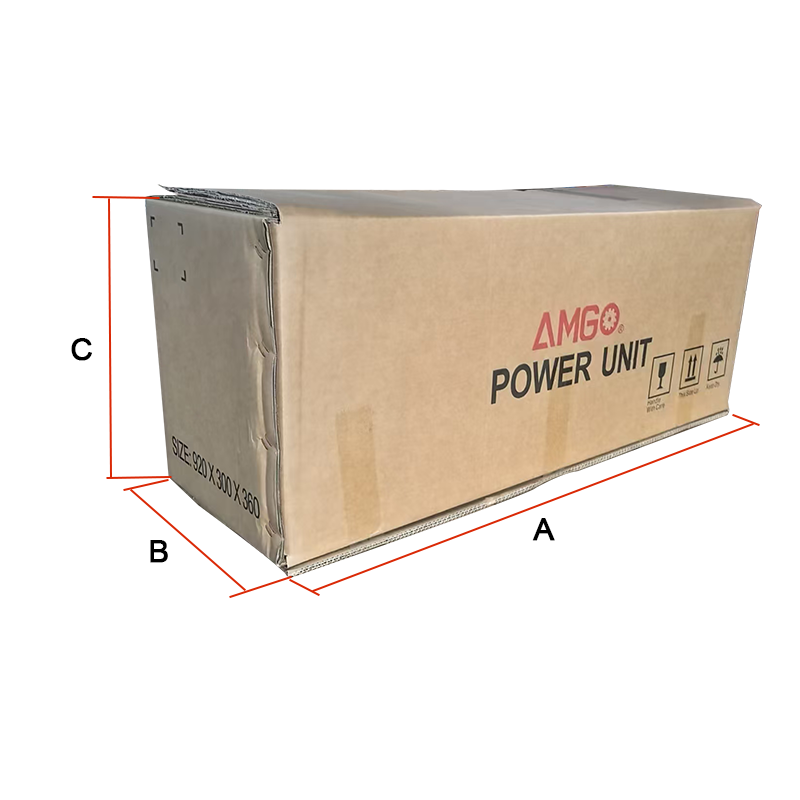

1 unit/ctn,packing measurement (LxWxH): 920x300x360mm
-

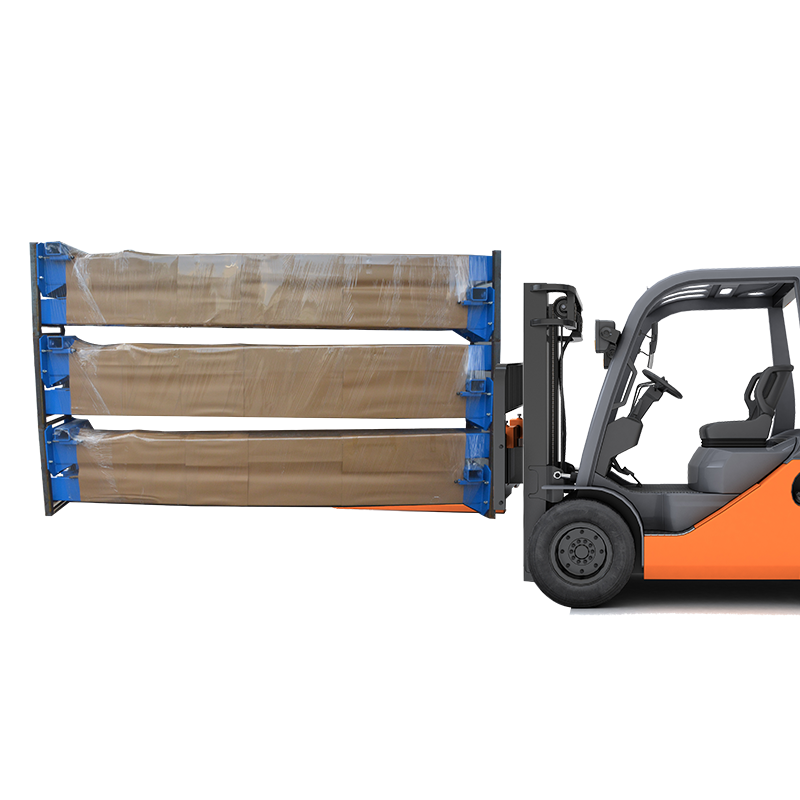

Attention to forklift loading and unloading
