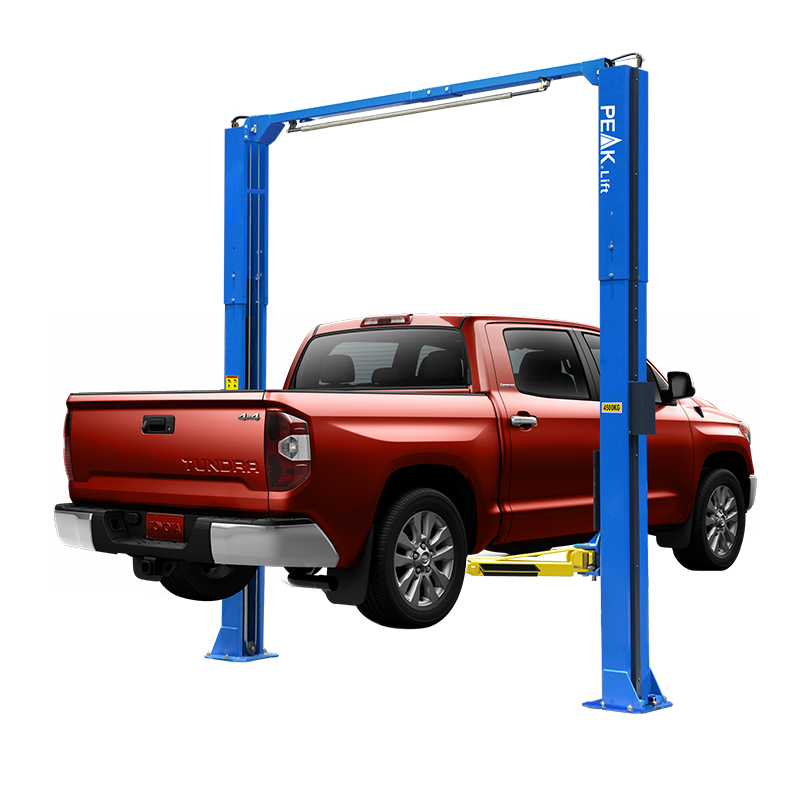

TP10
Clear floor two post lift
Enhance the flexibility
The TP10 boasts a robust, two-section column design, delivering exceptional power with an impressive lifting capacity of 4,500 kg. Its innovative two-height setting system and three-stage symmetrical arms provide superior versatility for a wide range of applications. Optional extension kits are also available for even greater flexibility, making it the perfect choice for professional workshops and automotive enthusiasts alike.
- 4500kg (10,000 lbs) capacity;
- Clear-floor design, provides an unobstructed floor use;
- Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
- Four 3-stage arms are suitable for more vehicle;
- Overhead safety shut-off device prevents vehicle damage;
- Comes standard with 2 adjustable heights to accommodate varying ceiling clearance;
- Aero cables are used for synchronization;
- Self-lubricating UHMW polyethylene sliders;
- Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
- Double-screw rubber pad with pin dia 50mm, comes with 3" extension adapter;
- Automatic arms restraints;
- Toe guards and tool trays come as standard.
| Model TP10 | Clear Floor Two Post Lift | |
| Lifting Capacity | 4500kg(10,000 Ibs) | |
| Lifting Time | A | 57s |
| Max. Lifting height:(w/o extension adapter) | 1821mm(71 11/16")~1869mm(73 9/16") | |
| Max. Lifting height:(w/ extension adapter) | 1897mm(74 11/16")~1945mm(76 9/16") | |
| Max. lock height(w/o extension adapter) | 1774mm(69 13/16")~1822mm(71 3/4") | |
| Max. lock height(w/ extension adapter) | 1850mm(72 13/16")~1898mm(74 3/4") | |
|
Overall Height |
B |
3635mm(143 1/8") 3835mm(151") |
| Overall Width | C |
3428mm(135") |
| Drive-Thru Clearance | D |
2528mm(99 1/2") |
| Width Between Columns | E |
2850mm(112 3/16") |
| Minimum Pad Height | F | 95mm(3 3/4") |
| Gross Weight | 724kg(1,596 Ibs) | |
| Motor | 3.0HP | |
| QTY of Container |
25 Units/20'GP 50 Units/40'GP |
|
| Packing | 2800 x 450 x 825 mm |
-

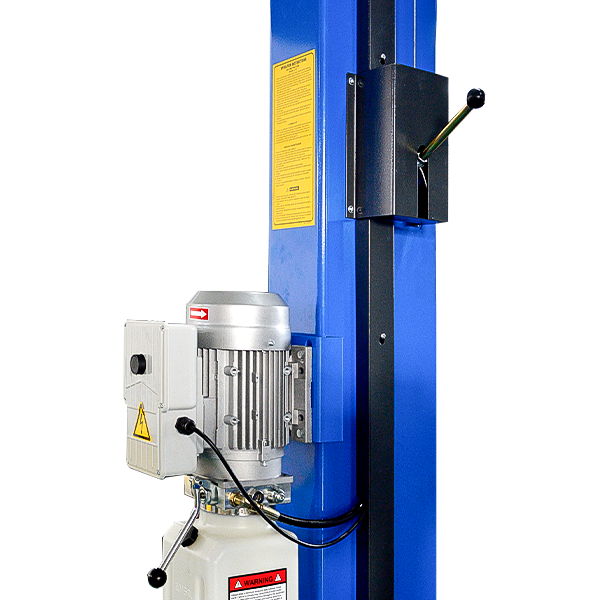

Single point safety release makes it easier for operators to unlock both columns from one column.
-

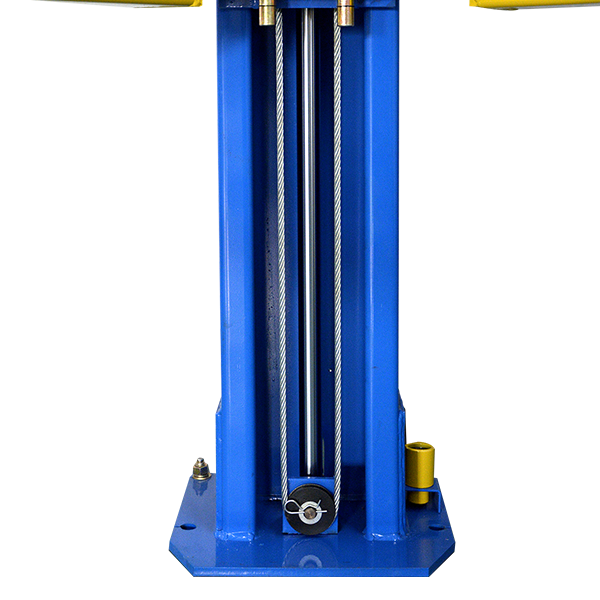

Hydraulic direct-drived cylinders.
-

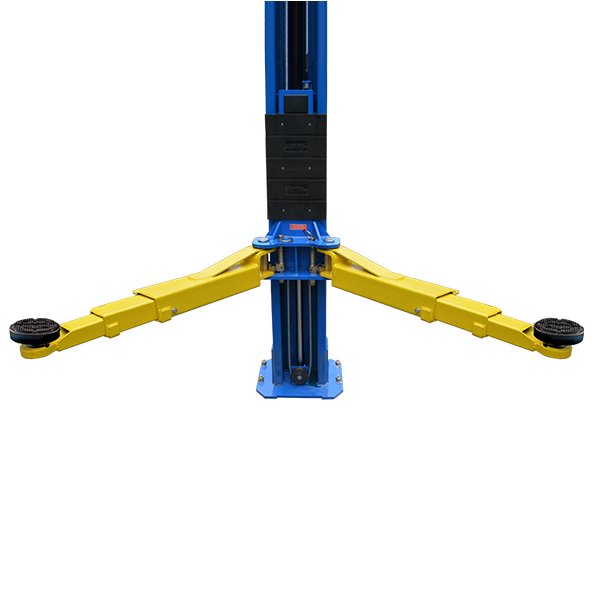

4 three-stages arms are suitable for more vehicles.
-

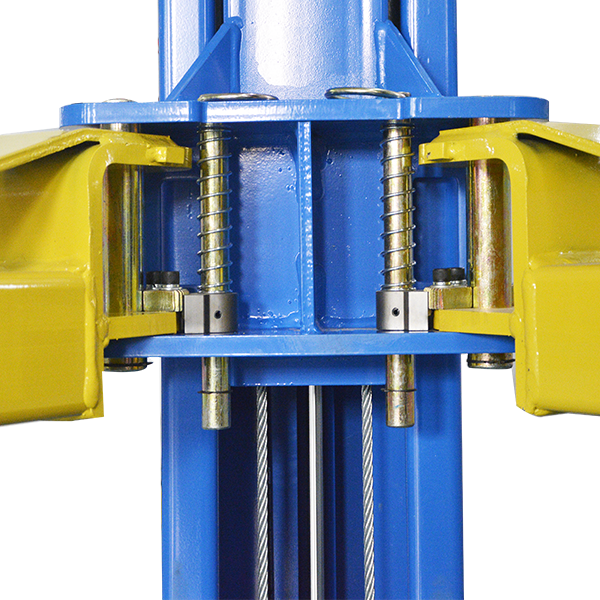

Automatic arm restraints.
-

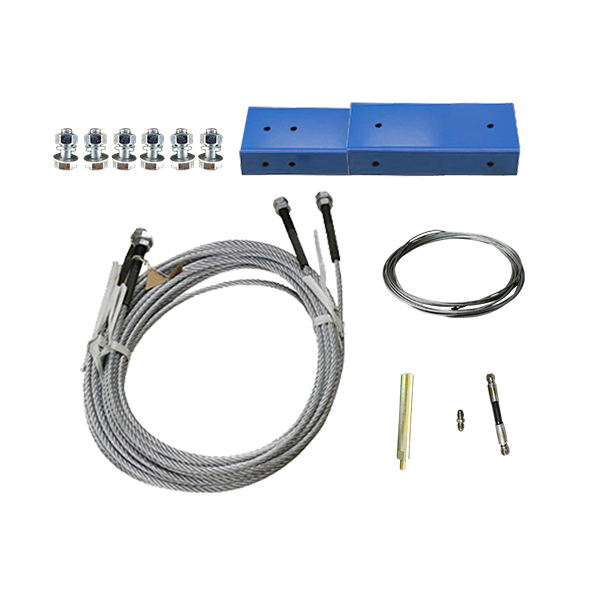

Optional Width Extension Kits.
With these kits the width between posts is adjusted from 2850mm to 3000mm. Kits No.: 20906 -
Optional Height Extension Kits.
With these kits the overall height is adjusted from 3821mm to 4431mm. Kits No.: 21002 -

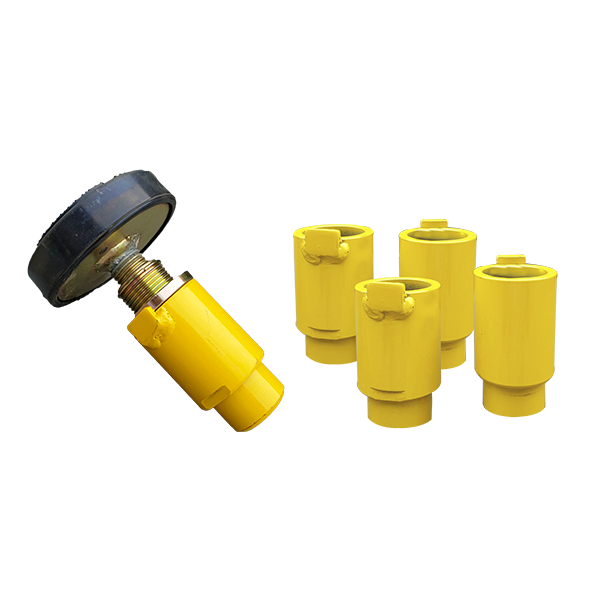

Double-screw rubber pad with pin dia.50mm, comes with 3" extension adapter.
-

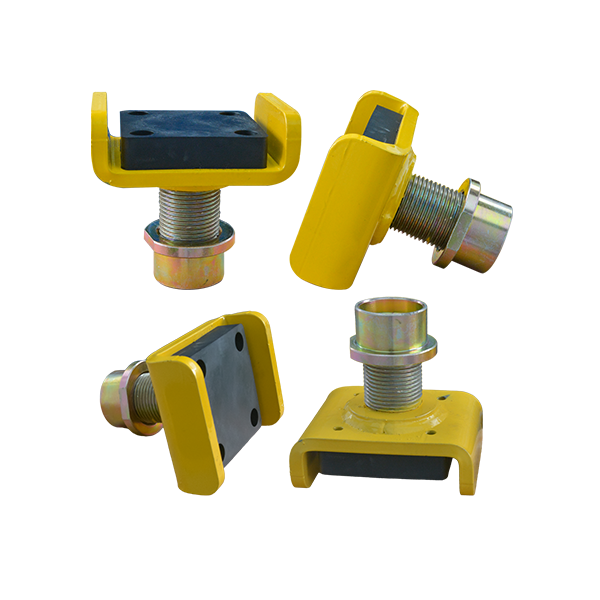

The optional saddle adapter.
Kits No.: 1102185006C -

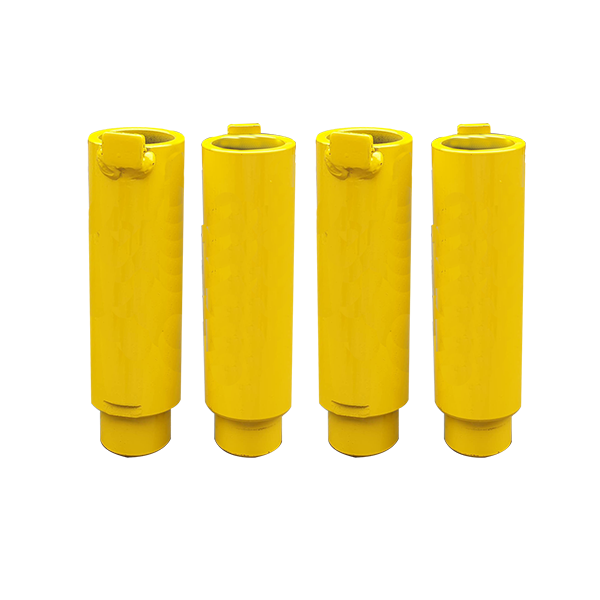

6" extension adapter comes as optional.
P/N: 1102504001
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for TP10: 724kgs , include power unit gross weight 25kgs.
- 20' container can load 25 units.
-

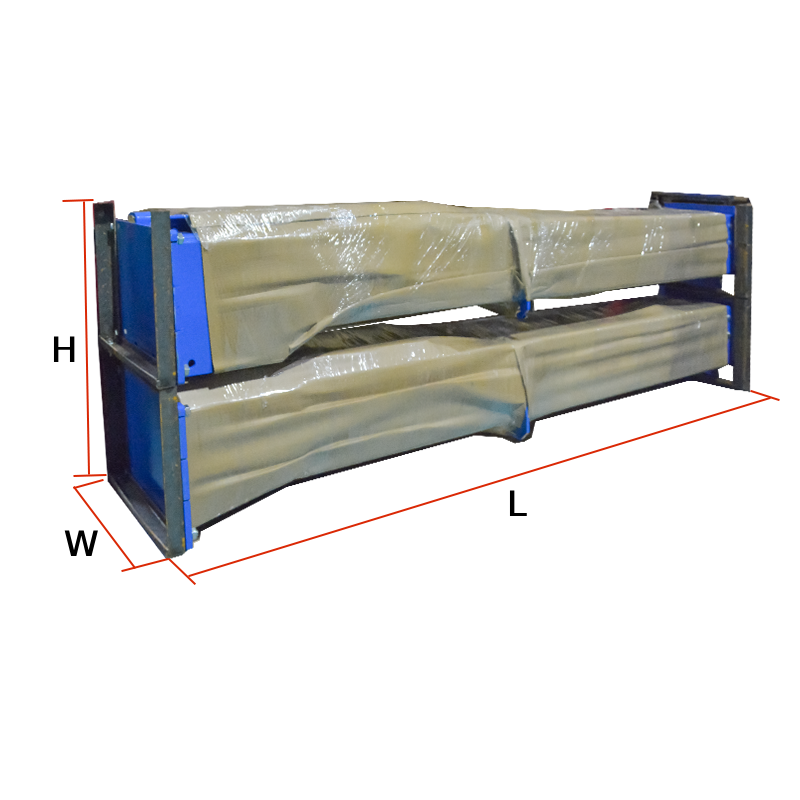

2 units/package,packing measurement (LxWxH):2855x450x1480mm
-

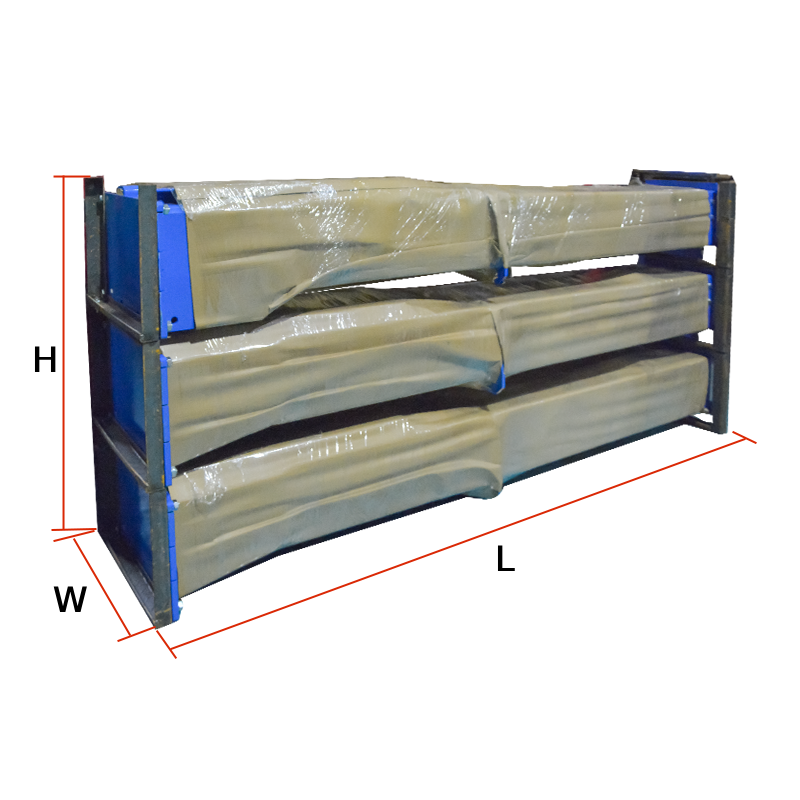

3 units/package, packing measurement (LxWxH): 2855x450x2195mm
-
1 unit/ctn,packing measurement (LxWxH): 920x300x360mm
-

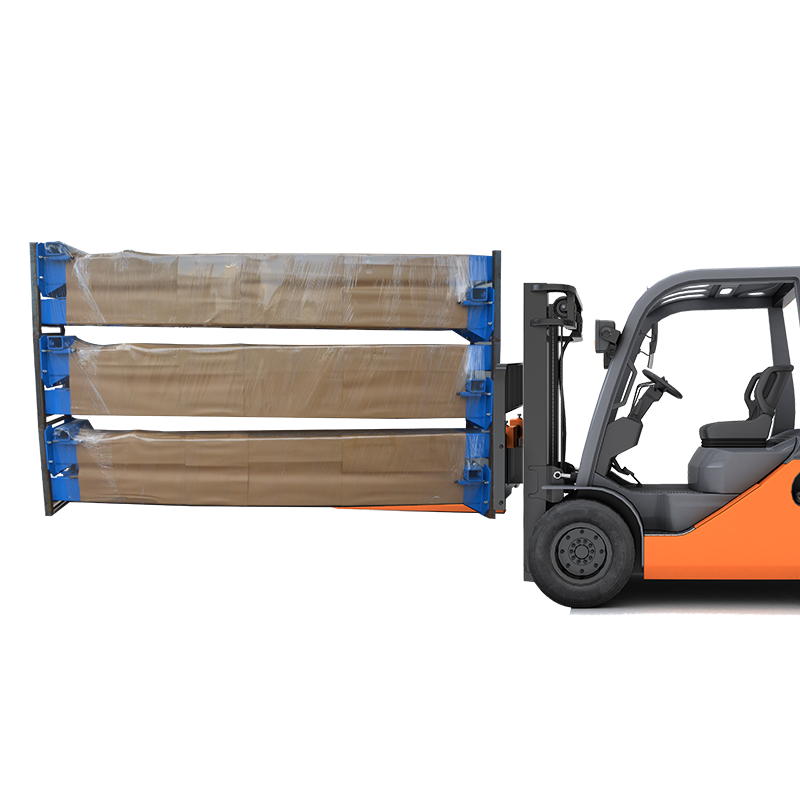

Attention to forklift loading and unloading
