409-DPX

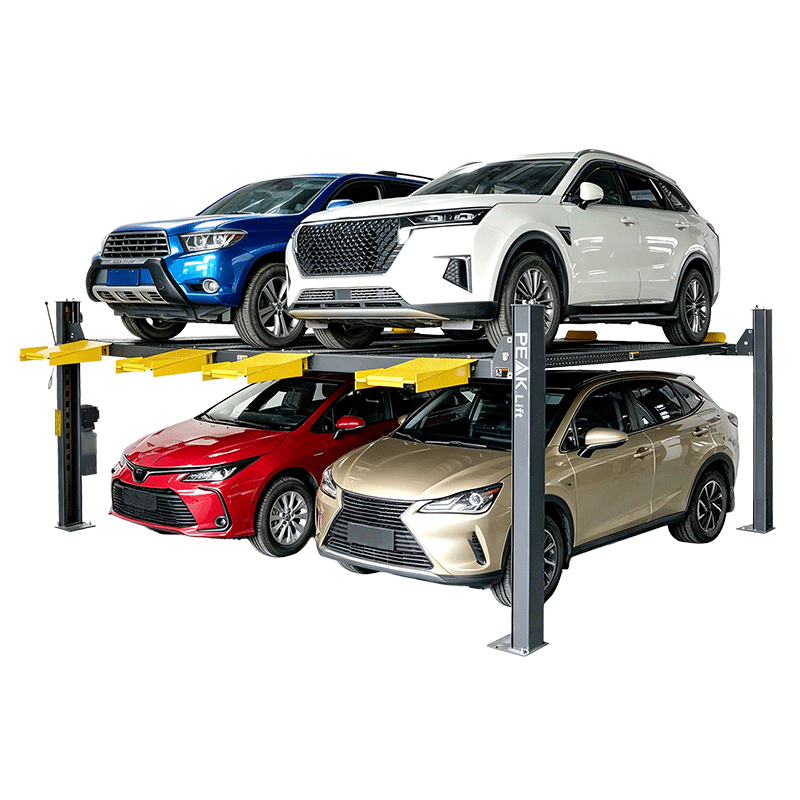

Double Parking 4-Post Lift
Space Master

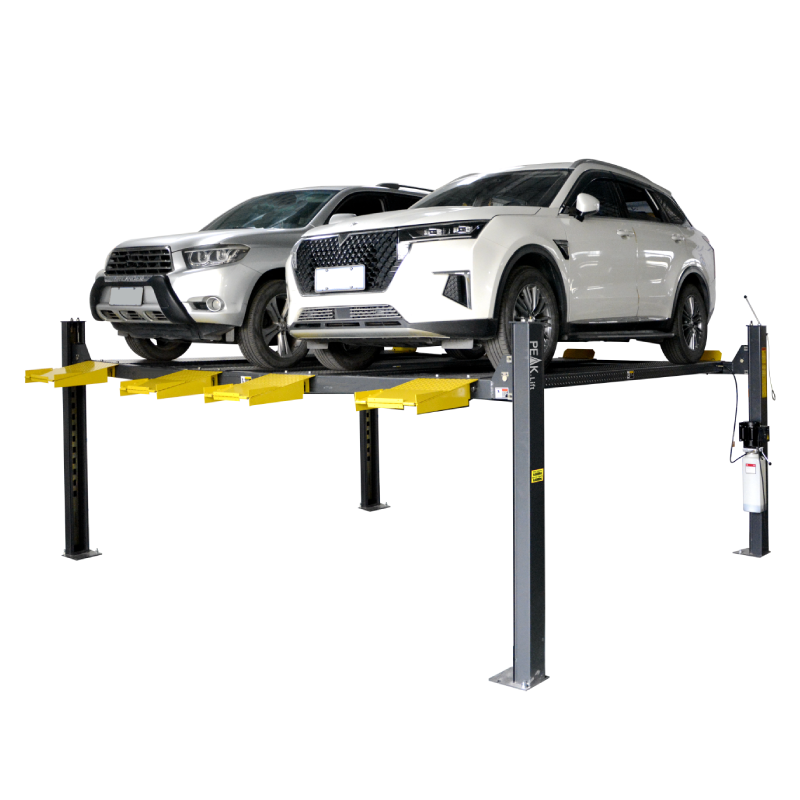

Building on the trusted features of the 409-DP, the 409-DPX offers an upgraded experience with increased length and height for superior comfort and ease of use.
- Double parking designs;
- Lifting capacity: 4000KG, max single car weight:2800kg;
- Support back-to-back installation;
- PEAK patented concealed safety lock control device with single-point manual release;
- Dual safety devices mechanisms: both primary safety locks and cable-slack protection;
- Easy access for various vehicles with the lowest drive-in height in the industry;
- Integrated non-skid diamond platforms;

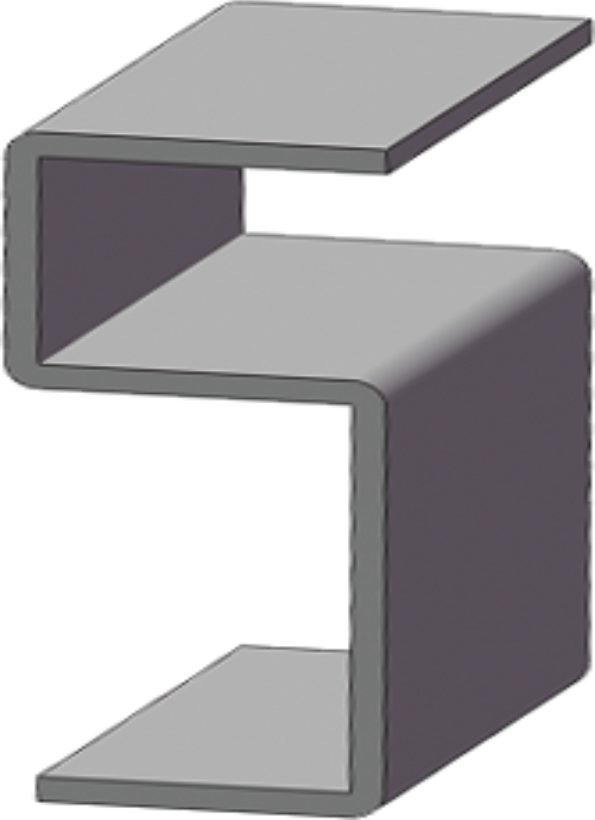

- Double-
shaped columns for enhanced strength; - Foldable drive-on ramps come standard;
- High quality hydraulic cylinder design and manufactured at high standard.
| Model 409-DPX | Double Parking 4 Post Lift | |
| Lifting Capacity | 4000kg (9,000lbs) | |
| Lifting Time | 57s | |
| Overall Length (Inc Ramps ) | A | 6061mm (238 5/8") |
| Outside Edge of Crossbeams | B | 5032mm (198 1/8") |
| Overall Width | C | 4840mm (190 9/16") |
| Width Between Columns | D | 4598mm (181") |
| Drive Through Width | E | 4314mm (169 13/16") |
| Overall Height | F | 2455mm (96 5/8") |
| Minimum Height | G | 150mm (5 15/16") |
| Lifting Height | H | 2232mm (87 7/8") |
| Max. Lock Height to Top of Runway | 2162mm (85 1/8"） | |
| Max. Height Underneath Runway | I | 2112mm (83 1/8") |
| Max. Lock Height Underneath Runway | 2042mm (80 3/8") | |
| Width Between Runways | J | 940mm (37") |
| Overall Width of Single Parking Unit | K | 1890mm (74 7/16") |
| Width Between Two Parking Units | L | 350mm (13 3/4") |
| Gross Weight | 1369kg (3,018lbs) | |
| Motor | 3.0HP | |
| QTY of Container | 8 Units / 20' GP |
-

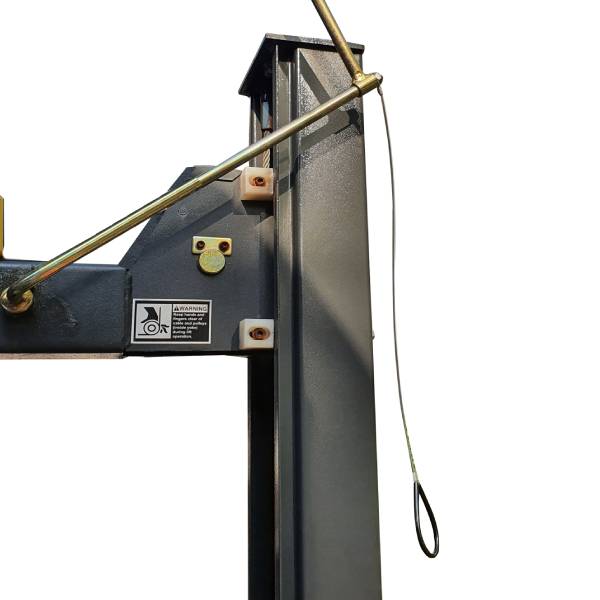

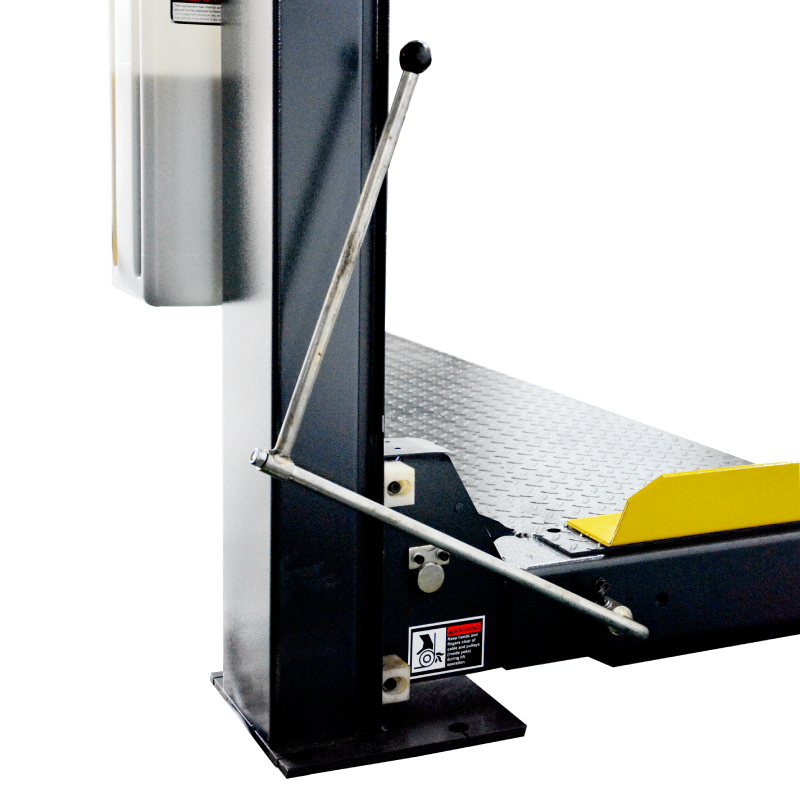

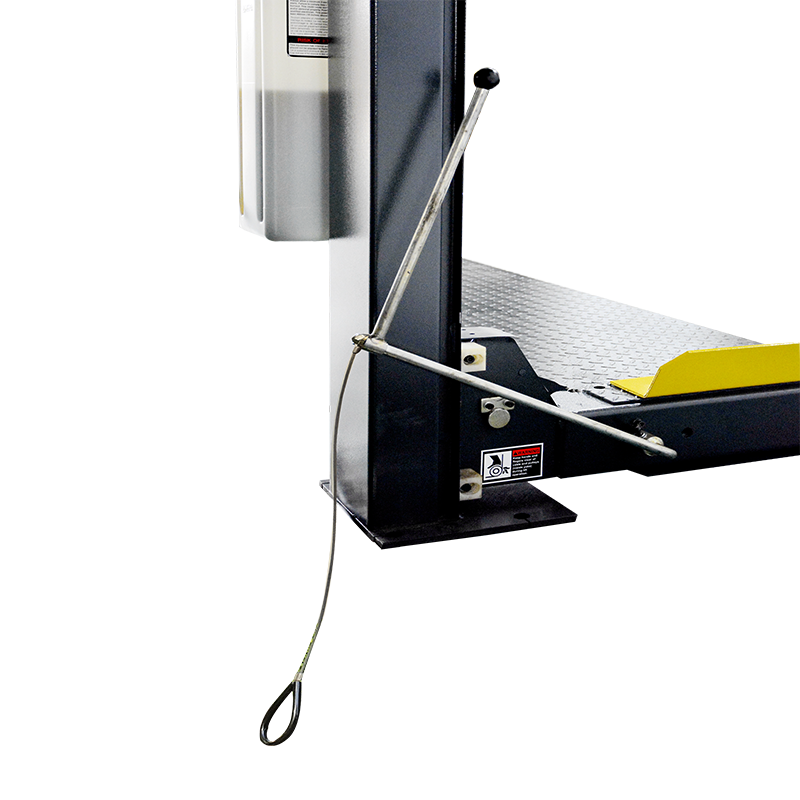

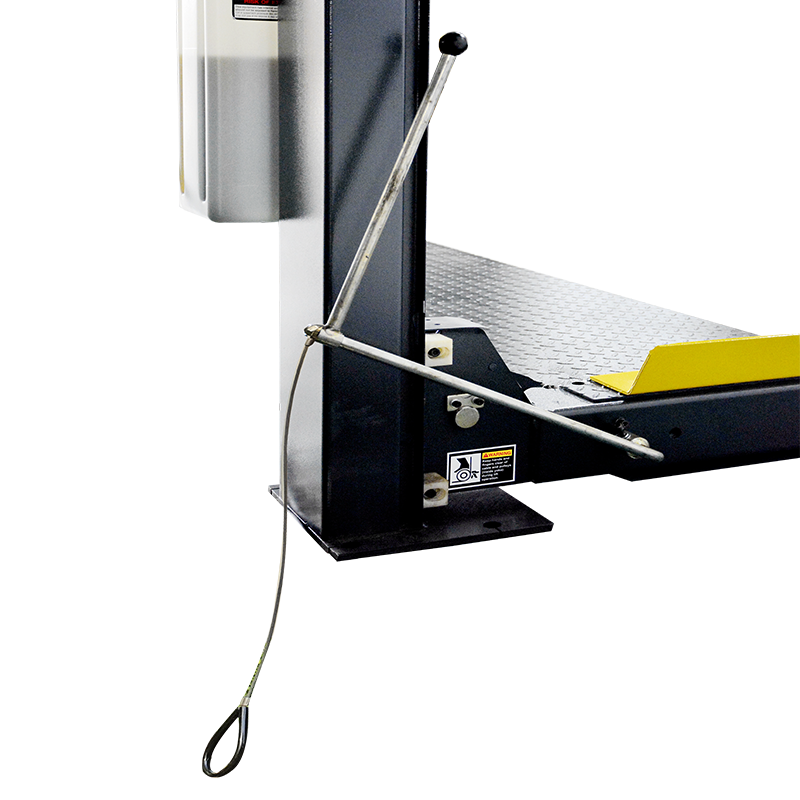

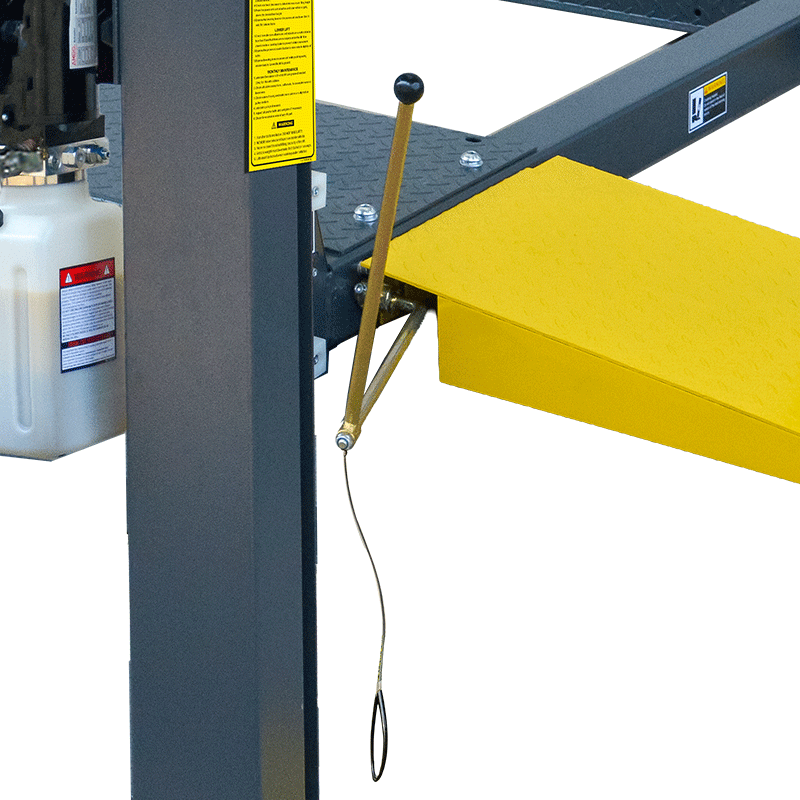

PEAK patented concealed safety lock control with single-point manual release.
-

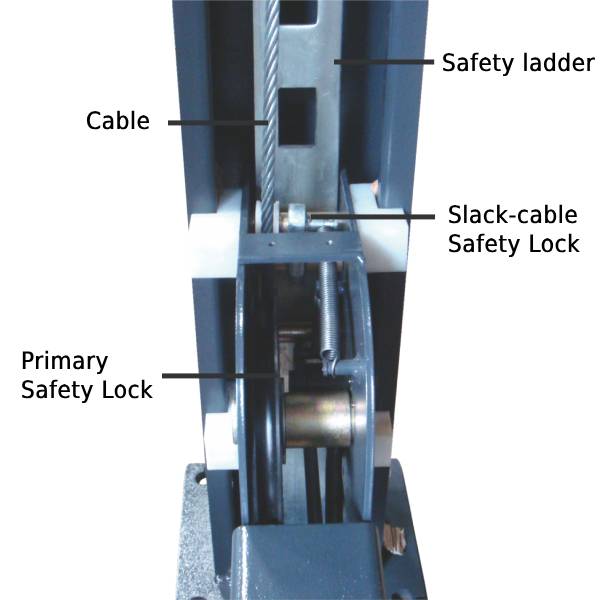

Double safety locks provide additional safety.
-

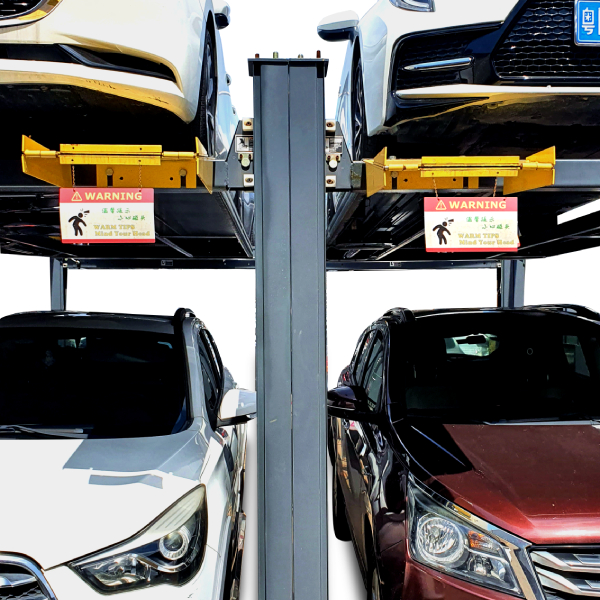

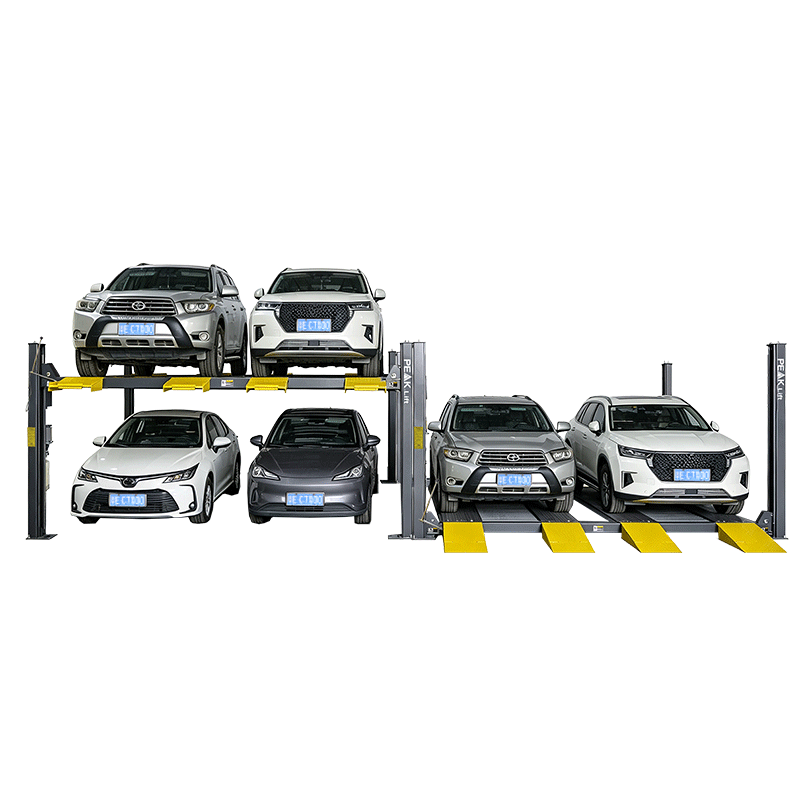

Special structure design to allow back-to-back installation.
-

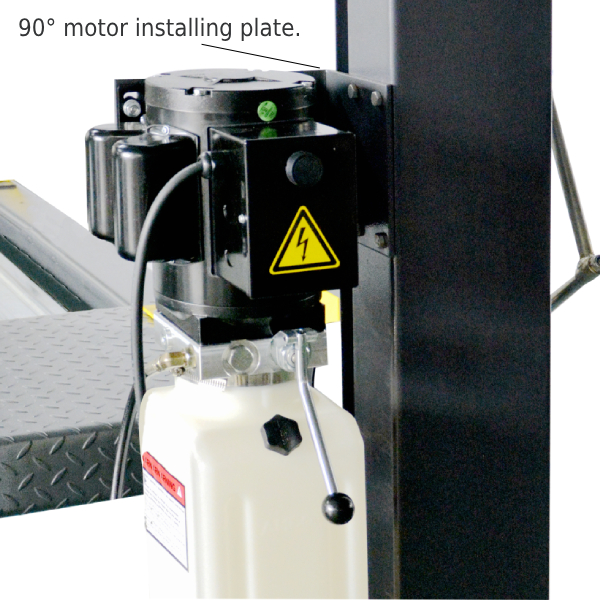

90° motor installing plate comes as standard.
-

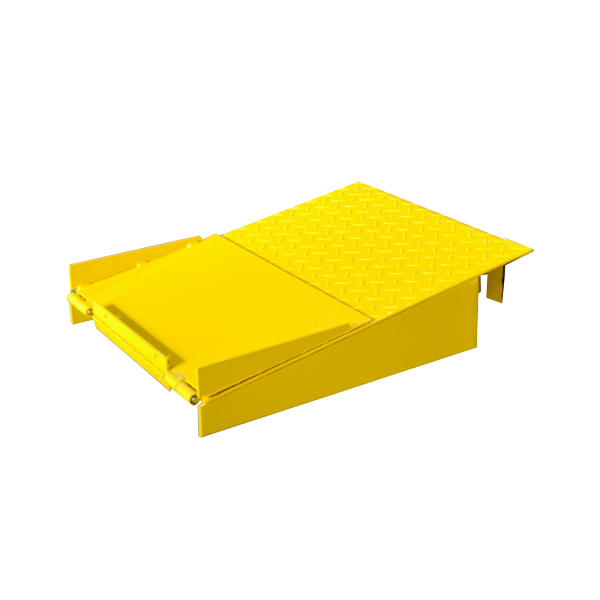

Foldable drive-on ramps (each lift 4 units).
-

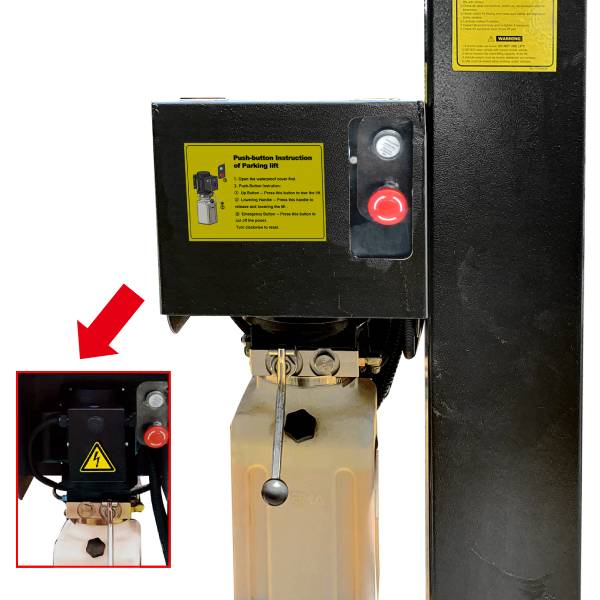

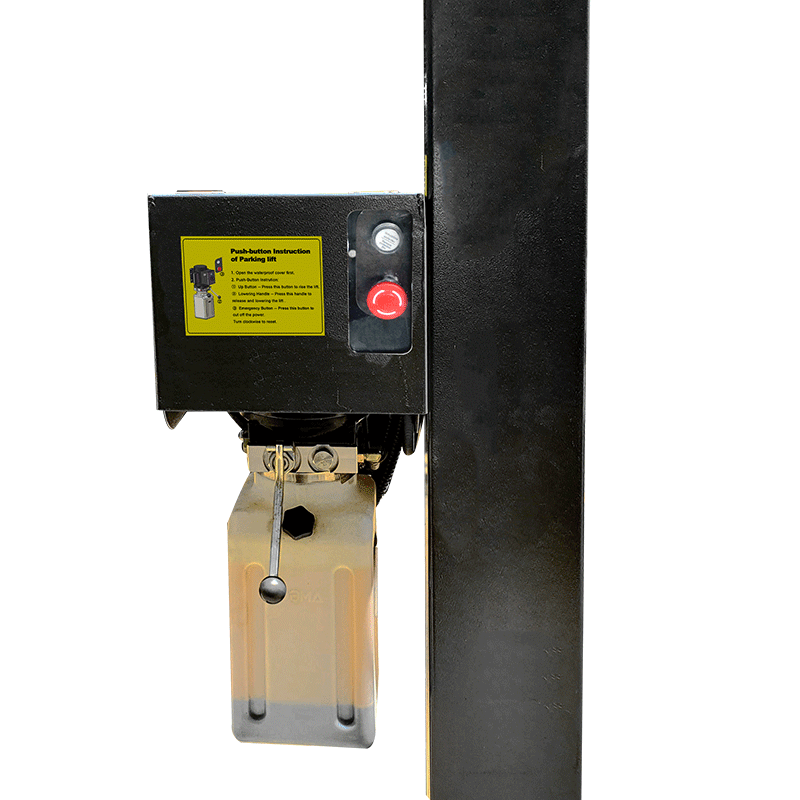

Optional motor protect cover (with emergency stop switch), Kits No.: 40810
-

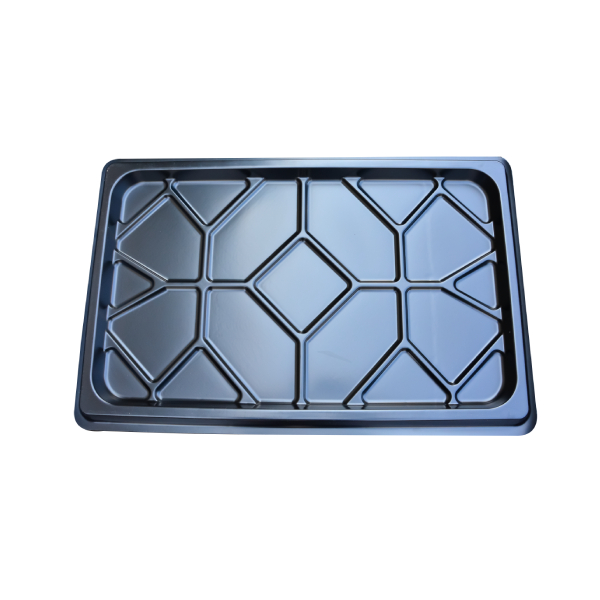

Optional plastic oil tray, 1 set 4pcs. Kits No.: 40806
-

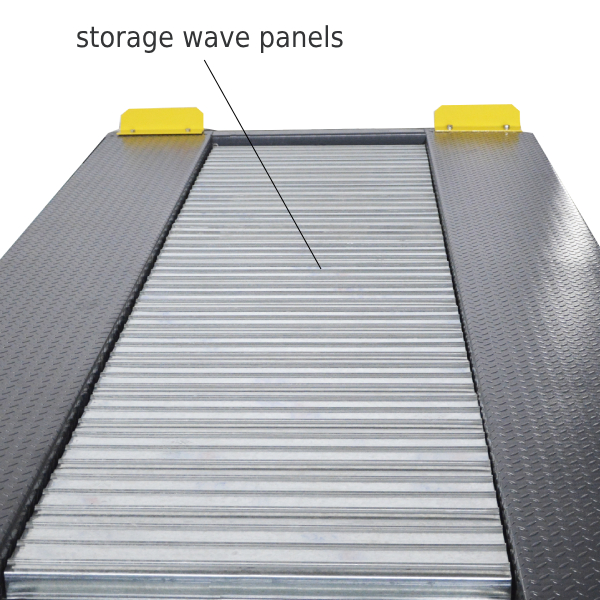

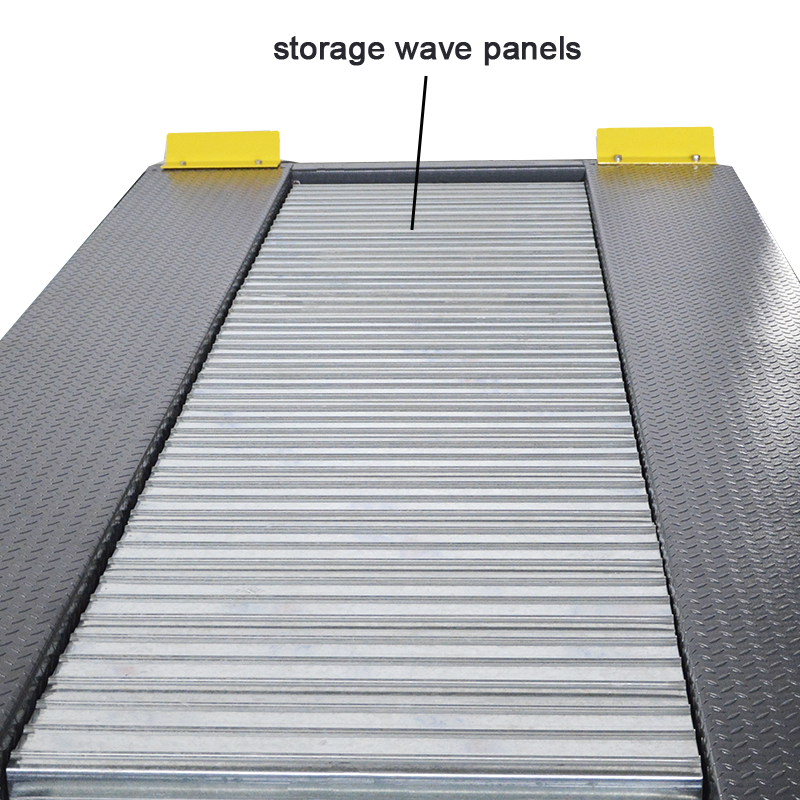

Optional storage wave panels Kits No.: 40812
-

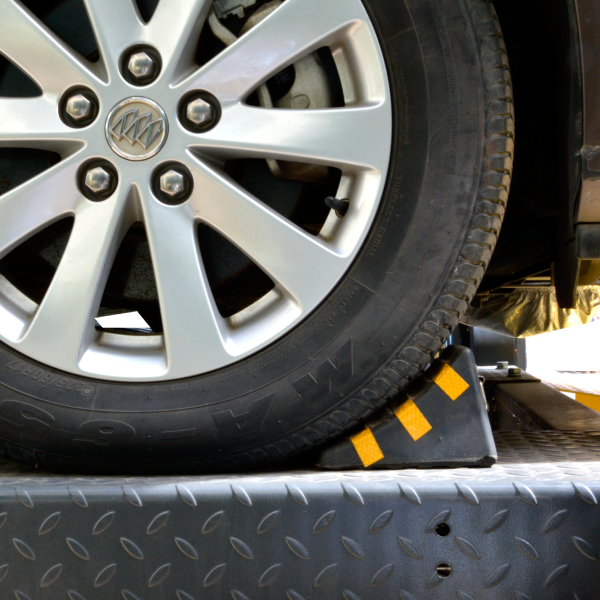

Optional rubber wheel chock
P/N: 40811 -

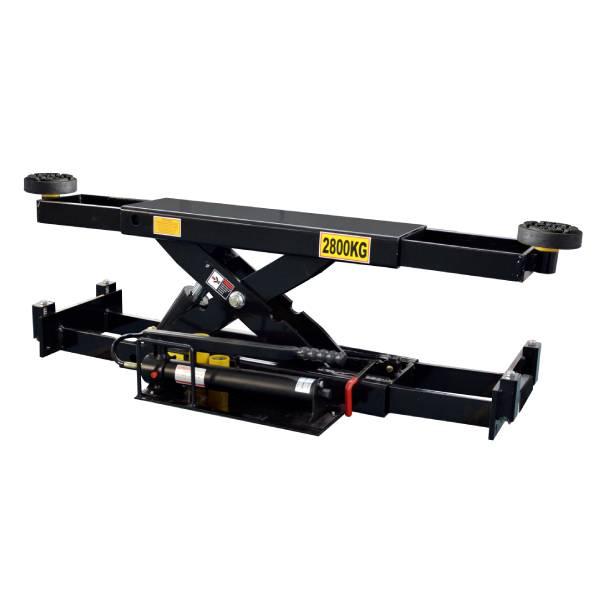

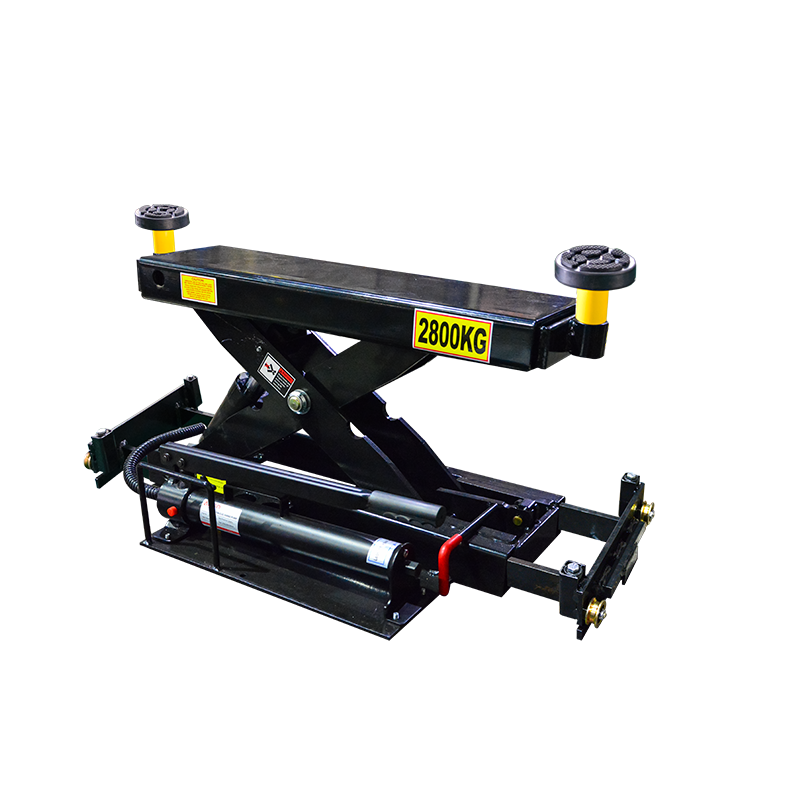

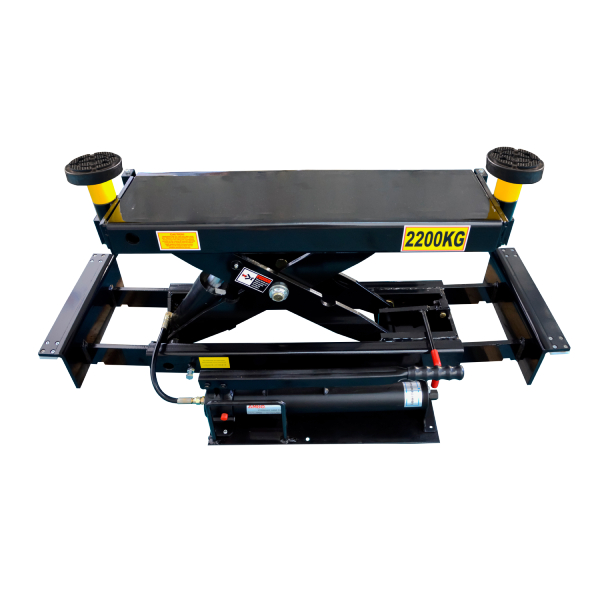

Optional J5H sliding jack with hand pump, 2.5" extension adapters included. Capacity 2200KG.
2 units as a package ( including parts box,without hydraulic power unit )
-

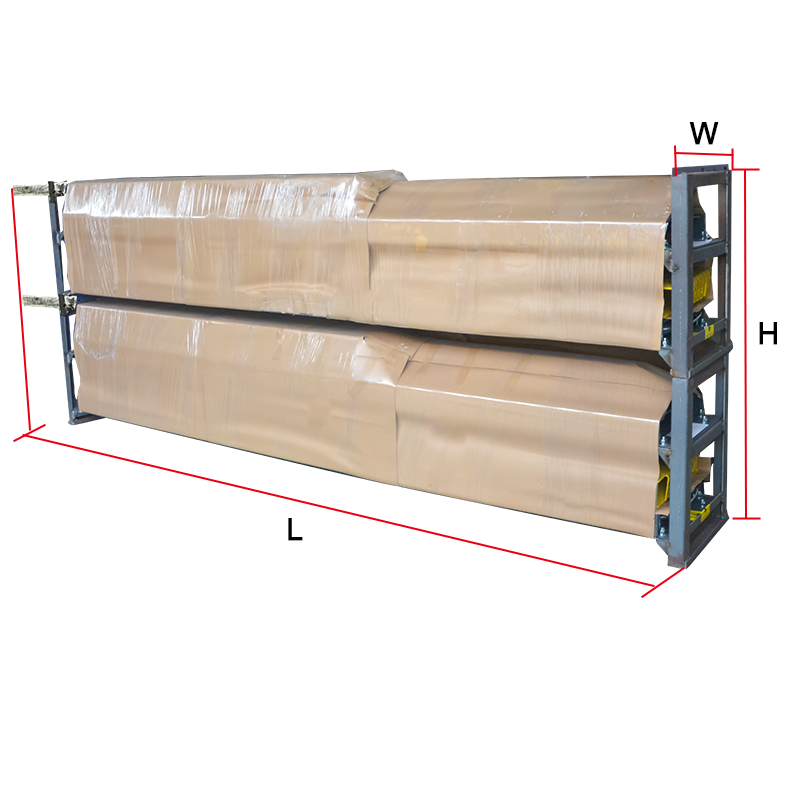

2 units/package, packing measurement (LxWxH): 5157x550x1630mm
-
1 unit/ctn, control cabinet packing measurement (LxWxH): 920x300x360mm
-
Attention to forklift loading and unloading.
