409-DP
Double Parking 4-Post Lift
Double Parking 4-Post Lift

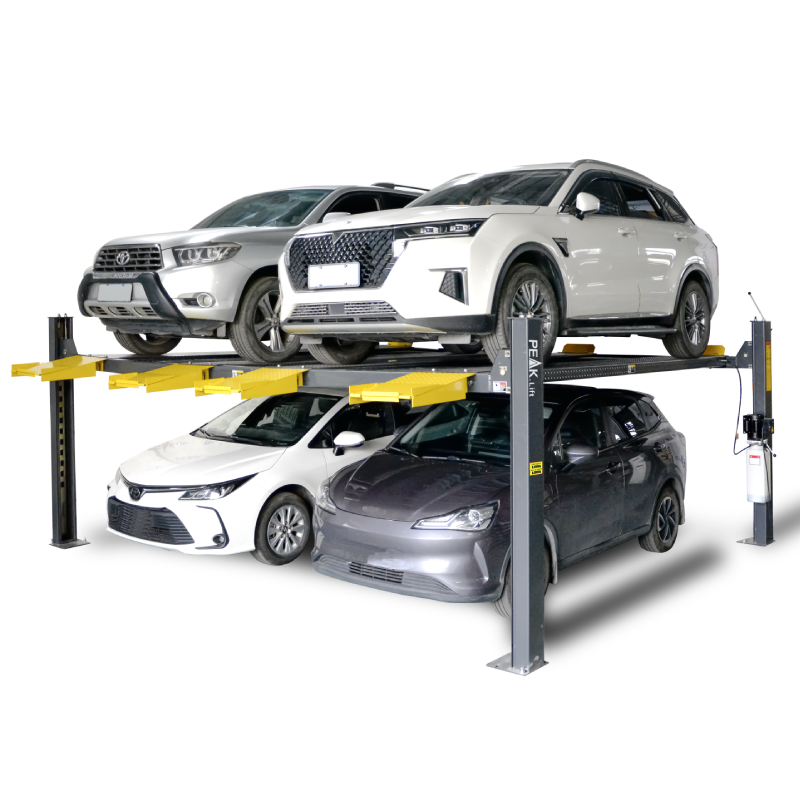

The space master 409-DP optimizes your space efficiency by accommodating four vehicles in a single unit. It features both primary mechanical locks and cable-slack safety lock, as well as patented concealed lock control mechanism for enhanced safety and operational convenience.
- Double parking designs;
- Lifting capacity: 4000KG, max single car weight:2800kg;
- Support back-to-back installation;
- PEAK patented concealed safety lock control device with single-point manual release;
- Dual safety devices mechanisms: both primary safety locks and cable-slack protection;
- Easy access for various vehicles with the lowest drive-in height in the industry;
- Integrated non-skid diamond platforms;

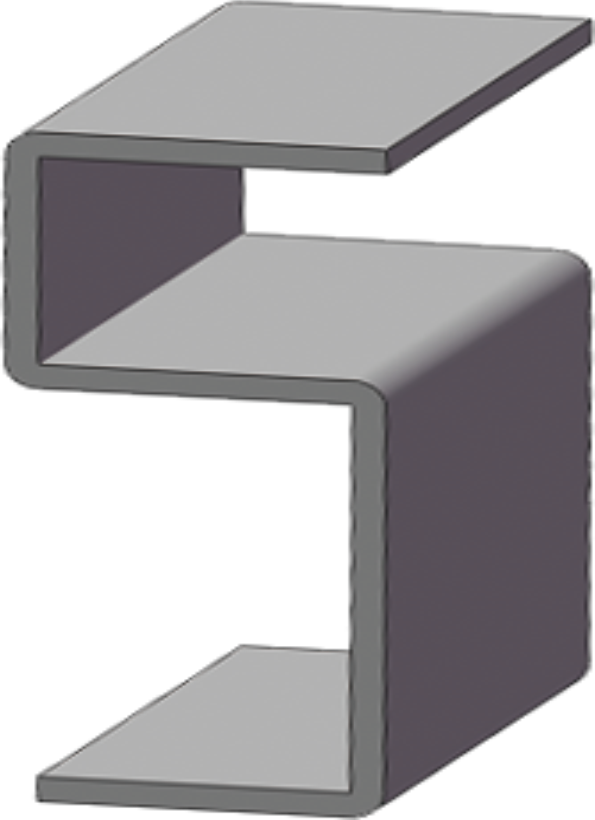

- Double-
shaped columns for enhanced strength; - Foldable drive-on ramps come standard;
- High quality hydraulic cylinder design and manufactured at high standard.
| Model 409-DP | Double Parking 4 Post Lift | |
| Lifting Capacity | 4000kg (9,000lbs) | |
| Lifting Time | 47s | |
| Overall Length (Inc Ramps ) | A | 5281mm(207 15/16") |
| Overall Length (No Ramps) | B | 4252mm (167 3/8") |
| Overall Width | C | 4840mm (190 9/16") |
| Width Between Columns | D | 4598mm (181") |
| Drive Through Width | E | 4314mm(169 13/16") |
| Overall Height | F | 2105mm (82 7/8") |
| Minimum Height | G | 145mm (5 11/16") |
| Lifting Height | H | 1860mm (73 1/4") |
| Max. Lock Height to Top of Runway | 1790mm （70 1/2"） | |
| Max. Height Underneath Runway | I | 1760mm (69 5/16") |
| Max. Lock Height Underneath Runway | 1690mm (66 9/16") | |
| Width Between Runways | J | 940mm (37") |
| Overall Width of Single Parking Unit | K | 1890mm (74 7/16") |
| Width Between Two Parking Units | L | 350mm (13 3/4") |
| Gross Weight | 1328kg (2,928lbs) | |
| Motor | 2.0HP/3.0HP,220V Single Phase |
-

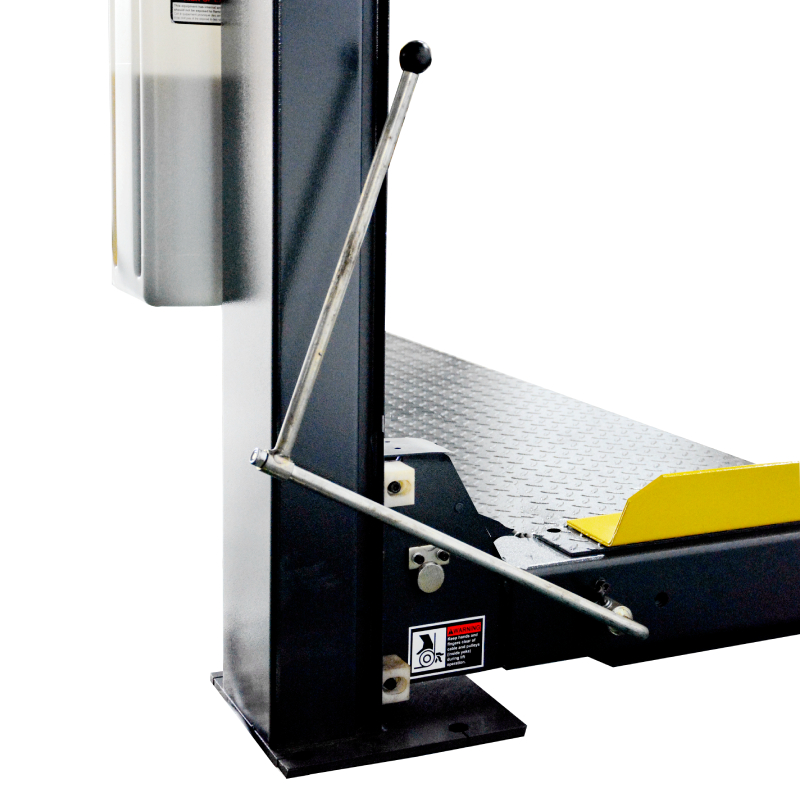

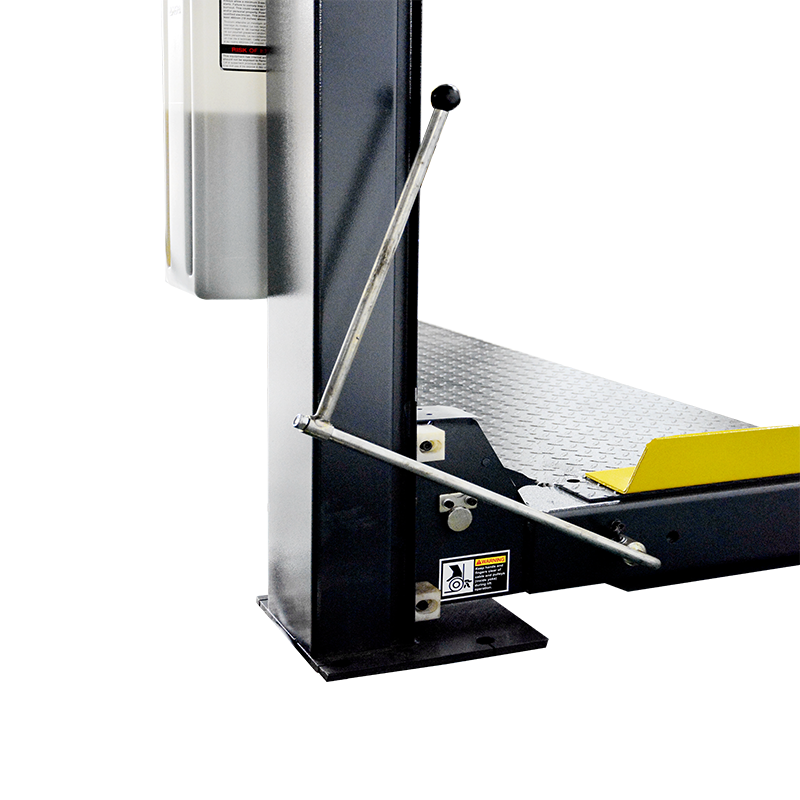

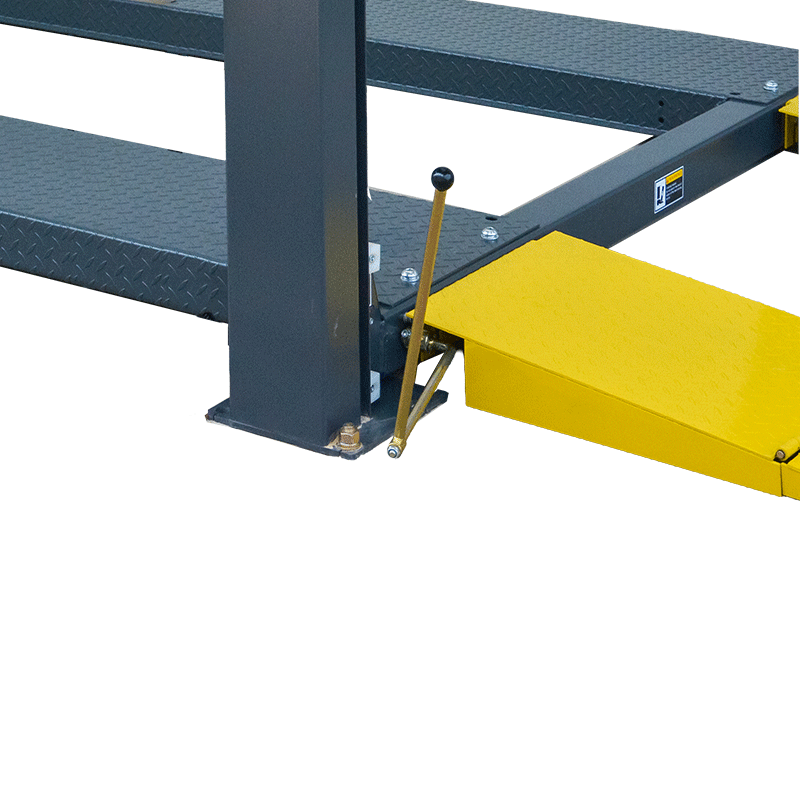

Hidden locking and manual single-point safety release.
-

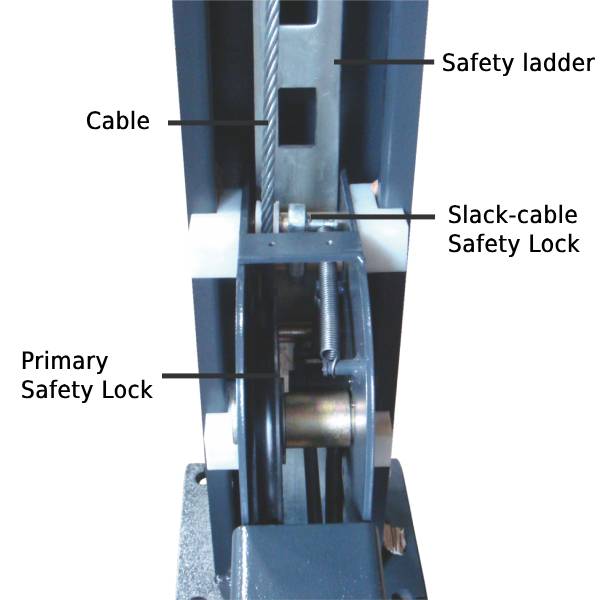

Double safety locks provide additional safety.
-

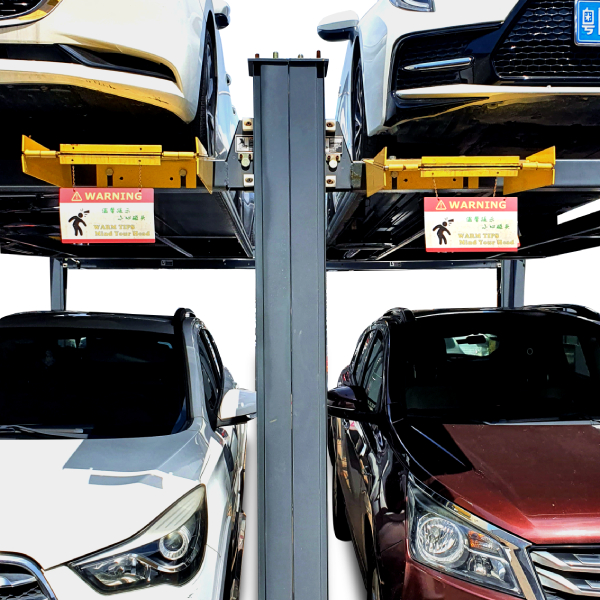

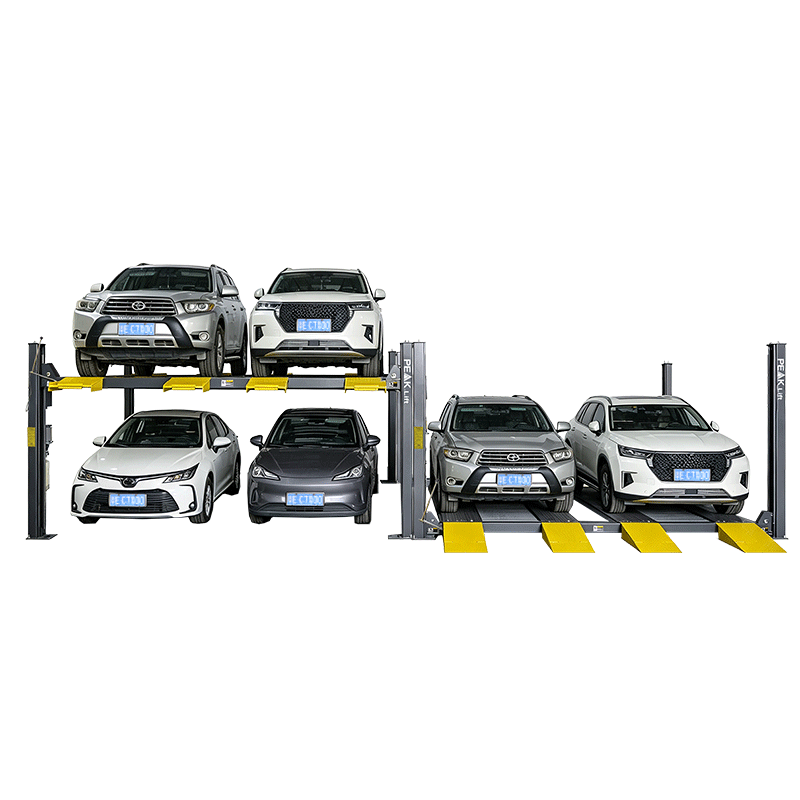

Special structure design to allow back-to-back installation.
-

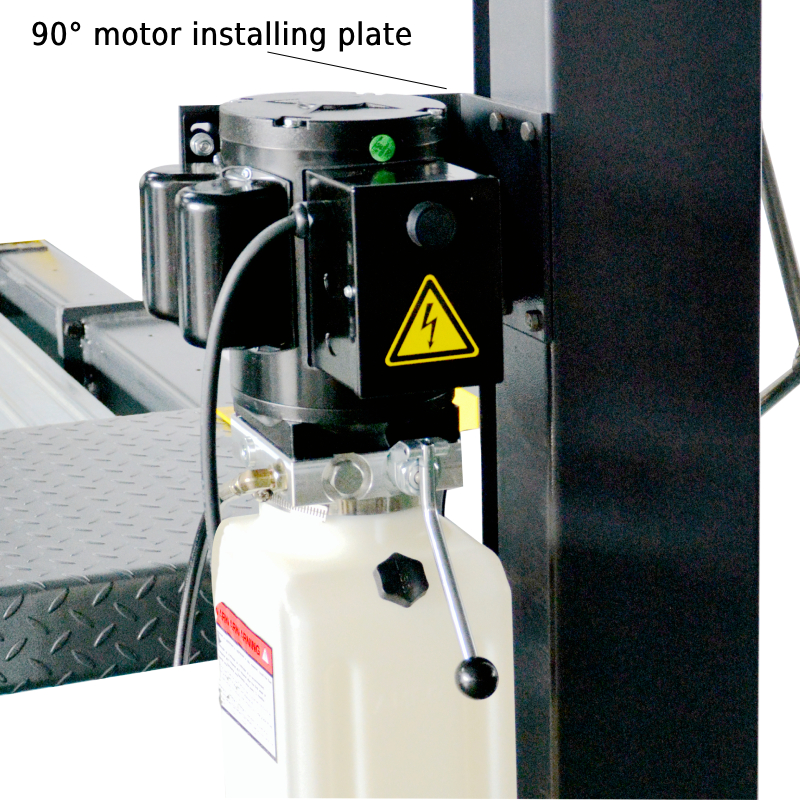

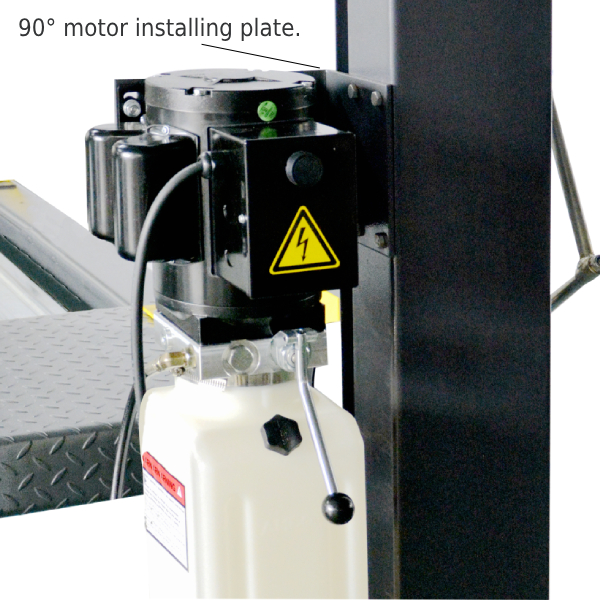

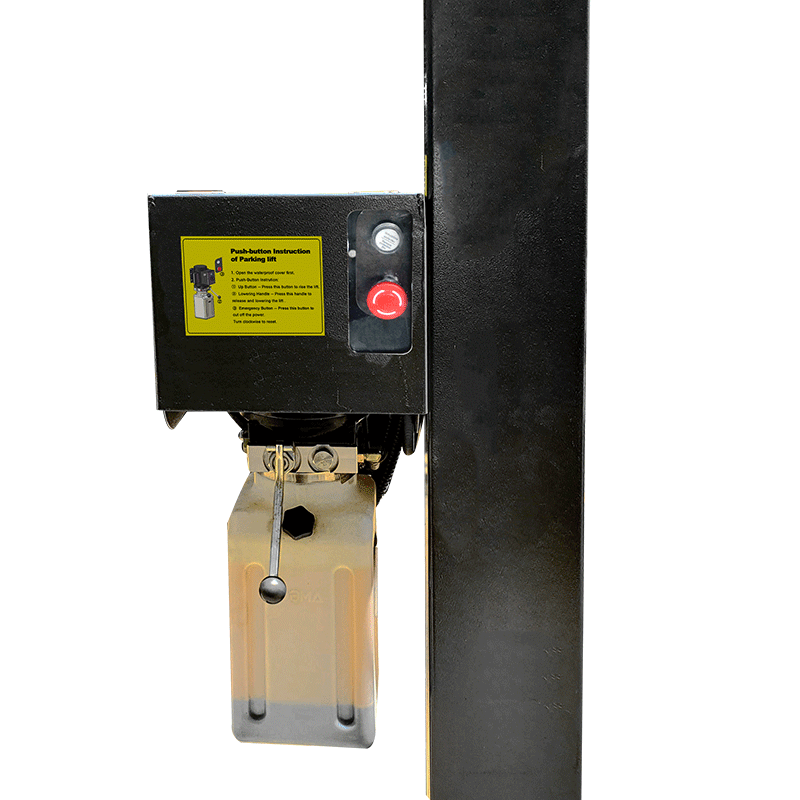

90° motor installing plate.
-

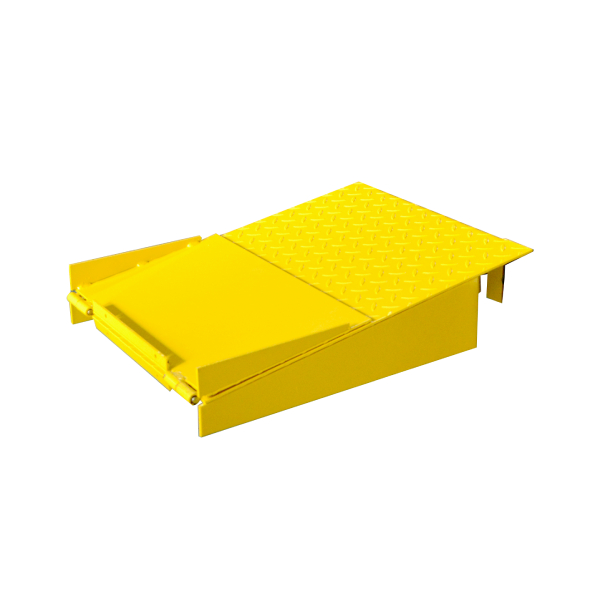

Foldable drive-on ramps (each lift 4 units).
-

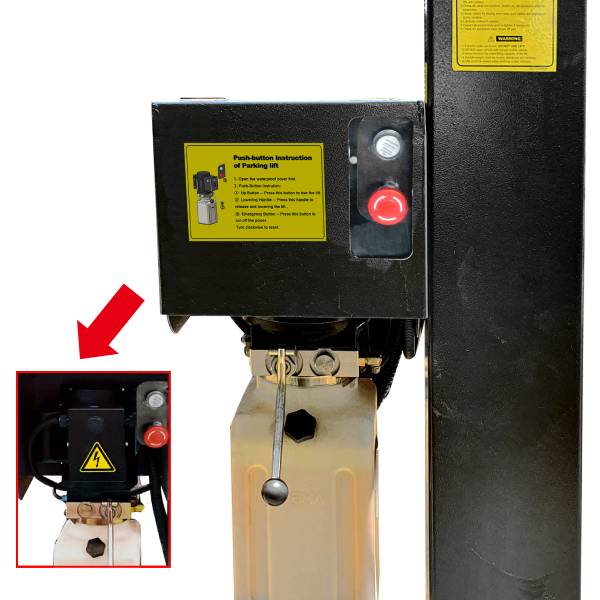

Optional Motor protect cover for outdoor installation
Kits No.: 40810
with emergency stop switch. -

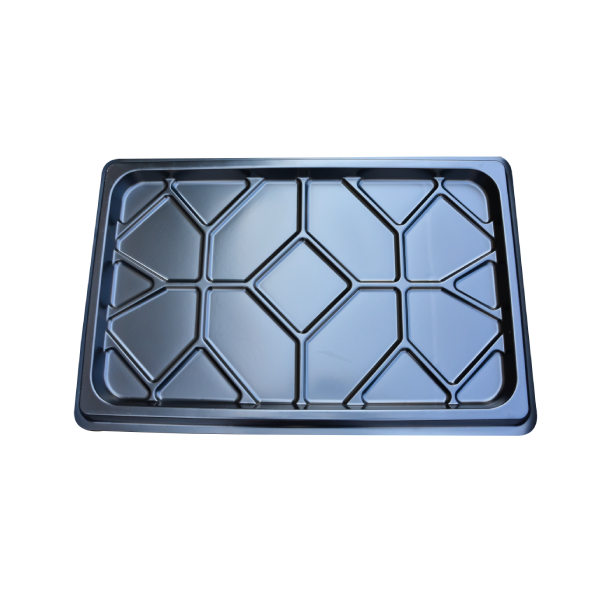

Optional plastic oil tray
Kits No.: 40806, 1 set 4pcs. -

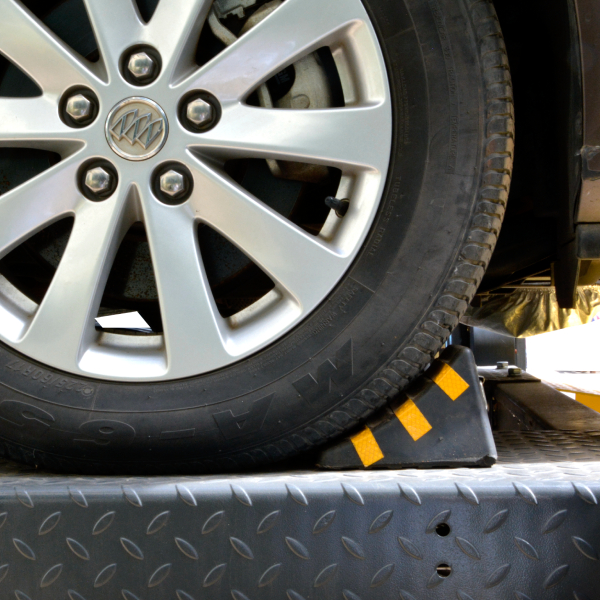

Optional rubber wheel chock
P/N: 40811. -

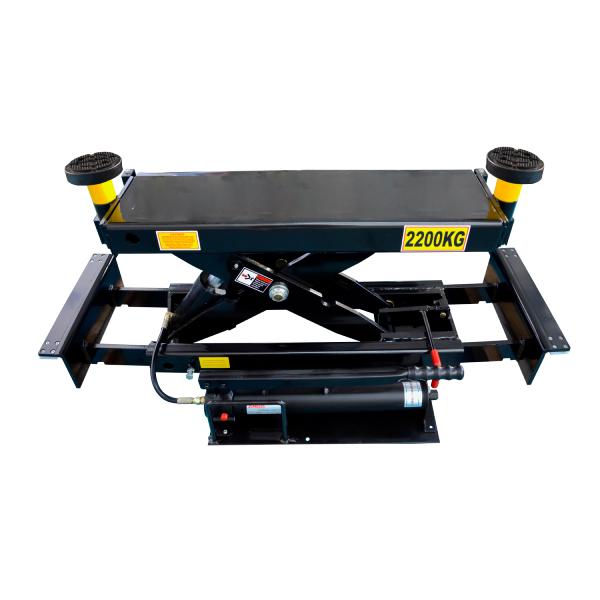

Optional J5H sliding jack with hand pump, 2.5" extension adapters included. Capacity 2200KG.
-
Optional Storage wave panels
Kit No.: 40812
2 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 409-DP: 1328kgs , include power unit gross weight 25kgs.
- 20' container can load 8 units.
- 40' container can load 16 units.
-

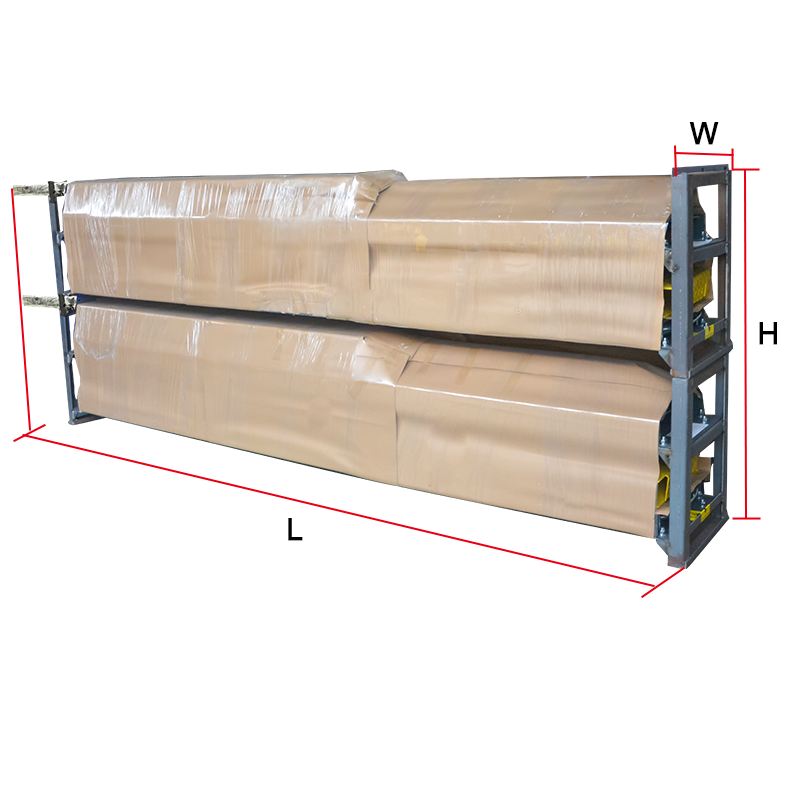

2 units/package,packing measurement (LxWxH): 4882x550x1890mm
-
1 unit/ctn, control cabinet packing measurement (LxWxH): 920x300x360mm
-

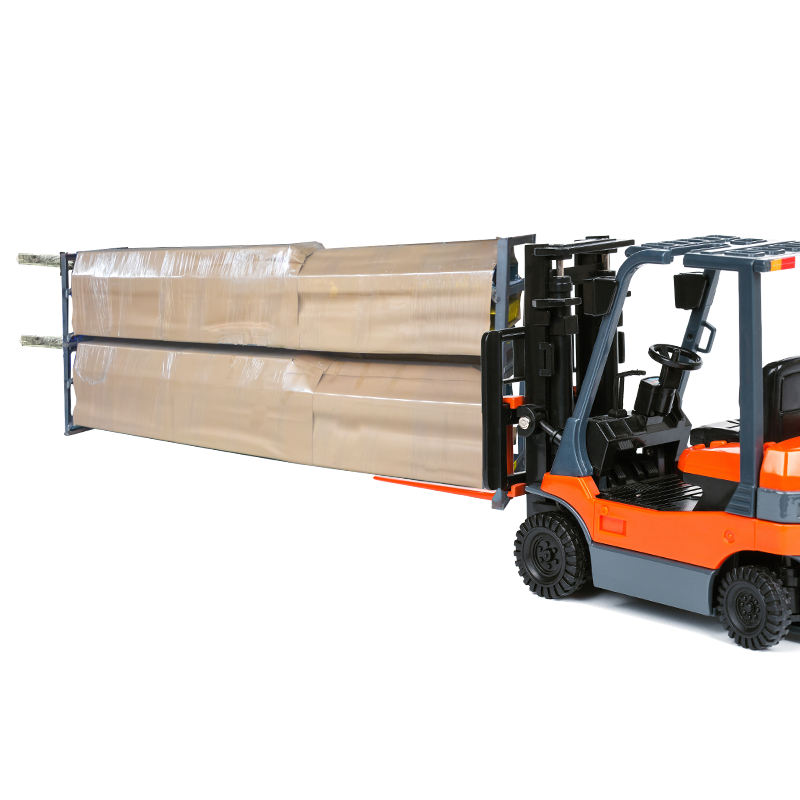

Attention to forklift loading and unloading.
