Double-Joints Arm Kits
Double-Joints Arm Kits
The excellent optional kits for the PEAK two-post lift provide the lowest pad height in the industry, ensuring easy arm access and positioning for even low-clearance vehicles.
| Double-joints Bionic Arm Kits | ||||
| Compatiable Model | Kits No. | QTY | Note | |
| 208, 208C, 209 | 20908A | 2 |  |
|
| 20908B | 2 | |||
|
209C, 209CH, 210C, 210CX, 210CHX, 209X, BP10000X, 211CX |
21006A | 2 | ||
| 21006B | 2 | |||
|
209SAC, 209SACH, SP10, 210SAC |
20909A | 1 | For Front Arm |

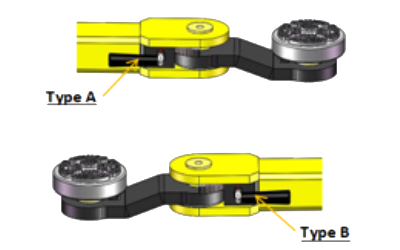

Type A, the lock release handle is on the right side of arm;
Type B, the lock release handle is on the left side of arm. As shown above picture.
Note: The drop-in rubber pad assy is included as standard. |
| 20909B | 1 | For Front Arm | ||
| 20911A | 1 | For Rear Arm | ||
| 20911B | 1 | For Rear Arm | ||
-

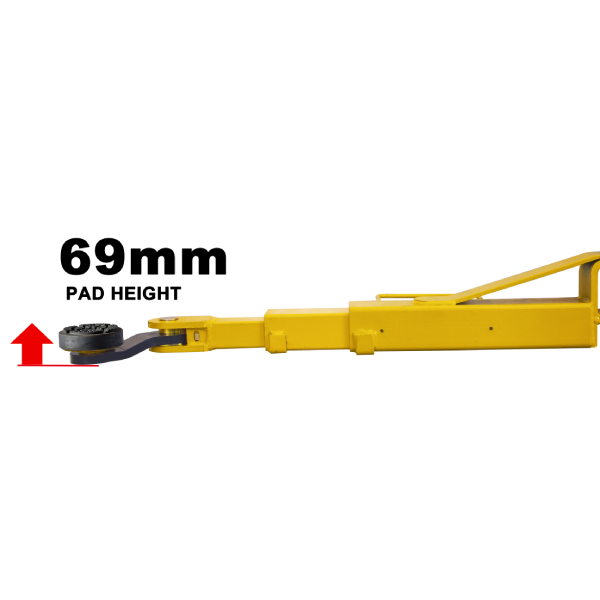

Lowest pad height in the industry.
-
Easy access & comfortable arm positioning.
