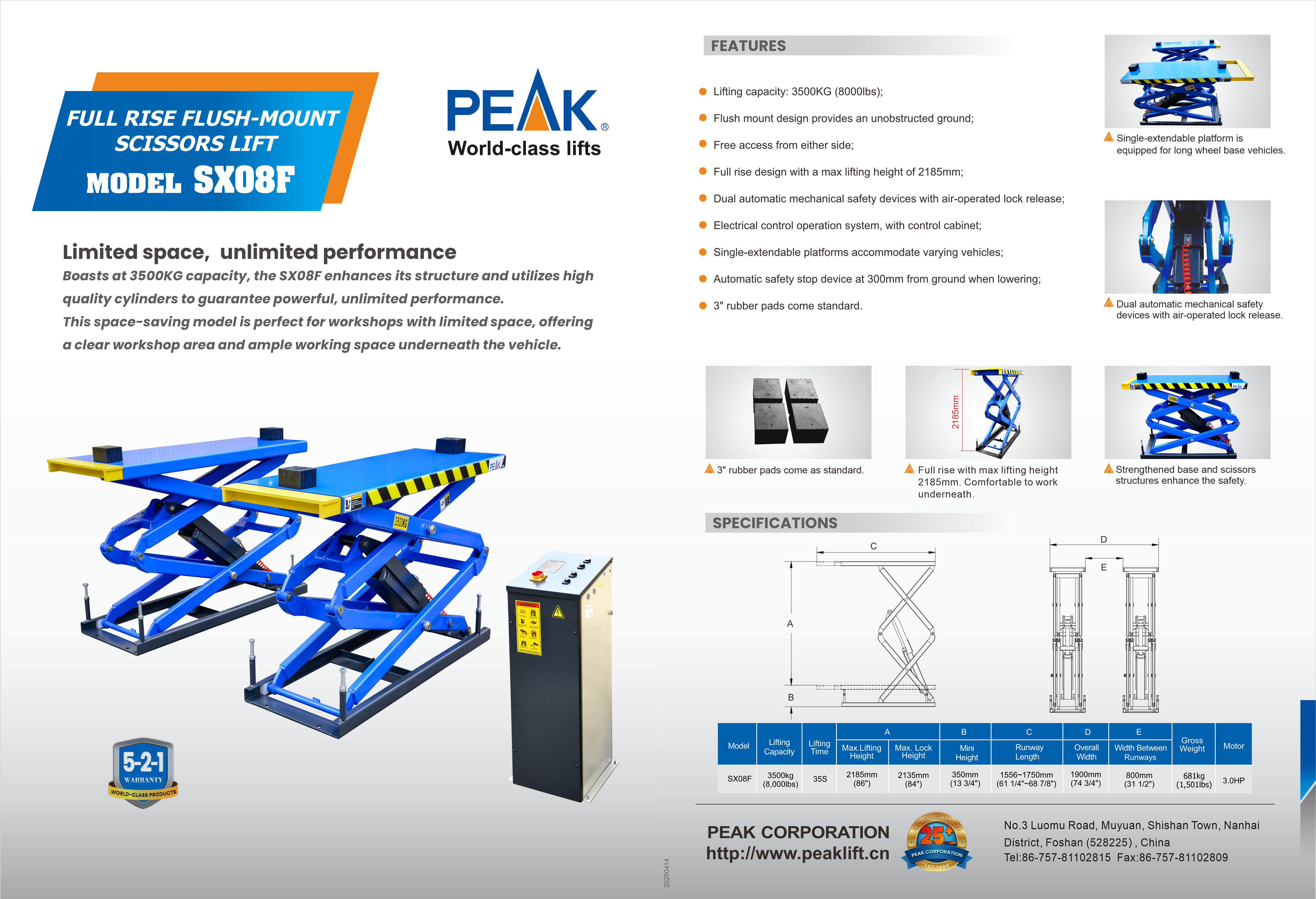

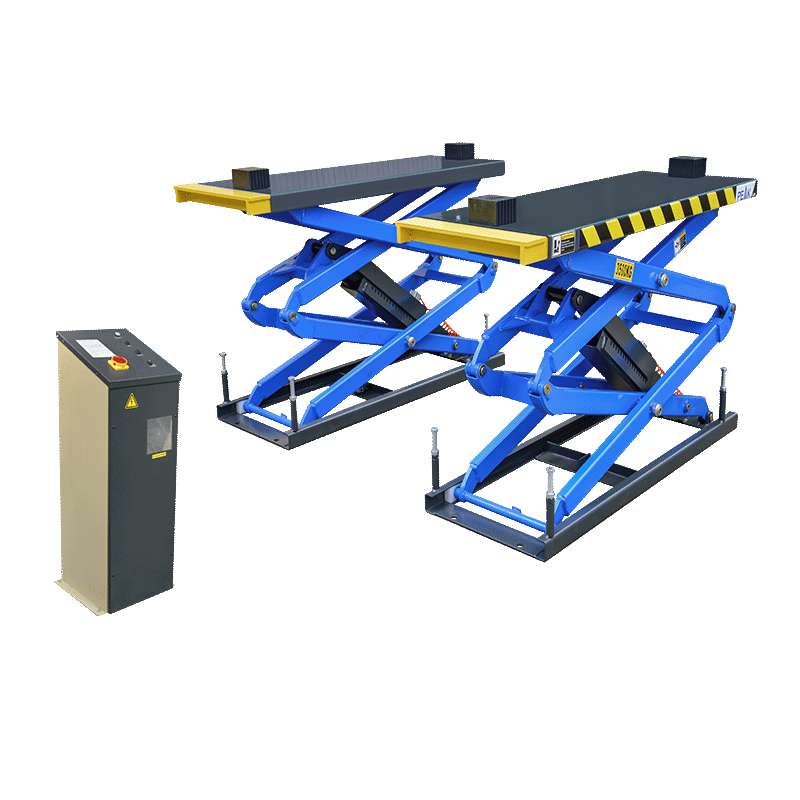

SX08F

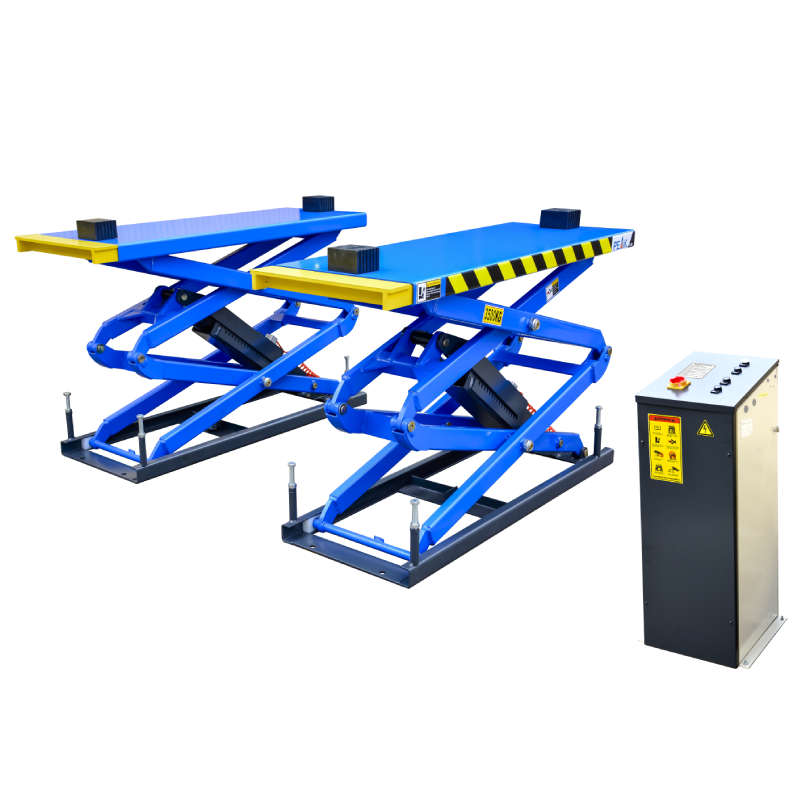

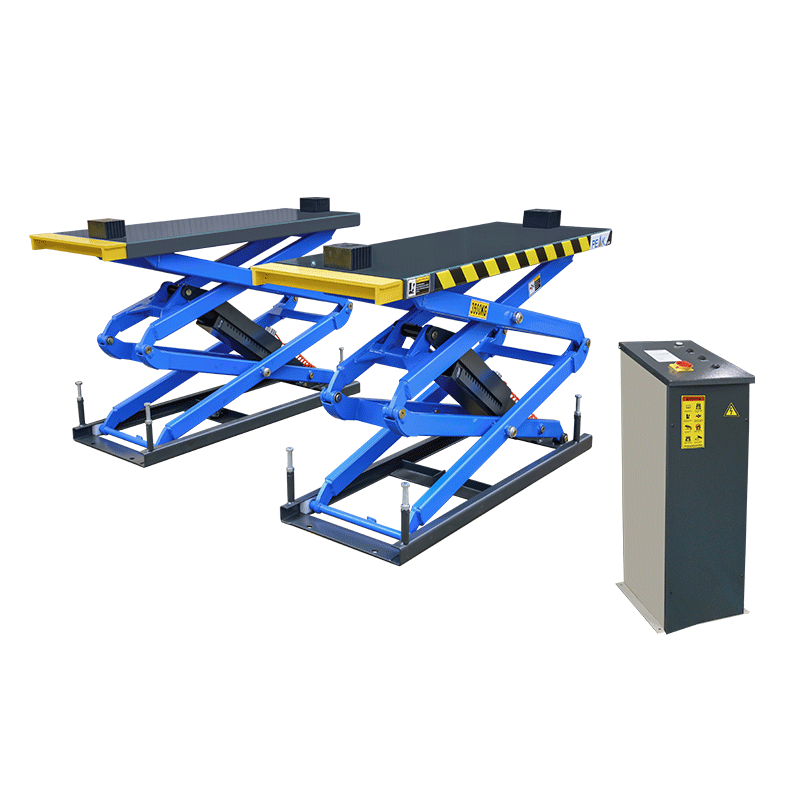

Full Rise Flush-mount Scissors Lift
Limited space,unlimited performance
Boasts at 3500KG capacity, the SX08F enhances its structure and utilizes high quality cylinders to guarantee powerful, unlimited performance. This space-saving model is perfect for workshops with limited space,offering a clear workshop area and ample working space underneath the vehicle.
- Lifting capacity: 3500KG (8000lbs);
- Flush mount design provides an unobstructed ground;
- Free access from either side;
- Full rise design with a max lifting height of 2185mm;
- Dual automatic mechanical safety devices with air-operated lock release;
- Electrical control operation system, with control cabinet;
- Single-extendable platforms accommodate varying vehicles;
- Automatic safety stop device at 300mm from ground when lowering;
- 3” rubber pads come standard.
| Model | SX08F | |
| Lifting Capacity | 3500kg (8,000lbs) | |
| Lifting Time | 35s | |
| Max. Lifting Height | A | 2185mm (86") |
| Max. Lock Height | 2135mm (84") | |
| Minimum Height | B | 350mm (13 3/4") |
| Runway Length | C | 1556-1750mm (61 1/4" - 68 7/8") |
| Overall Width | D | 1900mm (74 3/4") |
| Width Between Runways | E | 800mm (31 1/2") |
| Gross Weight | 681kg (1,501lbs) | |
| Motor | 3.0HP | |
| QTY of Container | 20 Units/20'GP | |
| Packing Dimension | 1680 x 550 x 854mm |
-

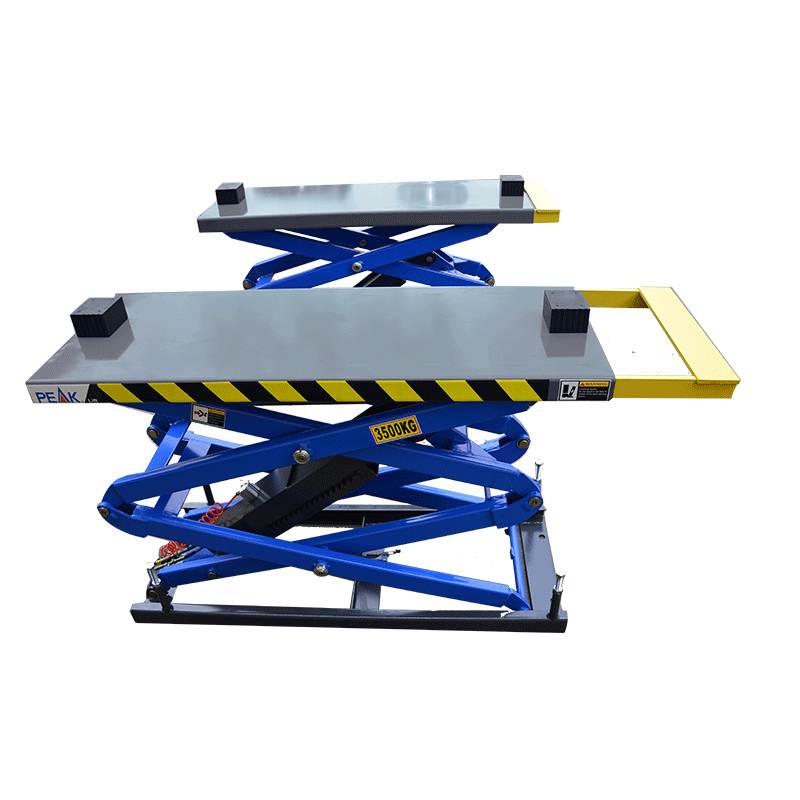

Single-extendable platform is equipped for long wheel base vehicles.
-

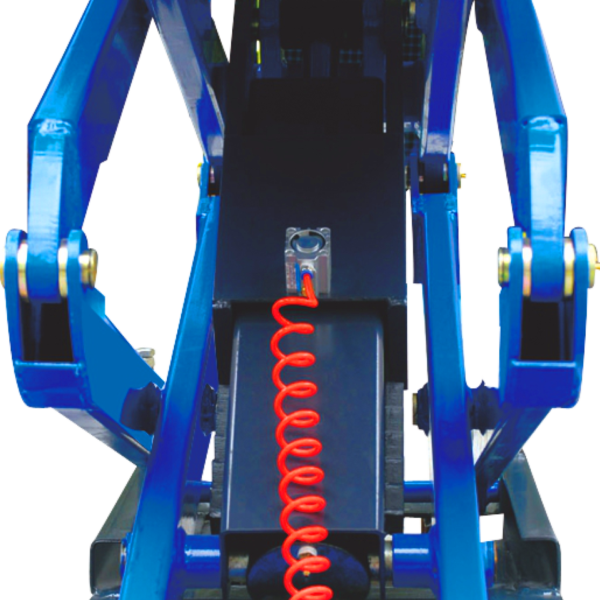

Dual automatic mechanical safety devices with air-operated lock release.
-

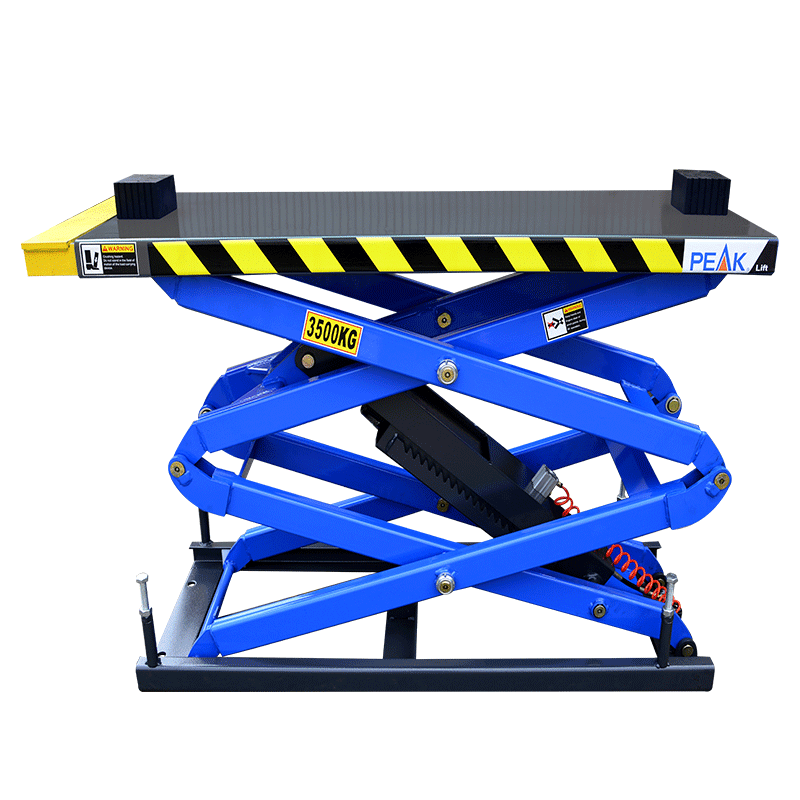

Strengthened base and scissors structures enhance the safety.
-

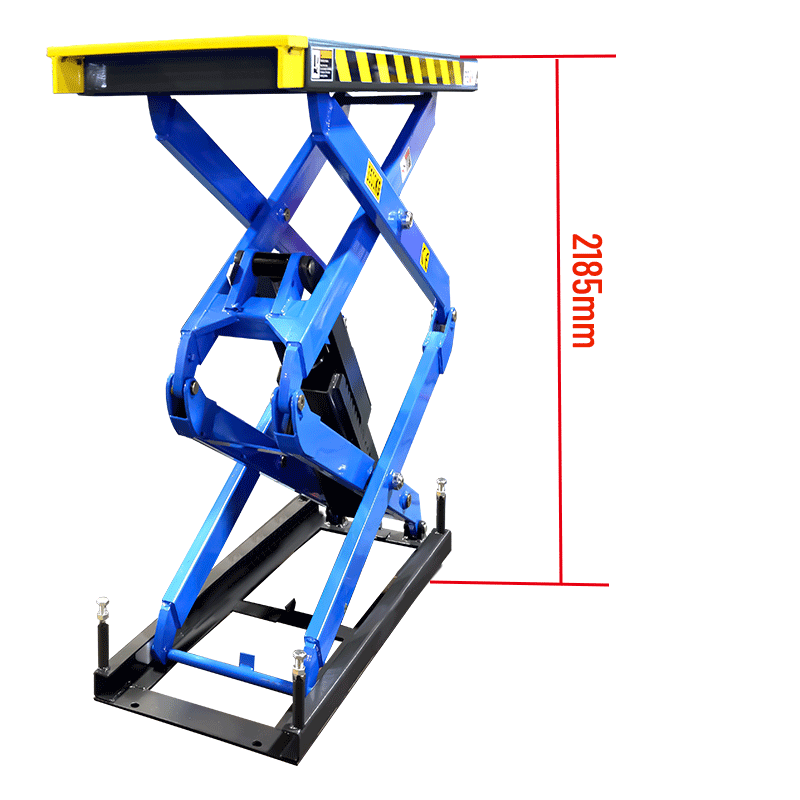

Full rise with max lifting height 2185mm. Comfortable to work underneath.
-

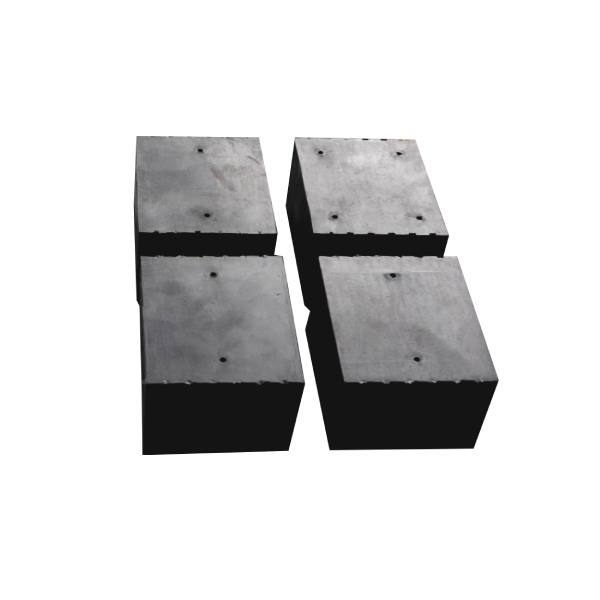

3" rubber pads come as standard.
-

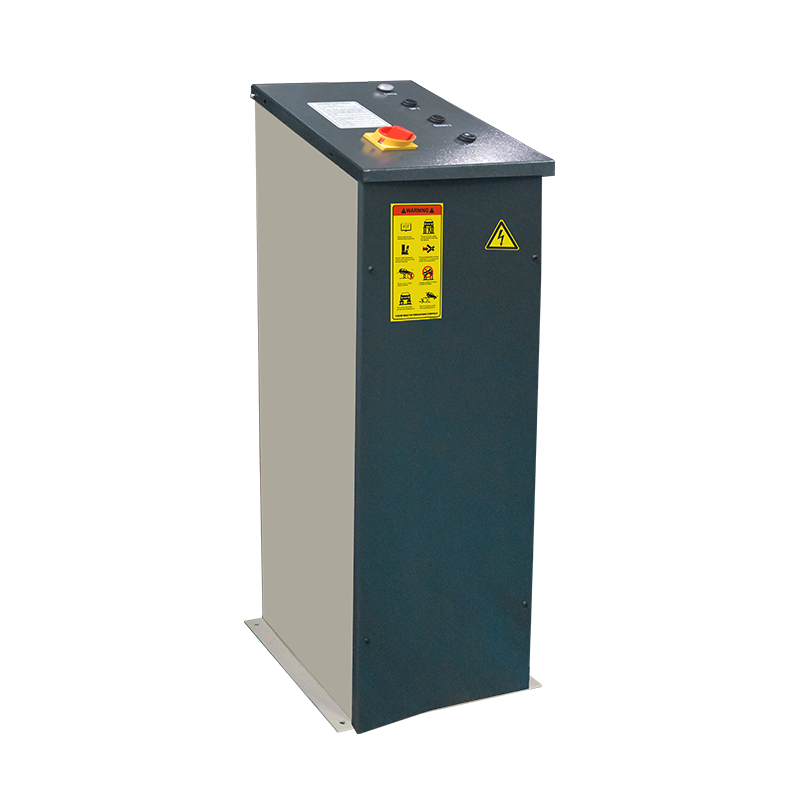

Control cabinet can be installed on the left or right side.
2 units as a package ( including parts box,without control cabinet)
- Gross weight for SX08F: 681kgs , include control cabinet gross weight 75kgs.
- 20' container can load 20 units.
-

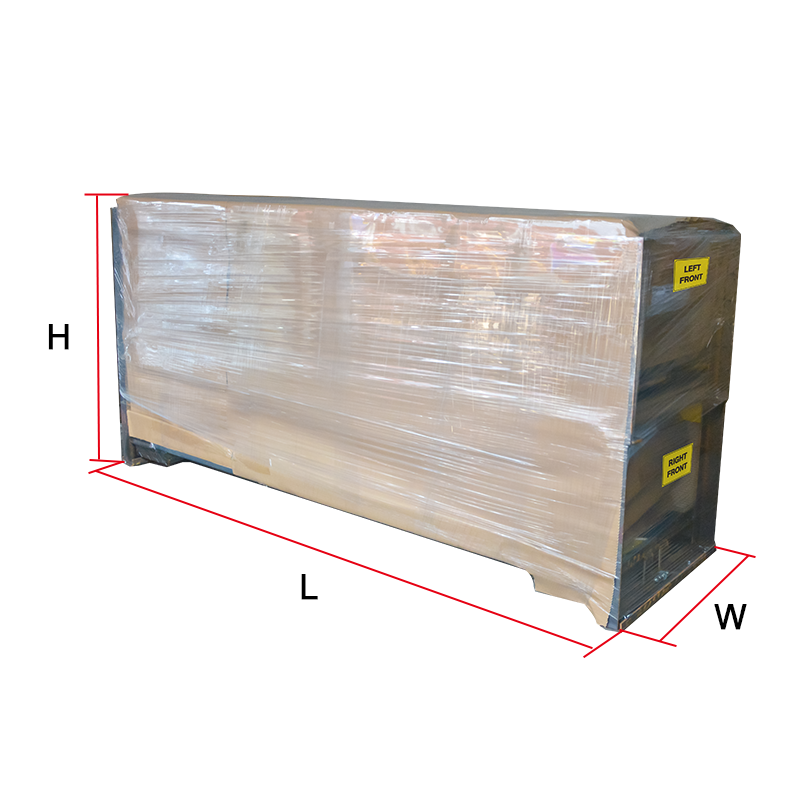

1 units/package,packing measurement (LxWxH): 1680x550x854mm
-

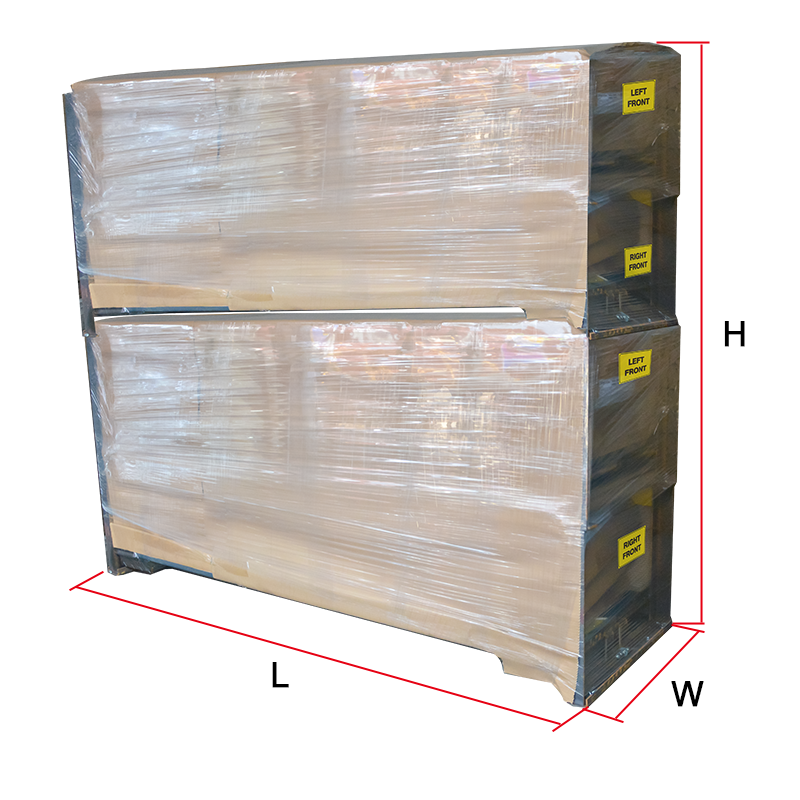

2 units/package, packing measurement (LxWxH): 1680x550x1708mm
-

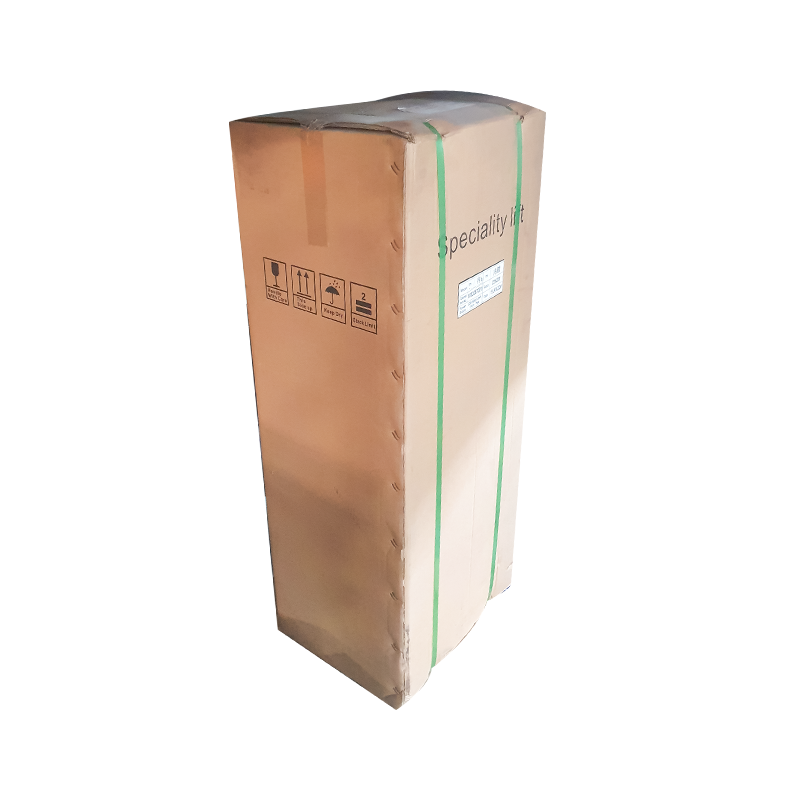

1 unit/ctn,control cabinet packing measurement (LxWxH): 478x428x1250mm
-
Attention to forklift loading and unloading
