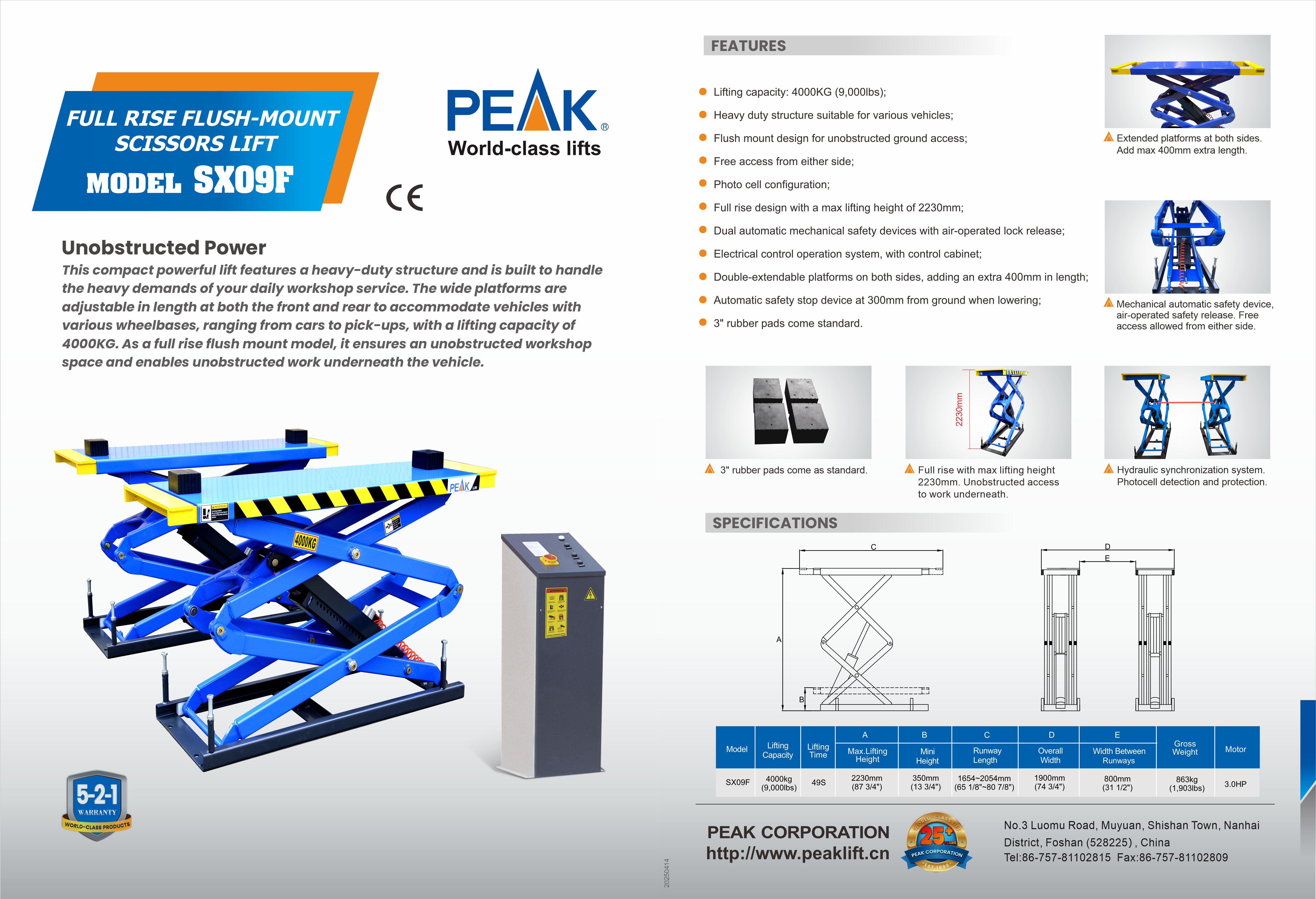

SX09F
Full Rise Flush-mount Scissors Lift
Unobstructed Power
This compact powerful lift features a heavy-duty structure and is built to handle the heavy demands of your daily workshop service. The wide platforms are adjustable in length at both the front and rear to accommodate vehicles with various wheelbases, ranging from cars to pick-ups, with a lifting capacity of 4000KG. As a full rise flush mount model, it ensures an unobstructed workshop space and enables unobstructed work underneath the vehicle.
- Lifting capacity: 4000KG (9000lbs);
- Heavy duty structure suitable for various vehicles;
- Flush mount design for unobstructed ground access;
- Free access from either side;
- Photo cell configuration;
- Full rise design with a max lifting height of 2230mm;
- Dual automatic mechanical safety devices with air-operated lock release;
- Electrical control operation system, with control cabinet;
- Double-extendable platforms on both sides, adding an extra 400mm in length;
- Automatic safety stop device at 300mm from ground when lowering;
- 3” rubber pads come standard.
| Model | SX09F | |
| Lifting Capacity | 4000kg (9,000lbs) | |
| Lifting Time | 49s | |
| Max. Lifting Height | A | 2230mm (87 3/4") |
| Minimum Height | B | 350mm (13 3/4") |
| Runway Length | C | 1654-2054mm (65 1/8" - 80 7/8") |
| Overall Width | D | 1900mm (74 3/4") |
| Width Between Runways | E | 800mm (31 1/2") |
| Gross Weight | 863kg (1,903lbs) | |
| Motor | 3.0HP | |
| QTY of Container | 20 Units/20'GP | |
| Packing Dimension | 1780 x 550 x 920mm (Lift) | |
| Packing Dimension | 478 x 428 x 1250mm (Control Cabinet) |
-
Extended platforms at both sides. Add max 400mm extra length.
-
Mechanical automatic safety device, air-operated safety release. Free access allowed from either side.
-
Automatic safety stop device at 300mm from ground when lowering.
-
Full rise with max lifting height 2230mm. Unobstructed access to work underneath.
-
Hydraulic synchronization system. Photocell detection and protection.
-
4pcs 3" rubber pads come as standard.
-
Electro-air control cabinet.
-
Strong tube make the lift more safe.
2 units as a package ( including parts box,without control cabinet)
- Gross weight for SX09F: 863kgs , include control cabinet gross weight 75kgs.
- 20' container can load 20 units.
-

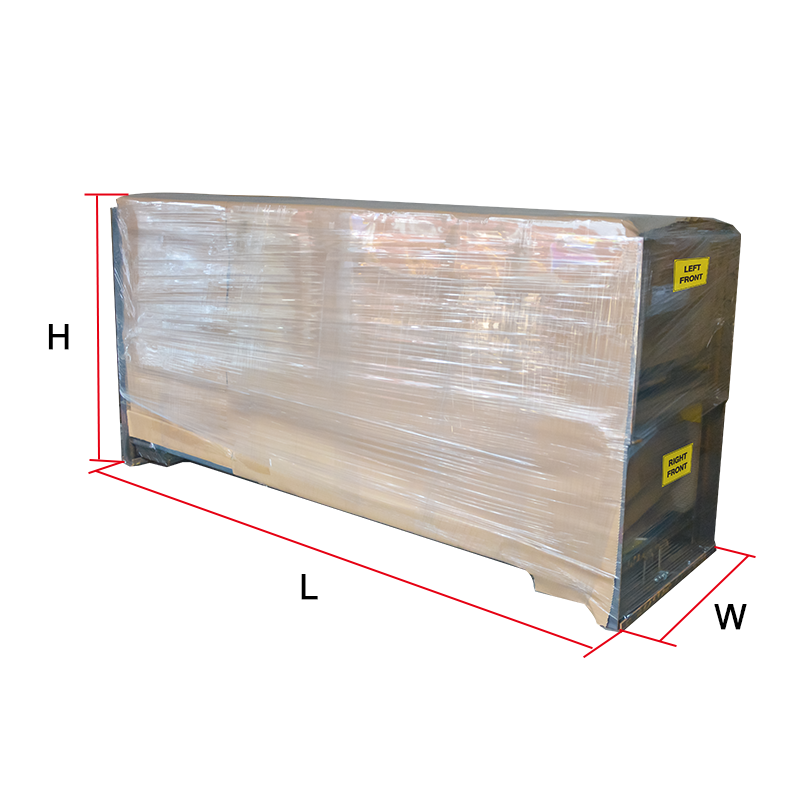

1 unit/package,packing measurement (LxWxH): 1780x550x920mm
-

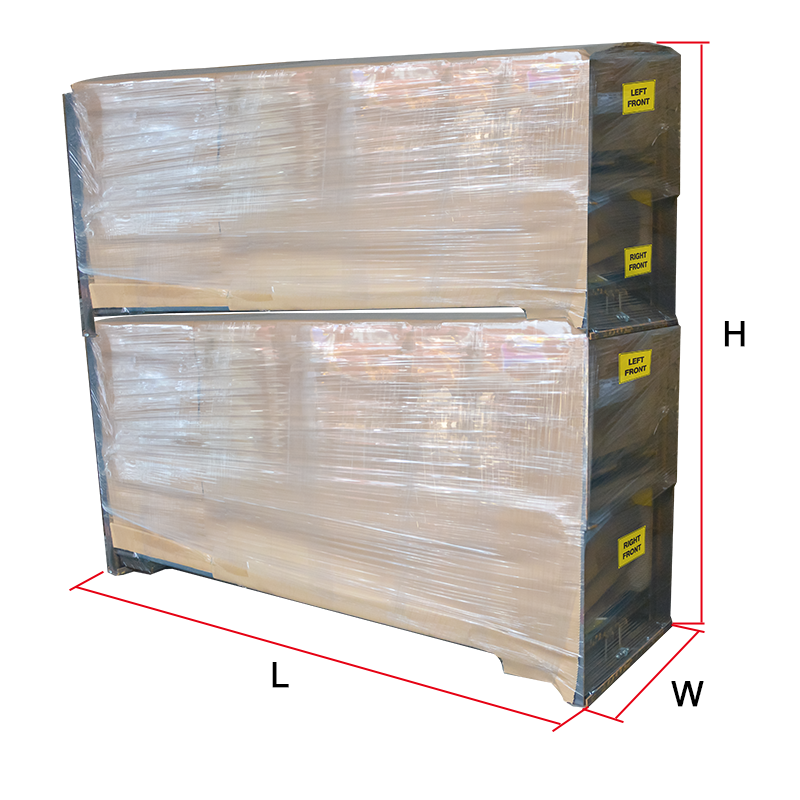

2 units/package, packing measurement (LxWxH): 1780x550x1845mm
-

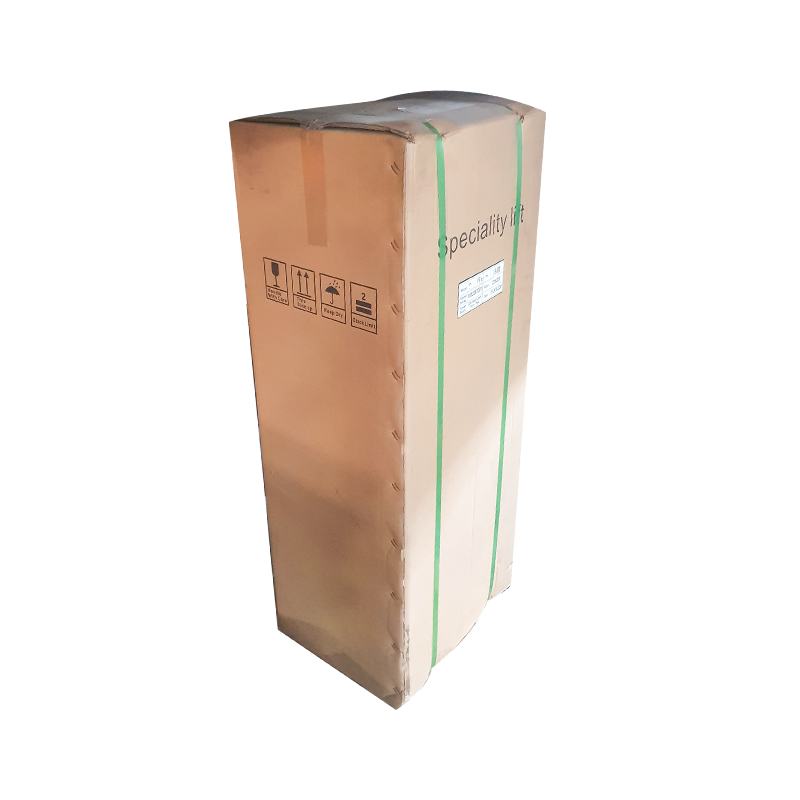

1 unit/ctn,control cabinet packing measurement (LxWxH): 478x428x1235mm
-
Attention to forklift loading and unloading
