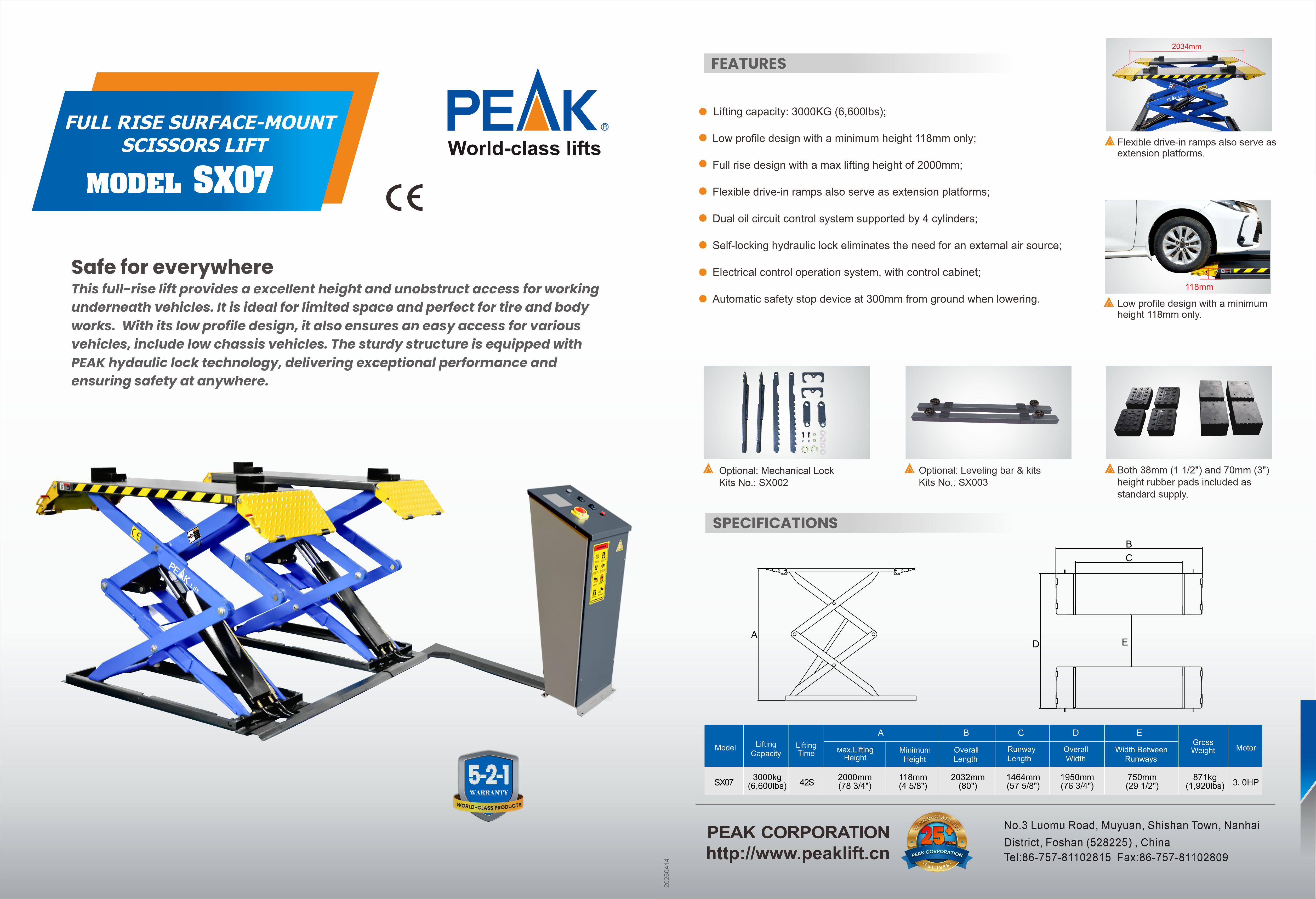

SX07

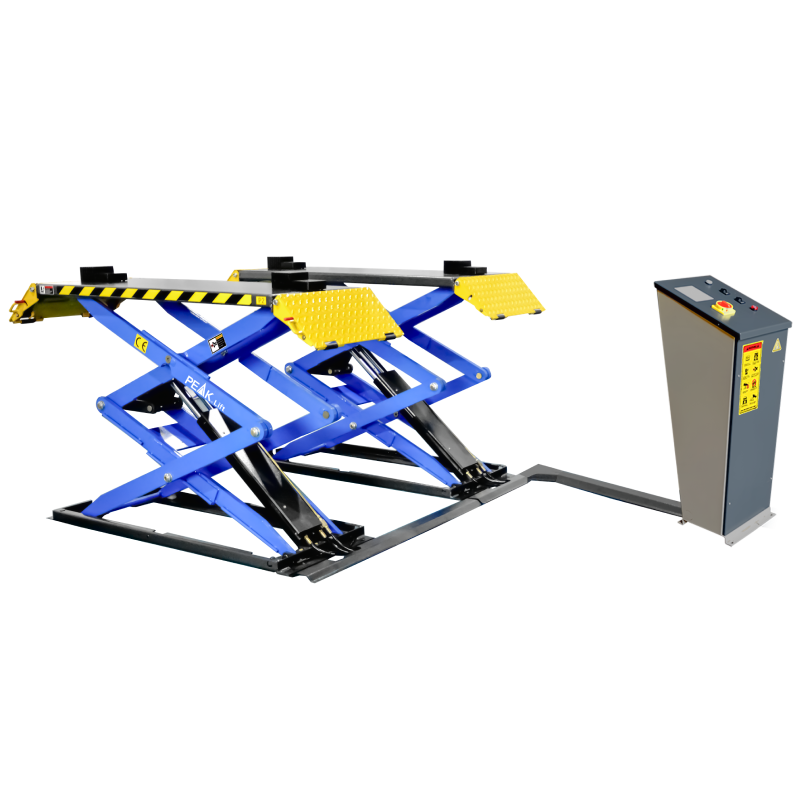

Full Rise Surface-mount Scissors Lift
Safe for everywhere
This full-rise lift provides a excellent height and unobstruct access for working underneath vehicles. It is ideal for limited space and perfect for tire and body works. With its low profile design, it also ensures an easy access for various vehicles, include low chassis vehicles. The sturdy structure is equipped with PEAK hydaulic lock technology, delivering exceptional performance and ensuring safety at anywhere.
- Lifting capacity: 3000KG (6600lbs);
- Built on BMR technology;
- Low profile design with a minimum height 118mm only;
- Full rise design with a max lifting height of 2000mm;
- Flexible drive-in ramps also serve as extension platforms;
- Dual oil circuit control system supported by 4 cylinders;
- Self-locking hydraulic lock eliminates the need for an external air source;
- Electrical control operation system, with control cabinet;
- Automatic safety stop device at 300mm from ground when lowering.
| Model | SX07 | |
| Lifting Capacity | 3000kg | |
| Lifting Time | 42s | |
| Max. Lifting Height | A1 | 2000mm (78 3/4") |
| Minimum Height | A2 | 118mm (4 5/8") |

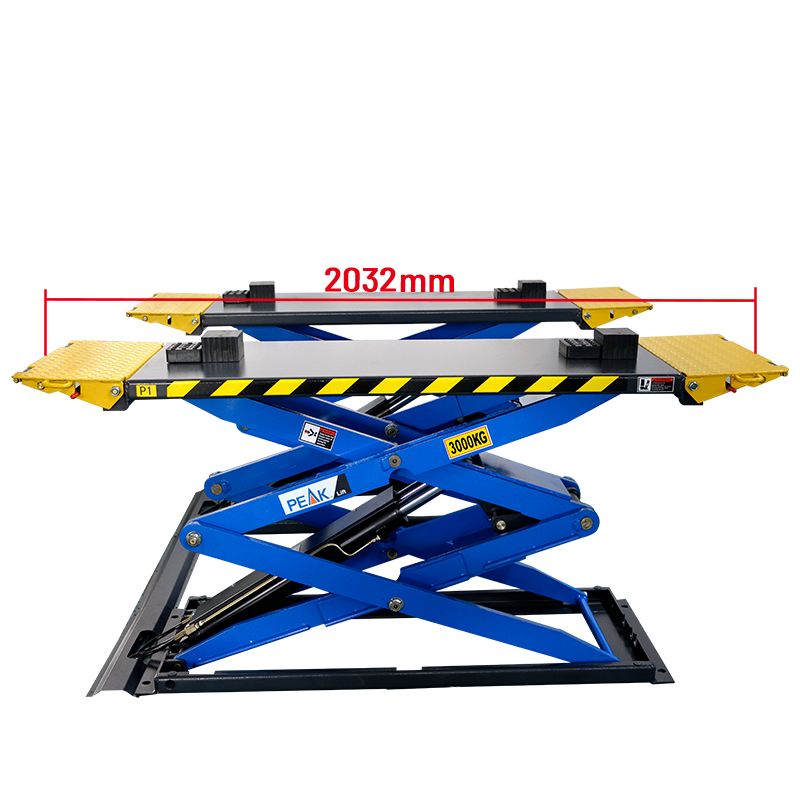

| Overall Length | B | 2032mm (80") |
| Runway Length | C | 1464mm (57 5/8") |
| Overall Width | D | 1950mm (76 3/4") |
| Width Between Runways | E | 750mm (29 1/2") |
| Gross Weight | 871kg (1,920lbs) | |
| Motor | 3.0HP | |
| QTY of Container | 28 Units/20'GP | |
| Packing Dimension | 1700 x 700 x 490mm (Lift) | |
| Packing Dimension | 1250 x 478 x 428 mm (Control Cabinet) |
-

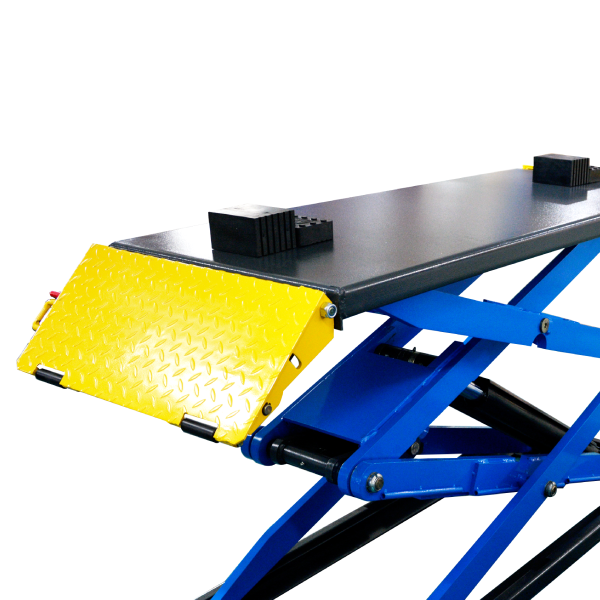

Easy flip-lock ramps, can be used as platform extension. Add extra length 570mm.
-

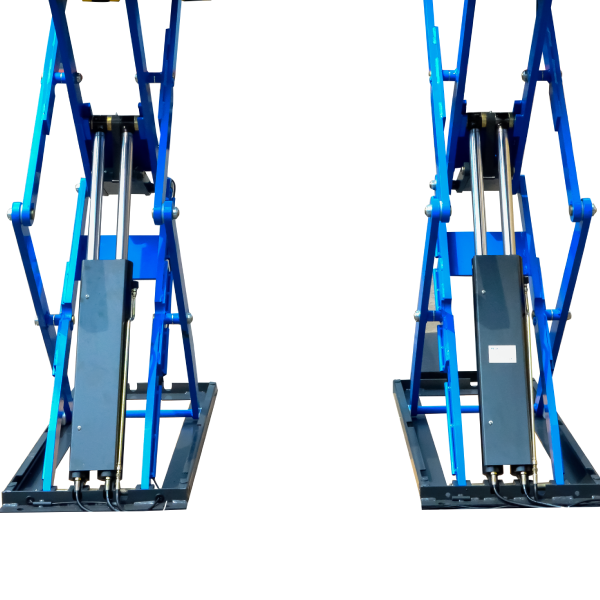

Dual groups of 4 hydraulic cylinders ensure platforms equalization.
-

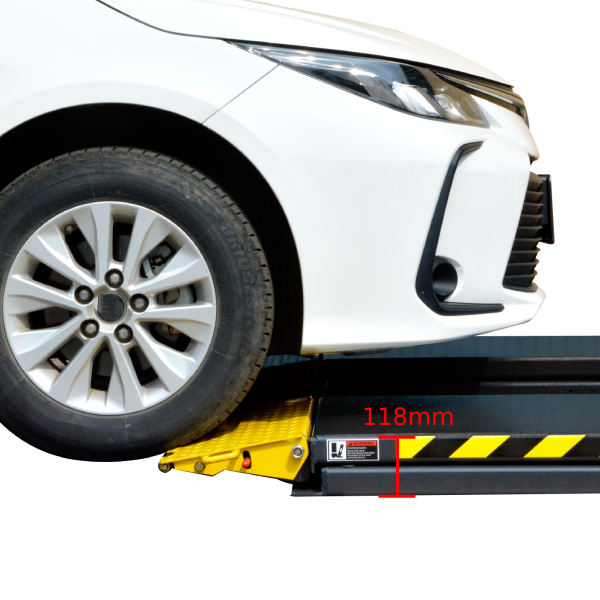

Ultra thin design, minimum height only 118mm.
-

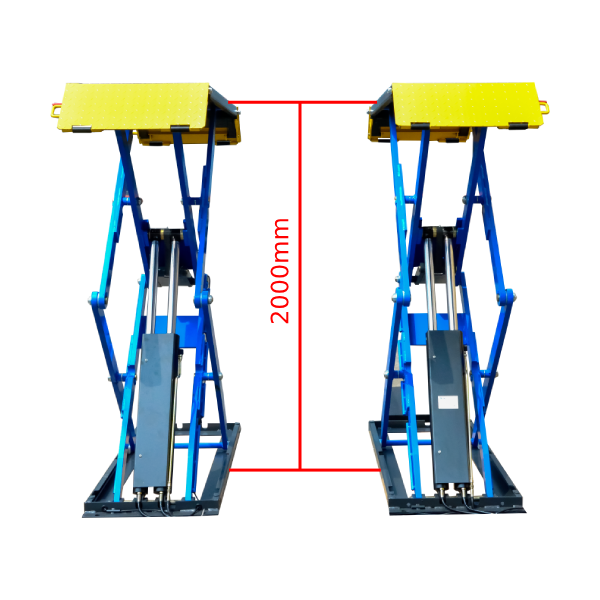

Maxium lifting height 2000mm.
Fast lifting in 42 seconds. -
Platforms adjustable from 1464mm to 2034mm. Accommodates for a vary wheelbase vehicles.
-

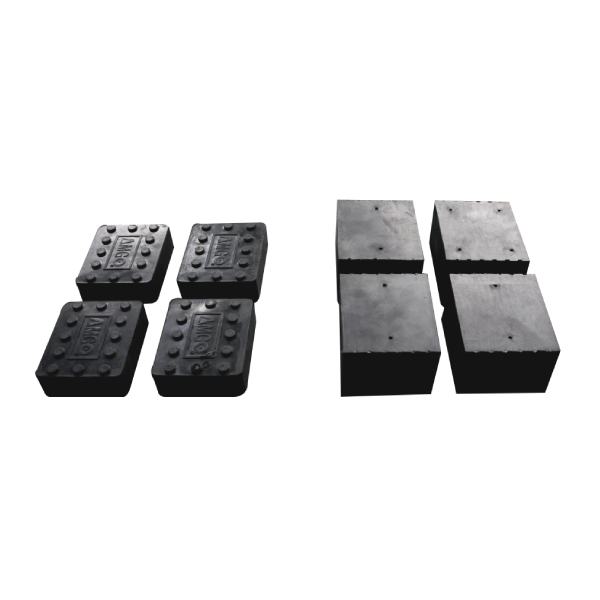

2 kinds of standard rubber pads:
38mm (1 1/2") & 70mm (3"). -

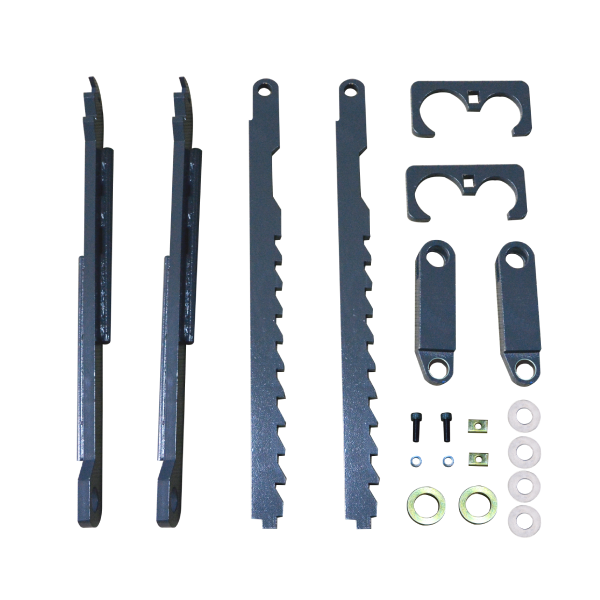

Optional: Mechanical Lock
Kits No.: SX002 -

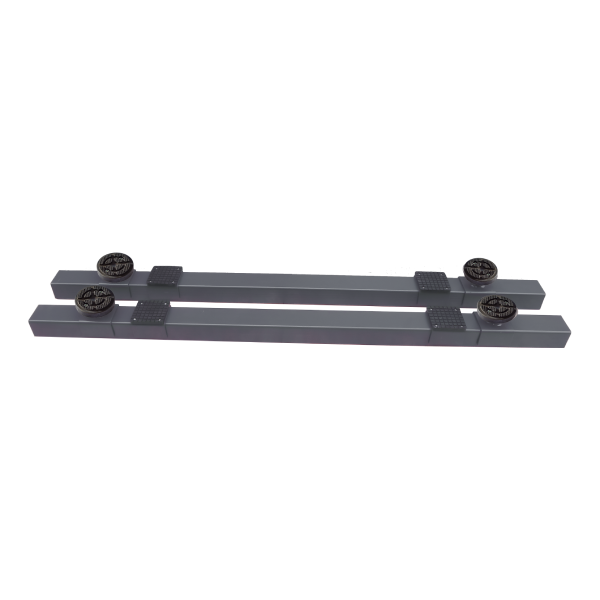

Optional: Leveling bar & kits
Kits No.: SX003
4 units as a package ( including parts box,without control cabinet)
- Gross weight for SX07: 871kgs , include control cabinet gross weight 69kgs.
- 20' container can load 24 units.
-

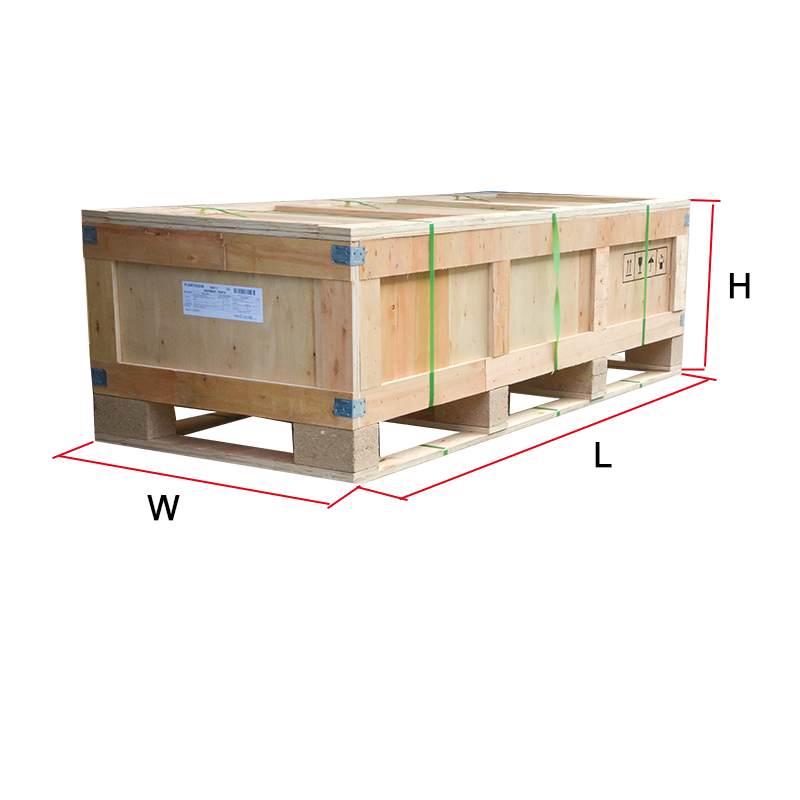

1 units/package,packing measurement (LxWxH): 1700x700x490mm
-

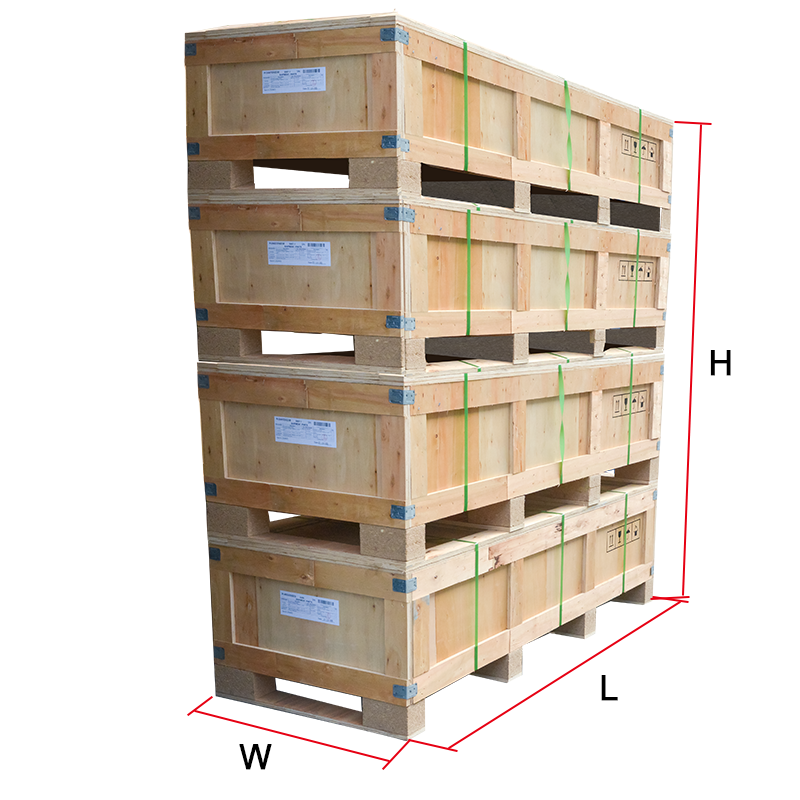

4 units/package, packing measurement (LxWxH): 1700x700x1960mm
-

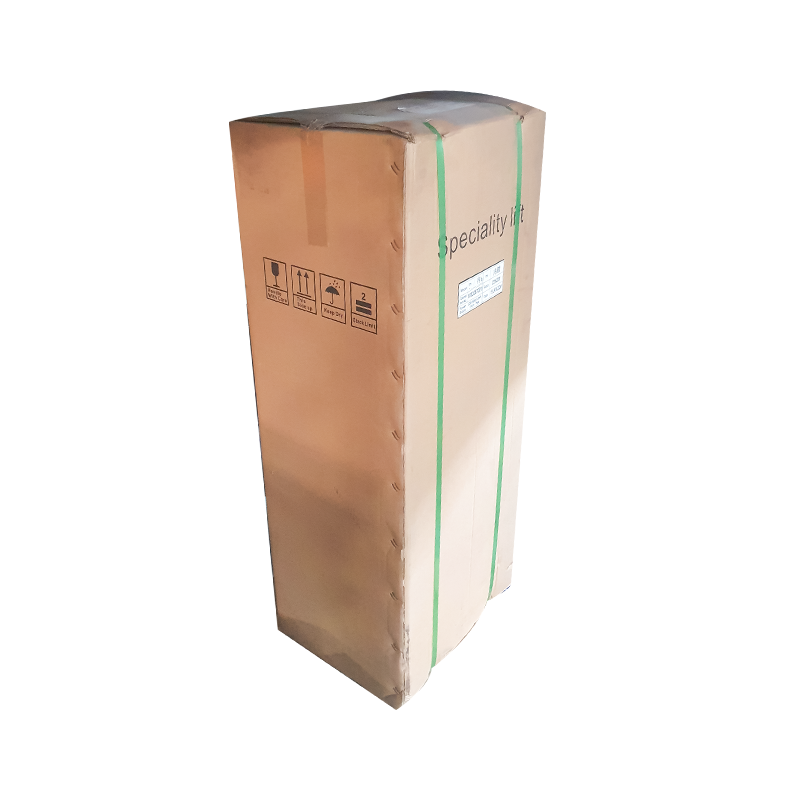

1 unit/ctn,control cabinet packing measurement (LxWxH): 478x428x1235mm
-

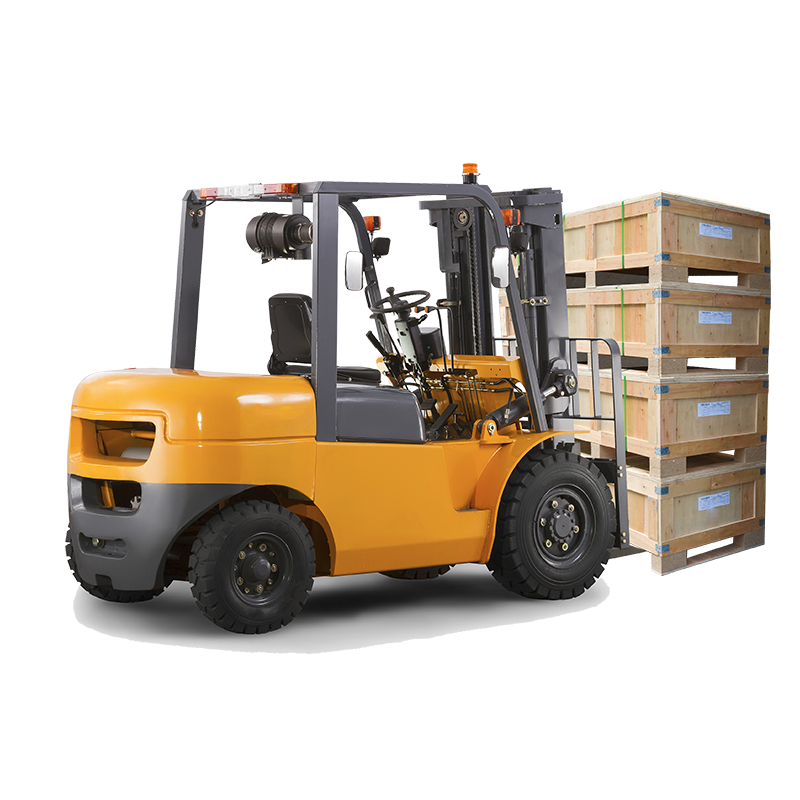

Attention to forklift loading and unloading.
