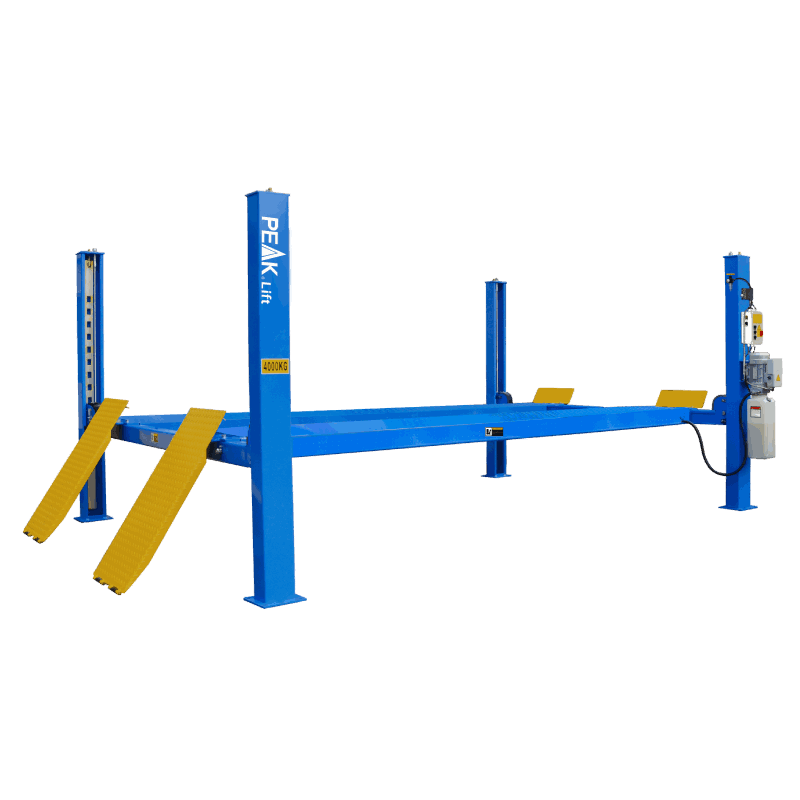

409
General Service Four Post Lift
Mechatronics Masterpiece
The commeral grade PEAK 409 caters to the diverse demands of general services in safety, durability and convenience. It comes with dual safety locks and automatic air-drive lock release that operated with control box. The wide diamond platforms are adjustable to accommodate a wide range vehicles with different wheel tracks.
- 4000KG (9,000 lbs) capacity;
- General service design, accommodate various vehicles;
- 24V safe electrical operation system;
- Stelpless adjustable width between platforms;
- Integrated non-skid diamond platforms;
- Standard self-locking mechanical lock and air-drive safety lock;
- Standard primary safety locks and cable-slack protection mechanism;
- High quality hydraulic cylinder design and manufactured at high standard.
| Model 409 | General Service Four Post Lift | |
| Lifting Capacity | 4000kg(9,000 Ibs) | |
| Lifting Time | 45s | |
| Overall Length (Inc Ramps) | A | 5512mm (217") |
| Overall Length (No Ramps) | B | 4600mm (181 1/8") |
| Overall Width | C | 3208mm (126 1/4") |
| Width Between Columns | D | 2852mm (112 1/4") |
| Max. Lifting Height | E | 1870mm(73 5/8") |
| Max. Lock Height to top of runway | 1800mm(70 7/8") | |
| Overall Height | F | 2185mm(86") |
| Minimum Height | G | 170mm (6 5/8") |
| Max. Underneath Height | H | 1730mm (68 1/8") |
| Max. Lock Underneath Runway | 1660mm (65 3/8") | |
| Drive-Thru Clearance | I | 2498mm (98 3/8") |
| Width Between Runways | J |
1100mm (43 1/4") Min. 85mm (3 3/8")~ Max. 1300mm(51 1/8") |
| Outside Edge of Runways | K |
2116mm (83 1/4") Min. 1101mm (43 3/8")~ Max.2316mm (91 1/8") |
| Gross Weight | 921kg (2,030lbs) | |
| Motor | 3.0HP |
-

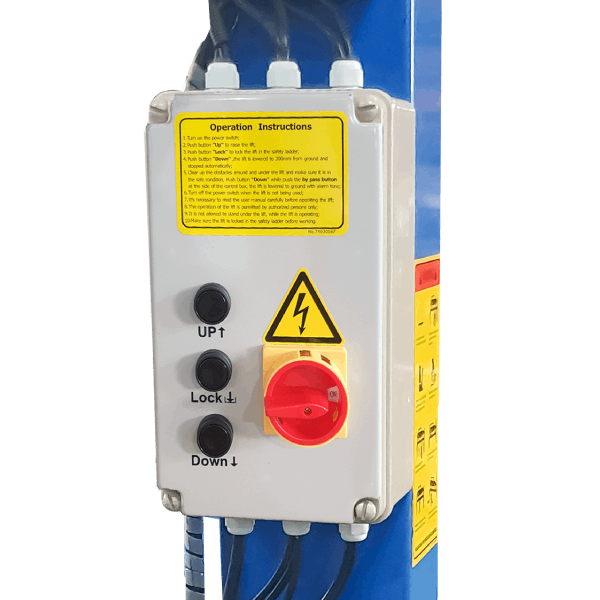

Electric control device with UP, LOCK and DOWN buttons.
-

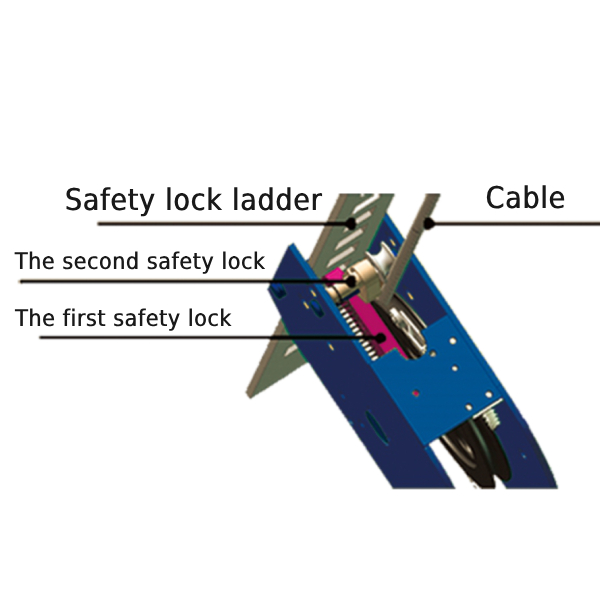

Double safety locks provide additional safety.
-
Oil-water separator and solenoid air valve are installed on the power side column.
-

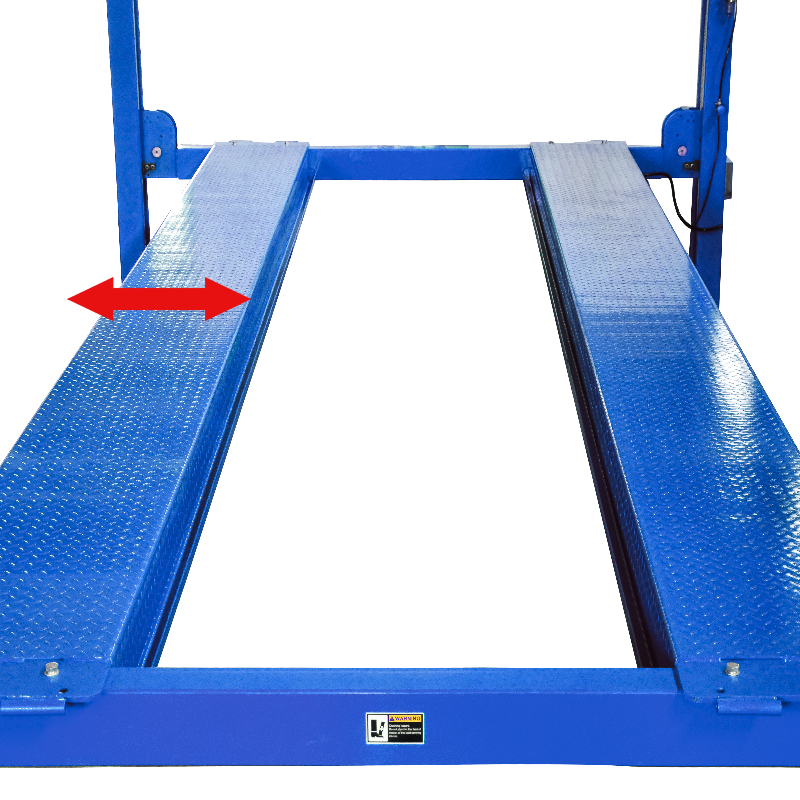

Stepless adjustable width between platforms.
-
Non-slip diamond platforms come as standard.
-

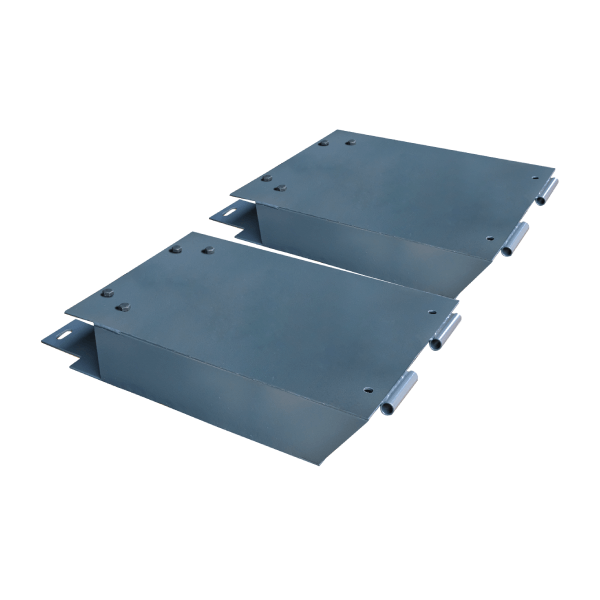

Optional Platform Extension Kits add an extra 660mm (26") length to the platform.
Kits No.: 40903 -

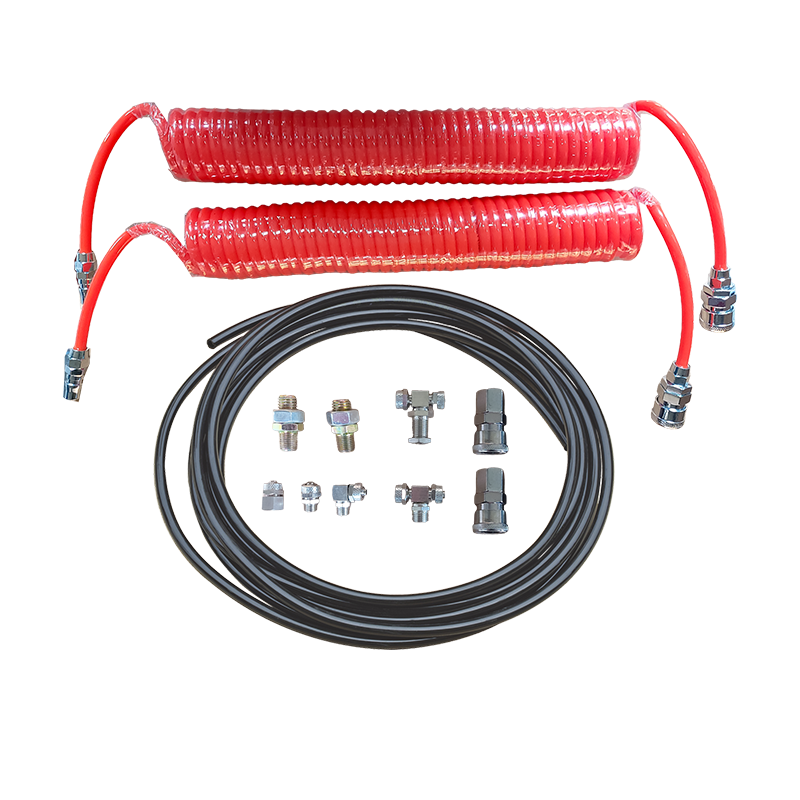

Optional Air Line Kits
All peak four post lifts are designed to use the air line kits for rolling jack.
Kits No.: 40102 -

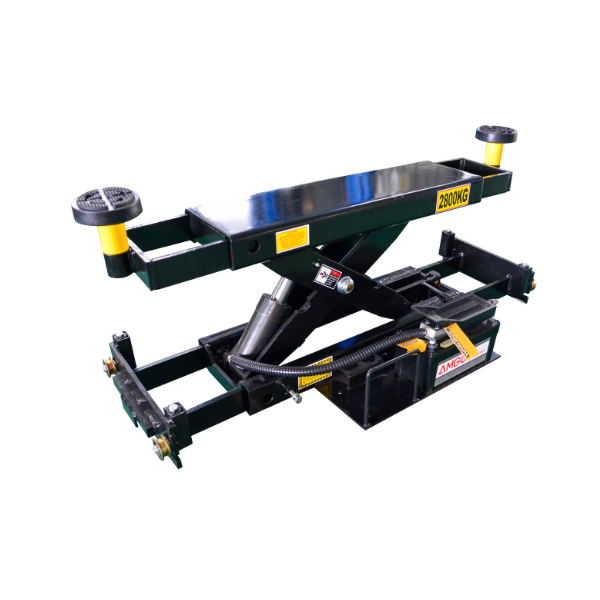

Optional Rolling Jacks
J6H: manual hydraulic type 2,800kg.
J6A: pneumatic hydraulic type 2,800kg.
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 409: 921kgs , include power unit gross weight 25kgs.
- 20' container can load 12 units.
- 40' container can load 24 units.
-

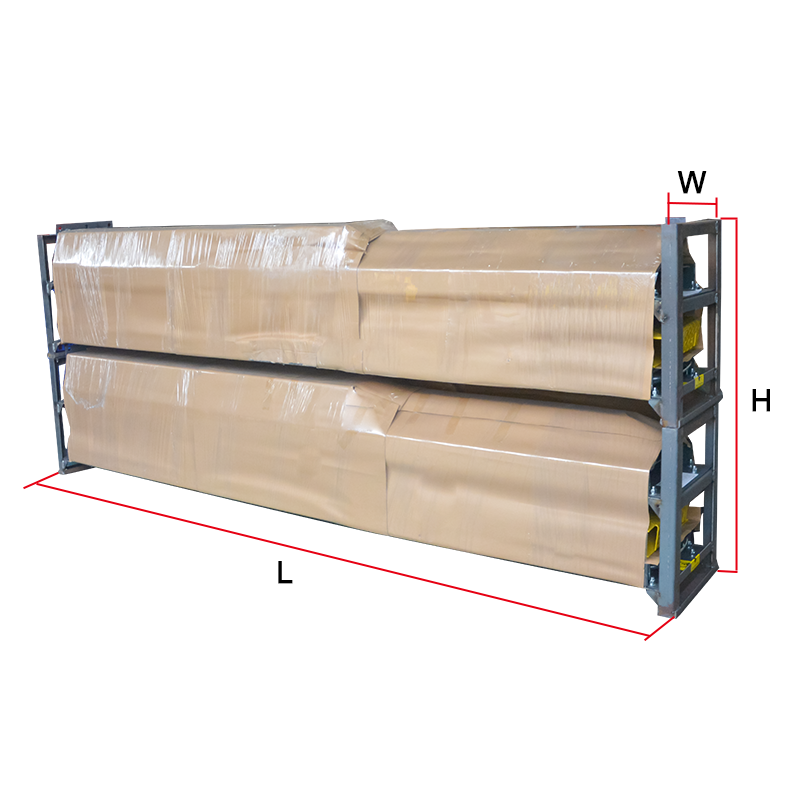

2 units/package,packing measurement (LxWxH): 4670x560x1440mm
-

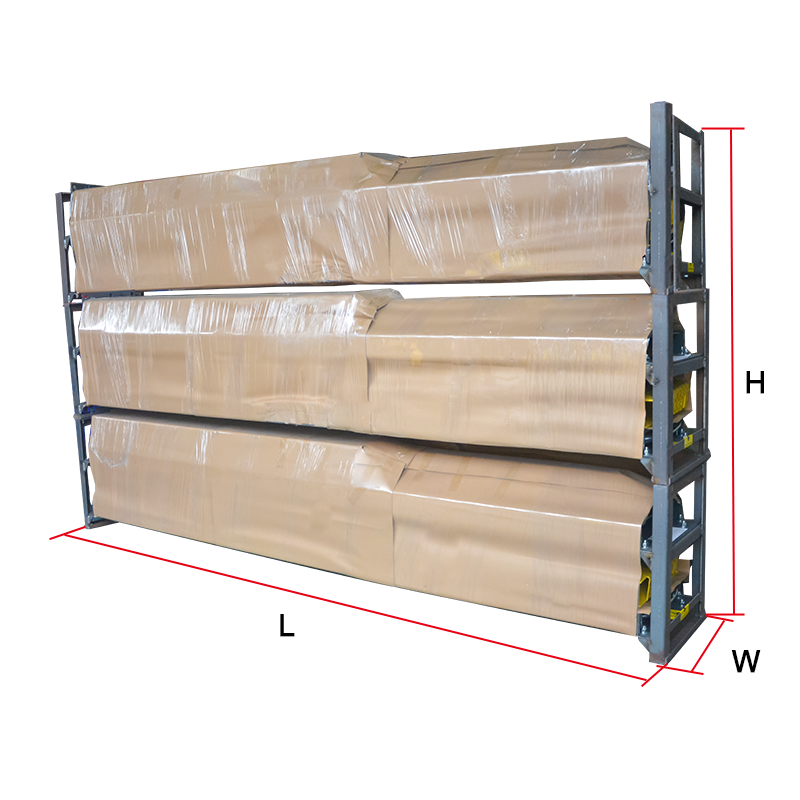

3 units/package, packing measurement (LxWxH): 4670x560x2135mm
-
1 unit/ctn,packing measurement (LxWxH): 920x300x360mm
-
Attention to forklift loading and unloading
-
Attention to forklift transhipping
