410

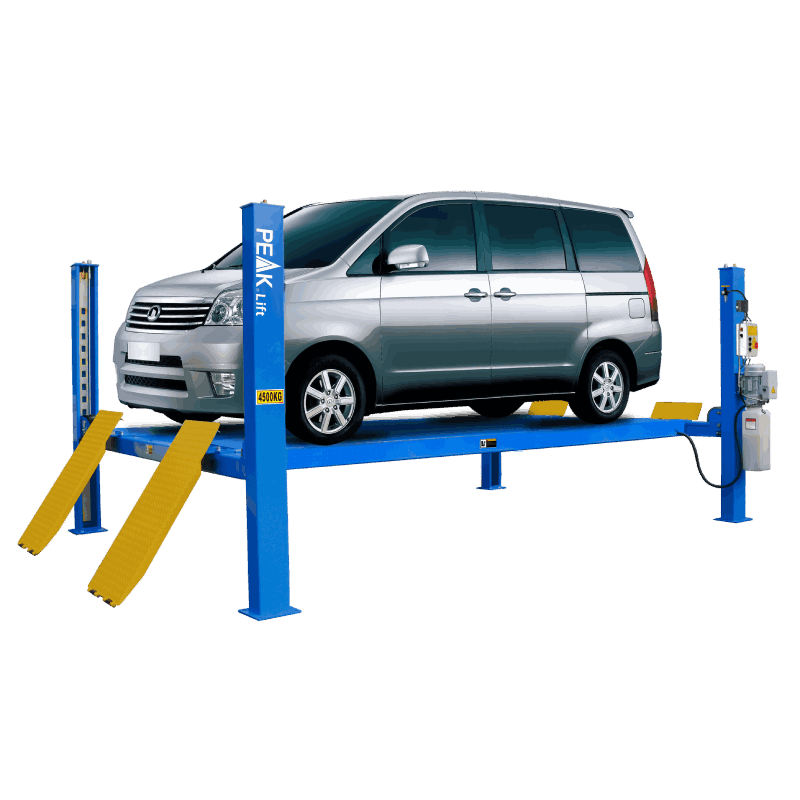

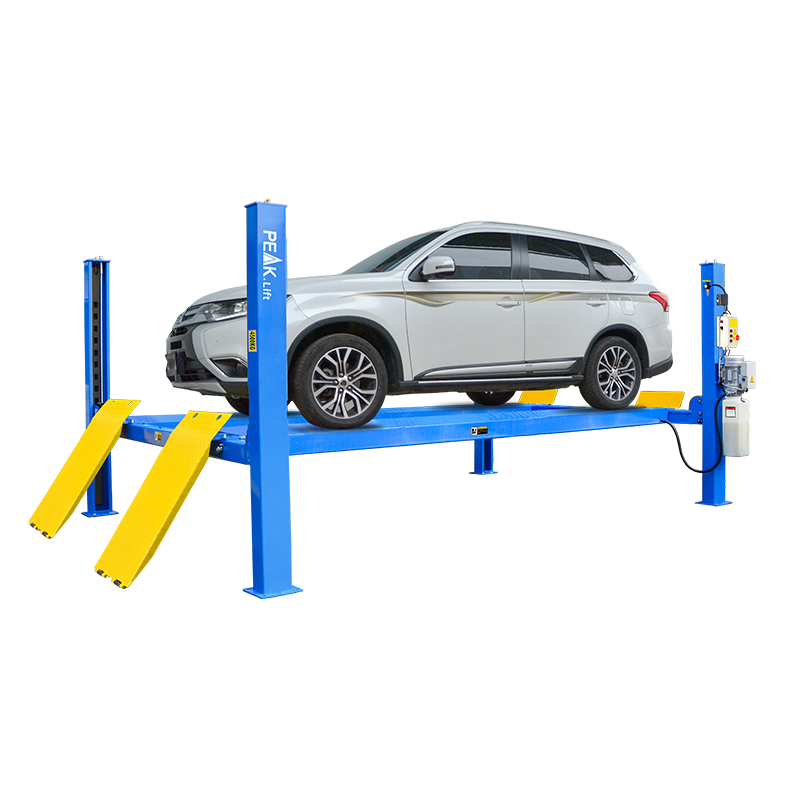

General Service Four Post Lift
Wider & more confortable
Adhering to Peak 4 post family's advanced feautures, PEAK 410 is designed specially wider to accommodates more vehicles and provides more confortable operation space. It is the first choice lift for your daily general vehicles repair & maintenance works.
- 4500KG (10,000 lbs) capacity;
- General service design, accommodate various vehicles;
- 24V safe electrical operation system;
- Width between columns reach 3000mm, suitable for more vehicles;
- Stelpless adjustable width between platforms;
- Integrated non-skid diamond platforms;
- Standard self-locking mechanical lock and air-drive safety lock;
- Standard primary safety locks and cable-slack protection mechanism;
- High quality hydraulic cylinder design and manufactured at high standard.
| Model 410 | General Service Four Post Lift | |
| Lifting Capacity | 4500kg (10,000 Ibs) | |
| Lifting Time | 45s | |
| Overall Length (Inc Ramps) | A | 5910mm (232 5/8") |
| Overall Length (No Ramps) | B | 4998mm (196 3/4") |
| Overall Width | C | 3356mm (132 1/8") |
| Width Between Columns | D | 3000mm (118 1/8") |
| Max. Lifting Height | E | 1870mm(73 5/8") |
| Max. Lock Height to top of runway | 1800mm(70 7/8") | |
| Overall Height | F | 2185mm(86") |
| Minimum Height | G | 170mm (6 5/8") |
| Max. Underneath Height | H | 1730mm (68 1/8") |
| Max. Lock Underneath Runway | 1660mm (65 3/8") | |
| Drive-Thru Clearance | I | 2646mm (104 1/8") |
| Width Between Runways | J |
1100mm (43 1/4") Min. 85mm (3 3/8")~ Max. 1365mm(53 3/4") |
| Outside Edge of Runways | K |
2116mm (83 1/4") Min. 1101mm (43 3/8")~ Max.2381mm (93 3/4") |
| Gross Weight | 1025kg (2,260lbs) | |
| Motor | 3.0HP |
-

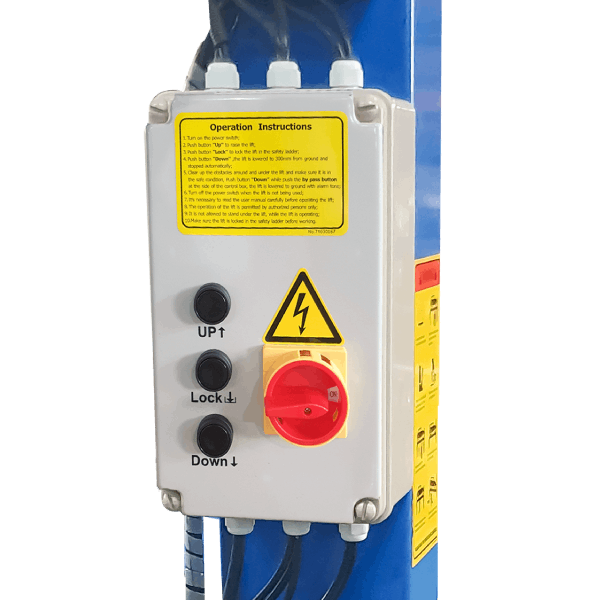

Electric control device with UP, LOCK and DOWN buttons.
-

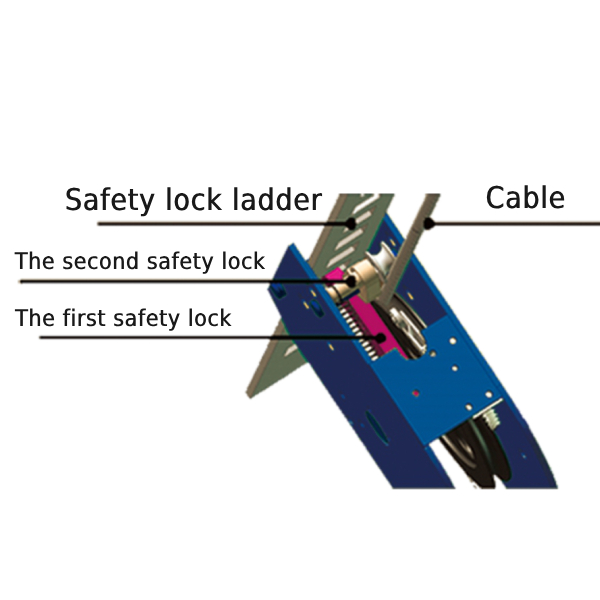

Double safety locks provide additional safety.
-
Oil-water separator and solenoid air valve are installed on the power side column.
-

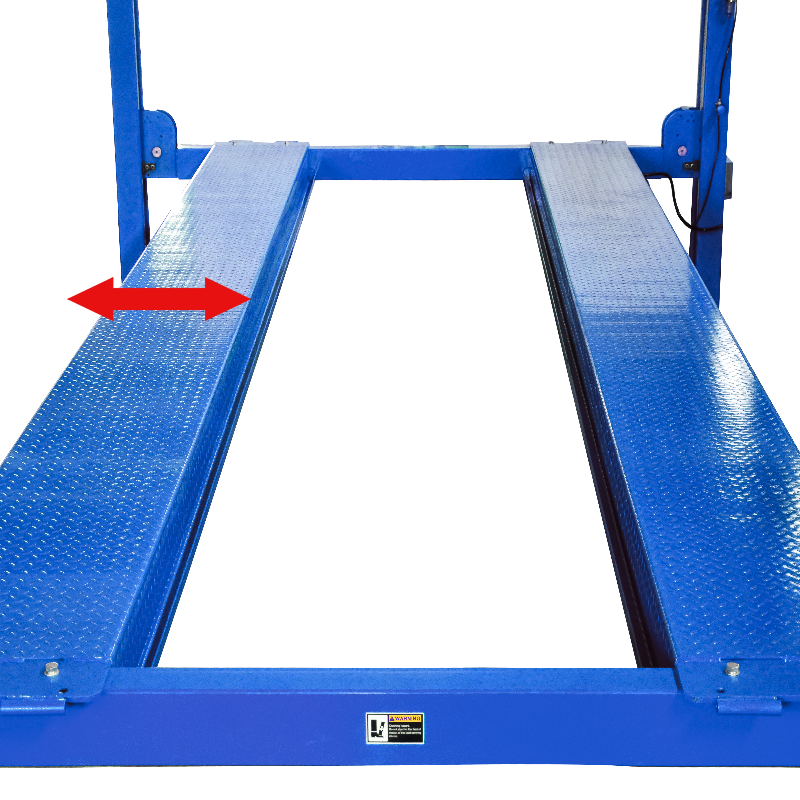

Stepless adjustable width between platforms.
-
Non-slip diamond platforms come as standard.
-

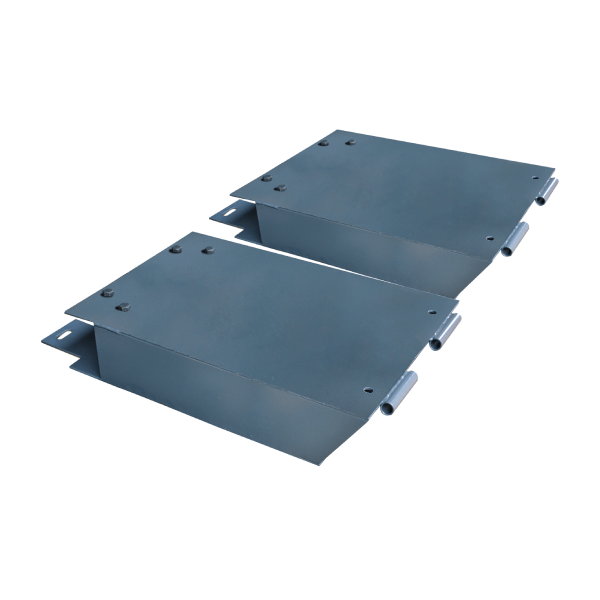

Optional Platform Extension Kits add an extra 660mm (26") length to the platform.
Kits No.: 40903 -

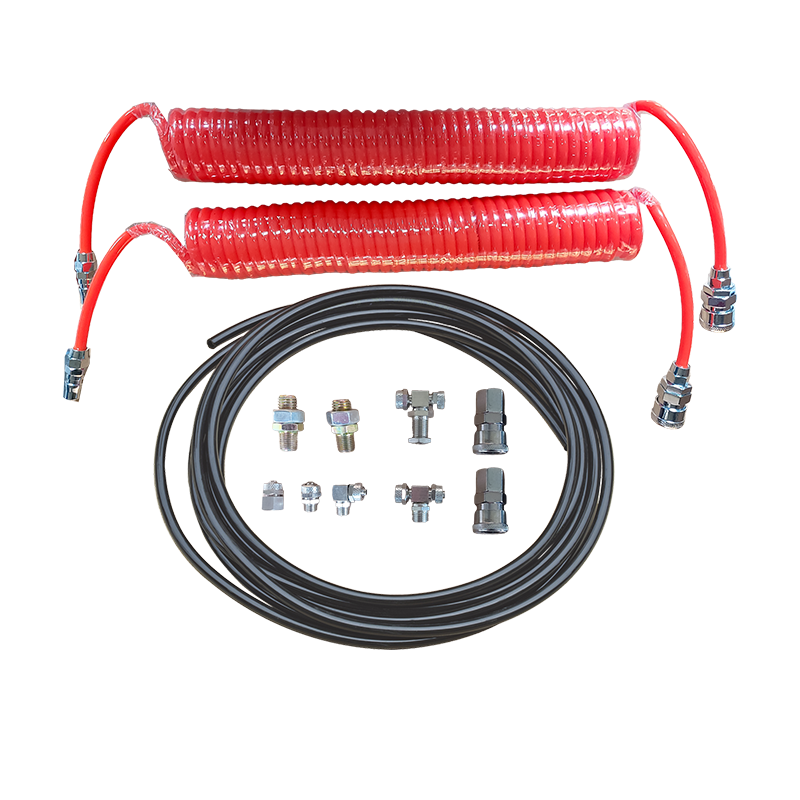

Optional Air Line Kits
All peak four post lifts are designed to use the air line kits for rolling jack.
Kits No.: 40102 -

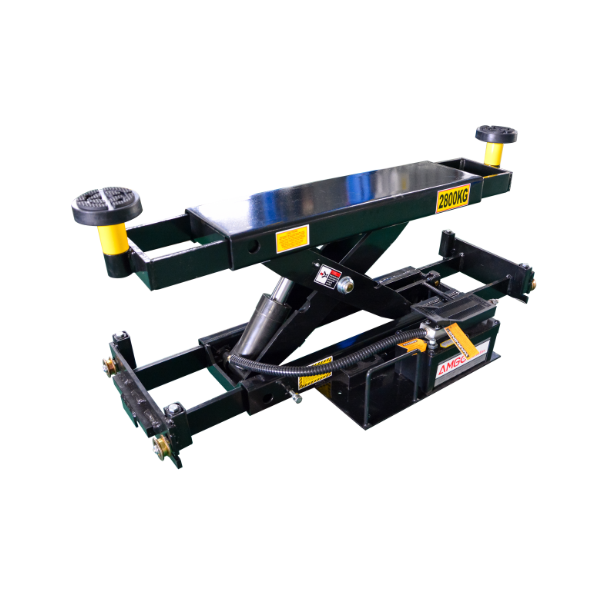

Optional Rolling Jacks
J6H: manual hydraulic type 2,800kg.
J6A: pneumatic hydraulic type 2,800kg.
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 410: 1025kgs , include power unit gross weight 25kgs.
- 20' container can load 12 units.
- 40' container can load 24 units.
-

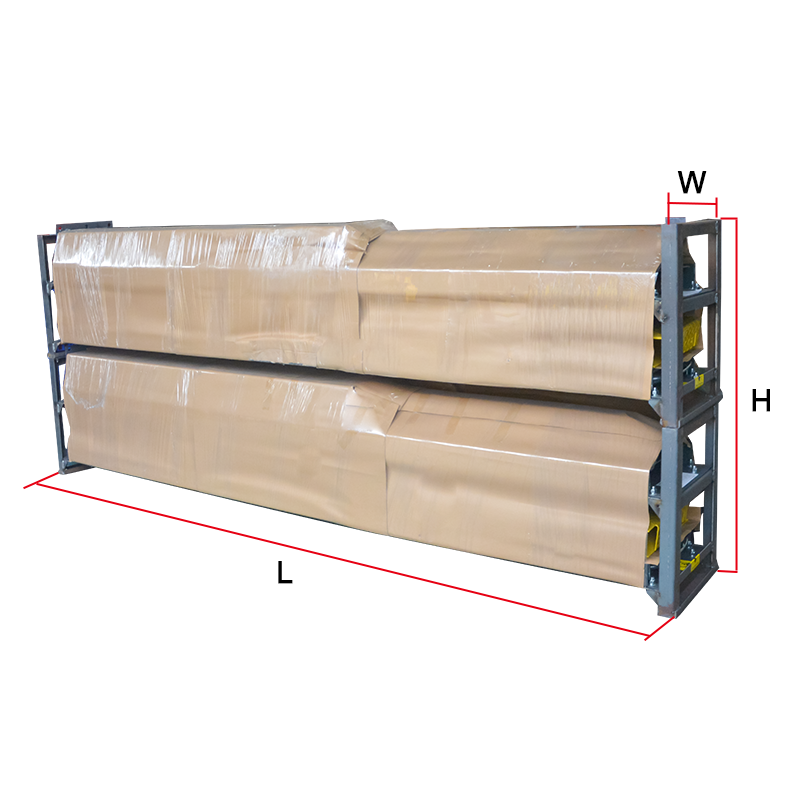

2 units/package, packing measurement (LxWxH): 5070x560x1440mm
-

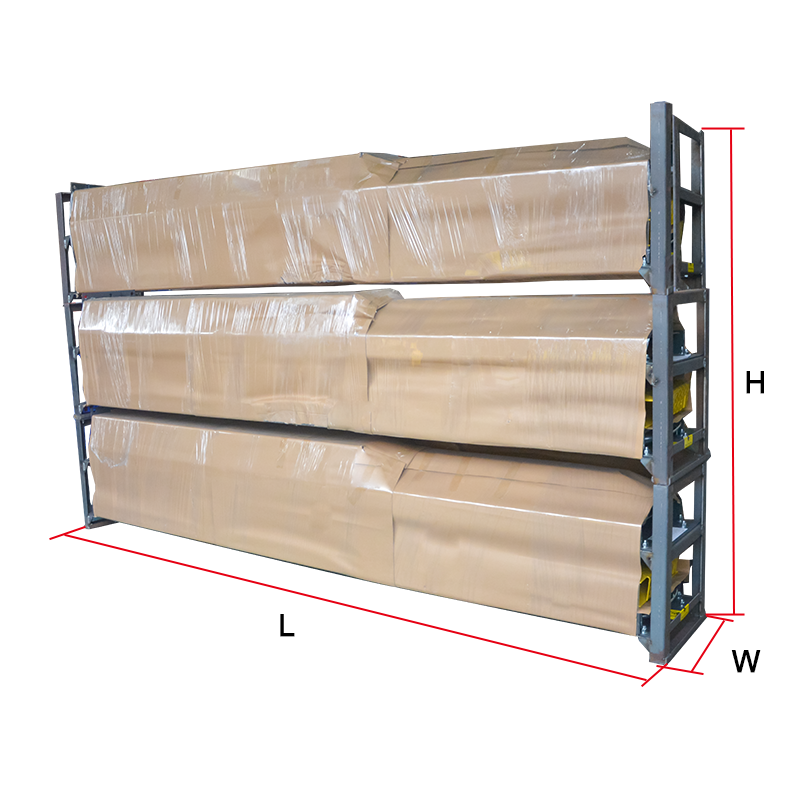

3 units/package, packing measurement (LxWxH): 5070x560x2145mm
-
1 unit/ctn,packing measurement (LxWxH): 920x300x360mm
-
Attention to forklift loading and unloading
-
Attention to forklift transhipping
