412

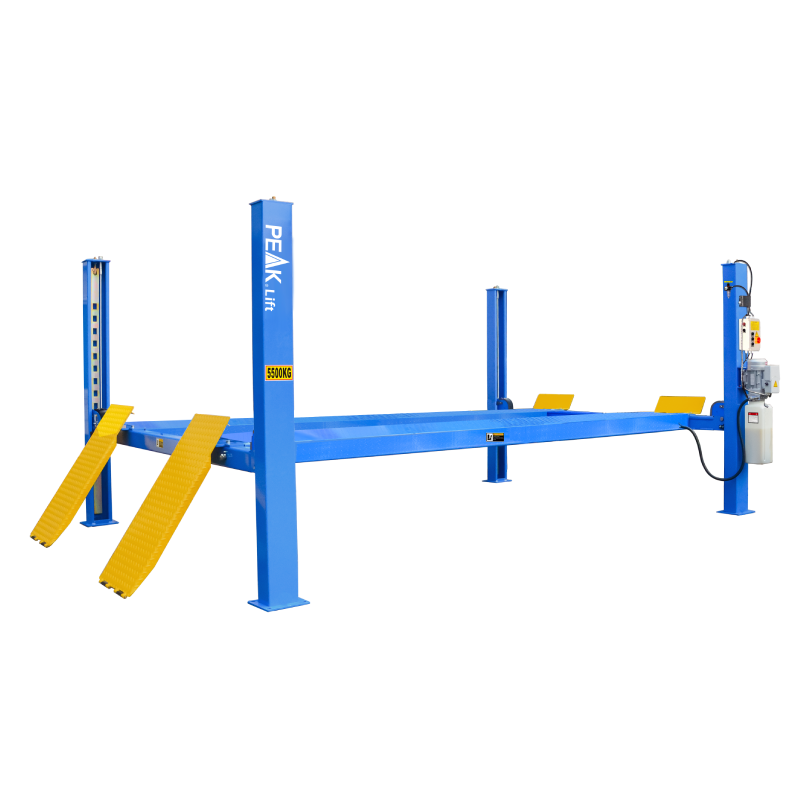

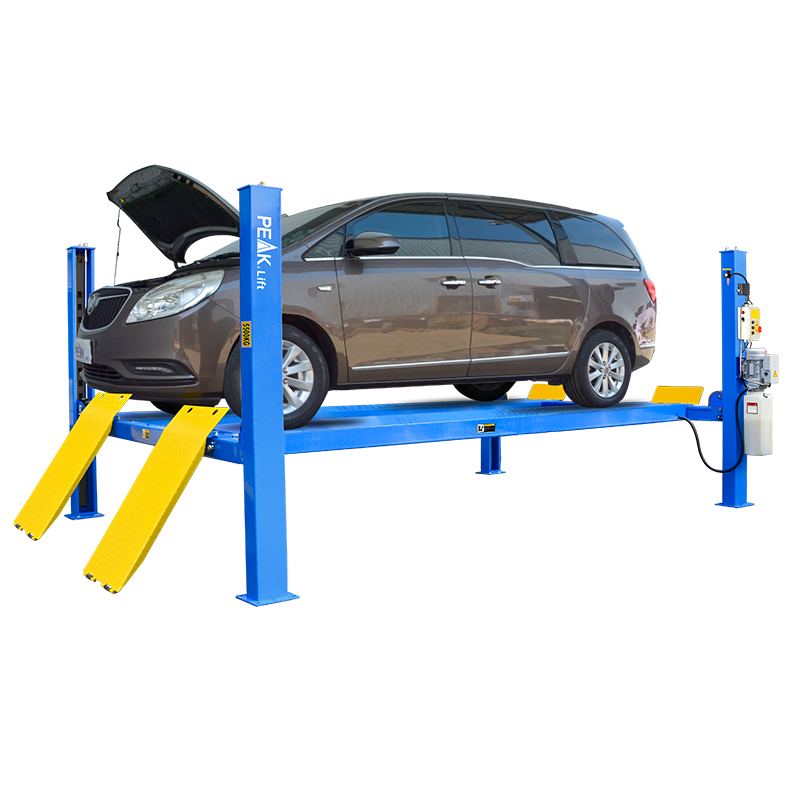

General Service Four Post Lift
Excellent over expect
PEAK 412 provides excellent choices for full-service commercial shops or service centers wishing to expand in versatility and vehicle coverage. At a capacity up to 5500KG, it maximizes the productivity on vehicle inspection & maintenance for a wide variety wheelbases.
- 5500KG (12,000 lbs) capacity;
- General service heavy duty design, accommodate more vehicles;
- 24V safe electrical operation system;
- Stelpless adjustable width between platforms;
- Integrated non-skid diamond platforms;
- Standard self-locking mechanical lock and air-drive safety lock;
- Standard primary safety locks and cable-slack protection mechanism;
- High quality hydraulic cylinder design and manufactured at high standard.
| Model 412 | General Service Four Post Lift | |
| Lifting Capacity | 5500kg (12,000 Ibs) | |
| Lifting Time | 63s | |
| Overall Length (Inc Ramps) | A | 6092mm (239 13/16") |
| Overall Length (No Ramps) | B | 5180mm (203 15/16") |
| Overall Width | C | 3208mm (126 1/4") |
| Width Between Columns | D | 2852mm (112 1/4") |
| Max. Lifting Height | E | 1870mm(73 5/8") |
| Max. Lock Height to top of runway | 1800mm(70 7/8") | |
| Overall Height | F | 2185mm(86") |
| Minimum Height | G | 170mm (6 5/8") |
| Max. Underneath Height | H | 1730mm (68 1/8") |
| Max. Lock Underneath Runway | 1660mm (65 3/8") | |
| Drive-Thru Clearance | I | 2498mm (98 3/8") |
| Width Between Runways | J |
1100mm (43 1/4") Min. 1000mm (39 3/8")~ Max. 1300mm(51 1/8") |
| Outside Edge of Runways | K |
2116mm (83 1/4") Min. 2016mm (79 3/8")~ Max.2316mm (91 1/8") |
| Gross Weight | 1276kg (2,813lbs) | |
| Motor | 3.0HP |
-

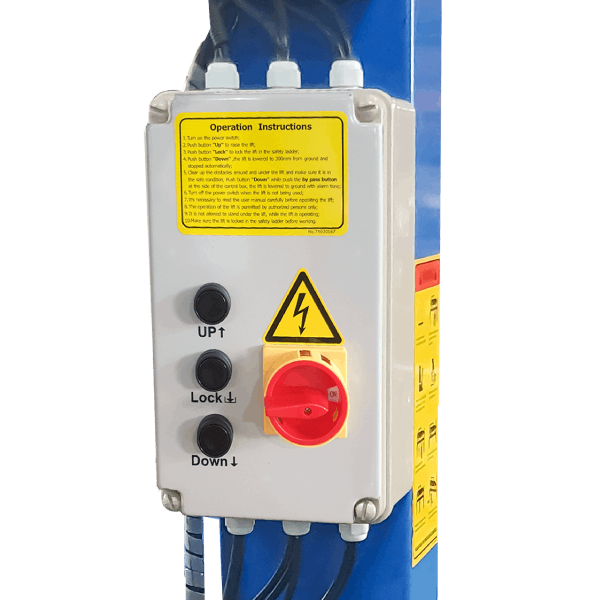

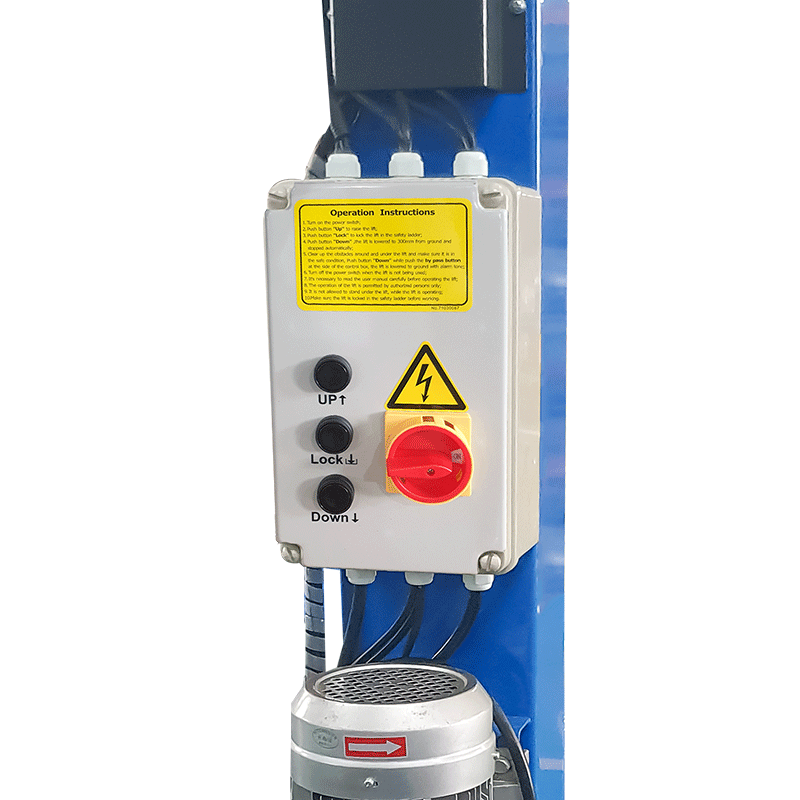

Electric control device with UP, LOCK and DOWN buttons.
-

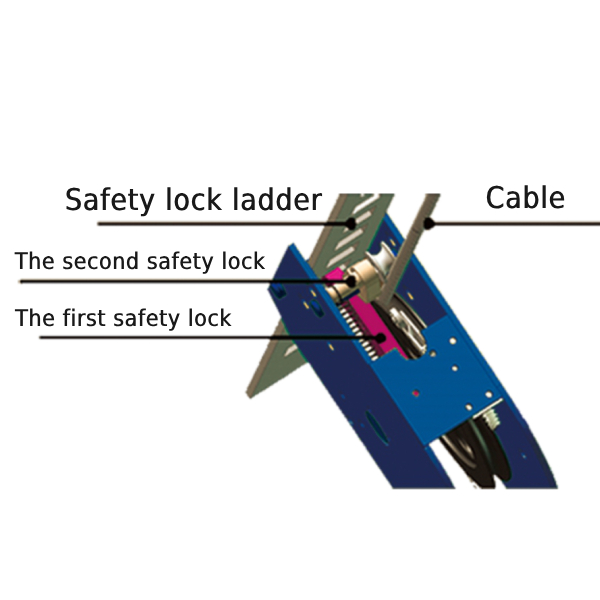

Double safety locks provide additional safety.
-
Oil-water separator and solenoid air valve are installed on the power side column.
-

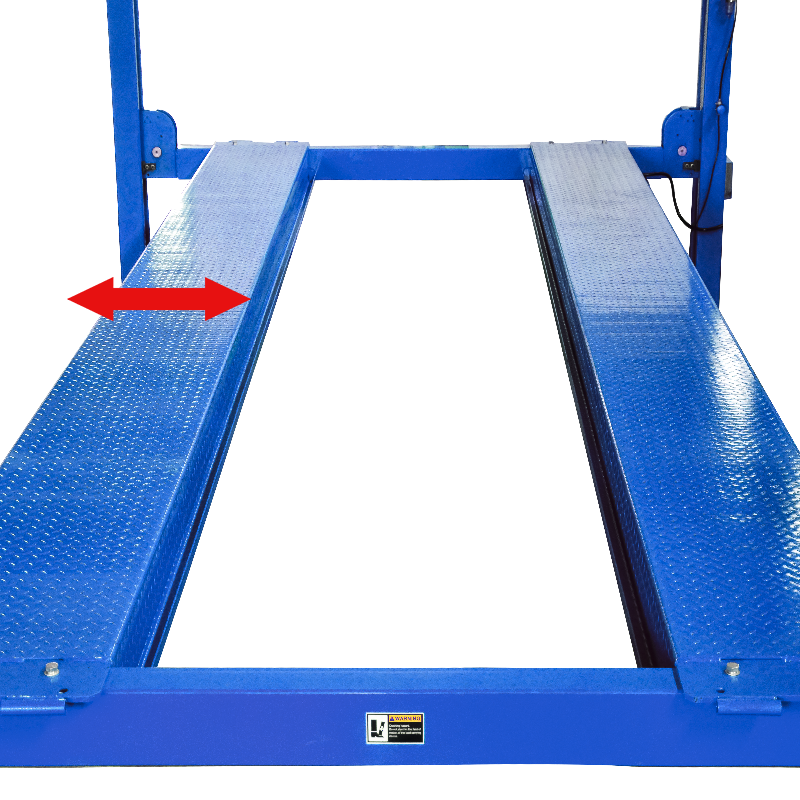

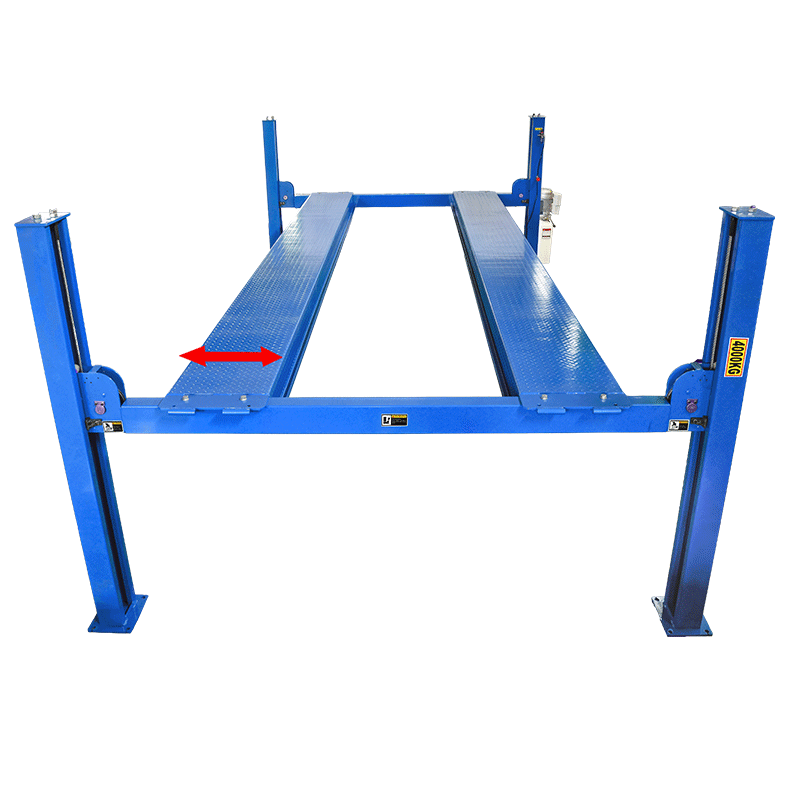

Stepless adjustable width between platforms.
-
Non-slip diamond platforms come as standard.
-

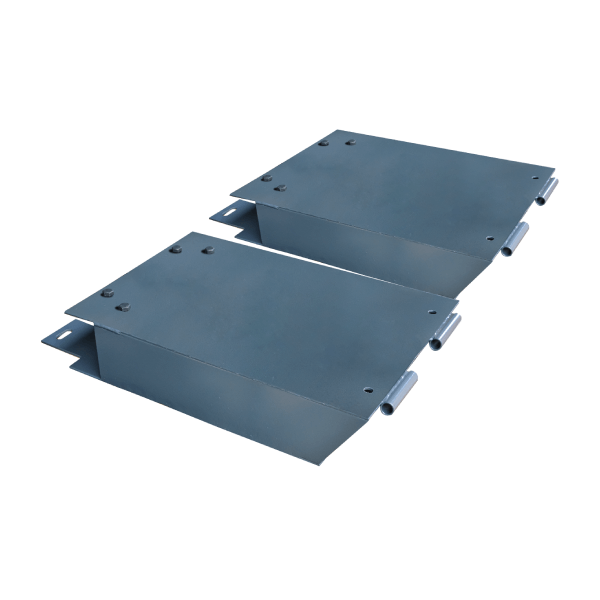

Optional Platform Extension Kits add an extra 660mm (26") length to the platform.
Kits No.: 41203 -

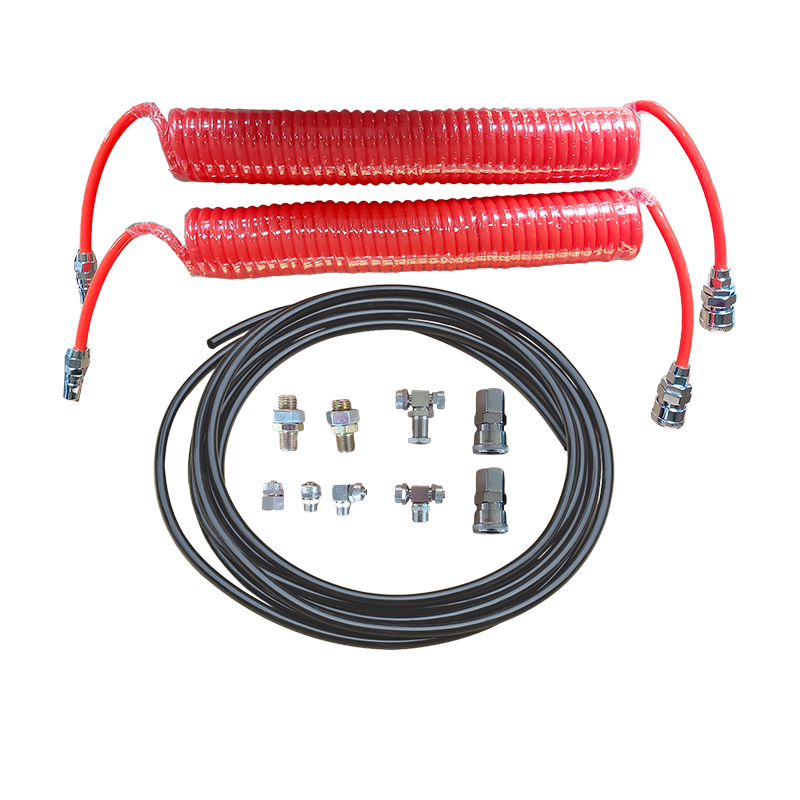

Optional Air Line Kits
All peak four post lifts are designed to use the air line kits for rolling jack.
Kits No.: 40102 -

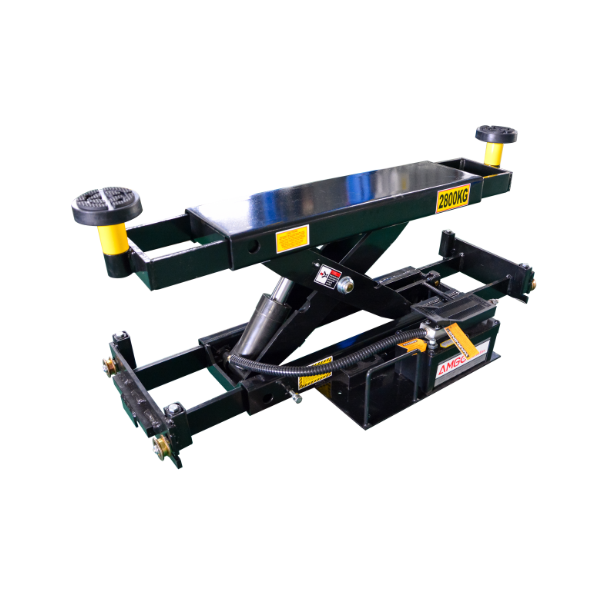

Optional Rolling Jacks
J6H: manual hydraulic type 2,800kg.
J6A: pneumatic hydraulic type 2,800kg.
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 412: 1276kgs , include power unit gross weight 26kgs.
- 20' container can load 12 units.
- 40' container can load 24 units.
-

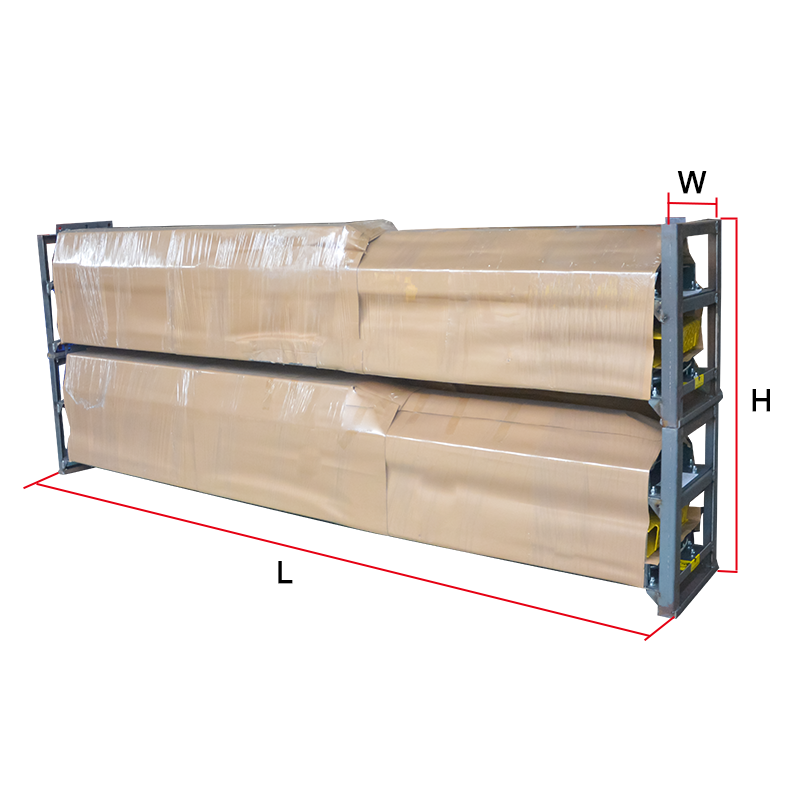

2 units/package,packing measurement (LxWxH): 5170x560x1440mm
-

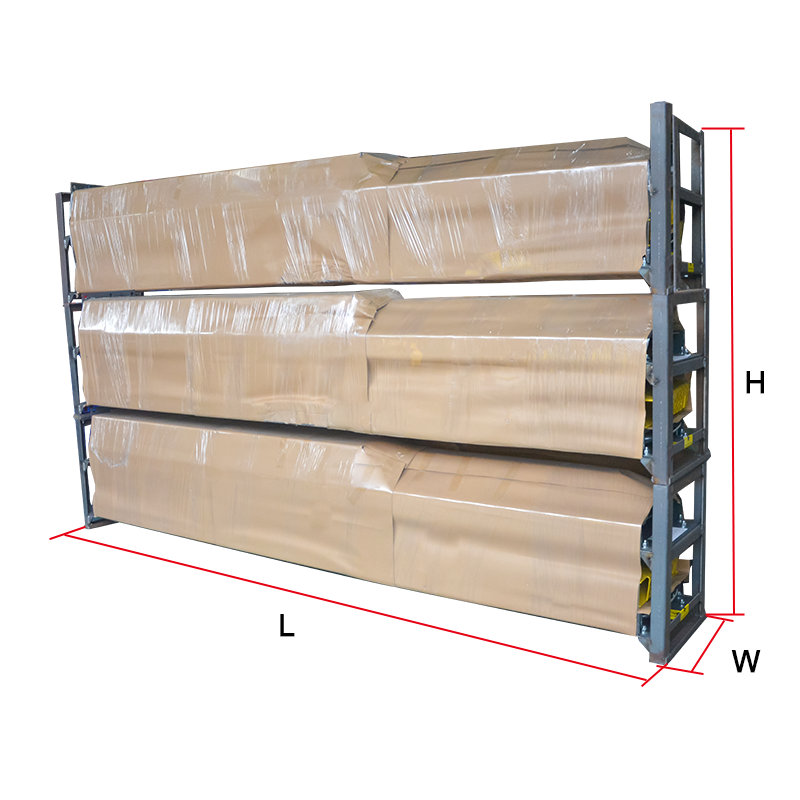

3 units/package, packing measurement (LxWxH): 5170x560x2135mm
-
1 unit/ctn,packing measurement (LxWxH): 1005x300x360mm
-

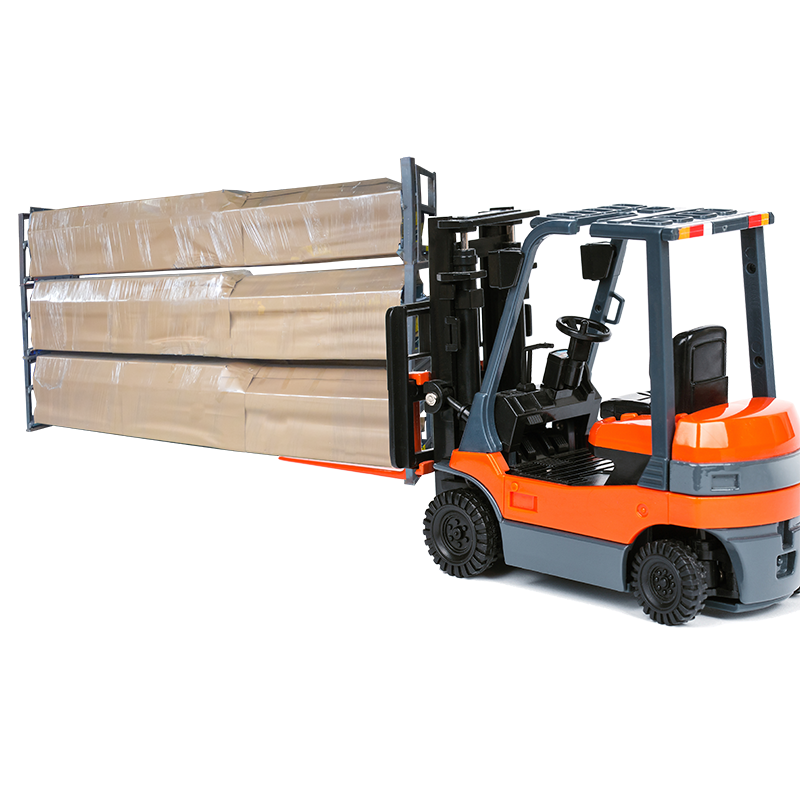

Attention to forklift loading and unloading
-

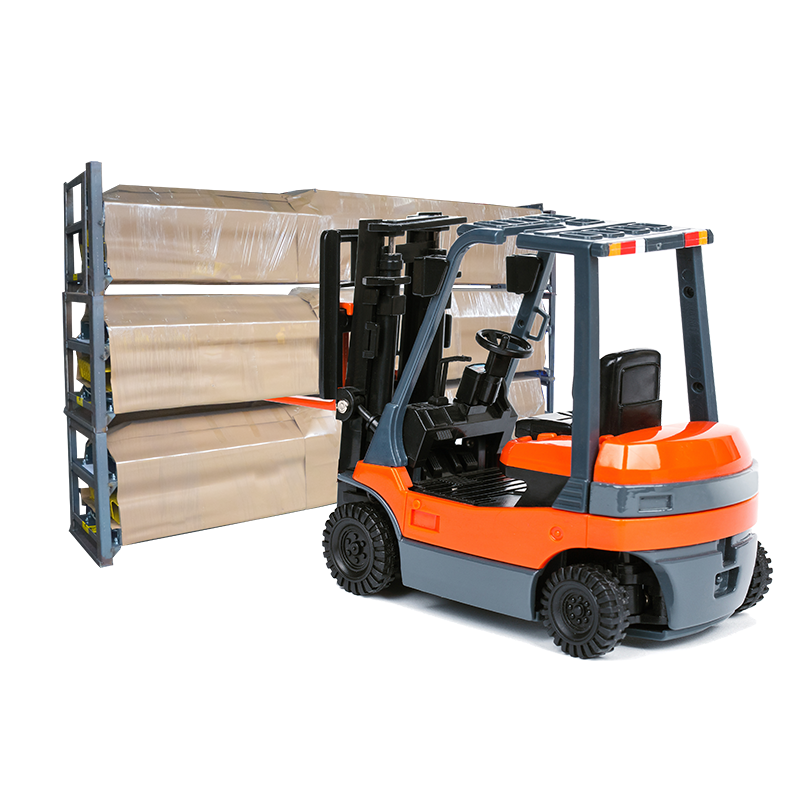

Attention to forklift transhipping
