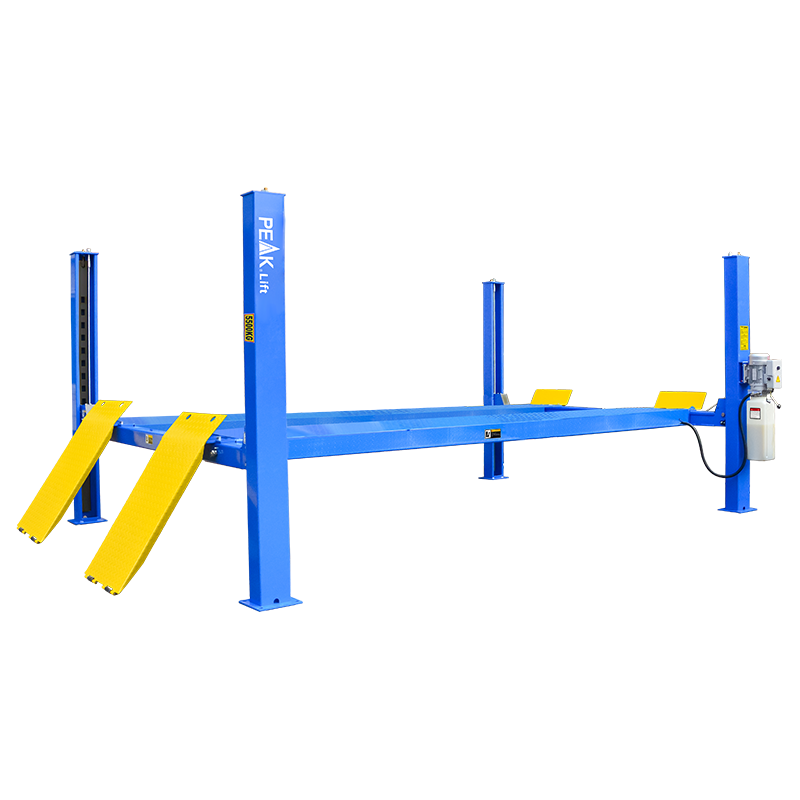

KHL-5500
General Service Four Post Lift
Reliable for Extensive works
Boasted a lifting capacity at 5500KG, the KHL-5500 is reliable for daily business needs, servicing various vehicles from passenger cars and light trucks to motor homes. Its robust structure is equipped with dual safety devices and diamond platforms, and featured manual lock release as standard,ensuring safety, durability, and universality.
- Heavy duty design, Lifting capacity: 5500KG（12000lbs);
- General service design, accommodate various vehicles;
- Peak patent design concealed safety lock control device, manual single-point lock release;
- No need extra air source;

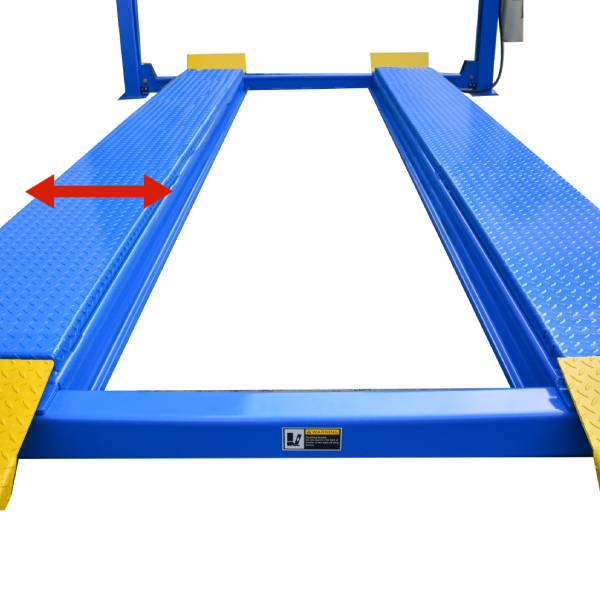

- Stelpless adjustable width between platforms;
- Integrated non-skid diamond platforms;
- Standard self-locking mechanical lock and air-drive safety lock;
- Standard primary safety locks and cable-slack protection mechanism;
- High quality hydraulic cylinder design and manufactured at high standard.
| Model KHL-5500 | General Service Four Post Lift | |
| Lifting Capacity | 5500kg (12,000 Ibs) | |
| Lifting Time | 60s | |
| Overall Length (Inc Ramps) | A | 6096mm (240") |
| Overall Length (No Ramps) | B | 5022mm (197 3/4") |
| Overall Width | C | 3212mm (126 7/16") |
| Width Between Columns | D | 2852mm (112 1/4") |
| Max. Lifting Height | E | 1892mm(74 5/16") |
| Max. Lock Height to top of runway | 1812mm(70 5/16") | |
| Overall Height | F | 2105mm(82 7/8") |
| Minimum Height | G | 162mm (6 3/8") |
| Max. Underneath Height | H | 1752mm (69") |
| Max. Lock Underneath Runway | 1672mm (65 13/16") | |
| Drive-Thru Clearance | I | 2584mm (101 3/4") |
| Width Between Runways | J |
1077mm (42 3/8") Min. 85mm (3 3/8")~ Max. 1322mm(52 1/16") |
| Outside Edge of Runways | K |
2093mm (82 7/16") Min. 1100mm (43 3/8")~ Max.2316mm (91 1/8") |
| Gross Weight | 1276kg (2,813lbs) | |
| Motor | 3.0HP | |
| QTY of Container |
12 Units/20'GP 24 Units/40'GP |
|
| Packing Dimension | 5200 x 560 x 790mm |
-
High quality hydraulic cylinder utilizes imported oil seals.
-

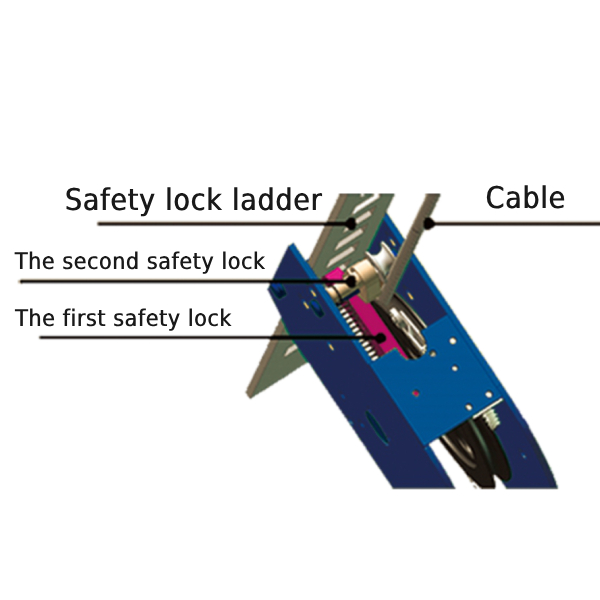

Double safety locks provide additional safety.
-
Aero standard cables.
-

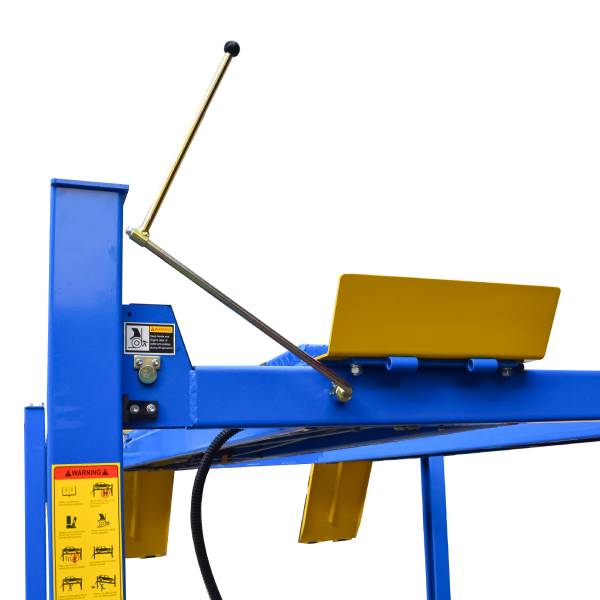

Hidden safety locks with manual single-point lock release.
-
Non-slip diamond platforms come as standard.
-

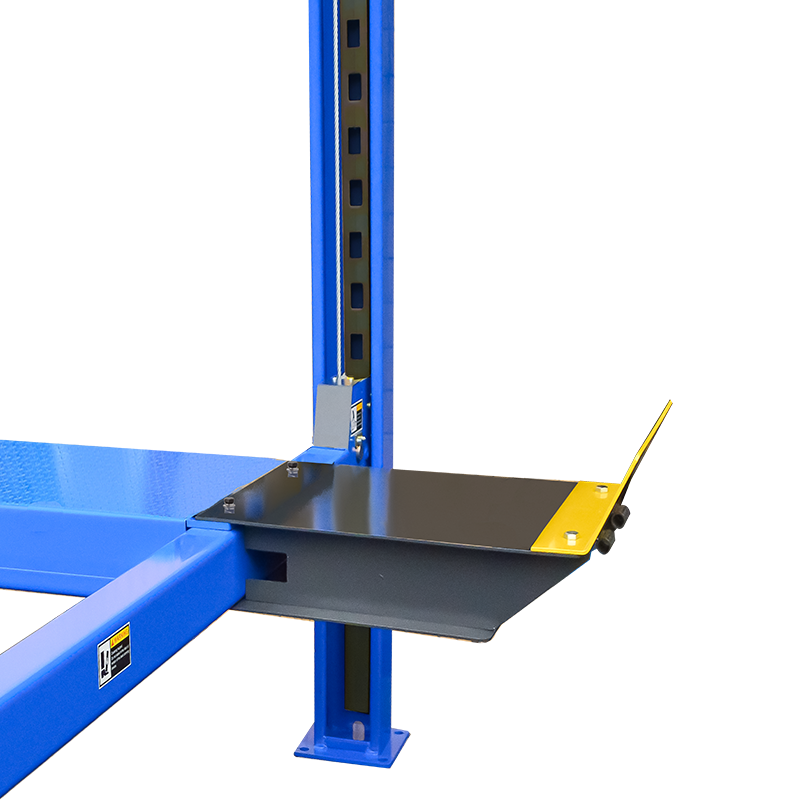

Optional platform extension kits add an extra 660mm (26") length to the platform. Kits No.: 40903
-

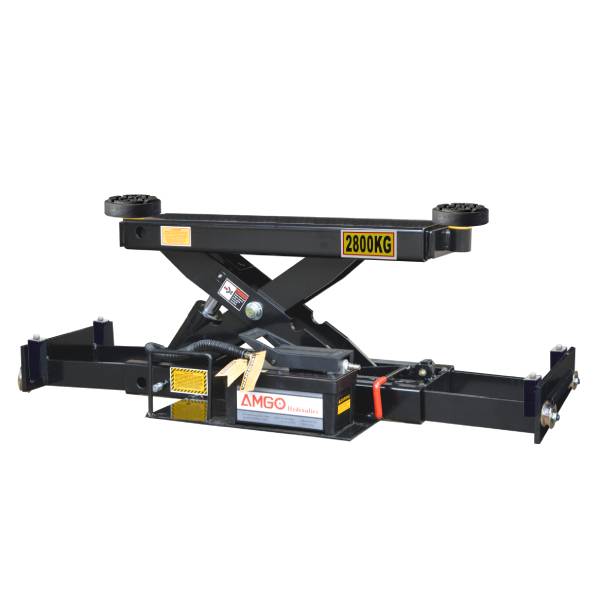

Optional Rolling Jacks
J6H: manual hydraulic type 2,800kg.
J6A: pneumatic hydraulic type 2,800kg.
2 units or 3 units ( including parts box,without hydraulic power unit )
- Gross weight for KHL-5500: 1276kgs , include power unit gross weight 26kgs.
- 20' container can load 12 units.
- 40' container can load 24units.
-

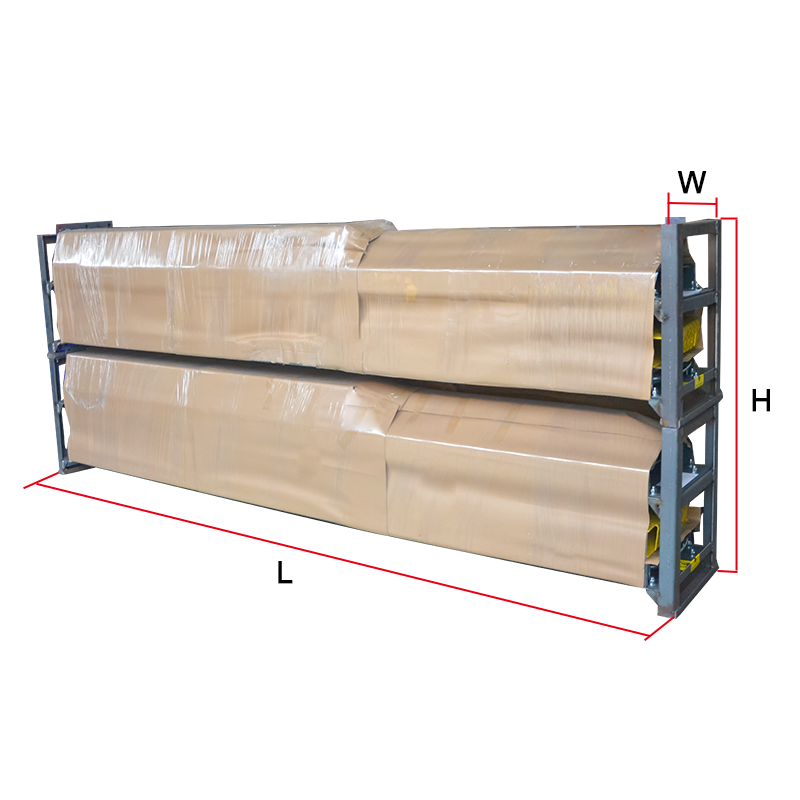

2 units/package,packing measurement (LxWxH):5080x560x1500mm
-

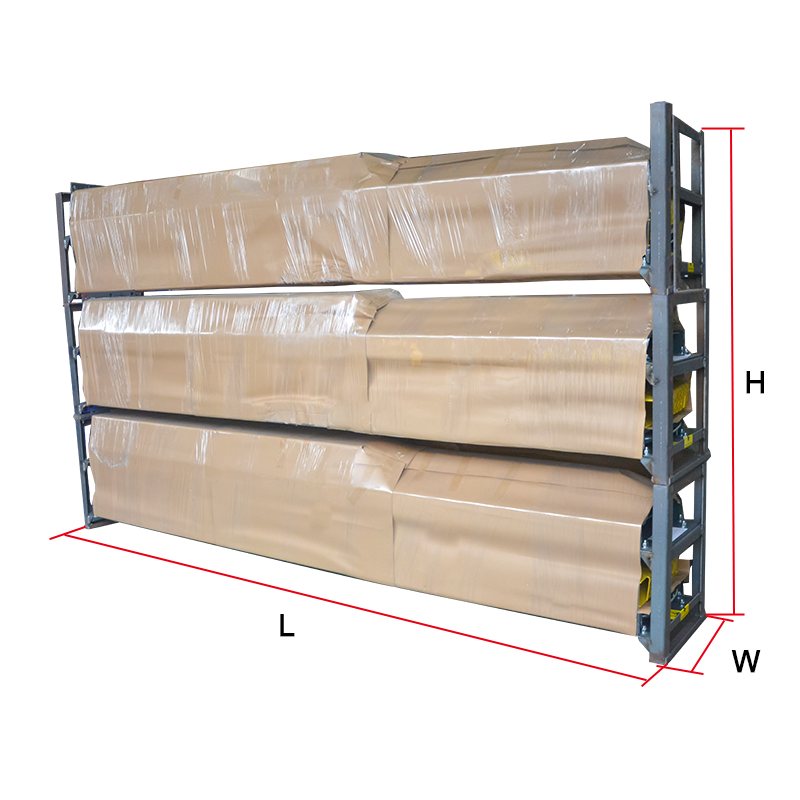

3 units/package, packing measurement (LxWxH): 5080x560x2230mm
-
1 unit/ctn,packing measurement (LxWxH): 920x300x360mm
-
Attention to forklift loading and unloading
