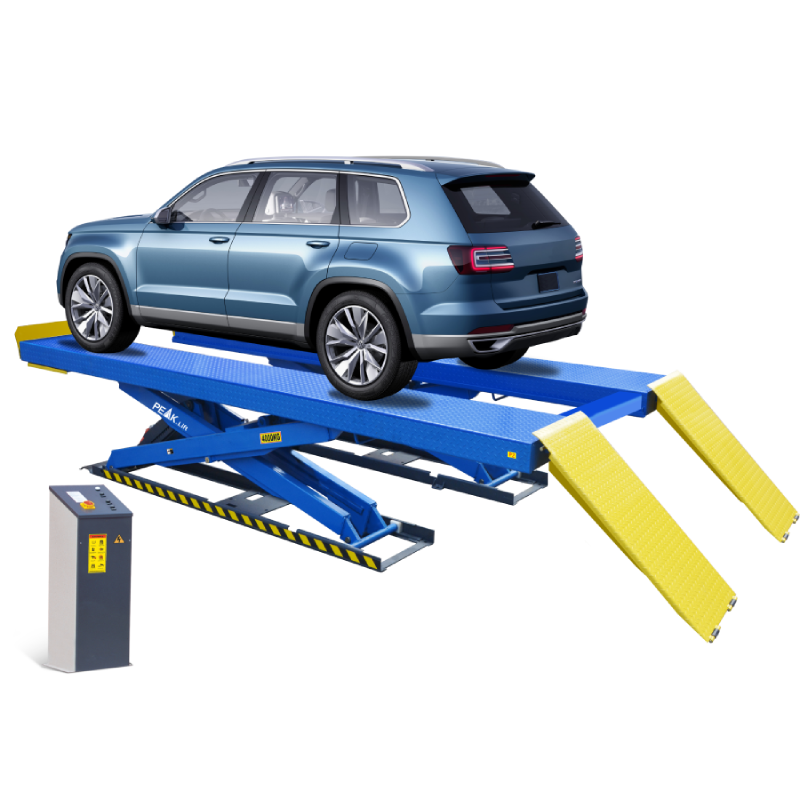

PX09
General Service Scissors Lift
X makes better
Peak X Scissors has been introduced to our large scissors lifts to assure reliable powerful perfomance. The PEAK PX09 is exceptionally sturdy compared to similar products in the market, with wide platforms that can lift a range of vehicles from compact cars to vans and light trucks. It's operated with an electric-air control system, features a photocell device to ensure optimal platform synchronization, and is equipped with double-teeth self-locking devices.
- Lifting capacity: 4000KG (9000lbs);
- General service model;
- Heavy duty structure with X scissors to enhance the durability ;
- Electrical control operation system, with control cabinet;
- Self-locking mechanical safety locks with air-operated lock release;
- Photo cell configuration;
- Automatic safety stop device at 600mm from ground when lowering;
- Pull-out tool shelf comes standard;
- Integrated non-skid diamond platforms;
| Model PX09 | General Service Scissors Lift | |
| Lifting Capacity | 4000kg (9,000lbs) | |
| Lifting Time | 55s | |
| Max. Lifting Height | A1 | 1850mm (72 13/16") |
| Minimum Height | A2 | 300mm (11 3/4") |
| Runway Length | B | 4828mm (190 3/4") |
| Overall Width | C | 2190mm (86 1/4") |
| Width Between Runways | D | 940mm (37") |
| Overall Length (Inc. Ramps) | E | 6594mm (259 5/8") |
| Gross Weight | 1835kg (4,045lbs) | |
| Motor | 3.0HP | |
| QTY of Container | 6 Units/20'GP | |
| Packing Dimension | 4950 x 770 x 1045 mm (Lift) | |
| Packing Dimension | 478 x 428 x 1235 mm (Control Cabinet) |
-
Electro-air control system,mechanical safety locks.
-
Extremely long and wide non-skid diamond platforms are capable of servicing varuing wheelbase vehicles.
-
Heavy duty design with robust X scissors made of large steel tubes to ensure strong capabilities under heavy workloads.
-
Equipped with photocell configuration as standard to ensure the equalization of both platforms.
-
Nice design pull-out tool tray comes as standard.
-
Optional extension platform,
Kits No.: PX001 -
Optional air line kits (kits no.: PX004)
-
Optional rolling jacks
J6H: manual hydraulic type 2.8T
J6A: pneumatic hydraulic type 2.8T
2 units as a package ( including parts box,without control cabinet)
- Gross weight for PX09: 1835kgs , include control cabinet gross weight 75kgs.
- 20' container can load 6 units.
- 40' container can load 12 units.
-

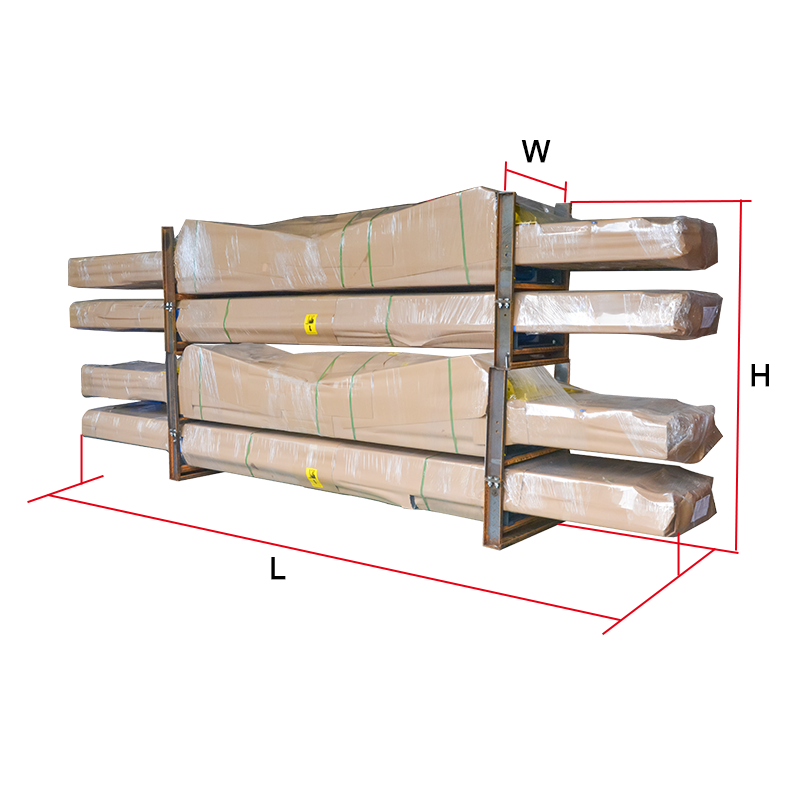

2 units/package,packing measurement (LxWxH):4950x770x2090mm
-

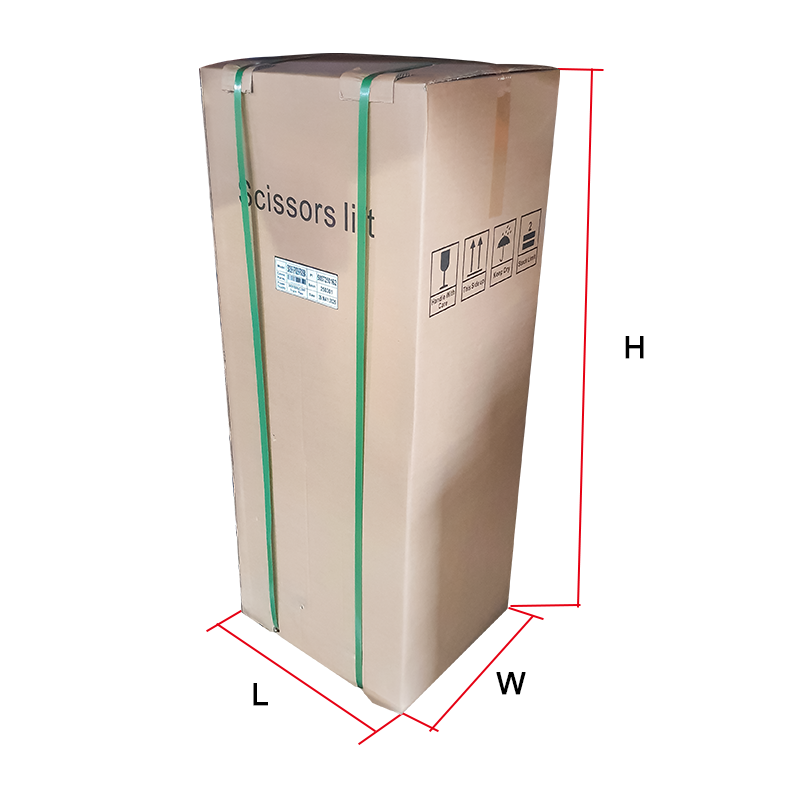

1 unit/ctn,control cabinet packing measurement (LxWxH): 478x428x1250mm
-

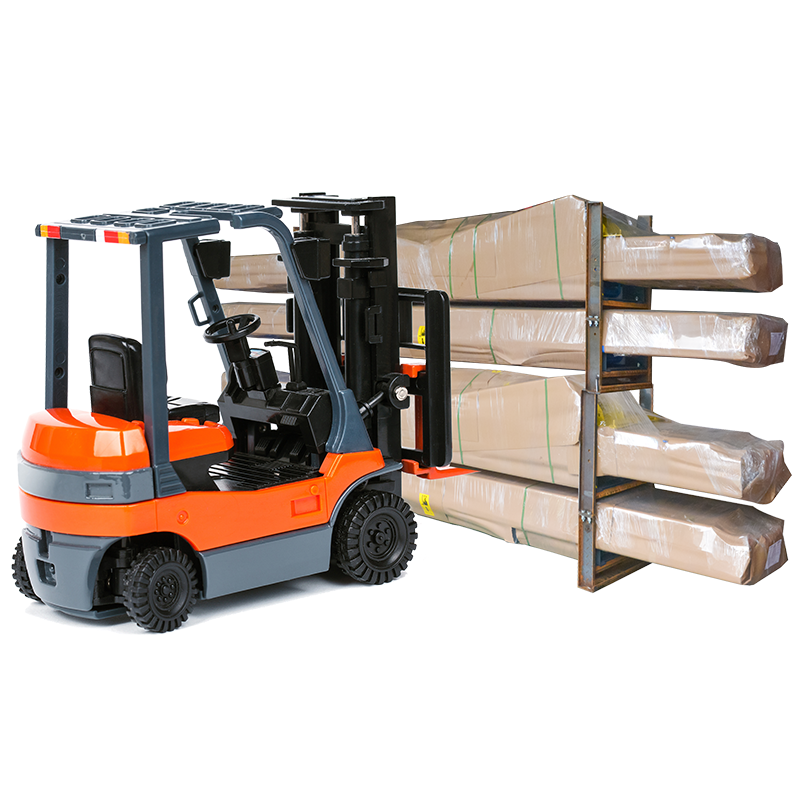

Attention to forklift loading and unloading.
