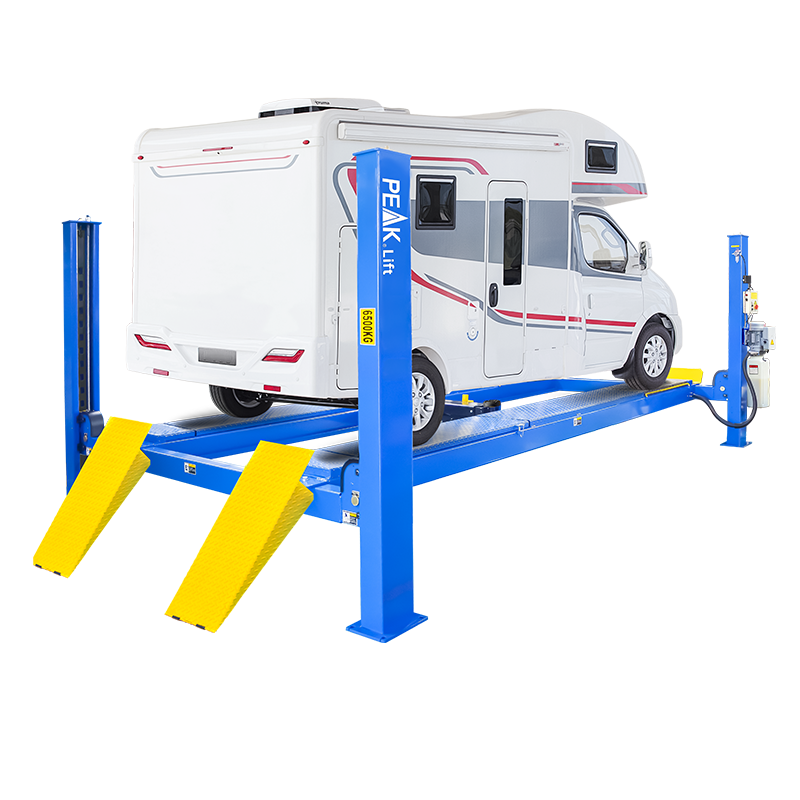

414AE
Heavy Duty Alignment Service Four Post Lift

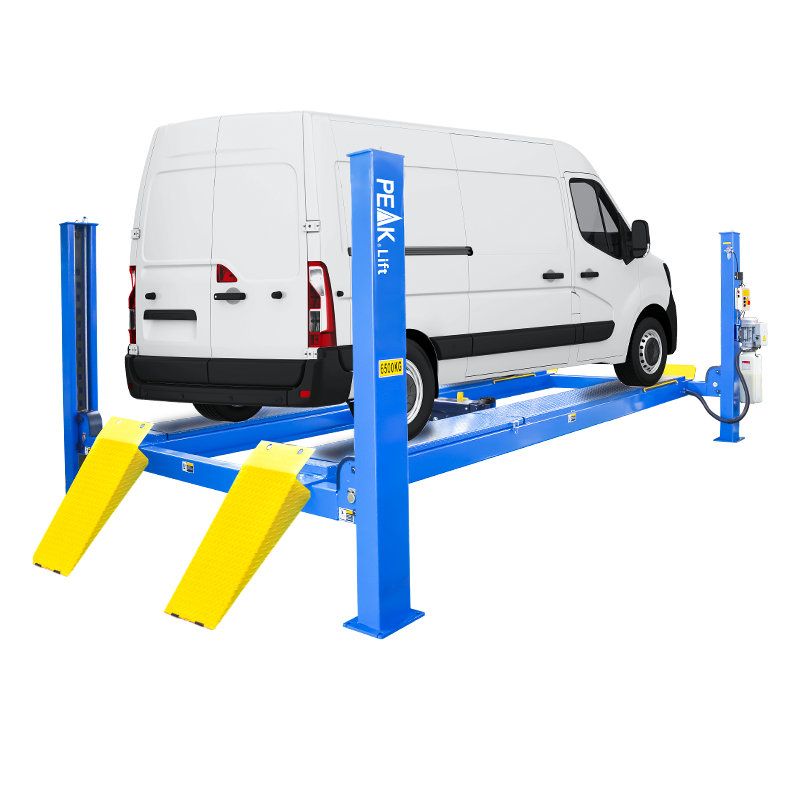

Maximize your profit
From passenger cars to to long wheelbase commercial vehicles, PEAK 414AE handles efficiently for both general and alignment services. Choose PEAK 414AE, to enhance your business and to maximize your profit.
- 6500KG (14,000 lbs) capacity;
- Heavy duty design, alignment model;
- Features extreme long platforms, 724mm longer than 414A;
- 24V safe electrical operation system;
- Stelpless adjustable width between platforms;
- Integrated non-skid diamond platforms;

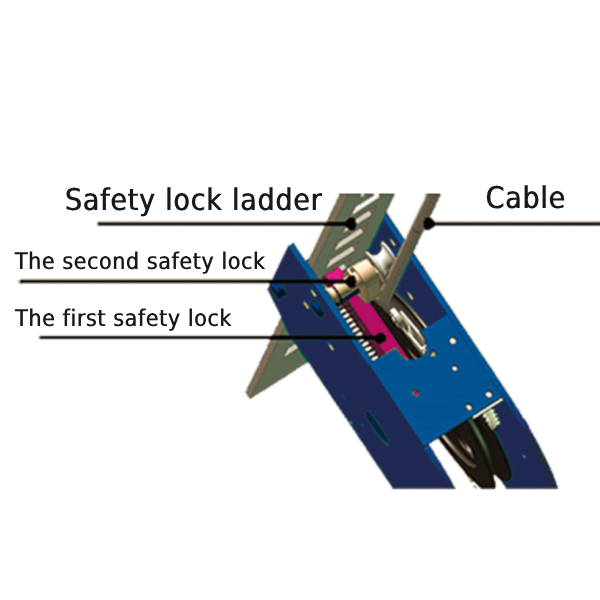

- Standard self-locking mechanical lock and air-drive safety lock;
- Standard primary safety locks and cable-slack protection mechanism;
- Adjustable turnplate pockets to fit various wheel bases;
- High quality hydraulic cylinder design and manufactured at high standard.
| Model 414AE | Alignment Four Post Lift | |
| Lifting Capacity | 6500kg (14,000 Ibs) | |
| Lifting Time | 81s | |
| Overall Length (Inc Ramps) | A | 7252mm (285 1/2") |
| Overall Length (No Ramps) | B | 6224mm (245") |
| Overall Width | C | 3324mm (130 7/8") |
| Width Between Columns | D | 2946mm (116") |
| Max. Lifting Height | E |
1950mm(76 3/4") |
| Max. Lock Height to top of runway | 1880mm (74") | |
| Overall Height | F | 2189mm(86 1/4") |
| Minimum Height | G | 250mm (9 7/8") |
| Max. Underneath Height | H | 1730mm (68 1/8") |
| Max. Lock Underneath runway | 1660mm(65 3/8") | |
| Drive-Thru Clearance | I | 2592mm (98 3/8") |
| Width Between Runways | J |
1194mm (47") Min.85mm (3 3/8")~ Max.1385mm(54 1/2") |
| Outside Edge of Runways | K |
2210mm (87") Min.1101mm(43 3/8")~ Max. 2401mm(94 1/2") |
| Min. Four Wheel Align | L | 2396mm (94 5/16") |
| Max. Four Wheel Align | M | 4310mm (169 11/16") |
| Max. Two Wheel Align | N | 5190mm (204 5/16") |
| Gross Weight | 1634kg (3,602 lbs) | |
| Motor | 3.0HP |
-

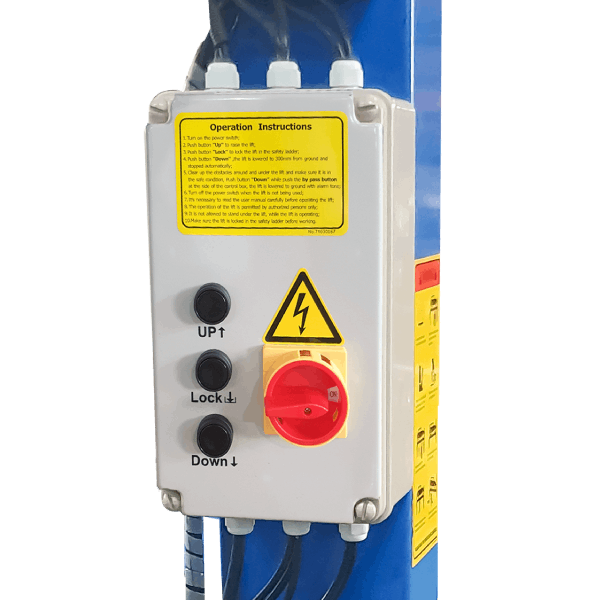

Electric control device with UP, LOCK and DOWN buttons.
-
Double safety locks provide additional safety.
-
Oil-water separator and solenoid air valve are installed on the power side column.
-

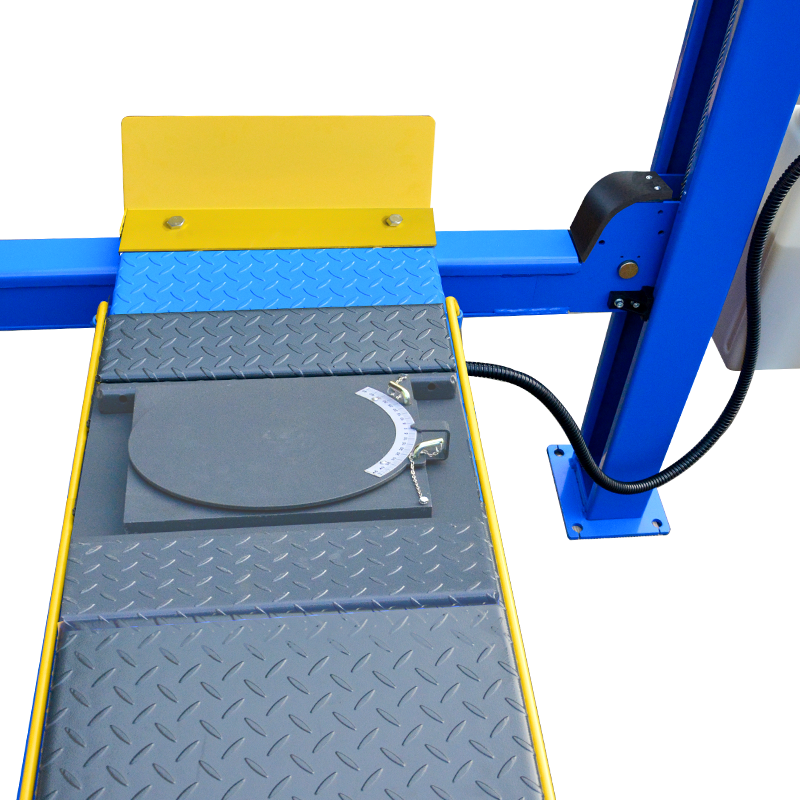

Adjustable turnplate blocks to fit various wheel bases vehicles.
-

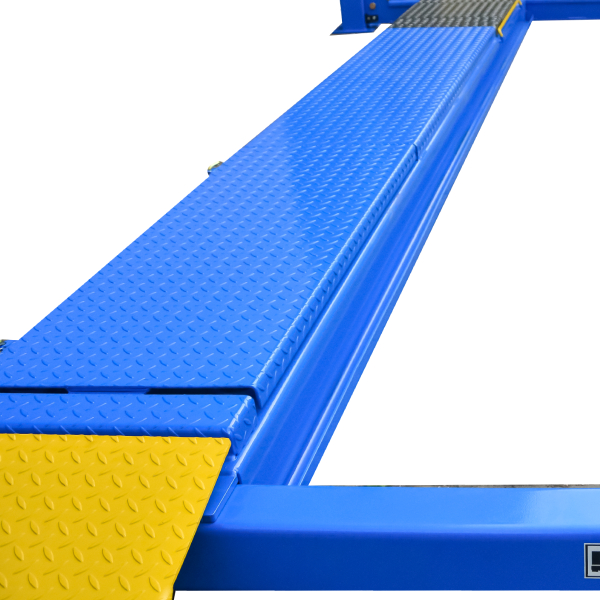

Non-slip diamond platforms come as standard.
-
Stepless adjustable width between platforms.
-

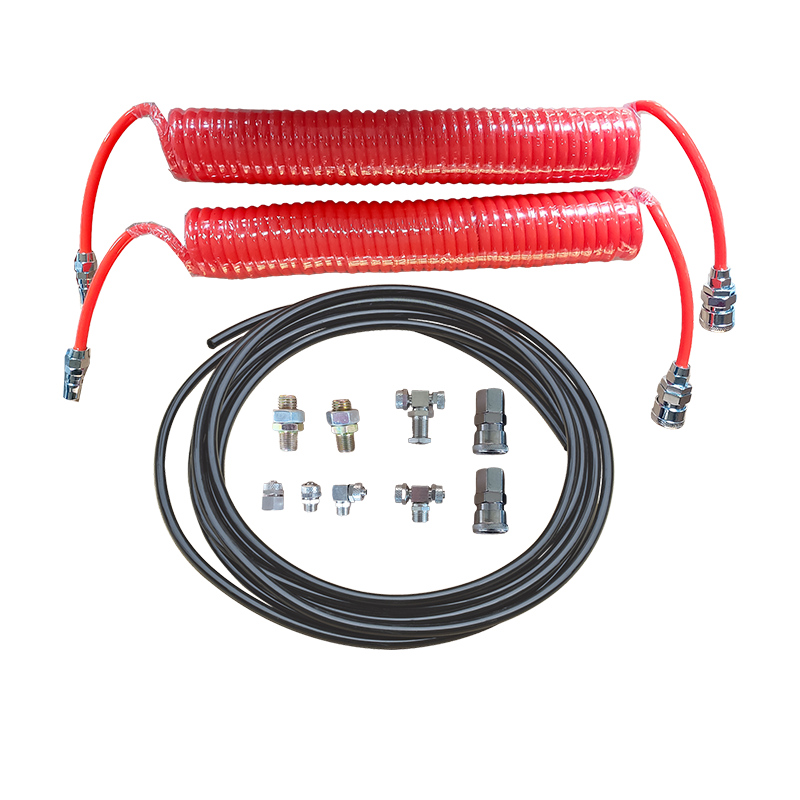

Optional Air Line Kits
All peak four post lifts are designed to use the air line kits for rolling jack.
Kits No.: 40102 -
Optional Platform Extension Kits add an extra 660mm (26") length to the platform.
Kits No.: 41403 -

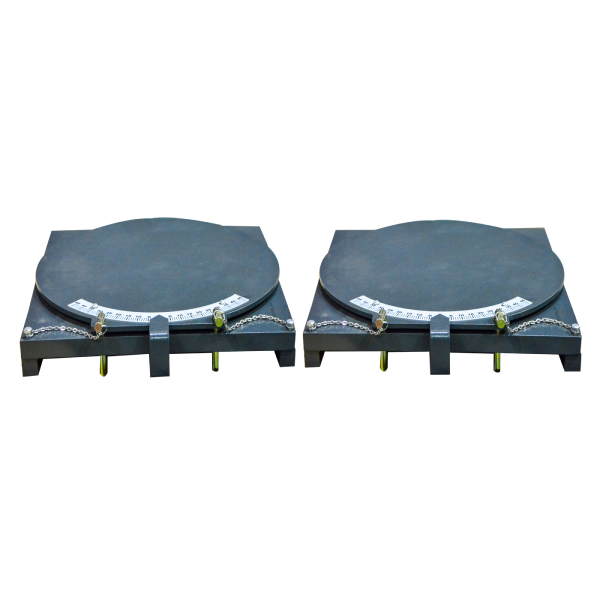

Optional Turnplate
Each alignment lift need one set (two pcs.) of turnplates.
Kits No.: 40101 -

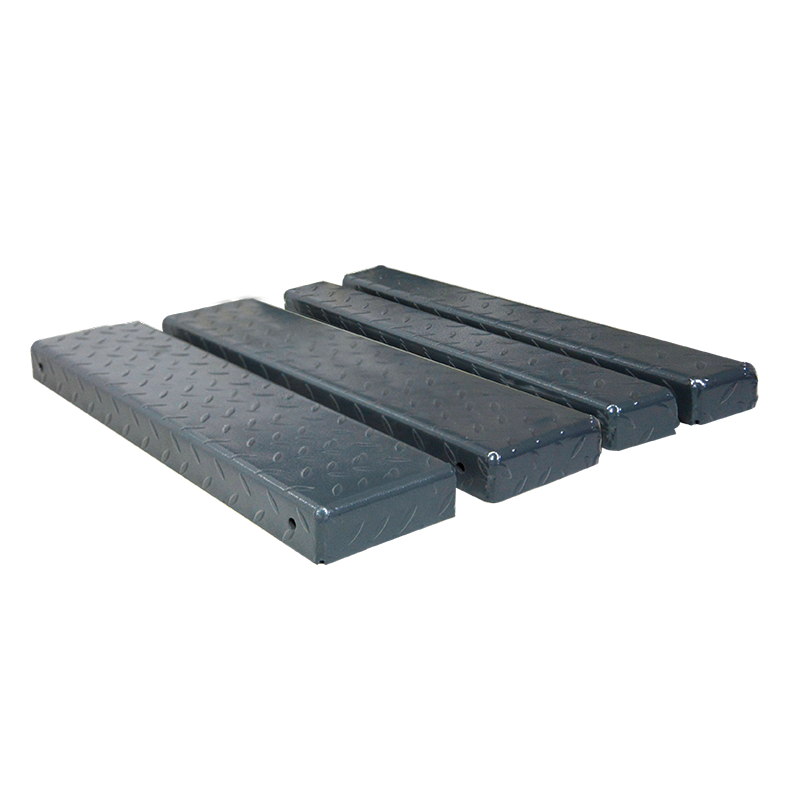

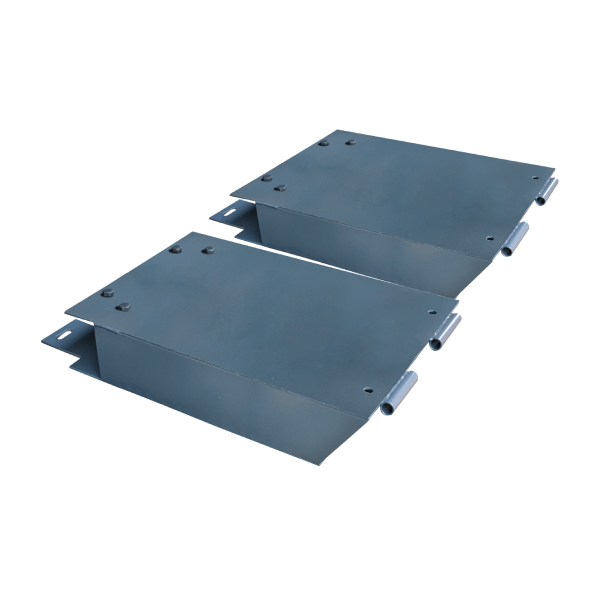

Optional adjustable blocks used with platform extension kit (41403).
Kits No.: 40905 -
Optional Rolling Jacks
RJ-8A: pneumatic hydraulic type 3,500kg.
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 414AE: 1634kgs , include power unit gross weight 26kgs.
- 40'GP loading capacity: 12 units.
-

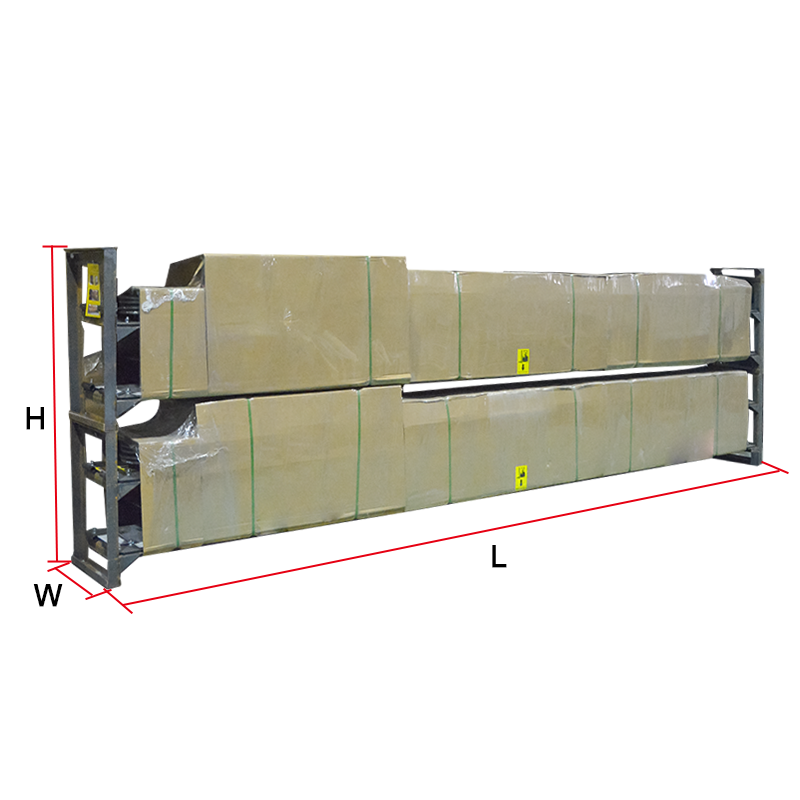

2 units/package,packing measurement (LxWxH): 6254x562x1560mm
-

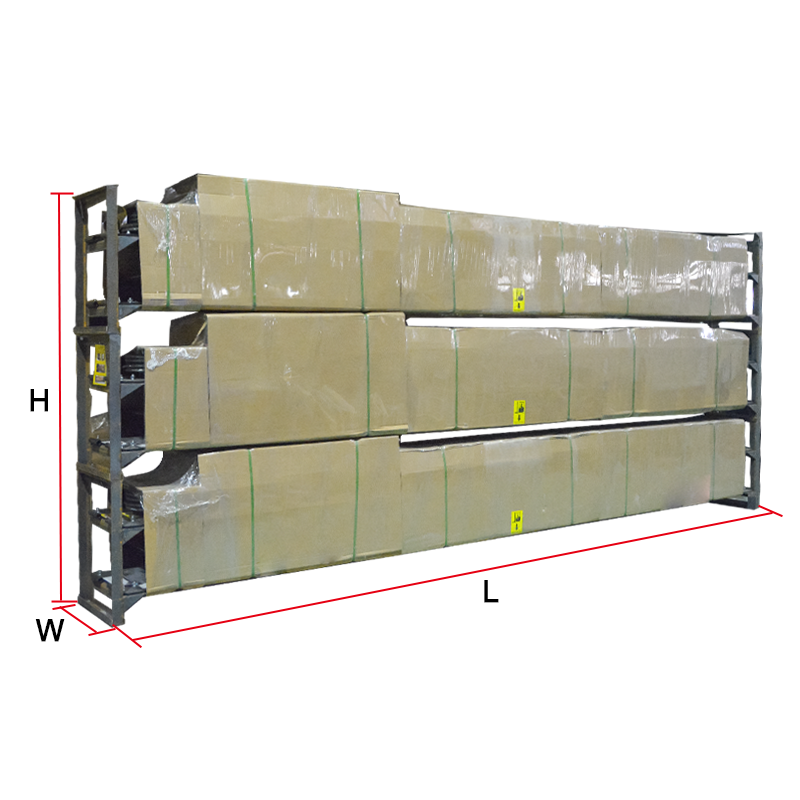

3 units/package, packing measurement (LxWxH): 6254x562x2250mm
-

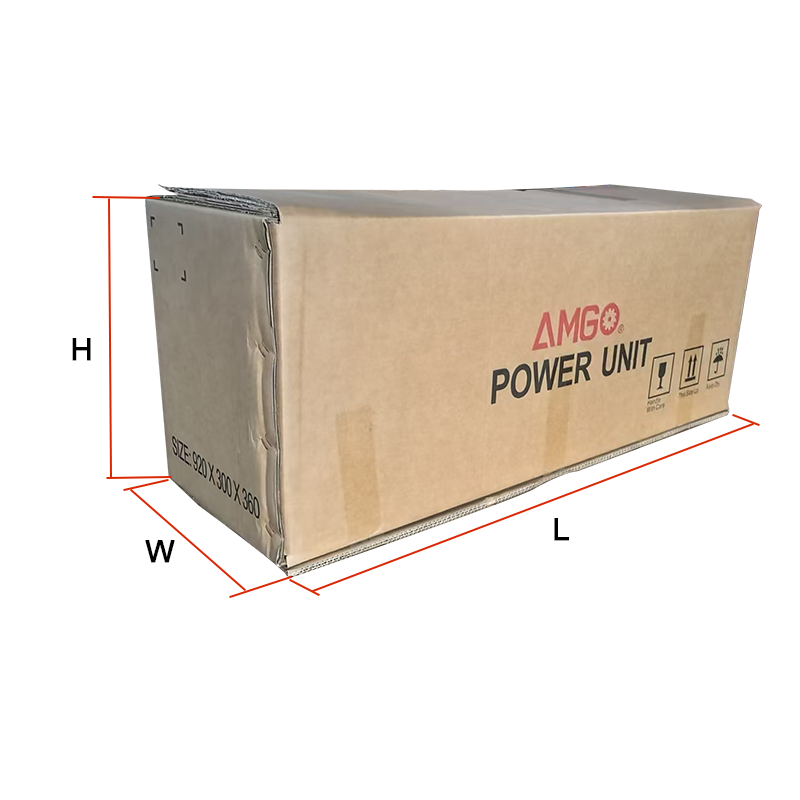

1 unit/ctn,packing measurement (LxWxH): 1005x300x360mm
-

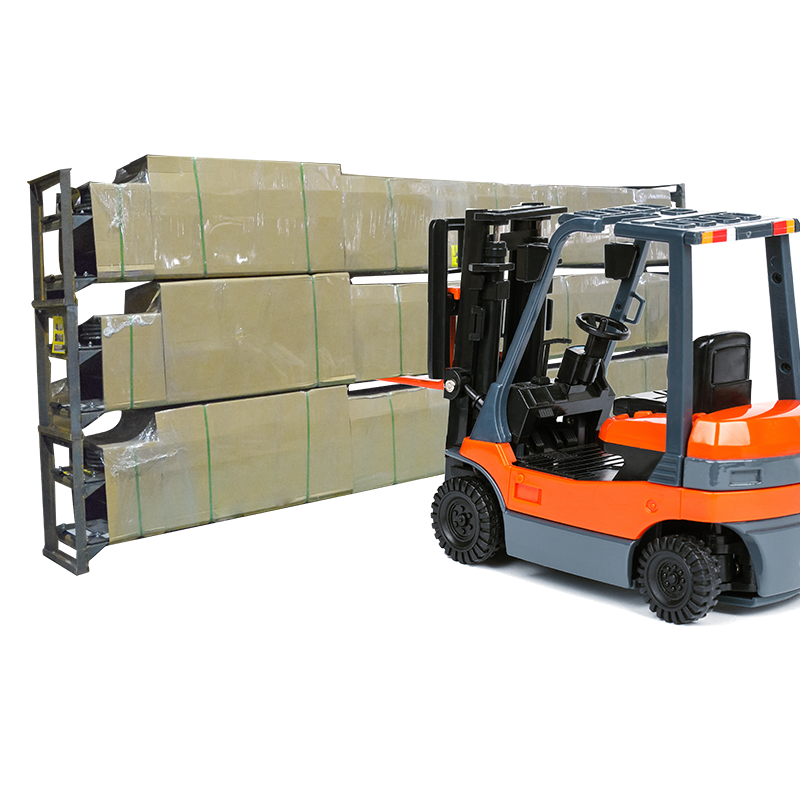

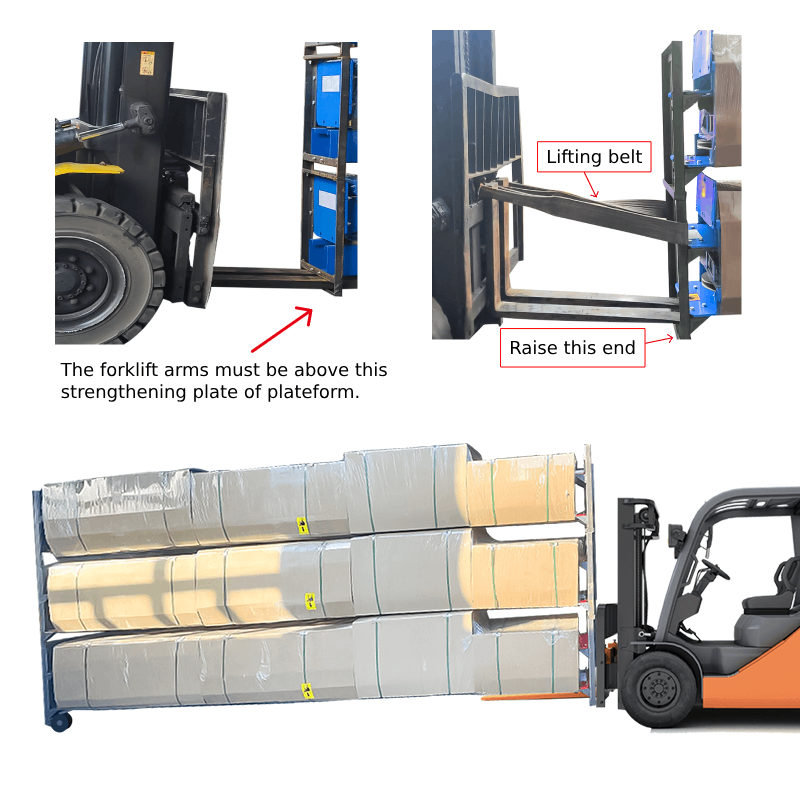

Use a forklift to lift up one end of the machine about 50-100mm from the ground, and pull the machine out from the container with the assistance of lifting belt or other cables.
-
After the machine is pulled out from the container, use the forklift to lift the machine from the middle position.
-

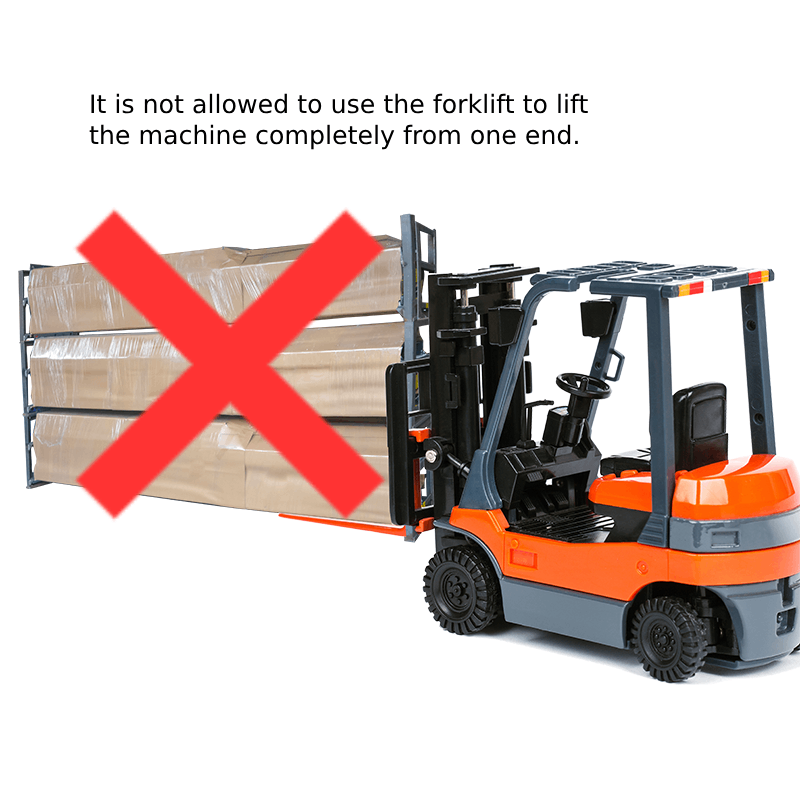

Wrong operation: It is not allowed to use the forklift to lift the machine completely from one end, which will easily cause the machine to be deformation.
