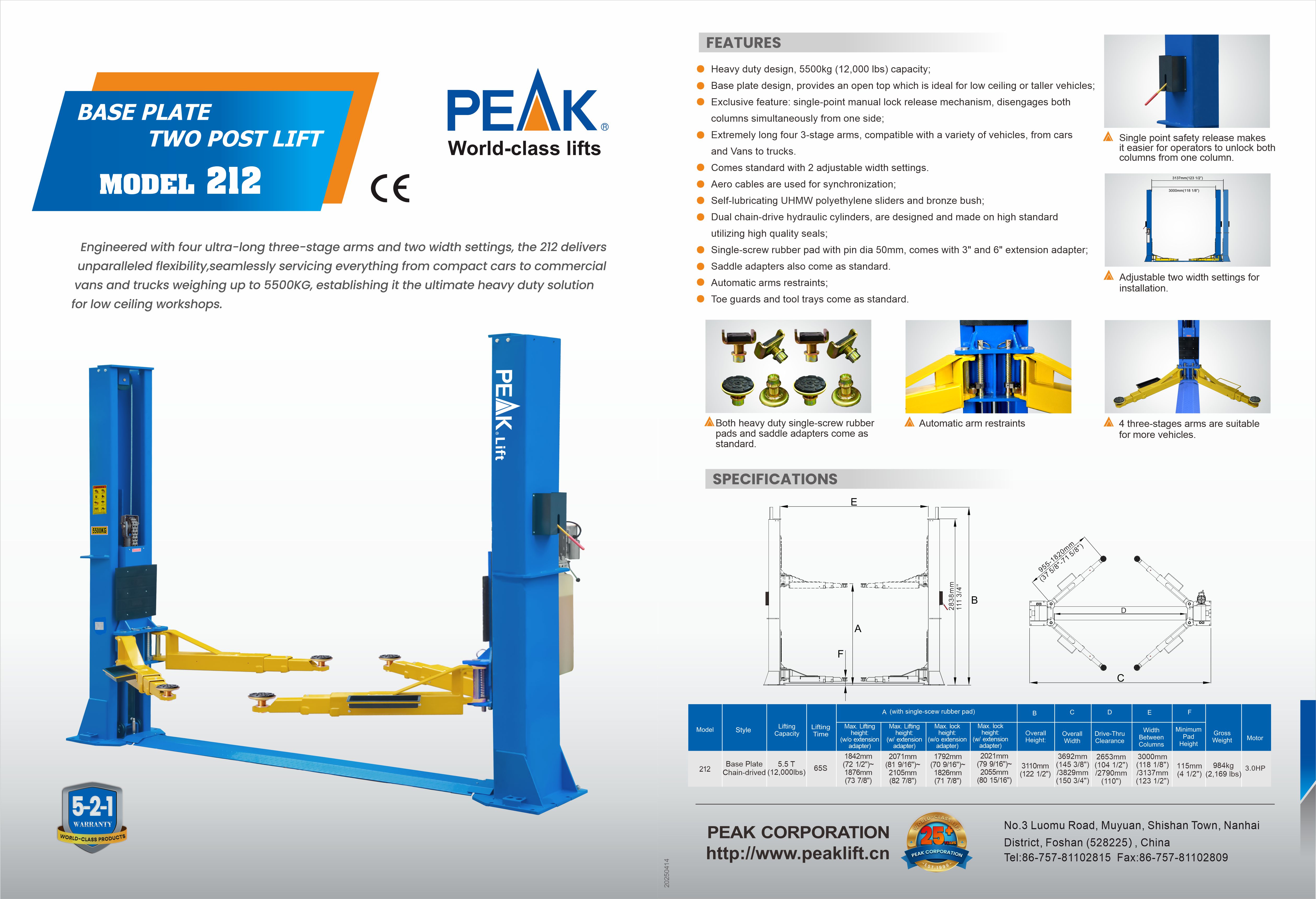

212
Heavy Duty Base Plate Two Post Lift
Reaches farther,lifts for more.
Engineered with four ultra-long three-stage arms and two width settings, the 212 delivers unparalleled flexibility, seamlessly servicing everything from compact cars to commercial vans and trucks weighing up to 5500KG, establishing it the ultimate heavy duty solution for low ceiling workshops.
- Heavy duty design, 5500kg (12,000 lbs) capacity;
- Base plate design, provides an open top which is ideal for low ceiling or taller vehicles;
- Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
- Extremely long four 3-stage arms, compatible with a variety of vehicles, from cars and Vans to trucks.
- Comes standard with 2 adjustable width settings.
- Aero cables are used for synchronization;
- Self-lubricating UHMW polyethylene sliders and bronze bush;
- Dual chain-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
- Single-screw rubber pad with pin dia 50mm, comes with 3" extension adapter;
- Saddle adapters also come as standard.
- Automatic arms restraints;
- Toe guards and tool trays come as standard.
| Model 212 | Base Plate Chain-drived | |
| Lifting Capacity | 5500kg(12,000 Ibs) | |
| Lifting Time | A | 65s |
| Max. Lifting height:(w/o extension adapter) | 1842mm(72 1/2")~1876mm(73 7/8") | |
| Max. Lifting height:(w/ extension adapter) | 2071mm(81 9/16")~2105mm(82 7/8") | |
| Max. lock height(w/o extension adapter) | 1792mm(70 9/16")~1826mm(71 7/8") | |
| Max. lock height(w/ extension adapter) | 2021mm(79 9/16")~2055mm(80 15/16") | |
| Overall Height | B | 3110mm(122 1/2") |
| Overall Width | C |
3692mm(145 3/8") 3829mm(150 3/4") |
| Drive-Thru Clearance | D |
2653mm(104 1/2") 2790mm(110") |
| Width Between Columns | E |
3000mm(118 1/8") 3137mm(123 1/2") |
| Minimum Pad Height | F | 115mm(4 1/2") |
| Gross Weight | 984kg(2,169 Ibs) | |
| Motor | 3.0HP | |
| QTY of Container | 16 Units/20'GP |
-

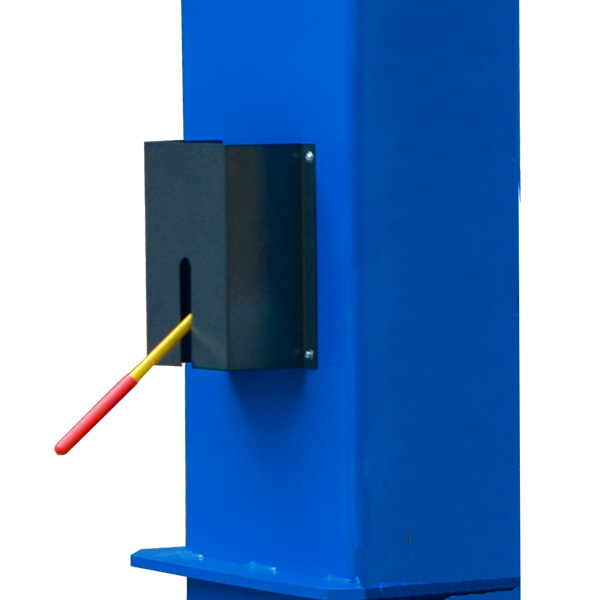

Single point safety release makes it easier for operators to unlock both columns from one column.
-

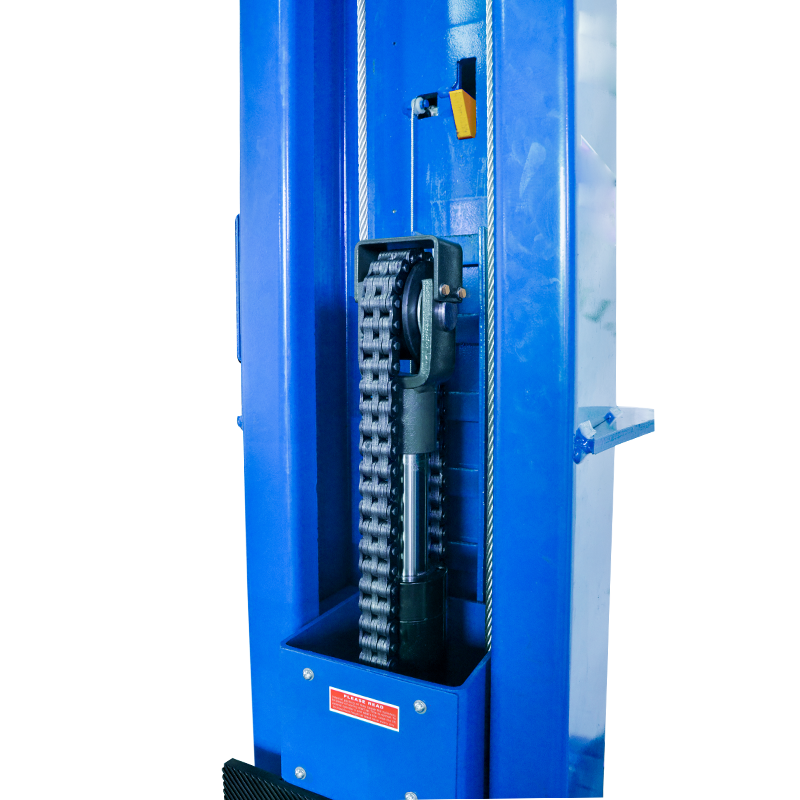

Hydraulic chain-drived cylinder.
-

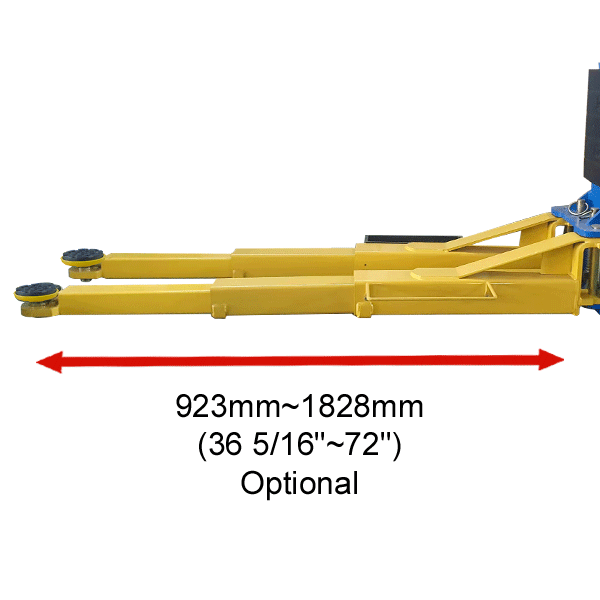

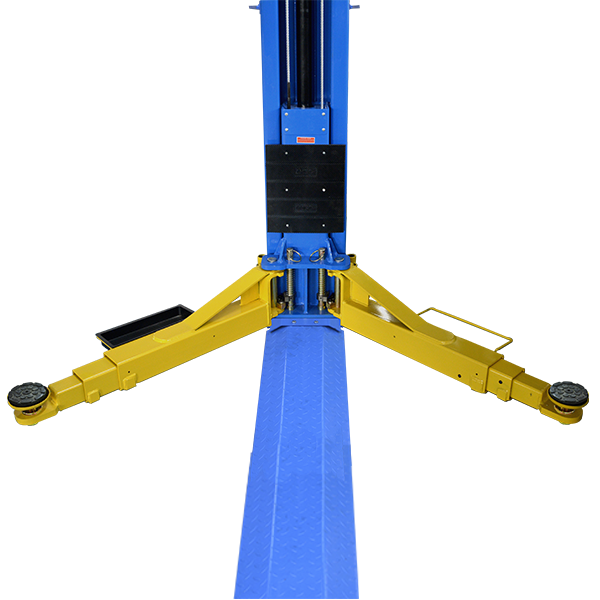

Extremely long 4 three-stages arms are suitable for more vehicles.
-

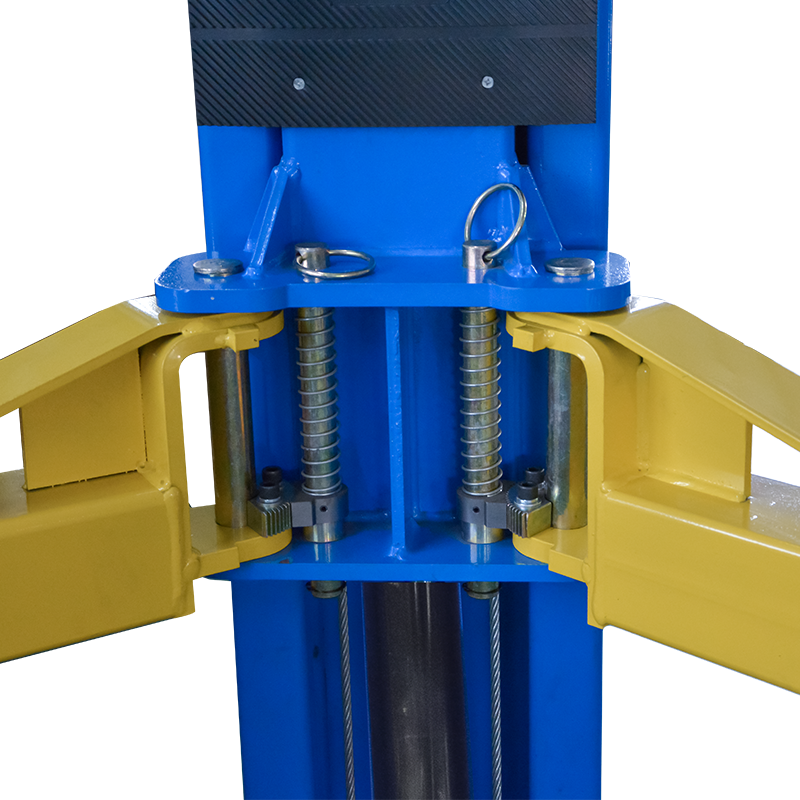

Automatic arm restraints.
-

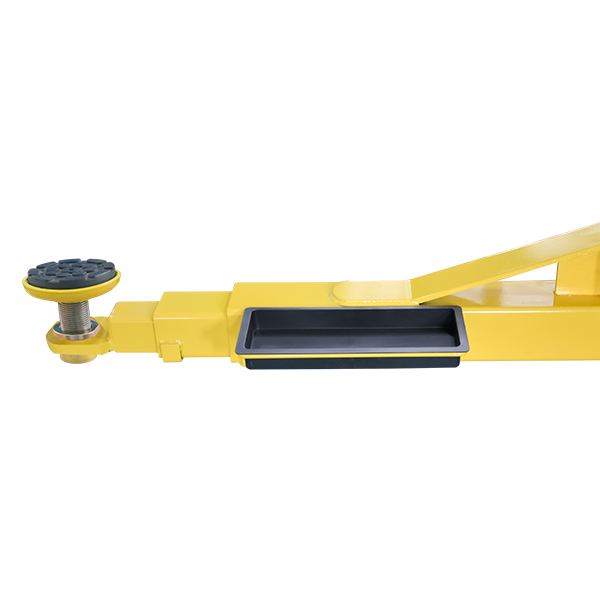

Toe guards and tool trays come as standard.
-

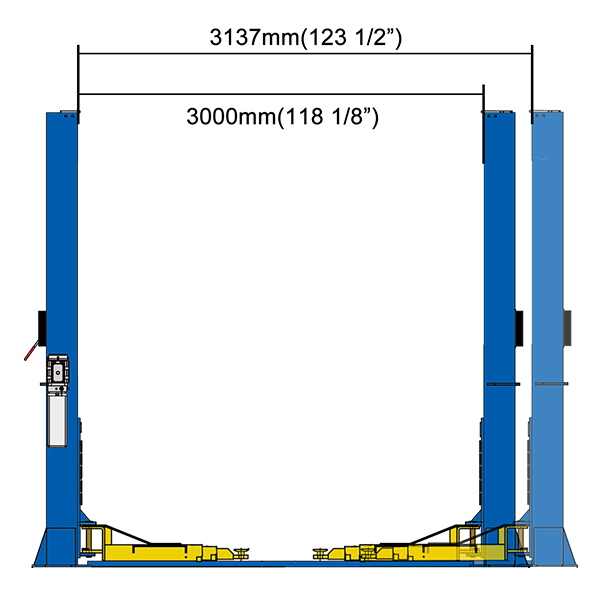

Adjustable two width settings for installation.
-

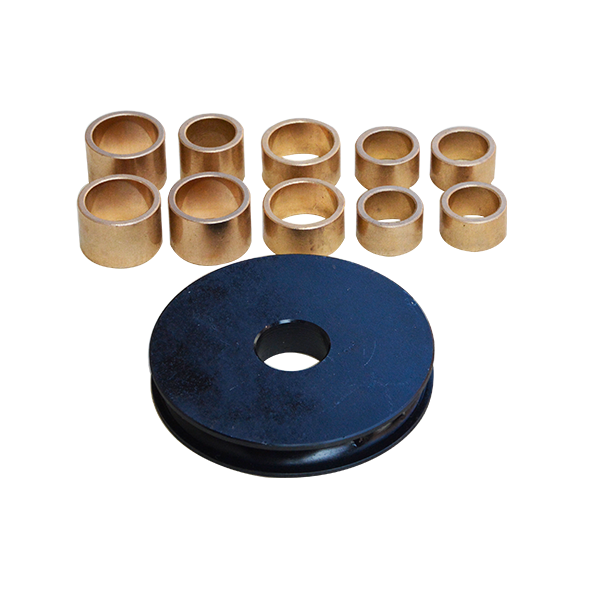

Self-lubricating bronze bush,no need frequently change.
-

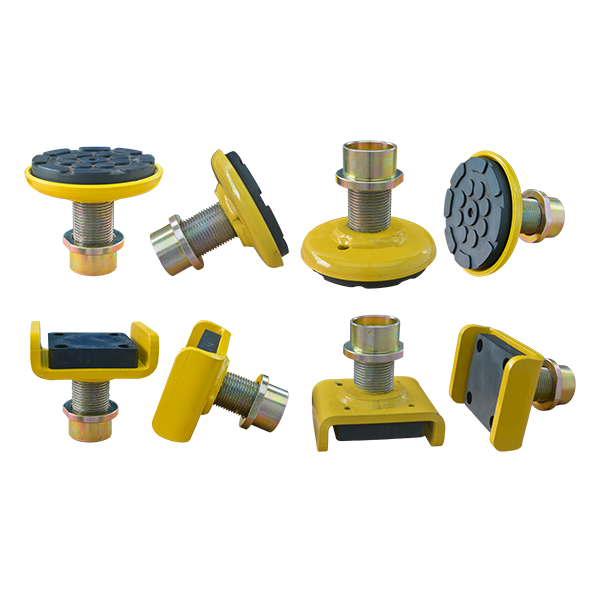

Both heavy duty single-screw rubber pads and saddle adapters come as standard.
-

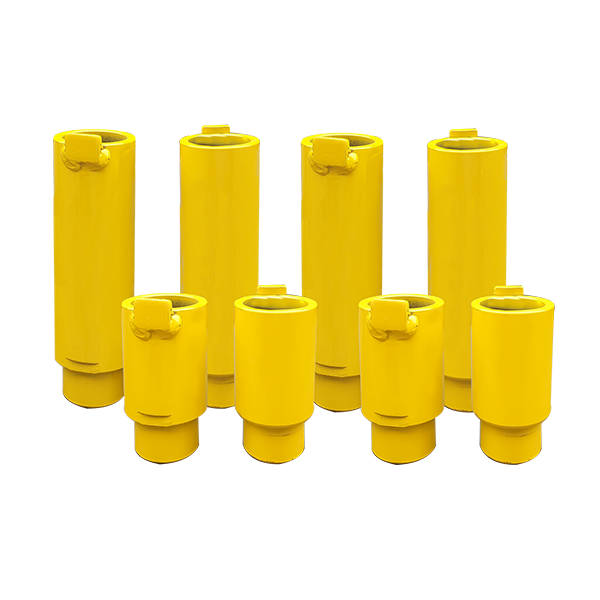

Both 3" and 6" extension adapters come as standard.
-

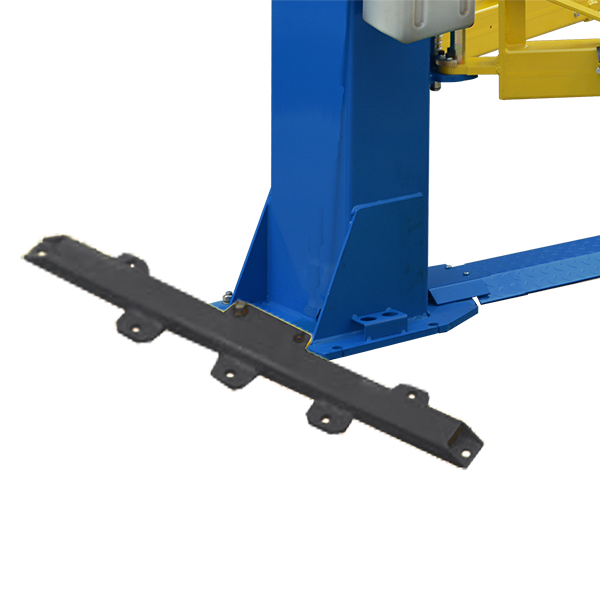

The optional base plate extension.
Kits no.: 21501.
2 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 212: 984kgs , include power unit gross weight 26kgs.
- 20' container can load 16 units.
-

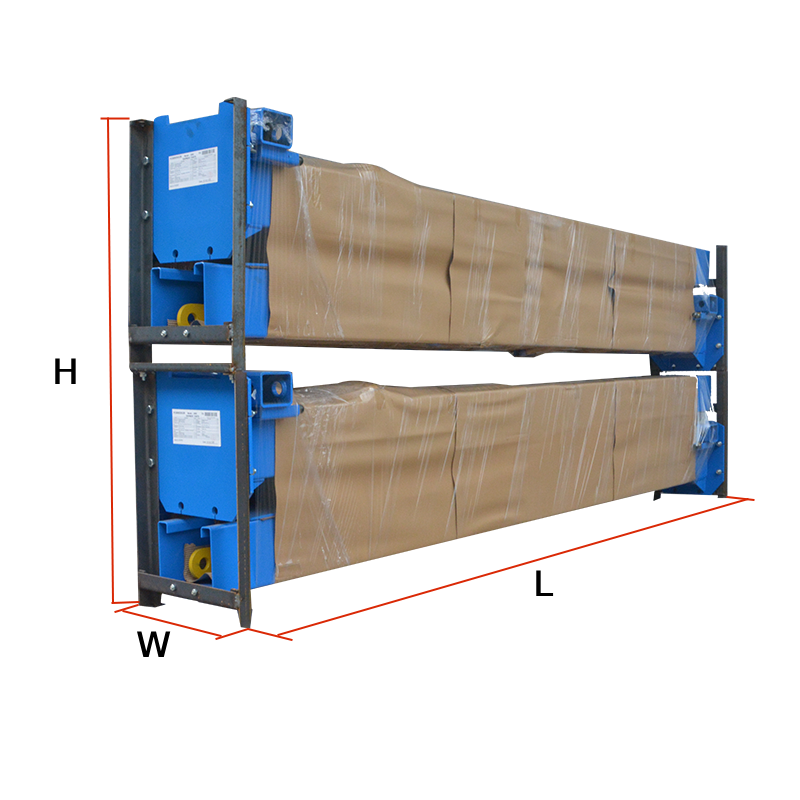

2 units/package,packing measurement (LxWxH):2920x570x1890mm
-
1 unit/ctn, packing measurement (LxWxH): 1005x300x360mm
-

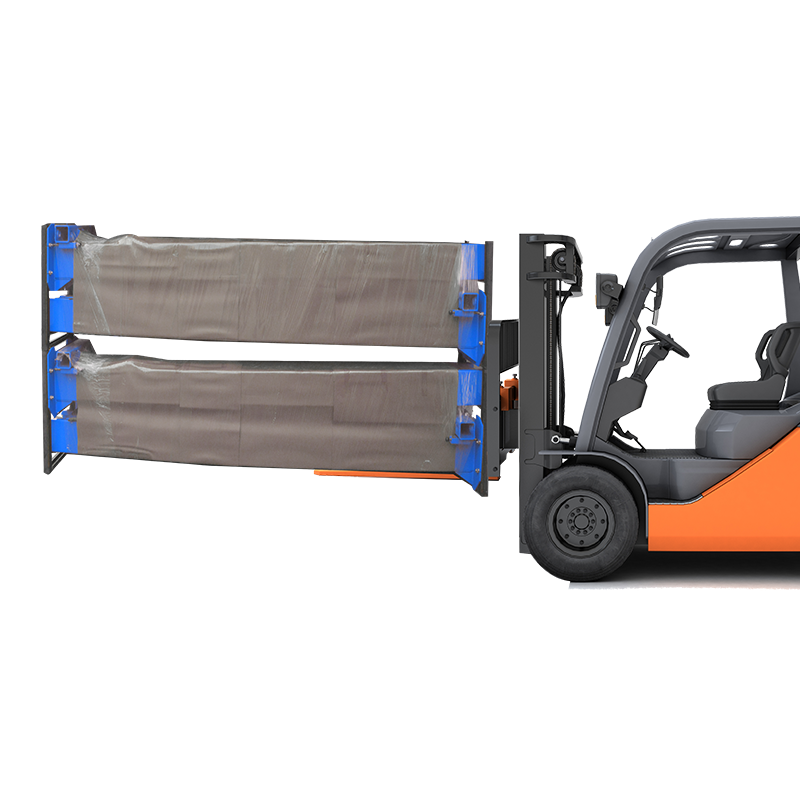

Attention to forklift loading and unloading.
