414

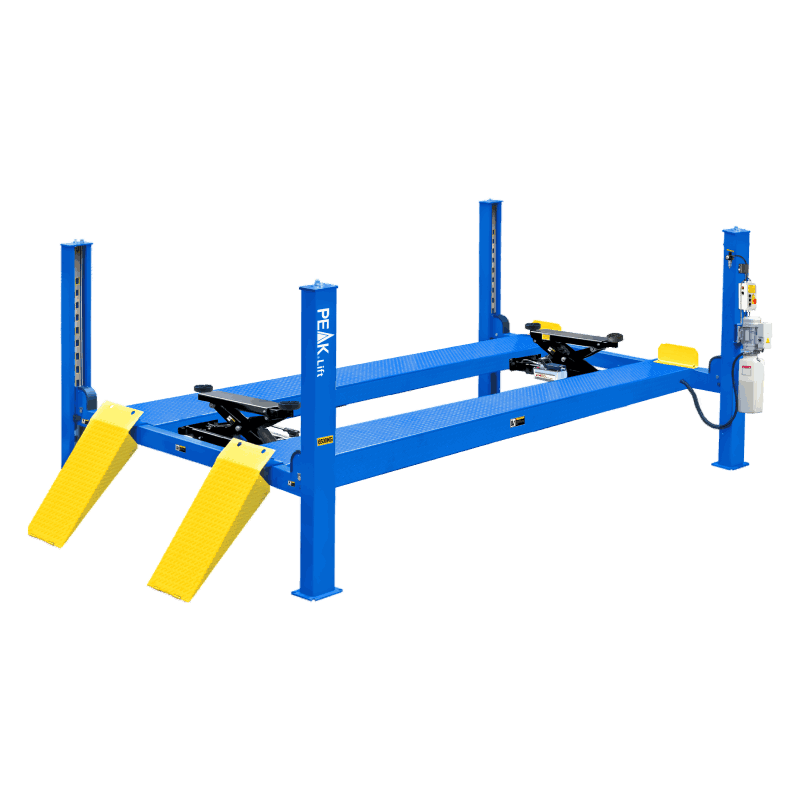

Heavy Duty General Service Four Post Lift
Enormous versatility
The PEAK 414 is a Heavy Duty model engineered to cater the demands of a versatile workshop. With a generous capacity of 6500KG, it effectively accommodates vehicles across various weight classes, ranging from passenger cars and vans to trucks and motor homes.
- 6500KG (14,000 lbs) capacity;
- General service heavy duty design, accommodate more vehicles;
- 24V safe electrical operation system;
- Stelpless adjustable width between platforms;
- Integrated non-skid diamond platforms;
- Standard self-locking mechanical lock and air-drive safety lock;
- Standard primary safety locks and cable-slack protection mechanism;
- High quality hydraulic cylinder design and manufactured at high standard.
| Model 414 | General Service Four Post Lift | |
| Lifting Capacity | 6500kg (14,000 Ibs) | |
| Lifting Time | 79s | |
| Overall Length (Inc Ramps) | A | 6541mm (257 1/2") |
| Overall Length (No Ramps) | B | 5500mm (216 1/2") |
| Overall Width | C | 3324mm (130 7/8") |
| Width Between Columns | D | 2946mm (116") |
| Max. Lifting Height | E | 1900mm(74 3/4") |
| Max. Lock Height to top of runway | 1830mm(72") | |
| Overall Height | F | 2189mm(86 1/4") |
| Minimum Height | G | 200mm (6 5/8") |
| Max. Underneath Height | H | 1730mm (68 1/8") |
| Max. Lock Underneath Runway | 1660mm (65 3/8") | |
| Drive-Thru Clearance | I | 2592mm (98 3/8") |
| Width Between Runways | J |
1194mm (47") Min. 85mm (3 3/8")~ Max. 1385mm(54 1/2") |
| Outside Edge of Runways | K |
2210mm (87") Min. 1101mm (43 3/8")~ Max.2401mm (94 1/2") |
| Gross Weight | 1272kg (2,804lbs) | |
| Motor | 3.0HP |
-

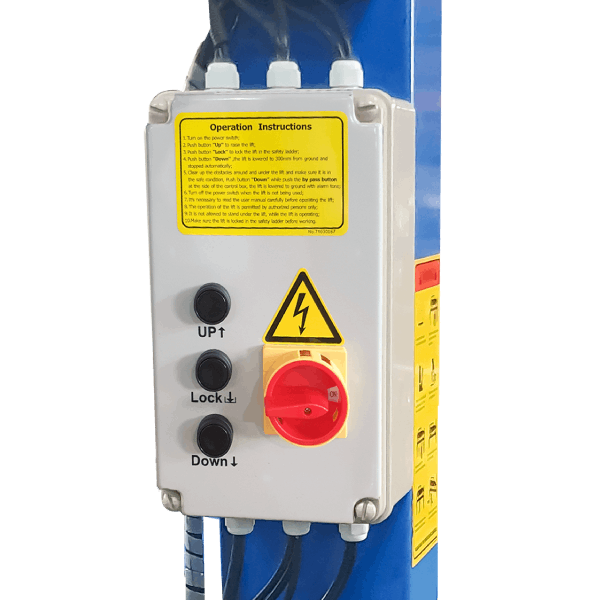

Electric control device with UP, LOCK and DOWN buttons.
-

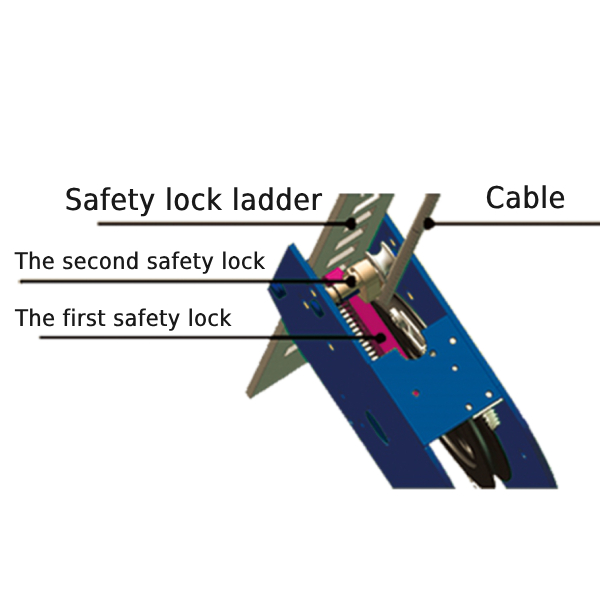

Double safety locks provide additional safety.
-
Oil-water separator and solenoid air valve are installed on the power side column.
-
Stepless adjustable width between platforms.
-
Non-slip diamond platforms come as standard.
-

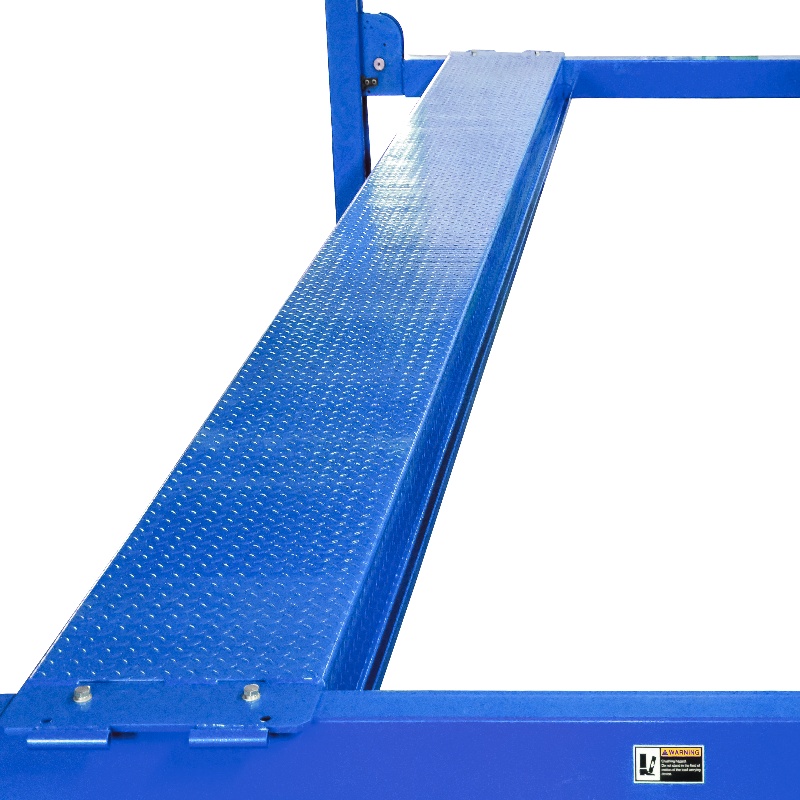

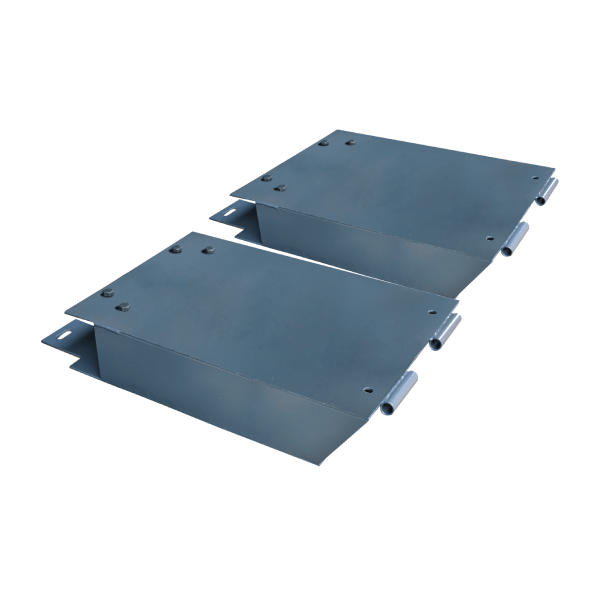

Optional Platform Extension Kits add an extra 660mm (26") length to the platform.
Kits No.: 41403 -

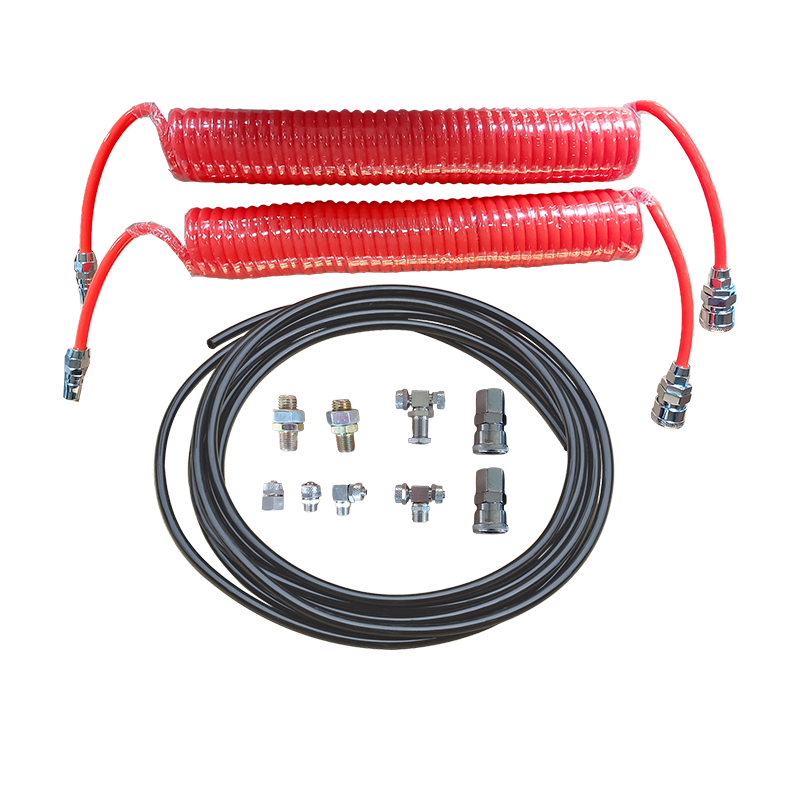

Optional Air Line Kits
All peak four post lifts are designed to use the air line kits for rolling jack.
Kits No.: 40102 -

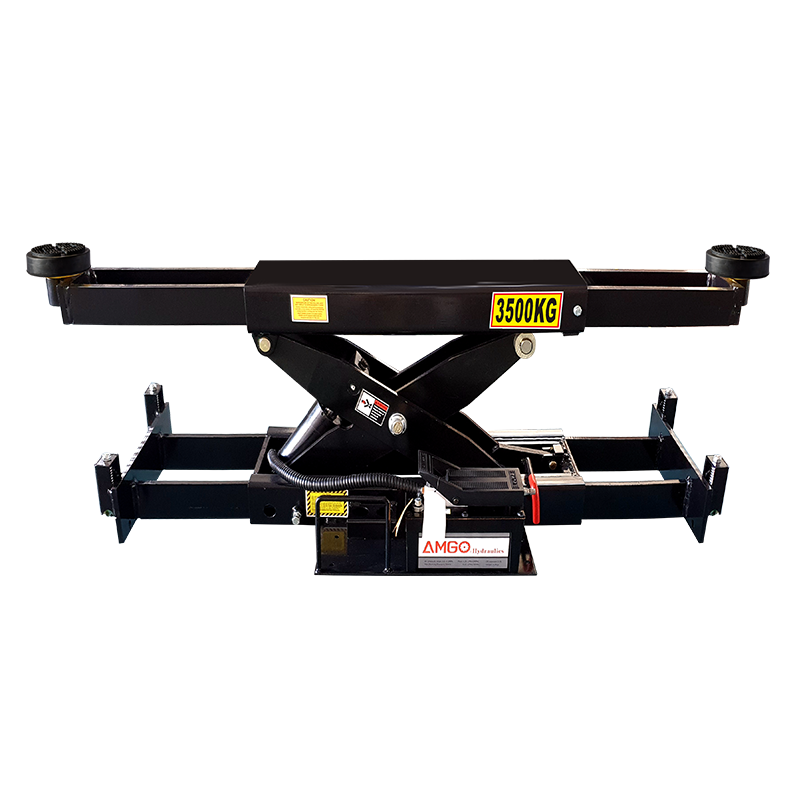

Optional Rolling Jacks
RJ-8A: pneumatic hydraulic type 3,500kg.
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 414: 1272kgs , include power unit gross weight 26kgs.
- 20' container can load 11 units.
- 40' container can load 24 units.
-

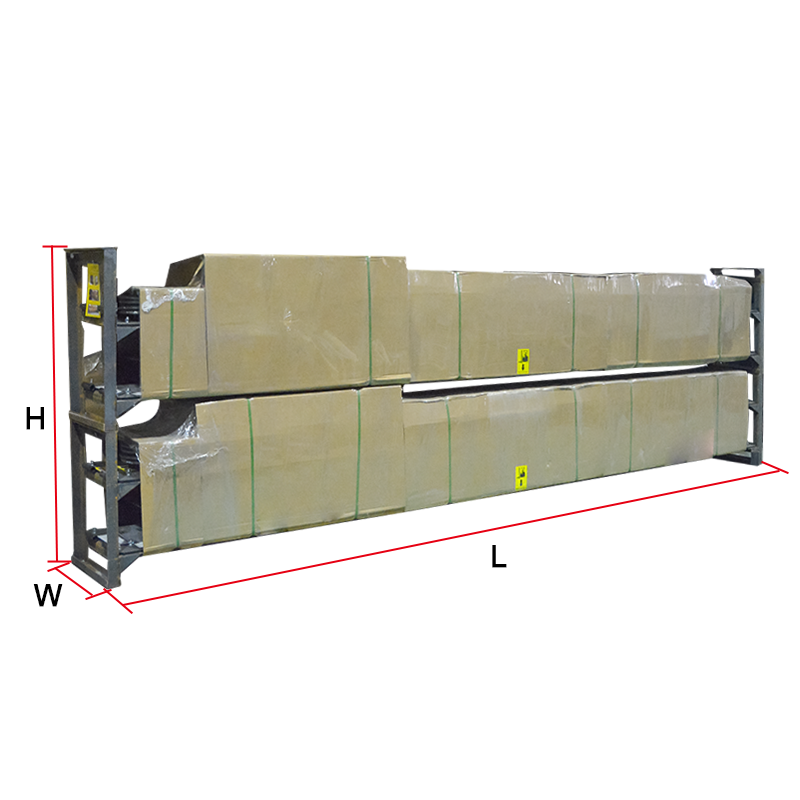

2 units/package,packing measurement (LxWxH): 5530x562x1560mm
-

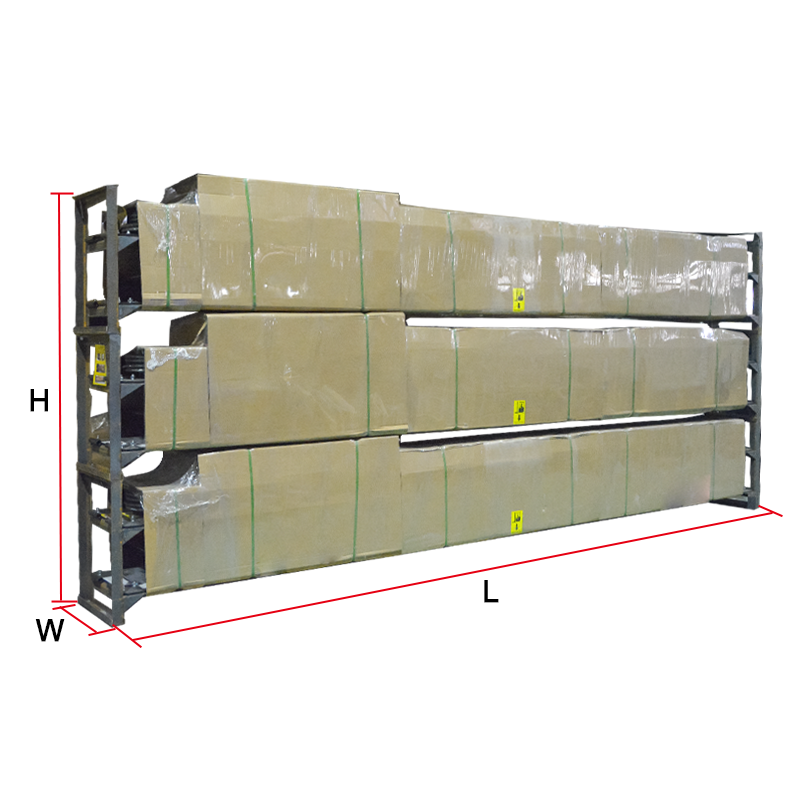

3 units/package, packing measurement (LxWxH): 5530x562x2275mm
-
1 unit/ctn,packing measurement (LxWxH): 1005x300x360mm
-

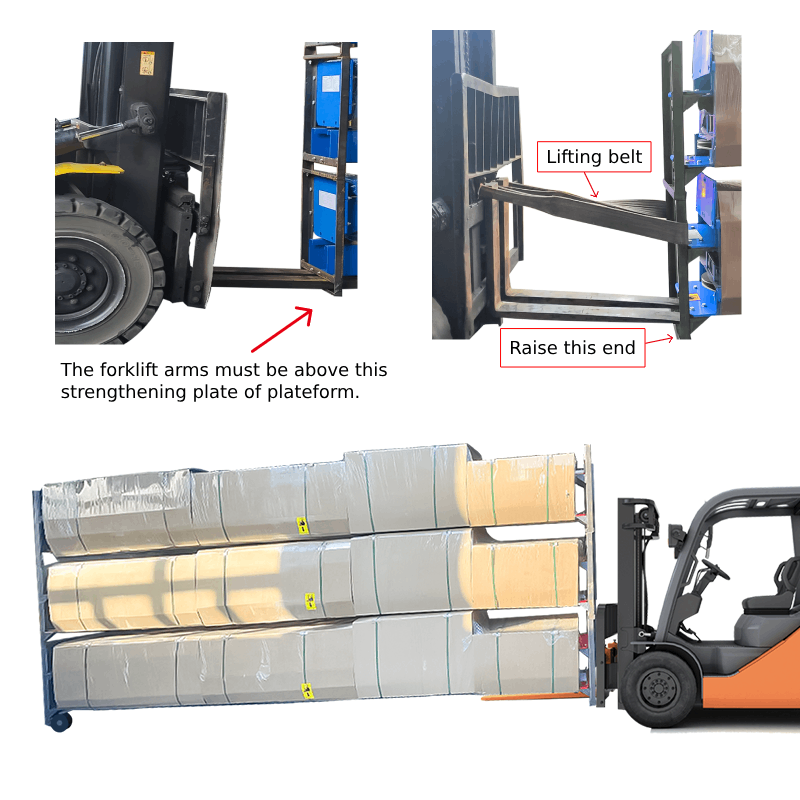

Use a forklift to lift up one end of the machine about 50-100mm from the ground, and pull the machine out from the container with the assistance of lifting belt or other cables.
-

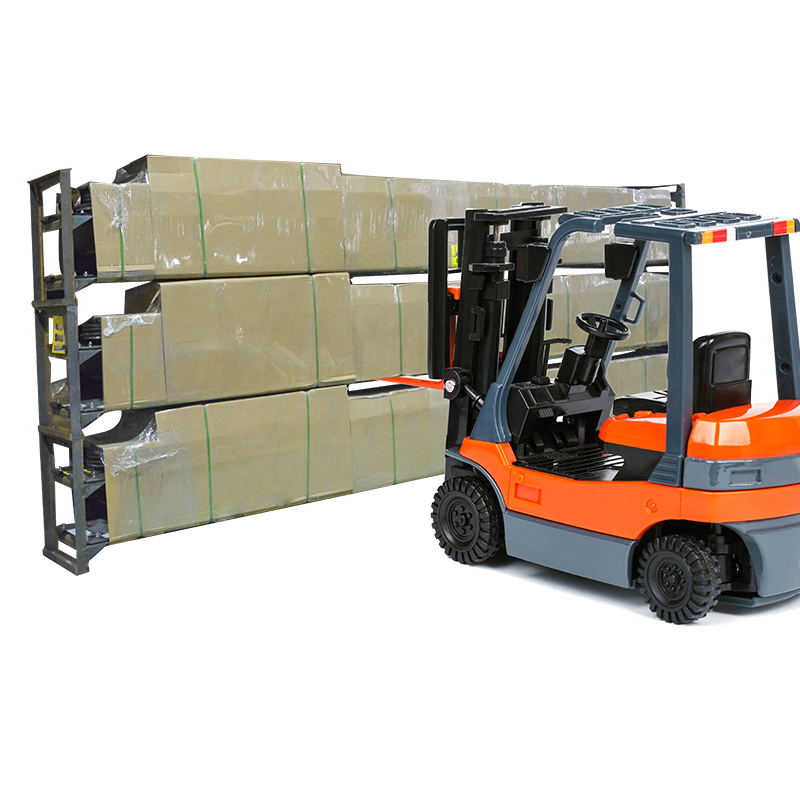

After the machine is pulled out from the container, use the forklift to lift the machine from the middle position.
-
Wrong operation: It is not allowed to use the forklift to lift the machine completely from one end, which will easily cause the machine to be deformation.
