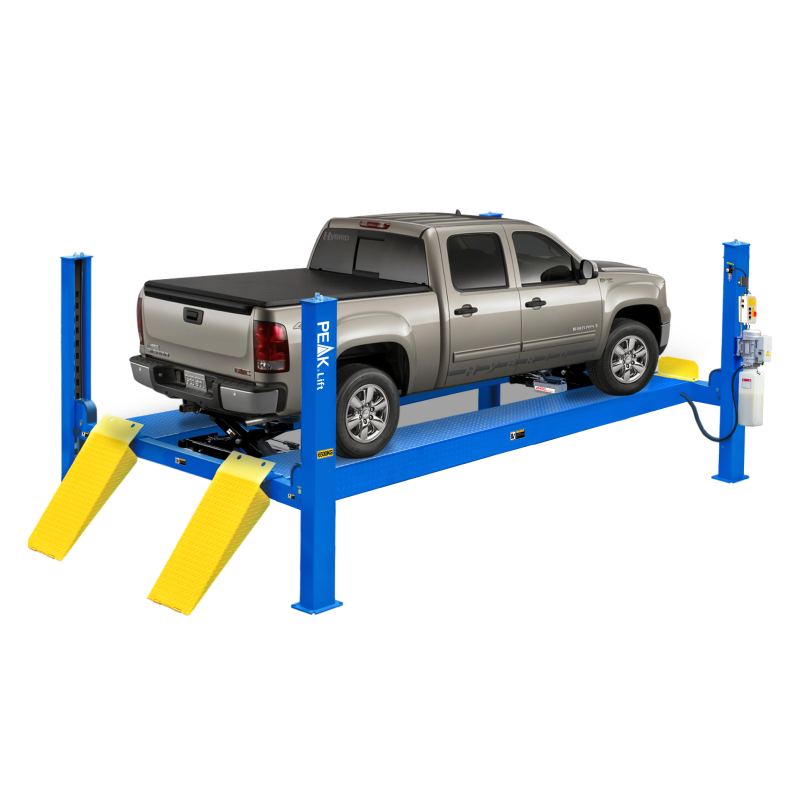

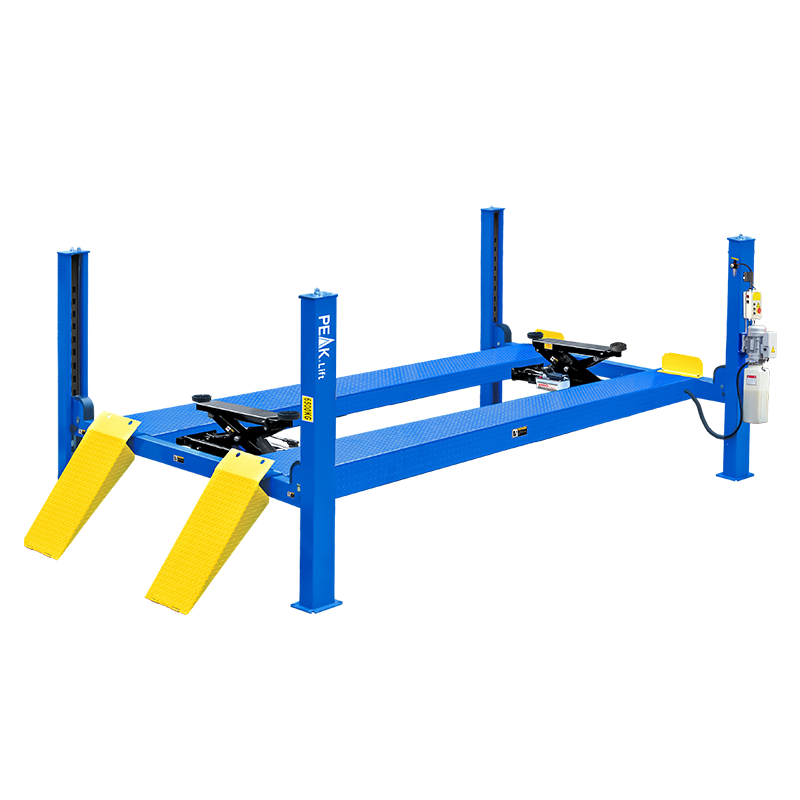

414E
Heavy Duty General Service Four Post Lift
Extra length, more business
Configured with extremely long platforms, it effortlessly can service even long wheelbase commercial vehicles. PEAK 414E is ideal to add your workshop business that provide comprehensive maintenance for a wide range of vehicles.
- 6500KG (14,000 lbs) capacity;
- General service heavy duty design, accommodate more vehicles;
- Features extreme long platforms, 724mm longer than 414;
- 24V safe electrical operation system;
- Stelpless adjustable width between platforms;
- Integrated non-skid diamond platforms;
- Standard self-locking mechanical lock and air-drive safety lock;
- Standard primary safety locks and cable-slack protection mechanism;
- High quality hydraulic cylinder design and manufactured at high standard.
| Model 414E | General Service Four Post Lift | |
| Lifting Capacity | 6500kg (14,000 Ibs) | |
| Lifting Time | 81s | |
| Overall Length (Inc Ramps) | A | 7265mm (286") |
| Overall Length (No Ramps) | B | 6224mm (245") |
| Overall Width | C | 3324mm (130 7/8") |
| Width Between Columns | D | 2946mm (116") |
| Max. Lifting Height | E | 1900mm(74 3/4") |
| Max. Lock Height to top of runway | 1830mm(72") | |
| Overall Height | F | 2189mm(86 1/4") |
| Minimum Height | G | 200mm (6 5/8") |
| Max. Underneath Height | H | 1730mm (68 1/8") |
| Max. Lock Underneath Runway | 1660mm (65 3/8") | |
| Drive-Thru Clearance | I | 2592mm (98 3/8") |
| Width Between Runways | J |
1194mm (47") Min. 85mm (3 3/8")~ Max. 1385mm(54 1/2") |
| Outside Edge of Runways | K |
2210mm (87") Min. 1101mm (43 3/8")~ Max.2401mm (94 1/2") |
| Gross Weight | 1413kg (3,115lbs) | |
| Motor | 3.0HP |
-

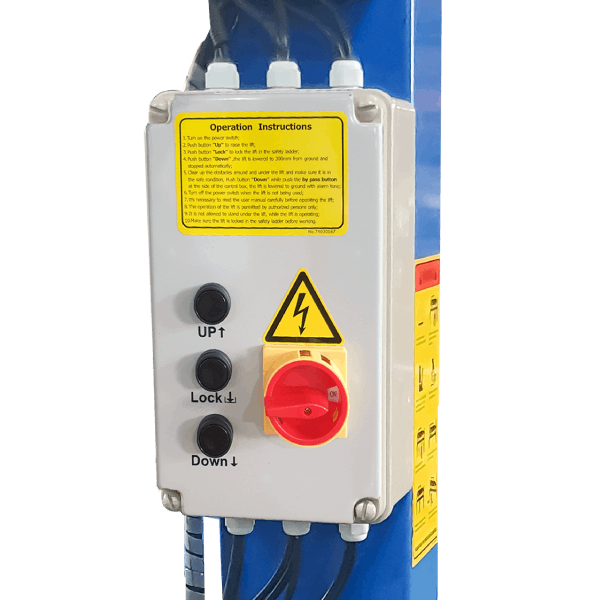

Electric control device with UP, LOCK and DOWN buttons.
-

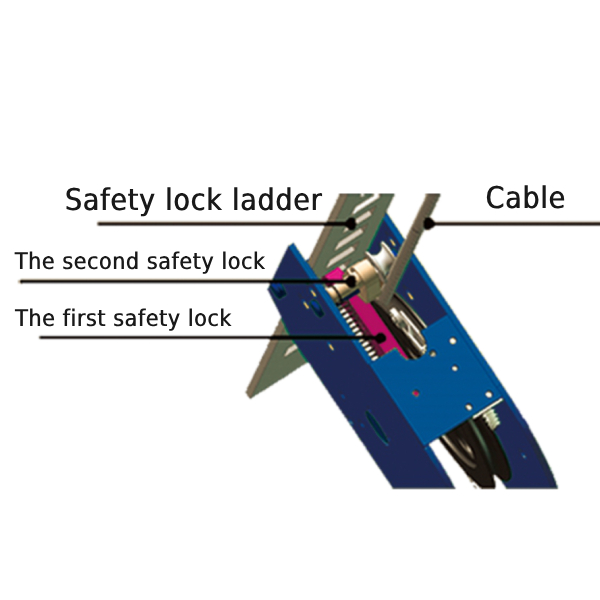

Double safety locks provide additional safety.
-
Oil-water separator and solenoid air valve are installed on the power side column.
-
Stepless adjustable width between platforms.
-

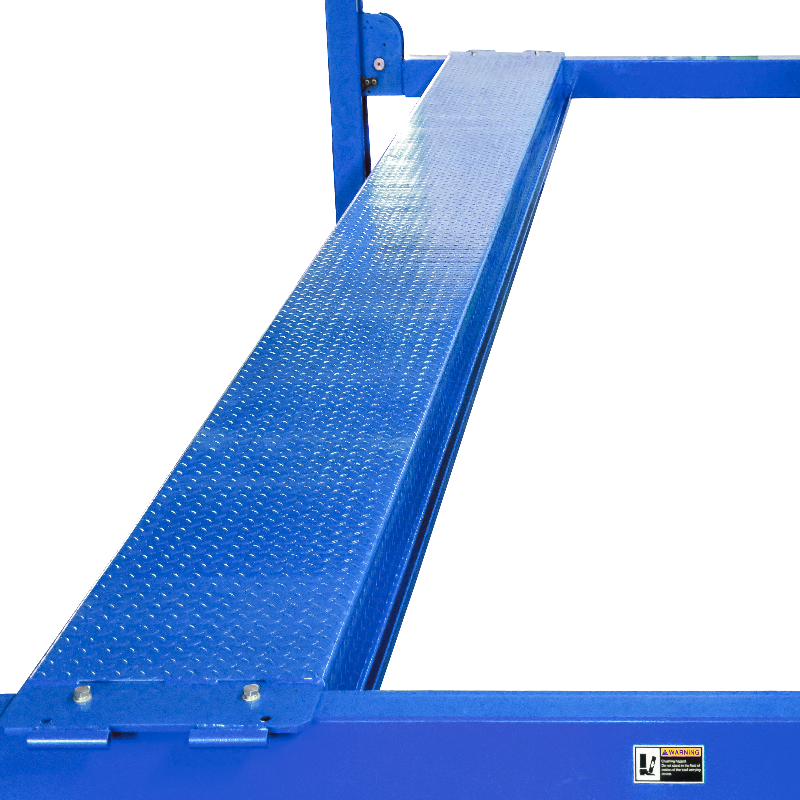

Non-slip diamond platforms come as standard.
-
Optional Platform Extension Kits add an extra 660mm (26") length to the platform.
Kits No.: 41403 -

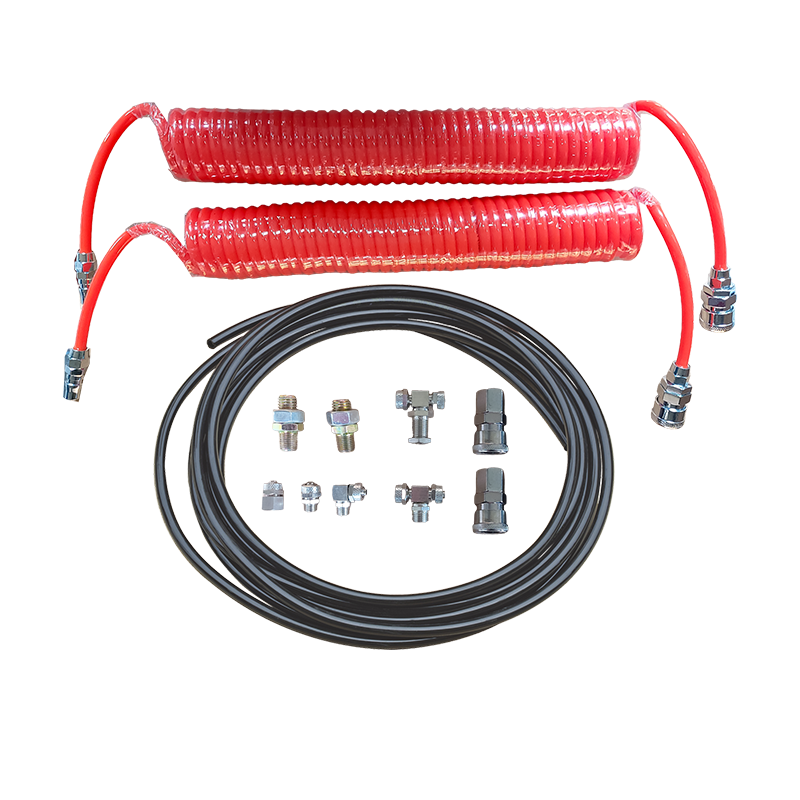

Optional Air Line Kits
All peak four post lifts are designed to use the air line kits for rolling jack.
Kits No.: 40102 -

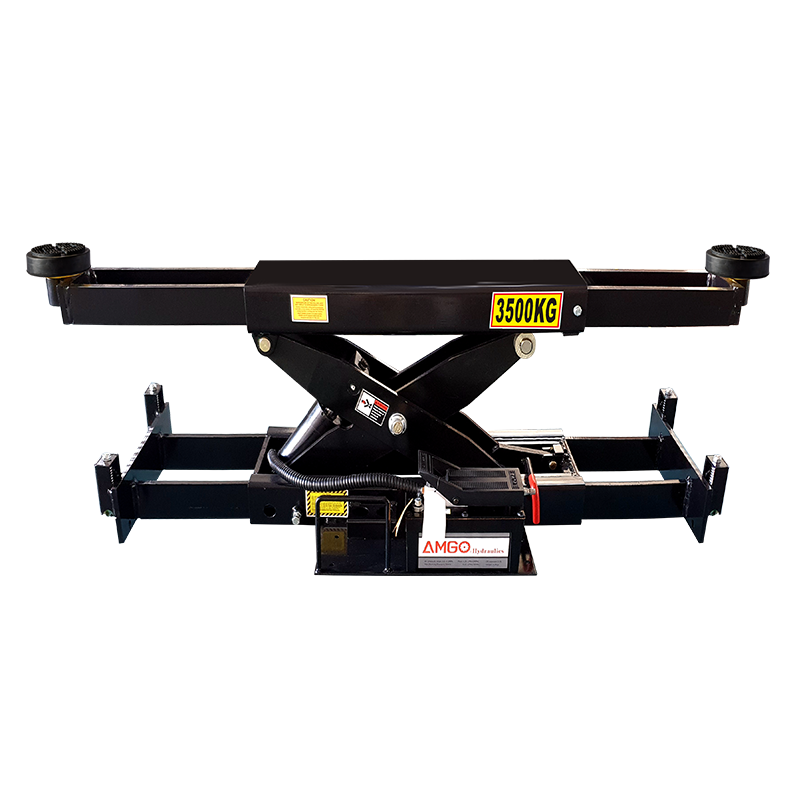

Optional Rolling Jacks
RJ-8A: pneumatic hydraulic type 3,500kg.
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 414E: 1413kgs , include power unit gross weight 26kgs.
- 40' container can load 12 units.
-

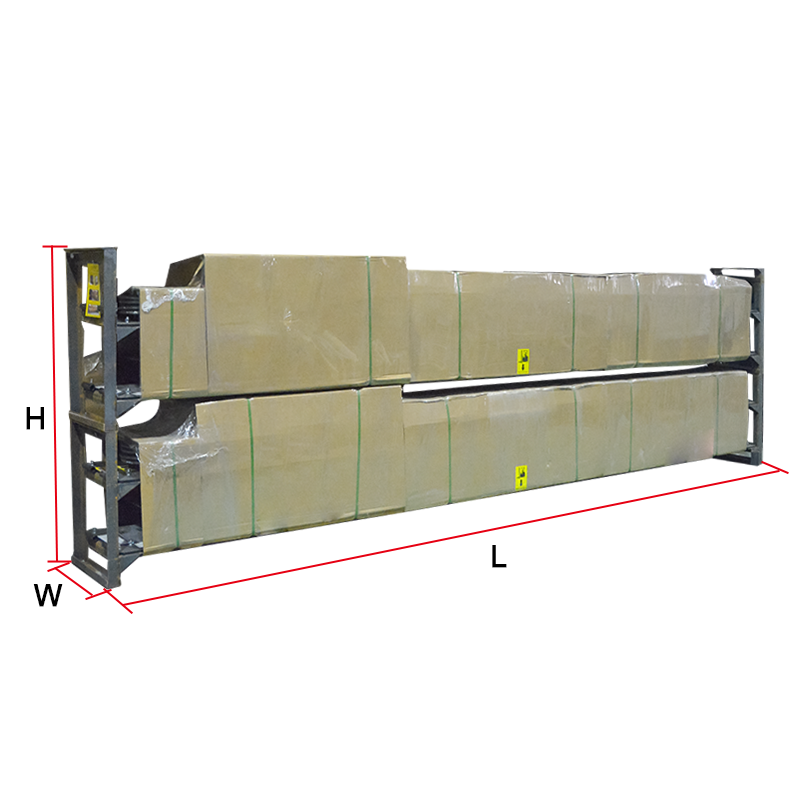

2 units/package,packing measurement (LxWxH): 6254x562x1560mm
-

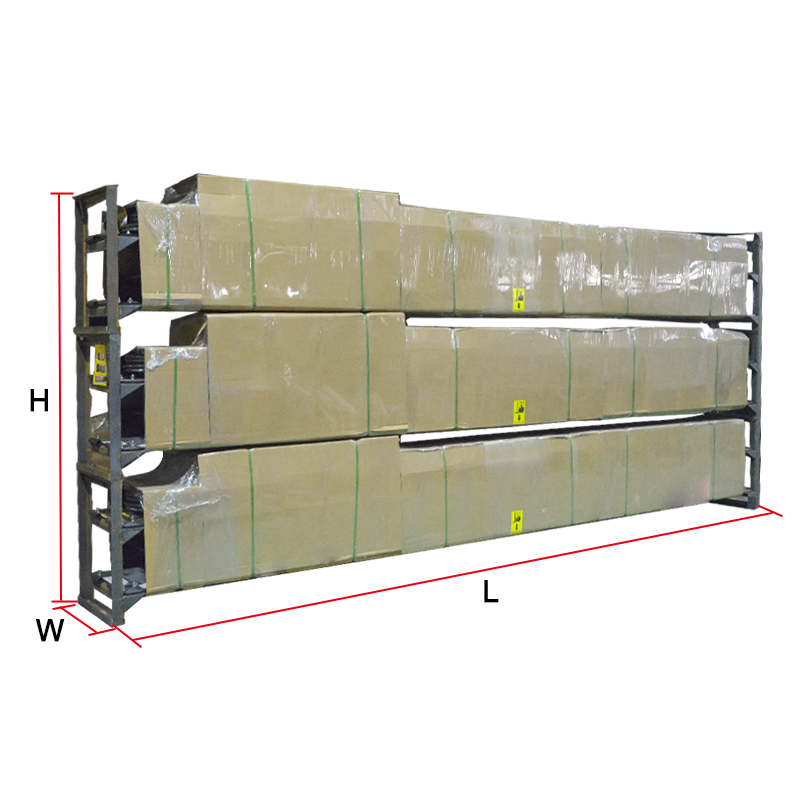

3 units/package, packing measurement (LxWxH): 6254x562x2250mm
-
1 unit/ctn,packing measurement (LxWxH): 1005x300x360mm
-

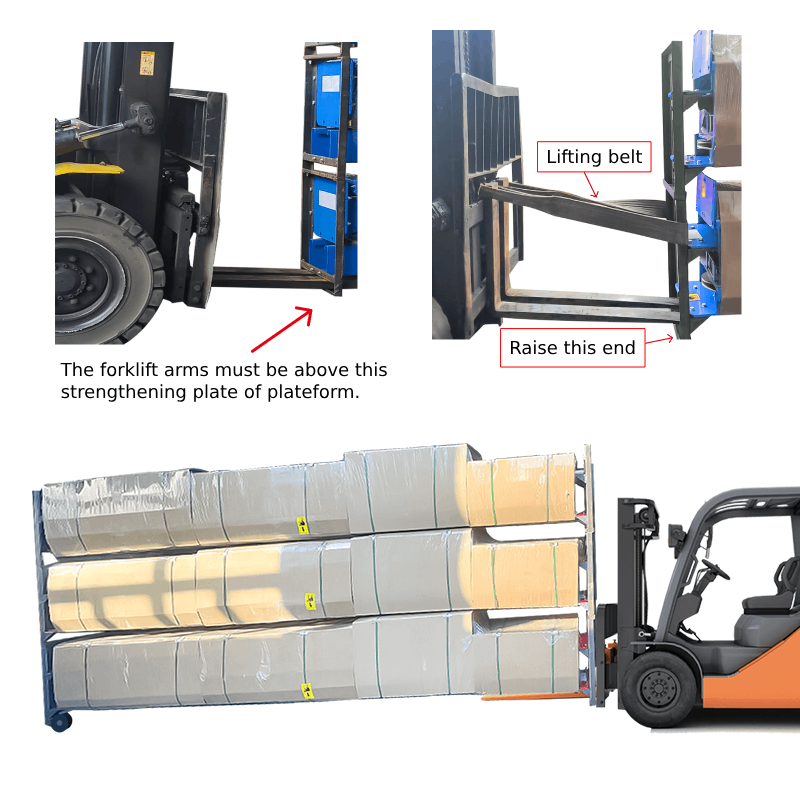

Use a forklift to lift up one end of the machine about 50-100mm from the ground, and pull the machine out from the container with the assistance of lifting belt or other cables.
-

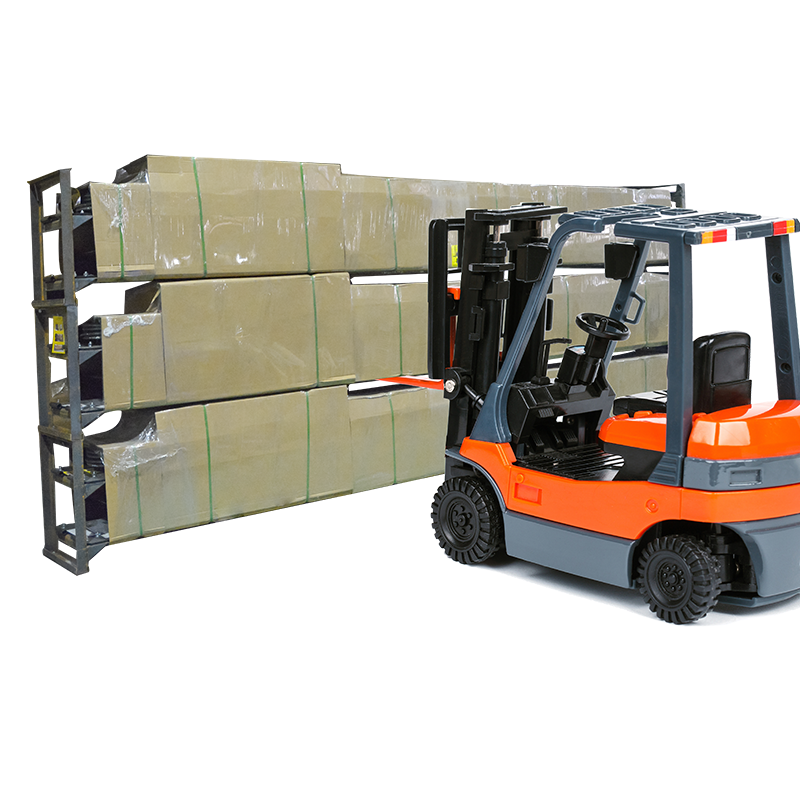

After the machine is pulled out from the container, use the forklift to lift the machine from the middle position.
-
Wrong operation: It is not allowed to use the forklift to lift the machine completely from one end, which will easily cause the machine to be deformation.
