418

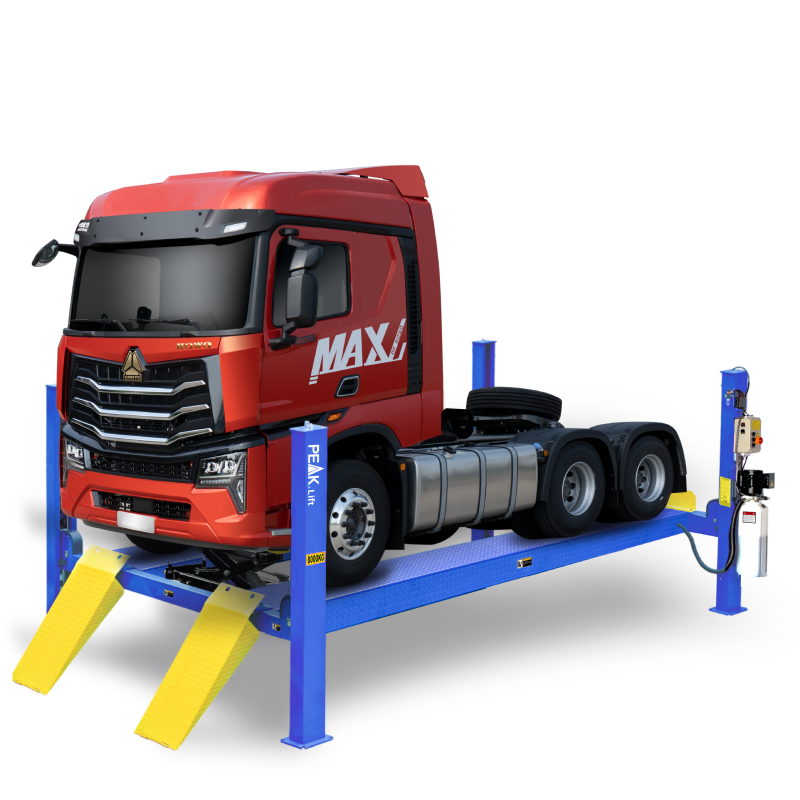

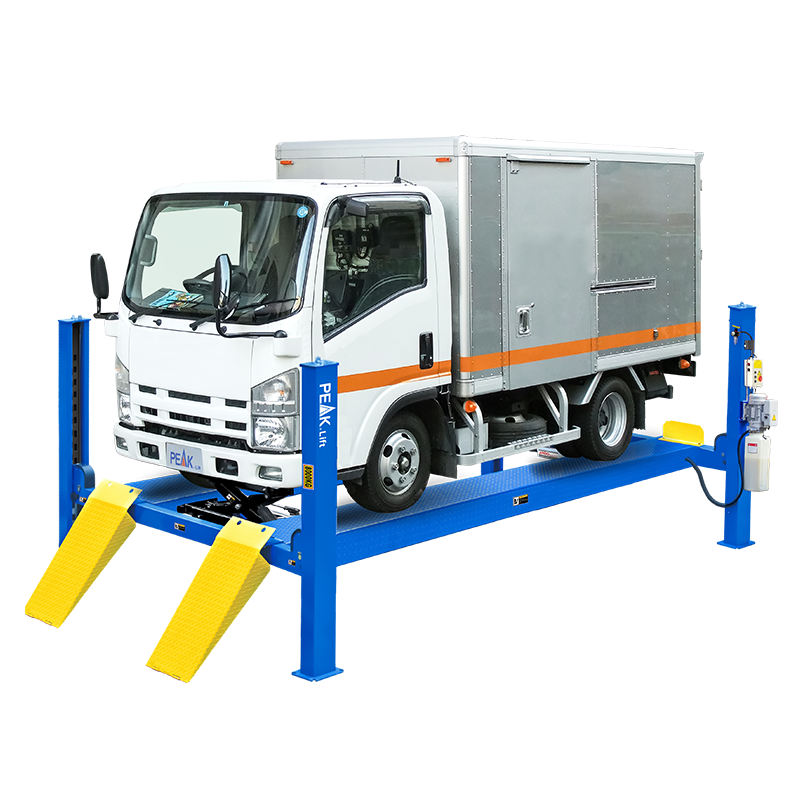

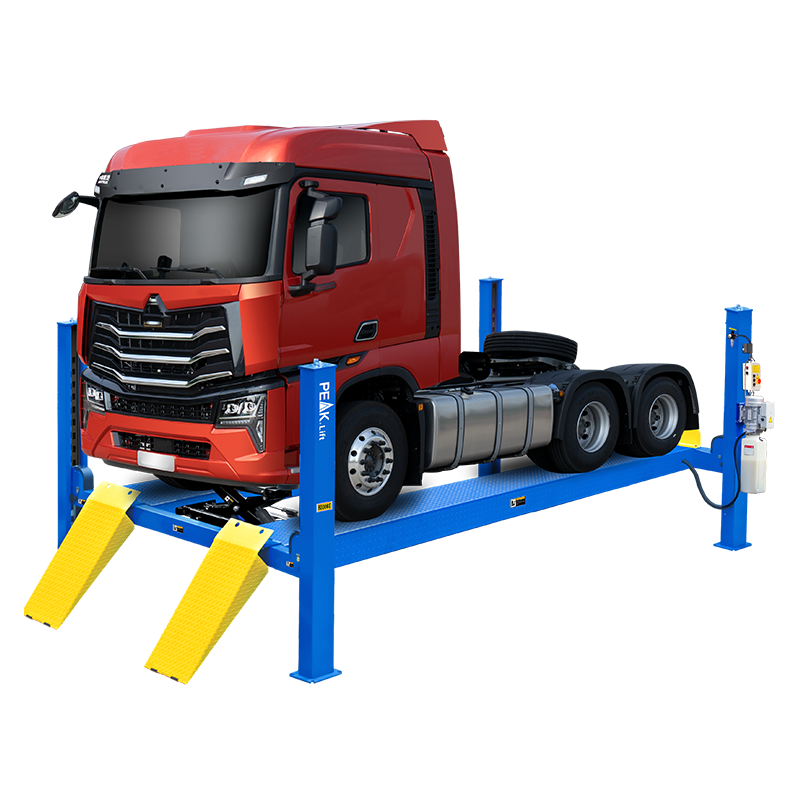

Heavy Duty General Service Four Post Lift
Great service for Heavy Duty
With an 8000KG capacity, this exceptional lift fulfills a range of general service needs, particularly for buses, dump trucks, farm equipment, and heavy commercial vehicles. It is also well-suited for passenger cars, vans, and SUVs.
- 8000KG (18,000 lbs) capacity;
- General service heavy duty design, accommodate more vehicles;
- Features extreme long platforms;
- 24V safe electrical operation system;
- Stelpless adjustable width between platforms;
- Integrated non-skid diamond platforms;
- Standard self-locking mechanical lock and air-drive safety lock;
- Standard primary safety locks and cable-slack protection mechanism;
- High quality hydraulic cylinder design and manufactured at high standard.
| Model 418 | General Service Four Post Lift | |
| Lifting Capacity | 8000kg (18,000 Ibs) | |
| Lifting Time | 81s | |
| Overall Length (Inc Ramps) | A | 7449mm (293 1/4") |
| Overall Length (No Ramps) | B | 6408mm (252 1/4") |
| Overall Width | C | 3482mm (137 1/16") |
| Width Between Columns | D | 3108mm (122 3/8") |
| Max. Lifting Height | E | 1922mm(75 11/16") |
| Max. Lock Height to top of runway | 1830mm(72") | |
| Overall Height | F | 2189mm(86 1/4") |
| Minimum Height | G | 182mm (7 3/16") |
| Max. Underneath Height | H | 1752mm (69") |
| Max. Lock Underneath Runway | 1660mm (65 3/8") | |
| Drive-Thru Clearance | I | 2750mm (108 1/4") |
| Width Between Runways | J |
1302mm (51 1/4") Min. 85mm (3 3/8")~ Max. 1468mm(57 13/16") |
| Outside Edge of Runways | K |
2418mm (95 1/4") Min. 1201mm (43 3/8")~ Max.2584mm (101 3/4") |
| Gross Weight | 1596kg (3,519lbs) | |
| Motor | 3.0HP |
-

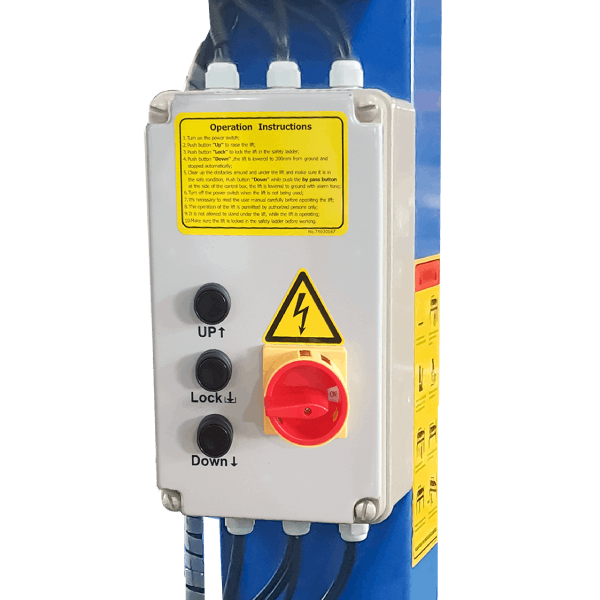

Electric control device with UP, LOCK and DOWN buttons.
-
Double safety locks provide additional safety.
-
Oil-water separator and solenoid air valve are installed on the power side column.
-

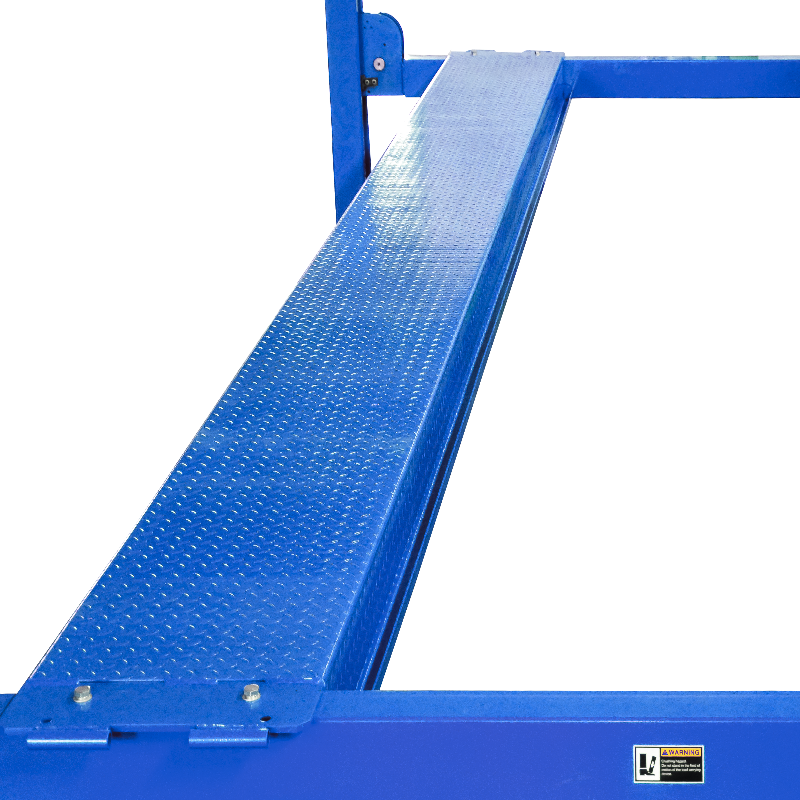

Non-slip diamond platforms come as standard.
-
Stepless adjustable width between platforms.
-

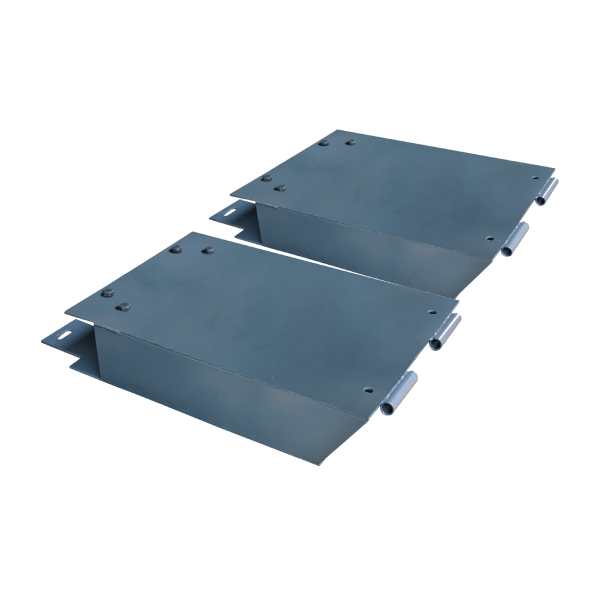

Optional Platform Extension Kits add an extra 737mm (29") length to the platform.
Kits No.: 41801 -

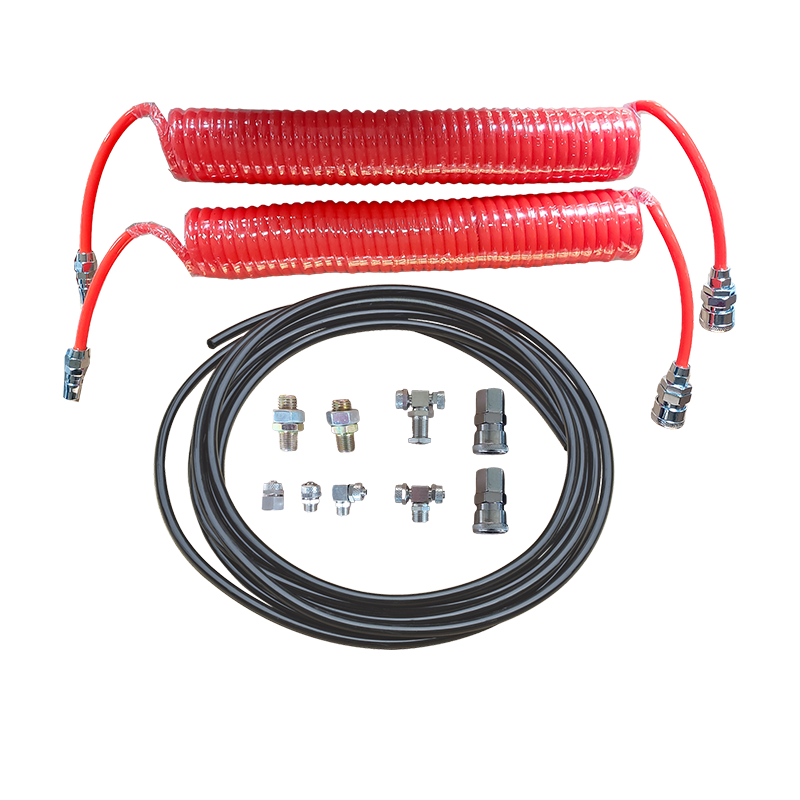

Optional Air Line Kits
All peak four post lifts are designed to use the air line kits for rolling jack.
Kits No.: 40102 -

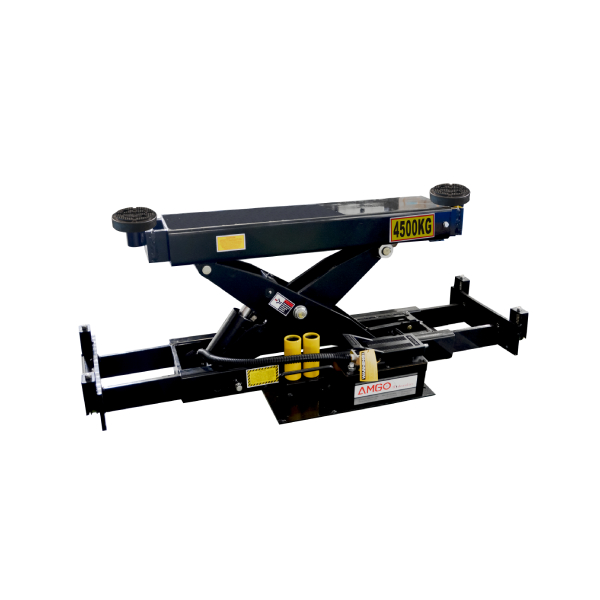

Optional Rolling Jacks
RJ-10A: pneumatic hydraulic type 4,500kg.
2 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 418: 1596kgs , include power unit gross weight 26kgs.
- 40' container can load 6 units.
-

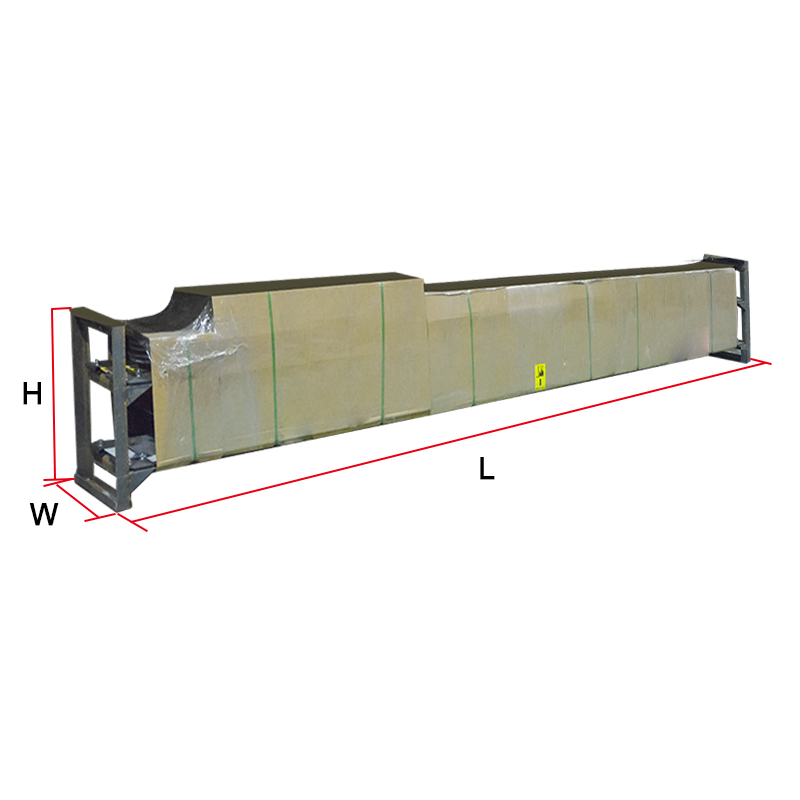

2 units/package,packing measurement (LxWxH): 6460x630x872mm
-
3 units/package, packing measurement (LxWxH): 6460x630x1690mm
-
1 unit/ctn,packing measurement (LxWxH): 1005x300x360mm
-

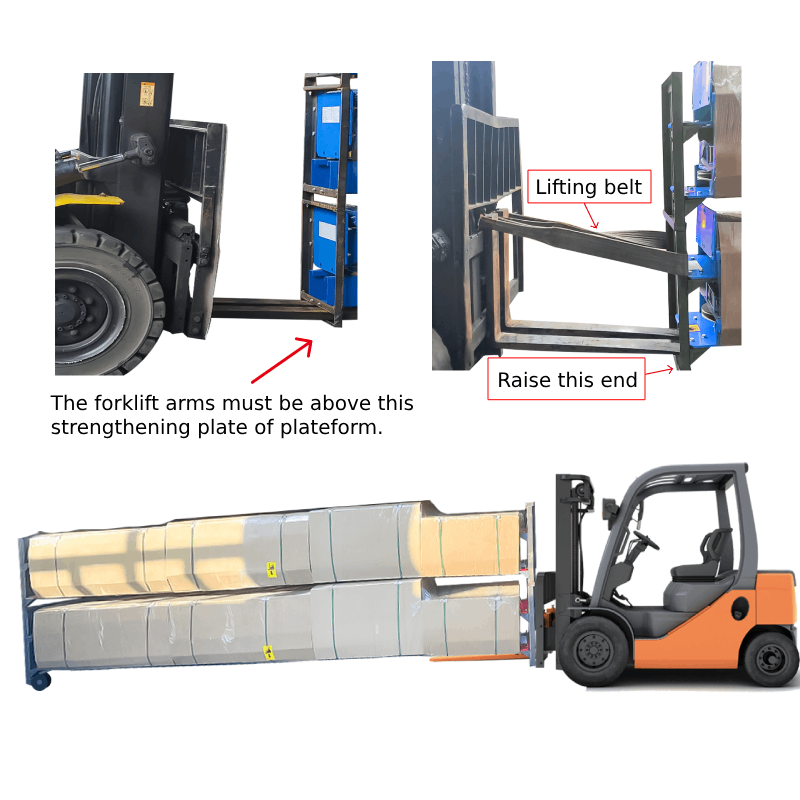

Use a forklift to lift up one end of the machine about 50-100mm from the ground, and pull the machine out from the container with the assistance of lifting belt or other cables.
-

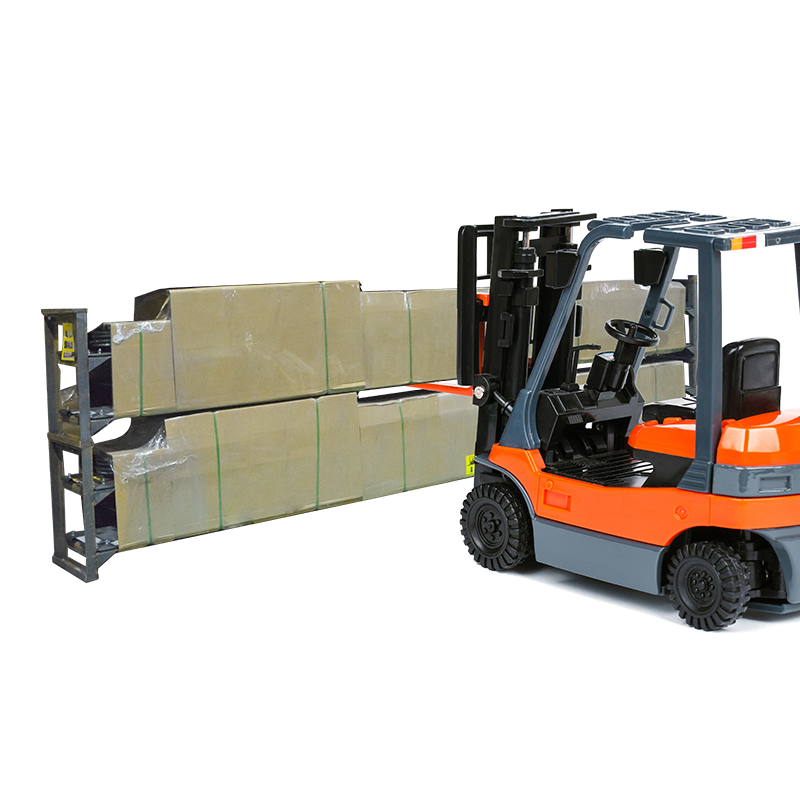

After the machine is pulled out from the container, use the forklift to lift the machine from the middle position.
-

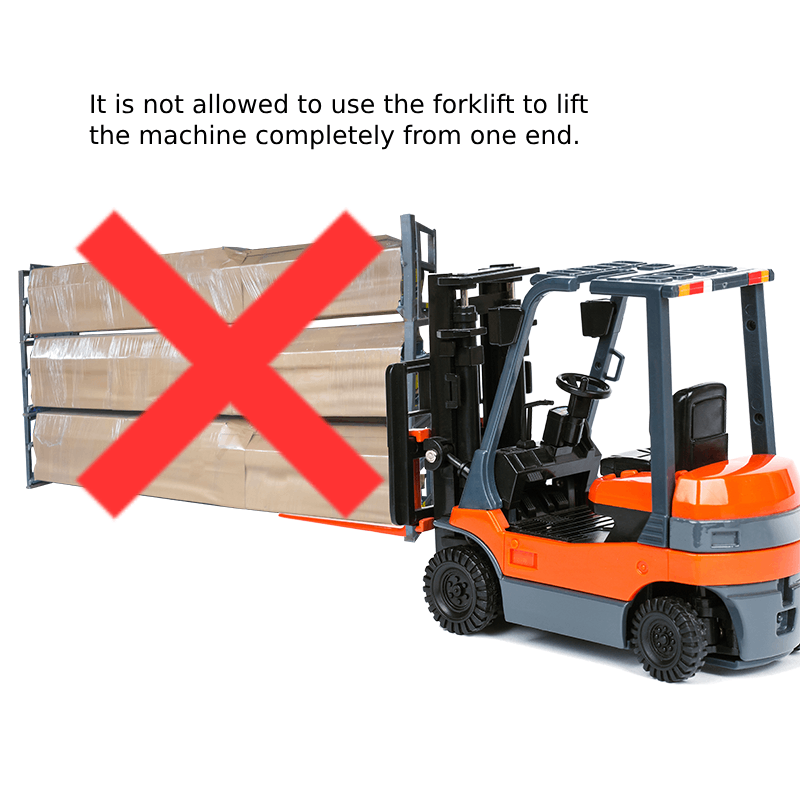

Wrong operation: It is not allowed to use the forklift to lift the machine completely from one end, which will easily cause the machine to be deformation.
