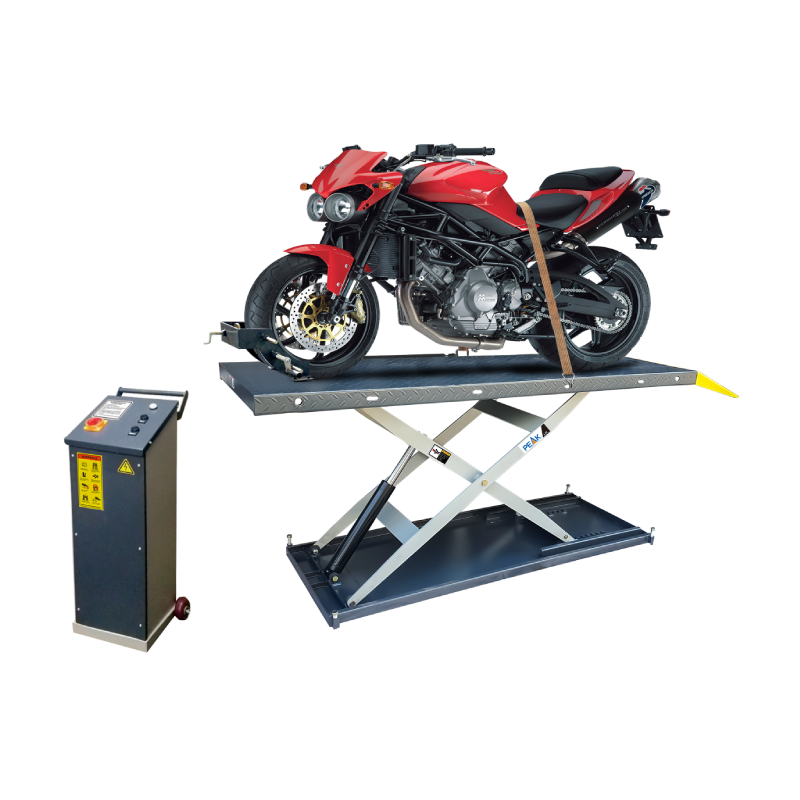

MC-600
Motorcycle Lift
MC-600 is a Professional Utility & All-Terrain Motorcycles Lift with 600kg capacity which is the perfect choice for ATV and Motorcycles. It comes standard with wheel vise and approach ramp, as well as optional safety belt,width and length extension kits.
- Electric power hydraulic control.
- Full-area steel base pedestal design combination of solid construction scissors supports powerful lifting ability.
- Reinforced steel-plate platform with non-skid diamond-plate surface as well.
- Built-in Self-lubricating UHMW Polyethylene sliders improve running smoothly and are maintenance free.
- Manual release safety lock with auto activation.
- Seven level automatic locking system provides friendly working height.
- Ergonomic wheel vise with rubber pad for wheel protection,which can be installed on two positions and services for both long or short axle motorcycles.
- Removable rear cover for rear wheel changing.
- User-conveniently tool and parts tray.
- Optional lifting jack: Works well in secondary lifting.
- Optional width extension kit: With 600mm (23 5/8”) extra widen platform.
- Optional length extension kit: Add 400mm (15 3/4") extra lengthen the platform for the long-axle motorcycle.
| Model MC-600 | Motorcycle Lifts | |
| Lifting Capacity | 600kg | |
| Lifting Time | 23s | |
| Lifting Height | A1 | 1090mm (43") |
| Minimum Height | A2 | 155mm (6 1/8") |
| Overall Length (Inc. Ramp) | B | 2700mm (106 1/4") |
| Runway Length | C | 2250mm (88 5/8") |
| Overall Width |
D |
750mm (29 1/2") |
| Gross Weight | 260kg (575lbs) | |
| Motor | 1.5HP | |
| QTY of Container | 32 Units/20'GP | |
| Packing Dimension | 2280 x 770 x 320 mm | |
| Packing Dimension | 1120 x 440 x 360 mm (Control Cabinet) |
-
Front wheel vise
With adjustable distance 410mm.
Kits No.: 86010782 -
Rear tire removal cover
Removable platform cover is convenient for rear wheel changing and suspension work. -
Manual safety release device.
Only available by PEAK. -
Tools and parts tray as standard
Part No.: 10206156 -
Motorcycle lift installs widen attachments can lifting ATV.
-
Optional length extension kit
Add 400mm extra length on the platform for the long axle motorcycle.
Kits No.: MC002 -
Optional width extension kit
Adding 600mm extra width on platform to be suitable for three or four-wheel motorcycle.
Kits No.: MC001 -
Vehicle safety belt
Tighten vehicle before lifting.
Optional part. Kits No.: MC006 -
Optional lifting jack
Lifting capacity: 500kg perfect for wheel removal. Kits No.: MC005 -
Mobile control cabinet
8 units as a package ( including parts box,without control cabinet)
- Gross weight for MC-600: 260kgs , include control cabinet gross weight 54kgs.
- 20' container can load 32 units.
-

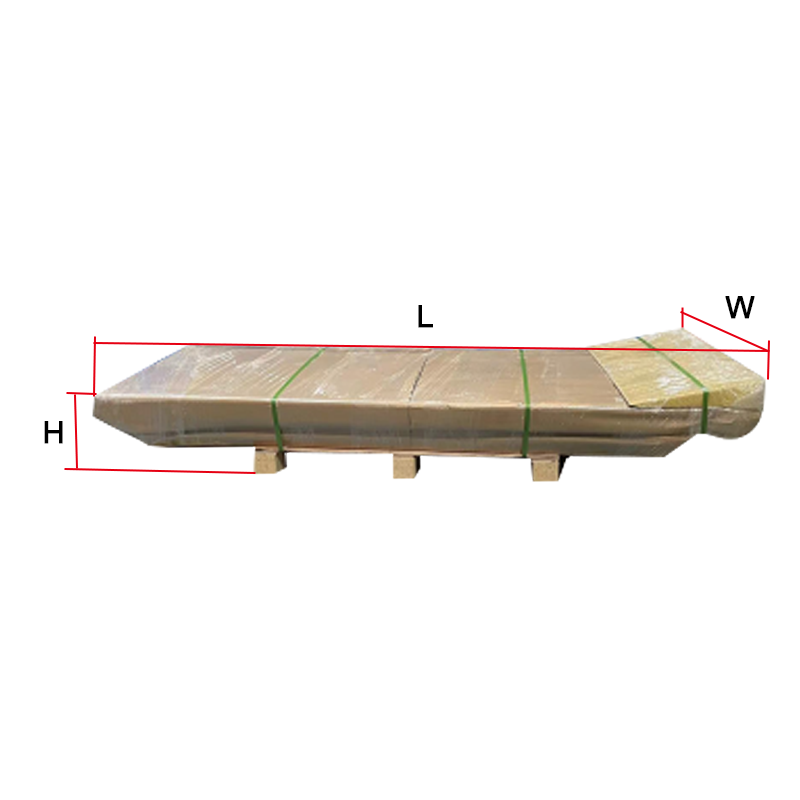

1 unit/package,packing measurement (LxWxH): 2280x770x320mm
-

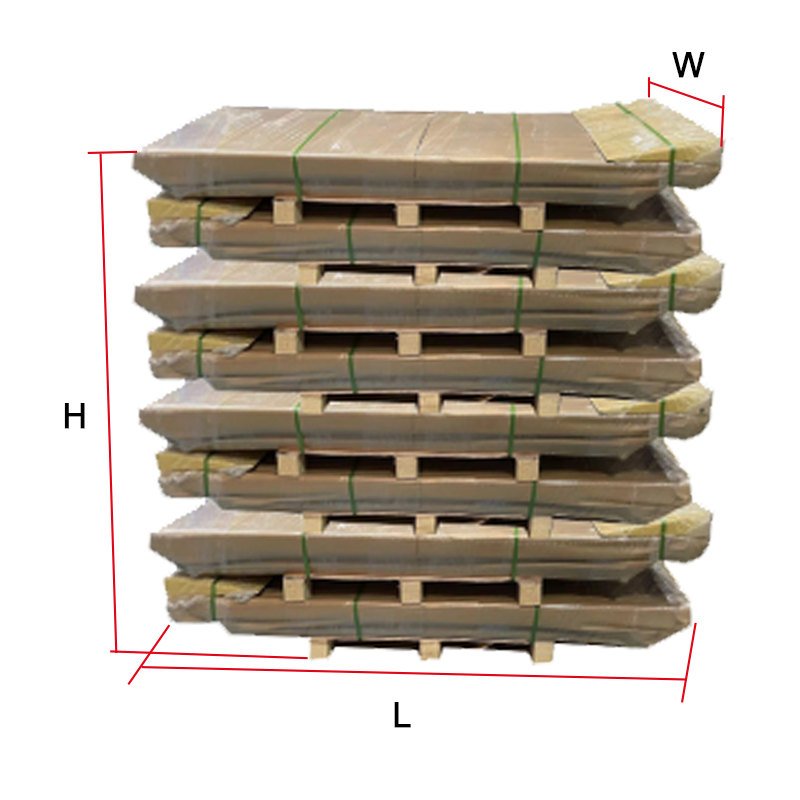

8 units/package, packing measurement (LxWxH): 2280x770x564mm
-

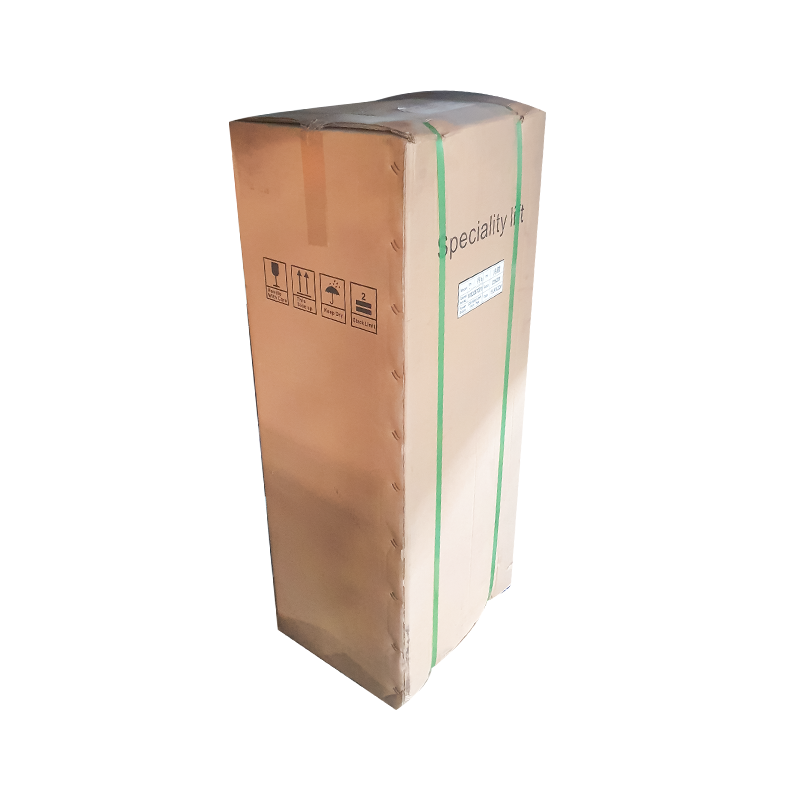

1 unit/ctn,control cabinet packing measurement (LxWxH): 440x360x1120mm
-

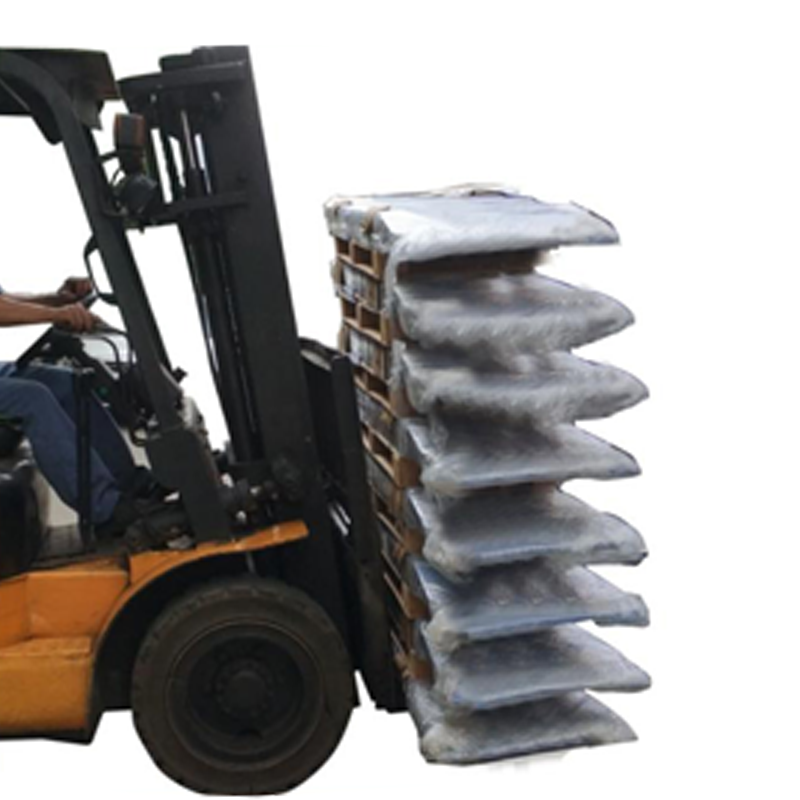

Attention to forklift loading and unloading.
