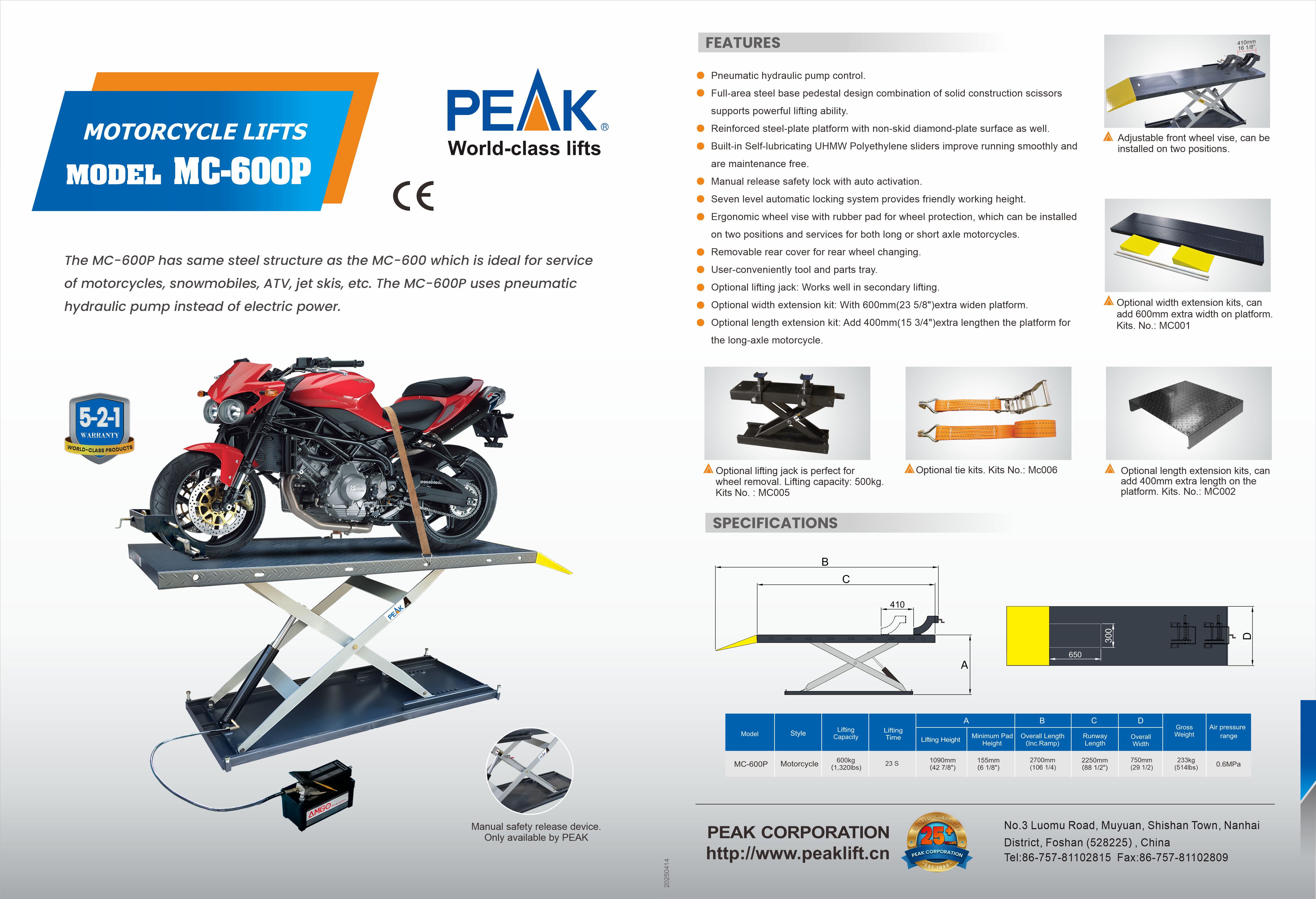

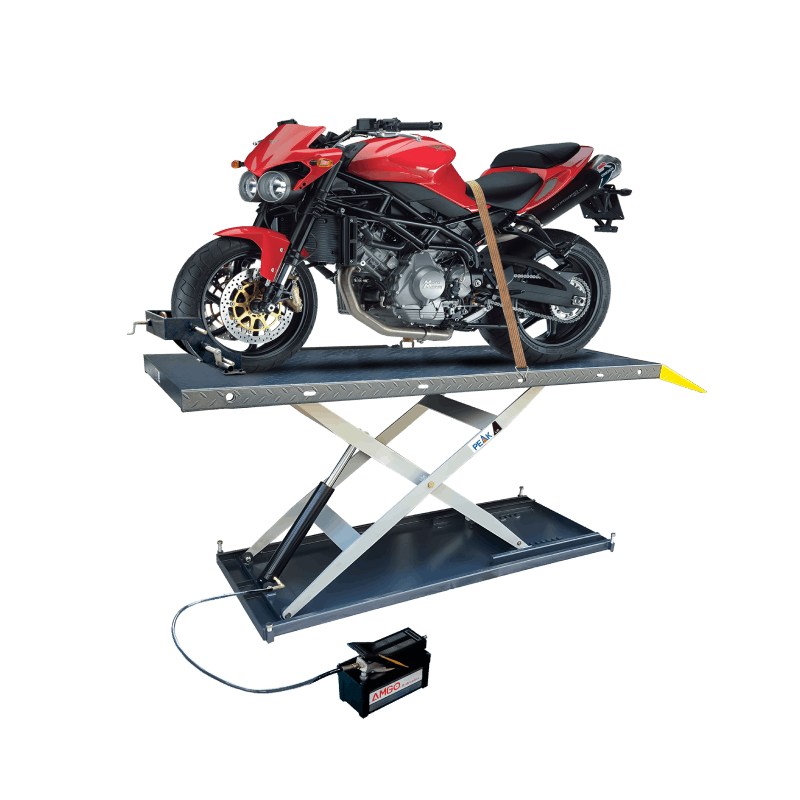

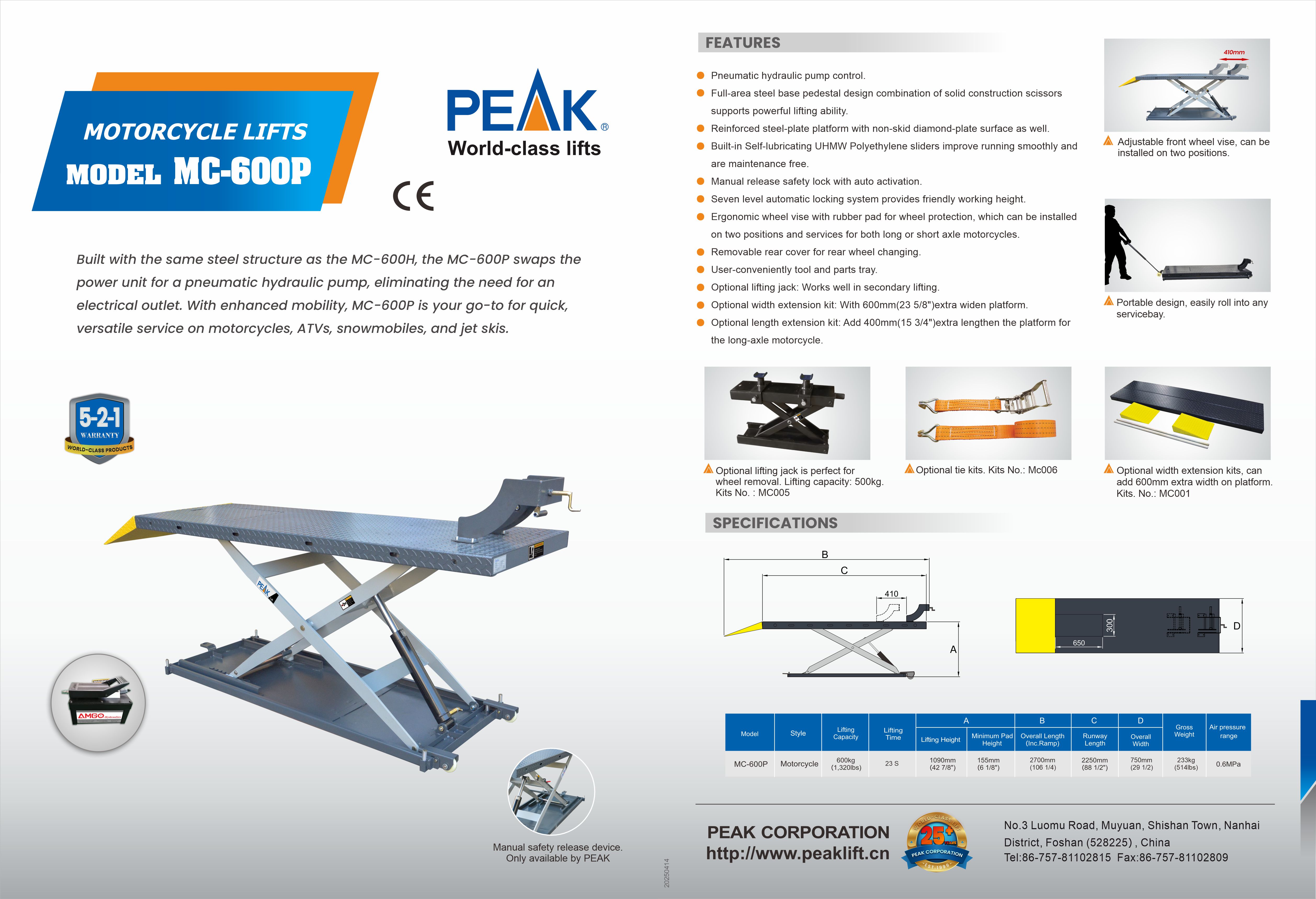

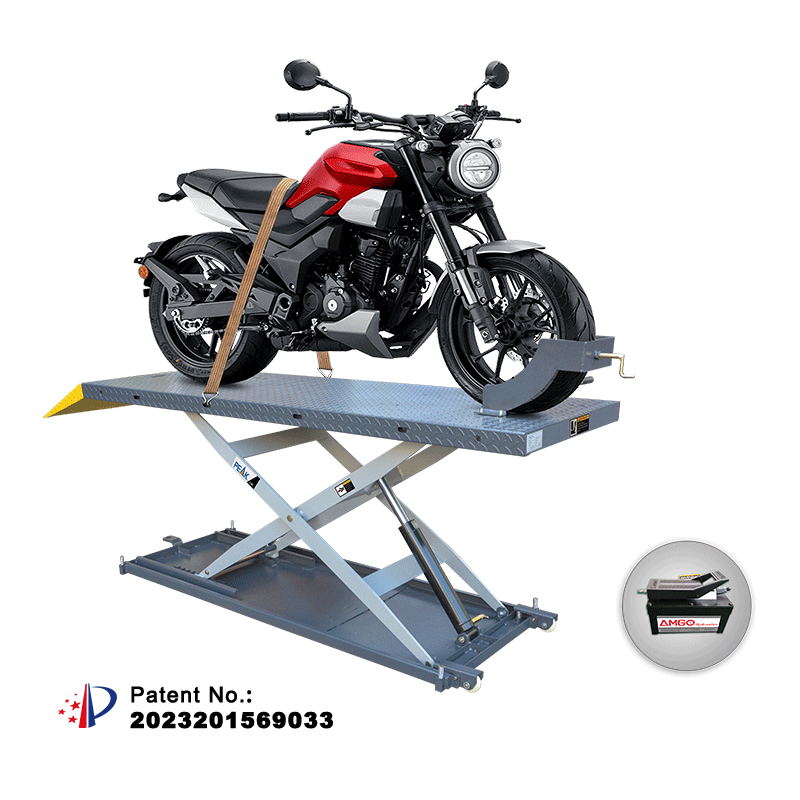

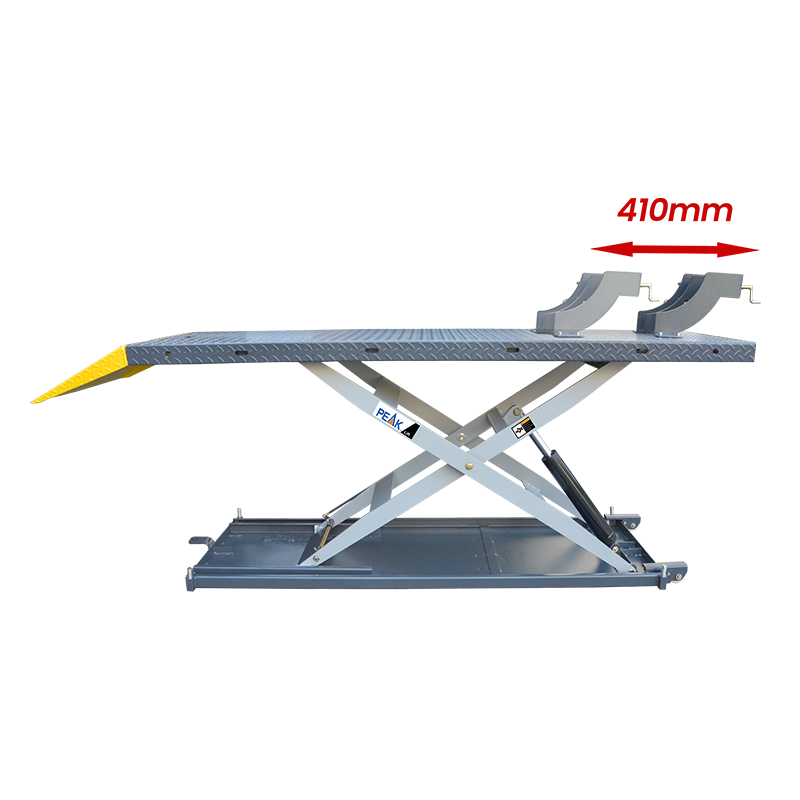

MC-600P
Motorcycle Lift
Unplugged Performance

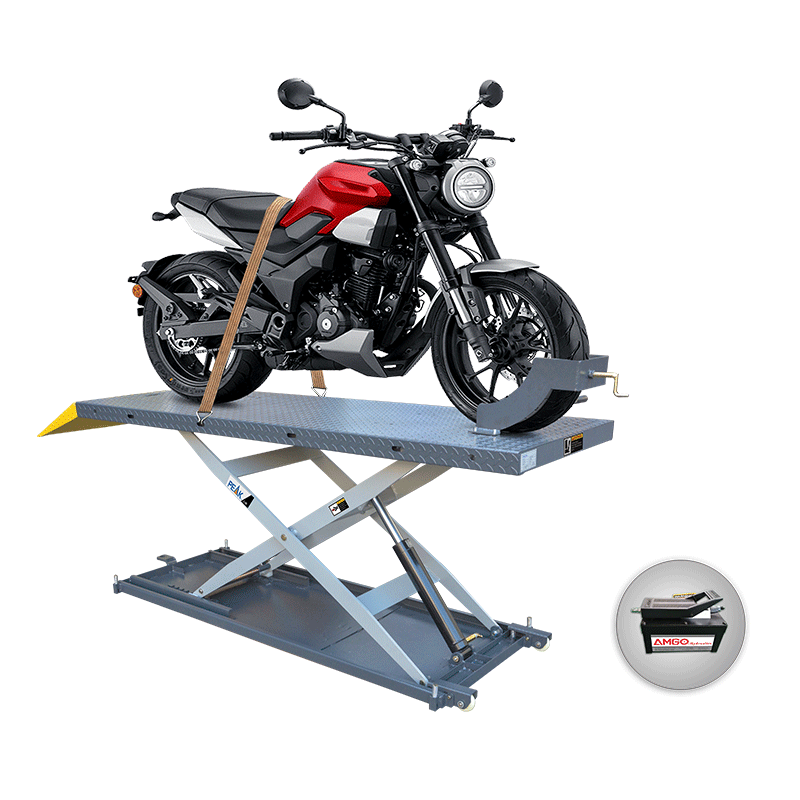

Built with the same steel structure as the MC-600H, the MC-600P swaps the power unit for a pneumatic hydraulic pump, eliminating the need for an electrical outlet. With enhanced mobility, MC-600H is your go-to for quick, versatile service on motorcycles, ATVs, snowmobiles, and jet skis.
- Pneumatic hydraulic pump control.
- Full-area steel base pedestal design combination of solid construction scissors supports powerful lifting ability.
- Reinforced steel-plate platform with non-skid diamond-plate surface as well.
- Built-in Self-lubricating UHMW Polyethylene sliders improve running smoothly and are maintenance free.
- Manual release safety lock with auto activation
- Seven level automatic locking system provides friendly working height
- Ergonomic wheel vise with rubber pad for wheel protection,which can be installed on two positions and services for both long or short axle motorcycles.
- Removable rear cover for rear wheel changing.
- User-conveniently tool and parts tray.
- Optional lifting jack: Works well in secondary lifting.
- Optional width extension kit: With 600mm (23 5/8″) extra widen platform.
- Optional length extension kit: Add 400mm (15 3/4″) extra lengthen the platform for the long-axle motorcycle.

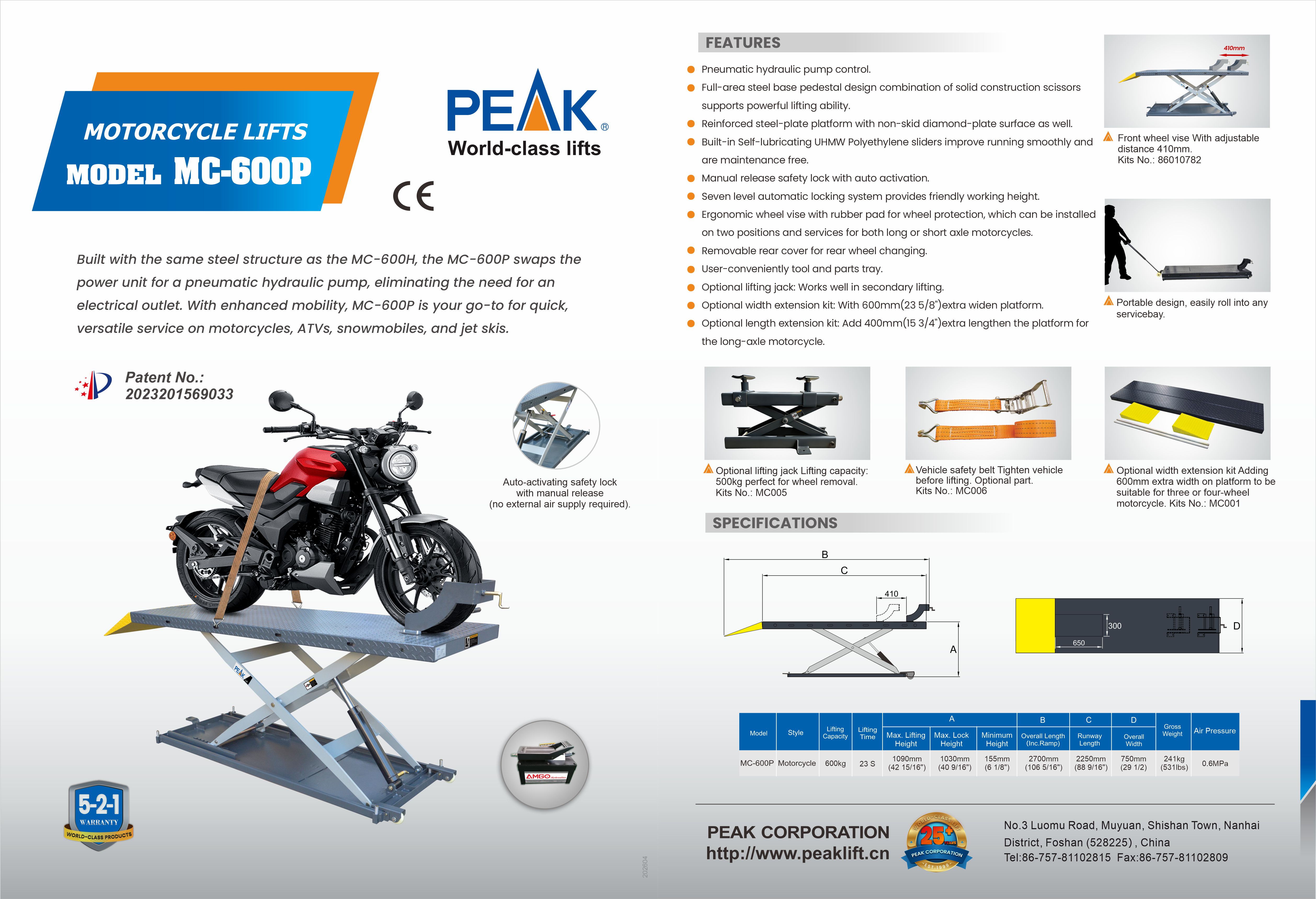

| Model MC-600P | Motorcycle Lifts | |
| Lifting Capacity | 600kg | |
| Lifting Time | 23s | |
| Lifting Height | A1 | 1090mm (43") |
| Minimum Height | A2 | 155mm (6 1/8") |
| Overall Length (Inc. Ramp) | B | 2700mm (106 1/4") |
| Runway Length | C | 2250mm (88 5/8") |
| Overall Width |
D |
750mm (29 1/2") |
| Gross Weight | 212kg (468lbs) | |
| Air Pressure | 0.6MPa | |
| QTY of Container | 32 Units/20'GP | |
| Packing Dimension | 2280 x 770 x 320 mm |
-
Front wheel vise
With adjustable distance 410mm.
Kits No.: 86010782 -

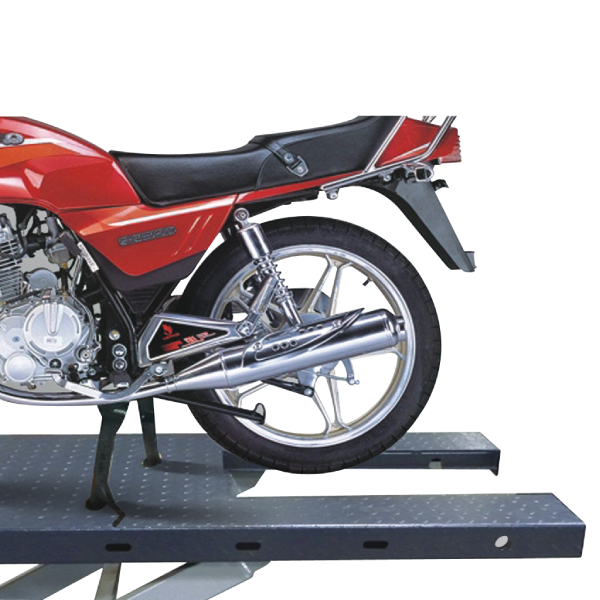

Rear tire removal cover
Removable platform cover is convenient for rear wheel changing and suspension work. -

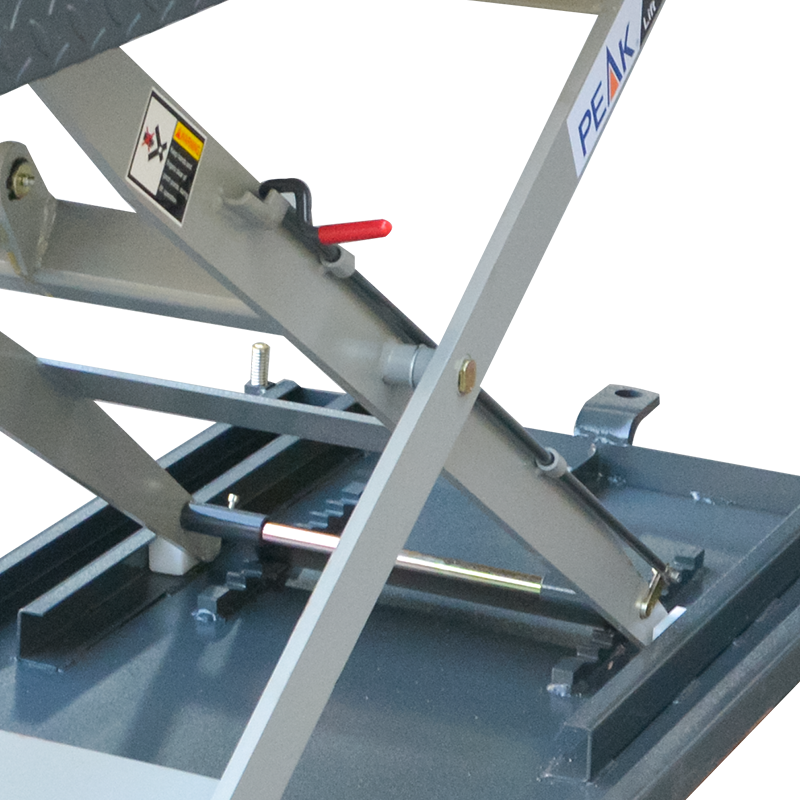

Manual safety release device.
Only available by PEAK. -
Portable design, easily roll into any servicebay.
-

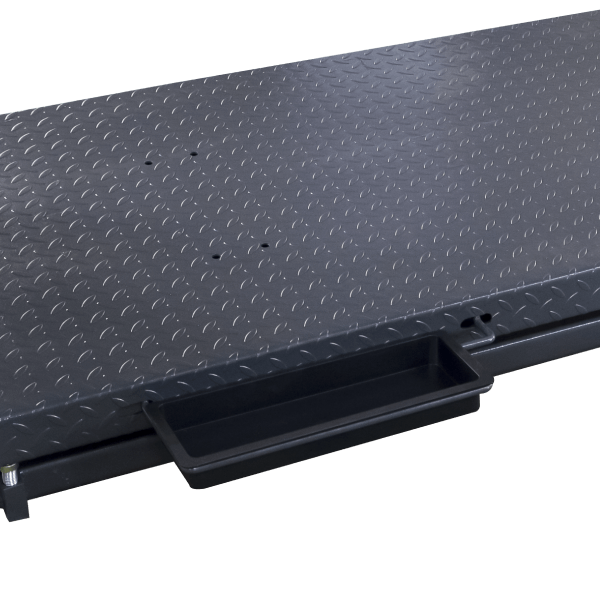

Tools and parts tray as standard
Part No.: 10206156 -

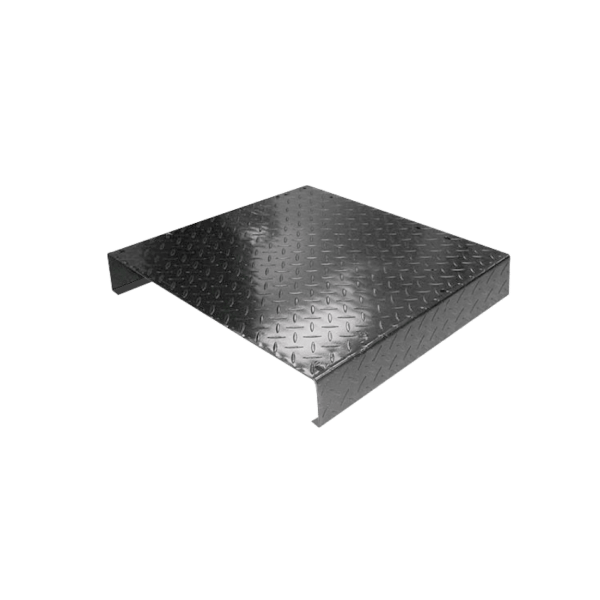

Optional length extension kit
Add 400mm extra length on the platform for the long axle motorcycle.
Kits No.: MC002 -

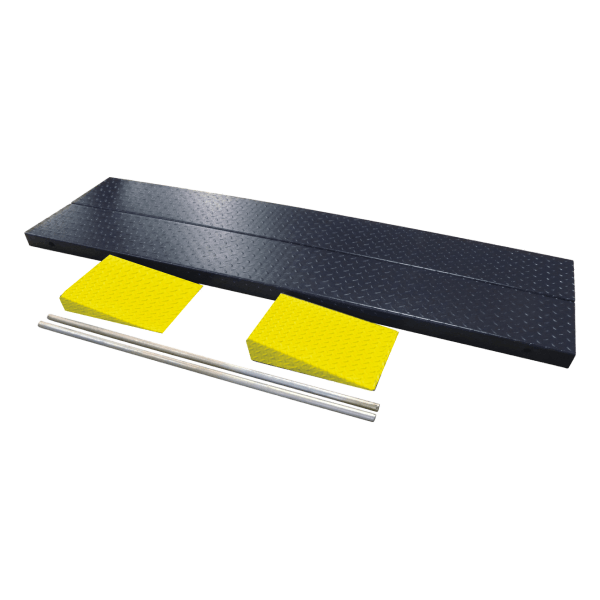

Optional width extension kit
Adding 600mm extra width on platform to be suitable for three or four-wheel motorcycle.
Kits No.: MC001 -

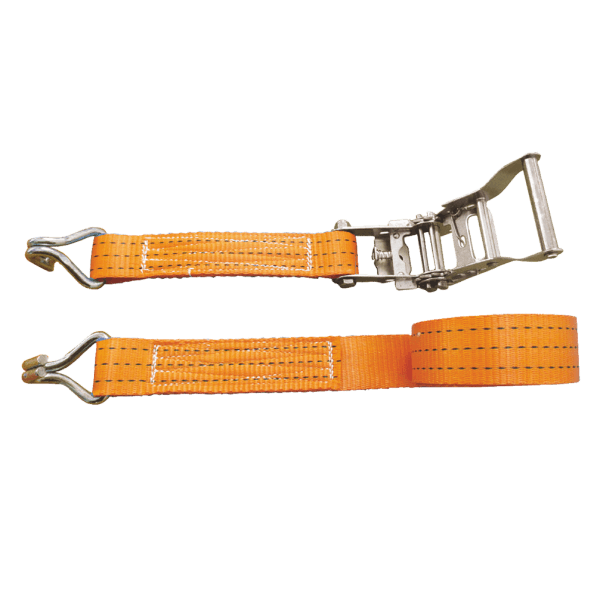

Vehicle safety belt
Tighten vehicle before lifting.
Optional part. Kits No.: MC006 -

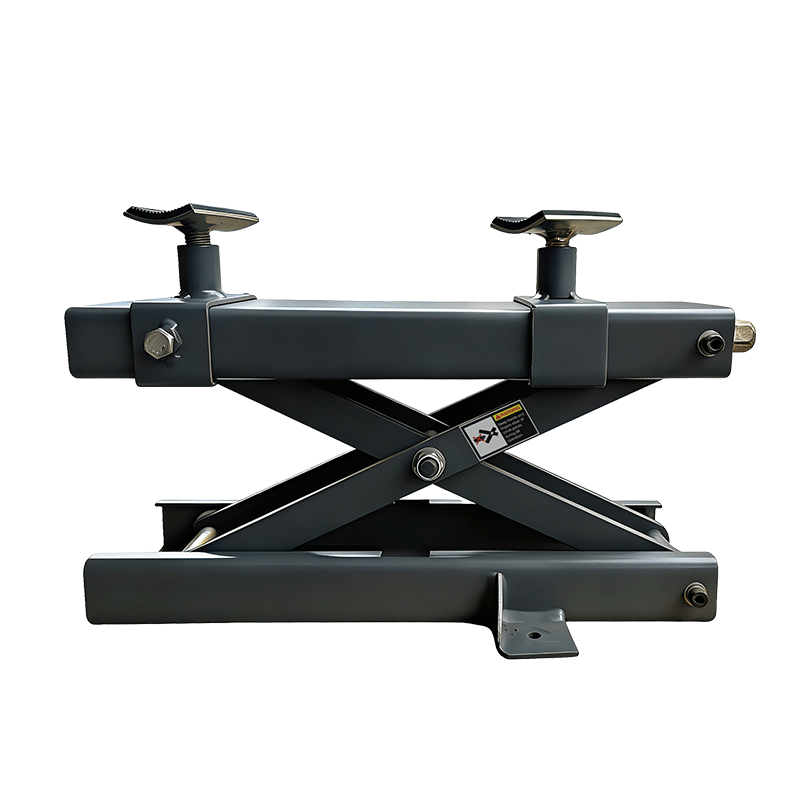

Optional lifting jack
Lifting capacity: 500kg perfect for wheel removal. Kits No.: MC005 -
AMGO pneumatic hydraulic pump
Part No.: 10600032
8 units as a package ( including parts box,without control cabinet)
- Gross weight for MC-600P: 212kgs.
- Packing measurement (Lx WxH): 2280 x 770 x 320mm.
- 20' container can load 32 units.
-

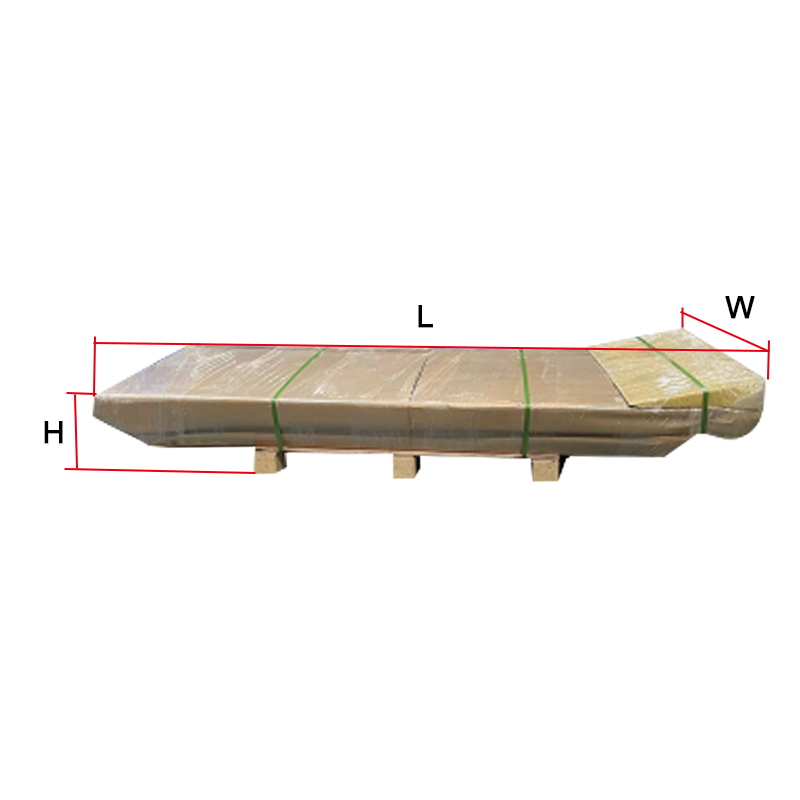

1 unit/package,packing measurement (LxWxH): 2280x770x320mm
-

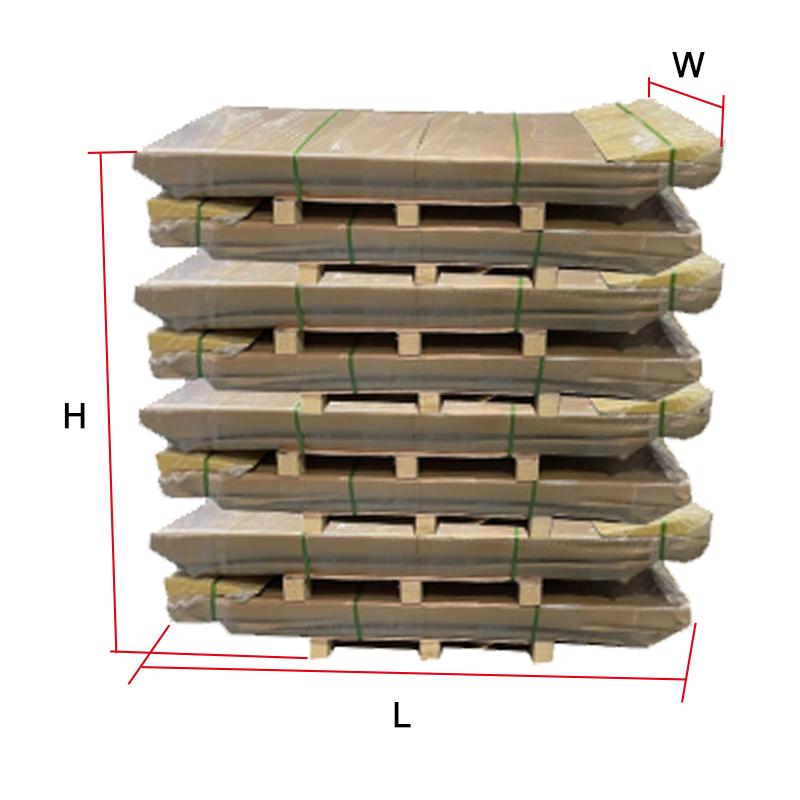

8 units/package, packing measurement (LxWxH): 2280x770x564mm
-

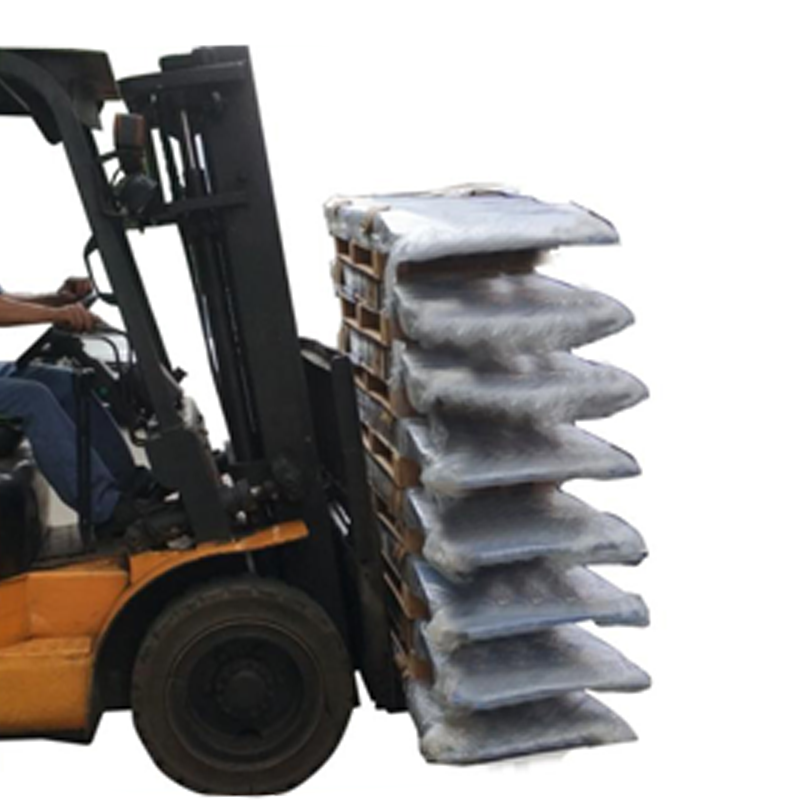

Attention to forklift loading and unloading.
