LR06

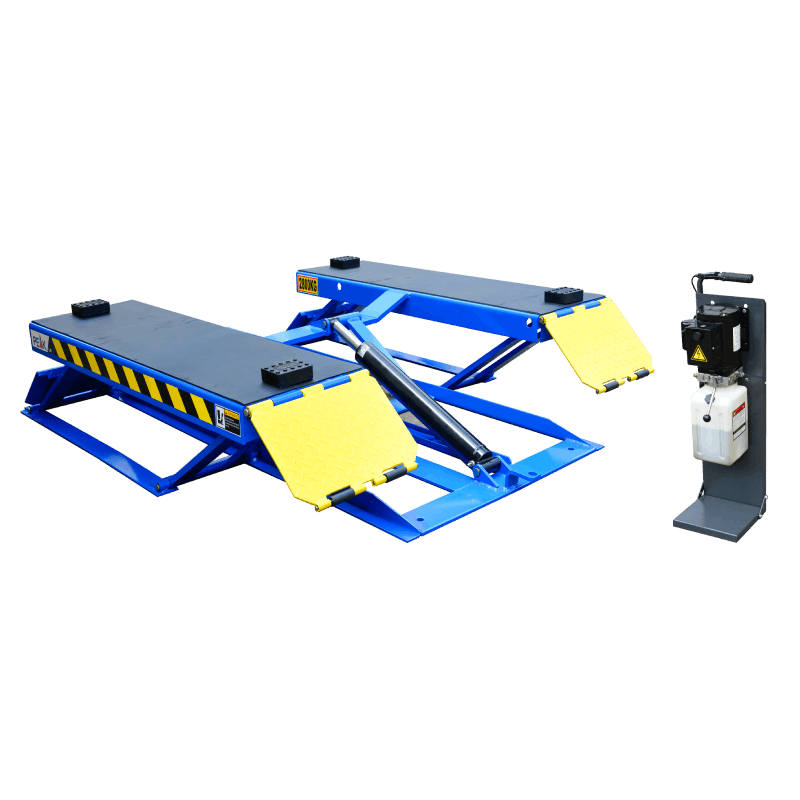

Portable Low-rised Speciality Lift
The new improved LR06 features a sunken design structure and extended platforms to provide more efficient performance catering to your quick & portable demands . At a capacity of 2800KG, this low rise lift is expertly suited for tire service, suspension work and body repairs.
- Easily move the lift around service bay or garage by the new dolly.
- Rugged frame platform with hard-rubber lifting pad make lifting a car stable and quickly.
- Dual-way drive-in ramps, making full use of space.
- Multiple mechanical lock design with gravitational guidance release.
- High speed: from 0-615mm(24 3/16") in just 18 seconds.
| Model LR06 | Portable Low-rised Lift | |
| Lifting Capacity | 2800kg | |
| Lifting Time | 18s | |
| Max. Lifting Height | A1 | 615mm (24 3/16") |
| Minimum Height | A2 | 105mm (4 1/8") |
| Runway Length | B | 1452mm (57 3/16") |
| Overall Length | C | 2135mm (84 1/16") |
| Width between Runways |
D |
868mm (34 1/8") |
| Overall Width | E | 1780mm (70 1/16") |
| Motor | 1.5HP/3.0HP | |
| Gross Weight | 375kg (827lbs) | |
| QTY of Container | 24 Units/20'GP | |
| Packing Dimension | 2045 x 1800 x 220 mm |
-
Low-profile platform accommodates a wide range of vehicles,even low chassis vehicles.
-
Single-point & easy control lock release make it very easy to use.
-
Portable design easily mobile the lift with standard telescoping dolly.
-
Exclusive design detachable power unit stand & telecoping dolly.
-
High quality rubber pads 38mm (1 1/2") height.
8 units as a package ( including parts box,without power unit)
- Gross weight for LR06: 375kgs , include power unit gross weight 25kgs and power unit stand gross weight 13kgs.
- 20' container can load 24 units.
-

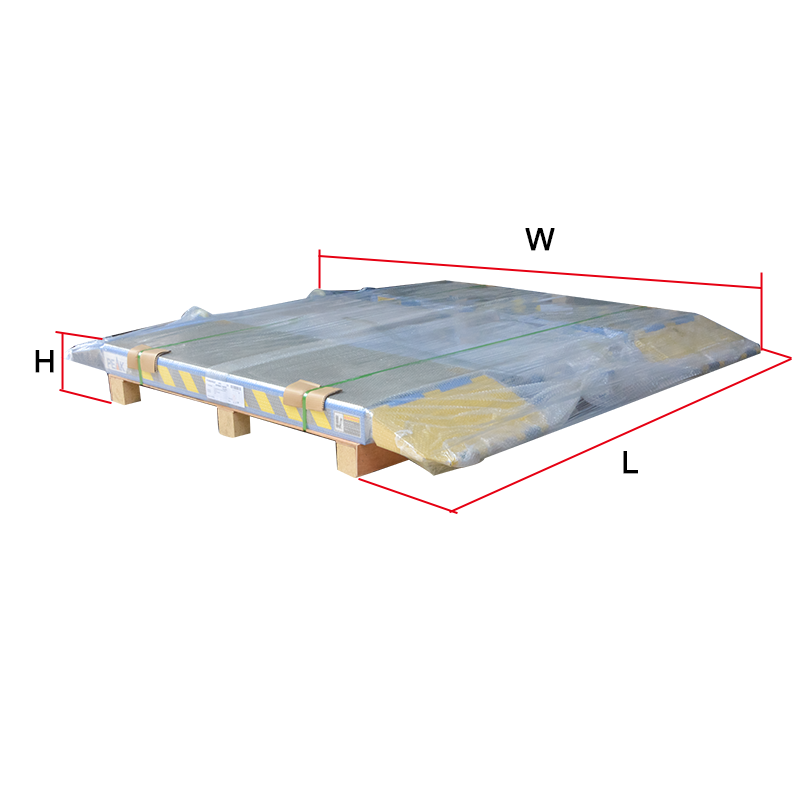

1 unit/package,packing measurement (LxWxH): 2045x1800x220mm
-

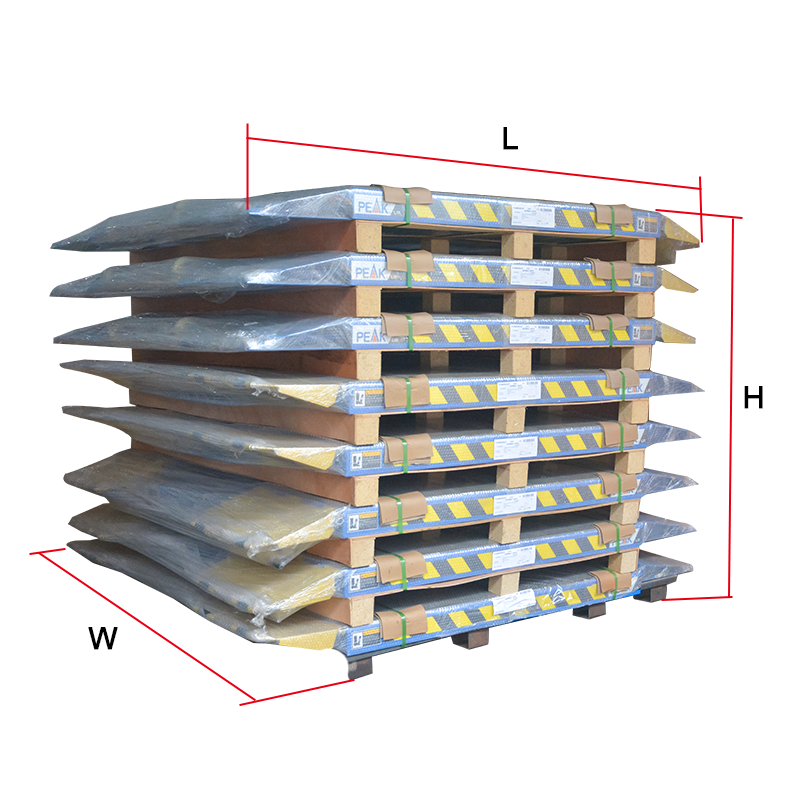

8 units/package, packing measurement (LxWxH): 2045x1800x220mm
-

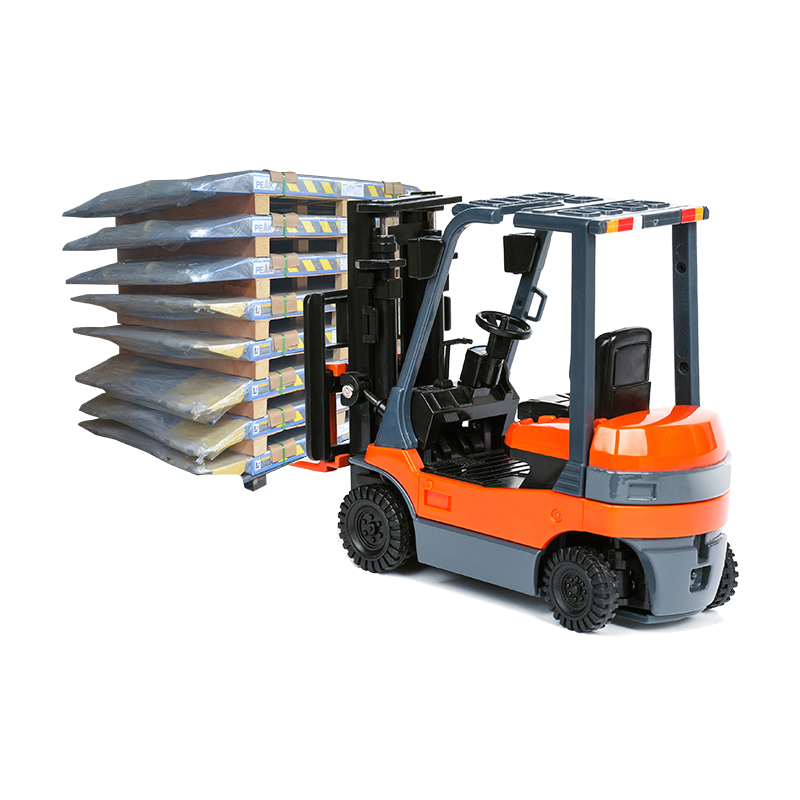

Attention to forklift loading and unloading.
