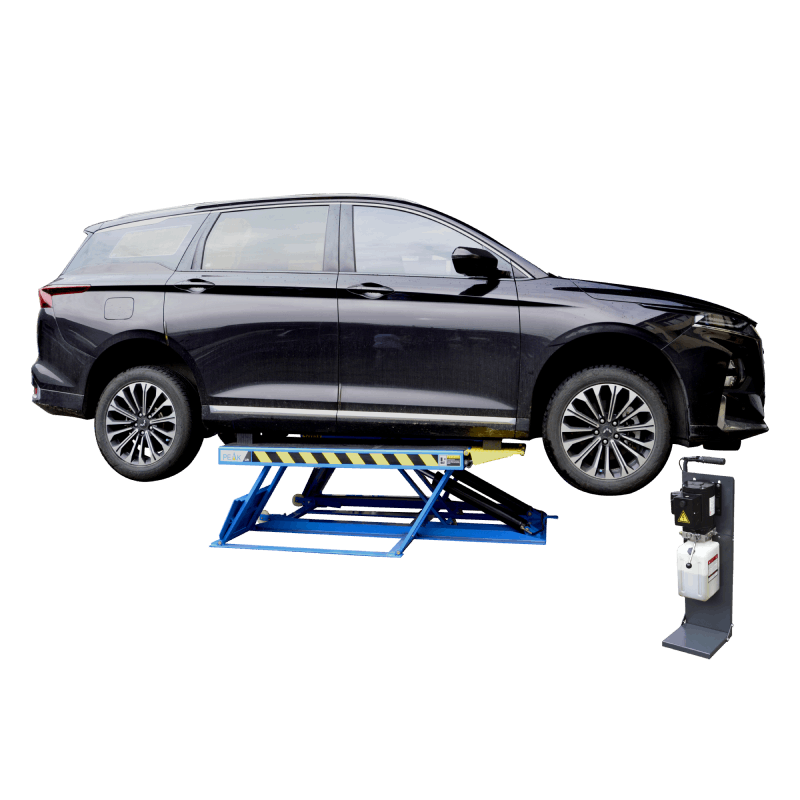

LR10
Portable Low-rised Speciality Lift
The new LR10 gets some great improvements include sunken structure and redesigned platforms, supporting a hefty 4500KG capacity. Its large platforms accommodate a variety of vehicles, from compact cars to SUVs and MPVs, ensuring strong performance for tire servicing, suspension work, and body repairs. Whether you're looking to enhance your workshop's capabilities or streamline portable services, our LR series delivers reliable performance and versatility.
- Easily move the lift around service bay or garage by the new dolly.
- Rugged frame platform with hard-rubber pad make lifting a vehicle stable and quickly.
- Multiple mechanical lock with gravitational guidance release.
- Dual hydraulic cylinders provide 4500kg(10,000lbs) high capacity demand.
| Model LR10 | Portable Low-rised Lift | |
| Lifting Capacity | 4500kg | |
| Lifting Time | 35s | |
| Max. Lifting Height | A1 | 615mm (24 3/16") |
| Minimum Height | A2 | 105mm (4 1/8") |
| Runway Length | B | 1452mm (57 3/16") |
| Overall Length | C | 2135mm (84 1/16") |
| Width Between Runways |
D |
868mm (34 1/8") |
| Overall Width | E | 1980mm (77 15/16") |
| Overall Runway Length (Inc. Ramp) | F | 1780mm (70 1/16") |
| Gross Weight | 477kg (1052lbs) | |
| Motor | 1.5HP/3.0HP | |
| QTY of Container | 24 Units/20'GP | |
| Packing Dimension | 2000 x 1800 x 220 mm |
-
Low-profile platform accommodates a wide range of vehicles,even low chassis vehicles.
-
Single-point & easy control lock release make it very easy to use.
-
The versatile drive-in ramp can be extended as part of the platform.
-
Portable design easily mobile the lift with standard telescoping dolly.
-
Exclusive design detachable power unit stand & telecoping dolly.
-
High quality rubber pads 38mm (1 1/2") and 70mm (2 3/4") height.
8 units as a package ( including parts box,without power unit)
- Gross weight for LR10: 477kgs , include power unit gross weight 25kgs and power unit stand gross weight 13kgs.
- 20' container can load 24 units.
-

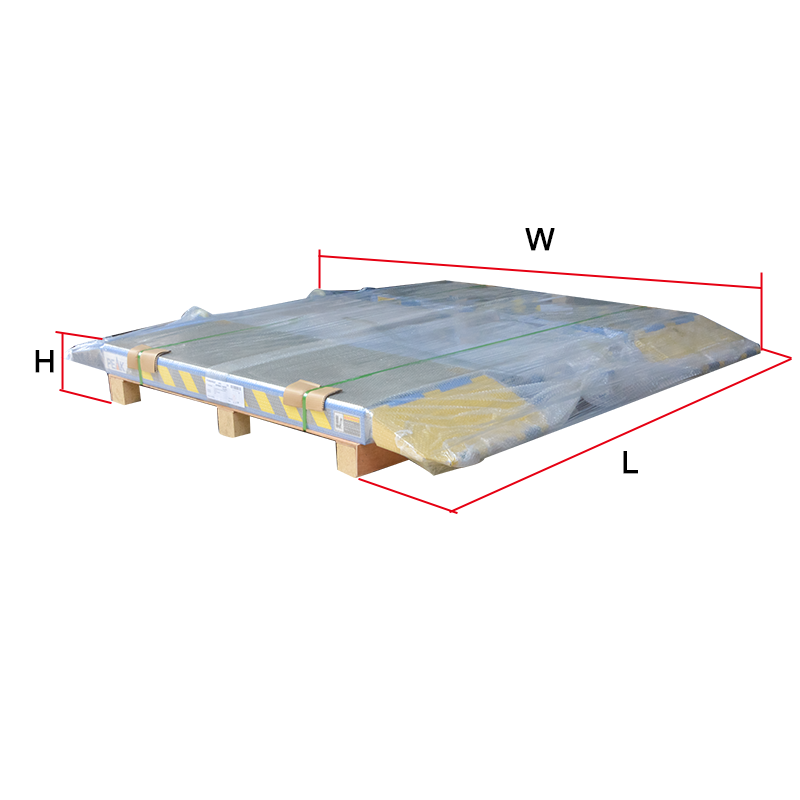

1 unit/package,packing measurement (LxWxH): 2045x1800x220mm
-

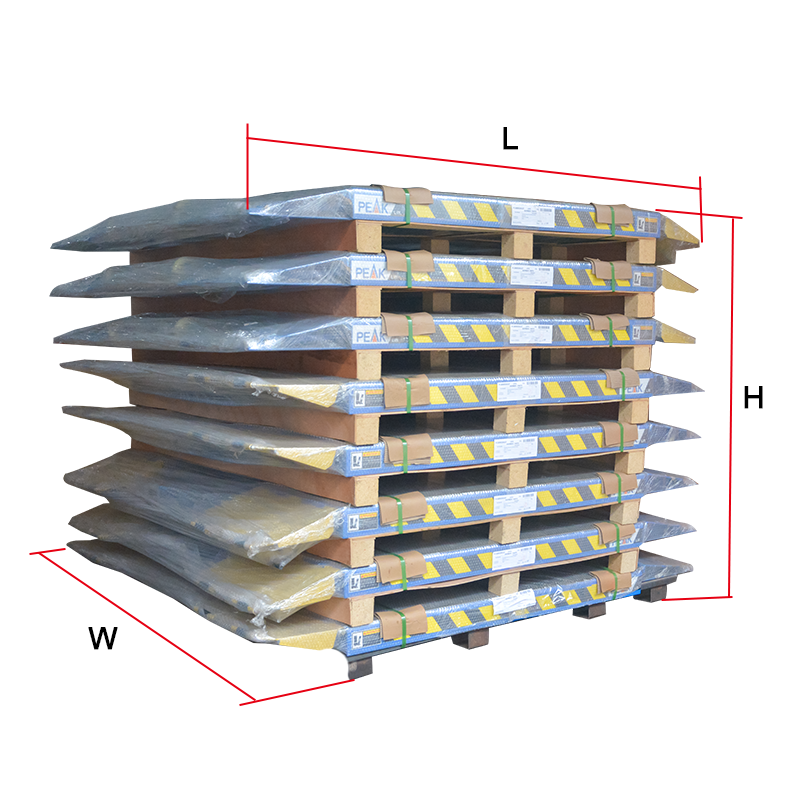

8 units/package, packing measurement (LxWxH): 2045x1800x220mm
-

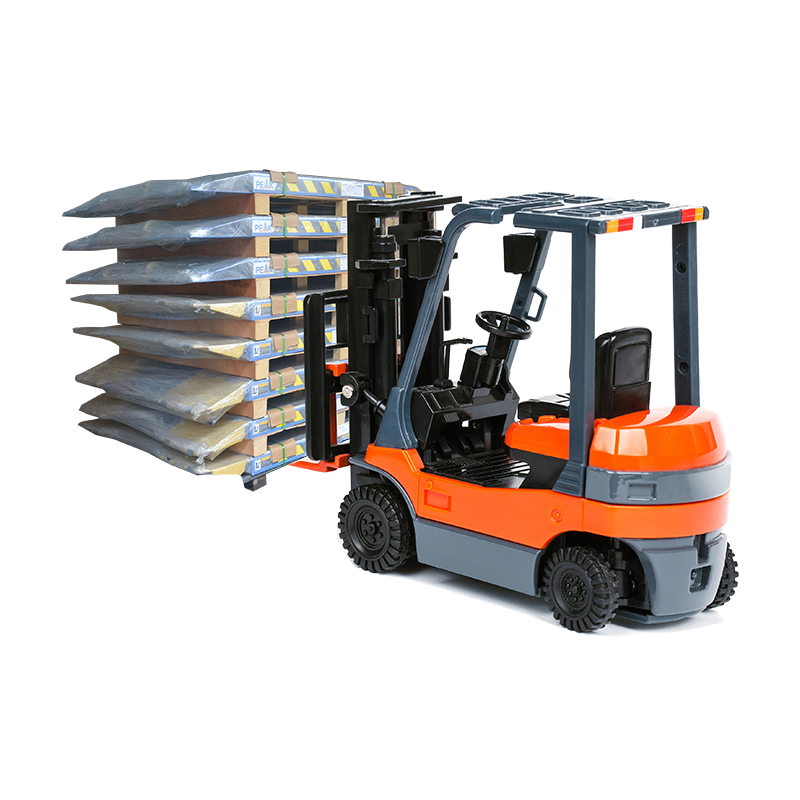

Attention to forklift loading and unloading.
