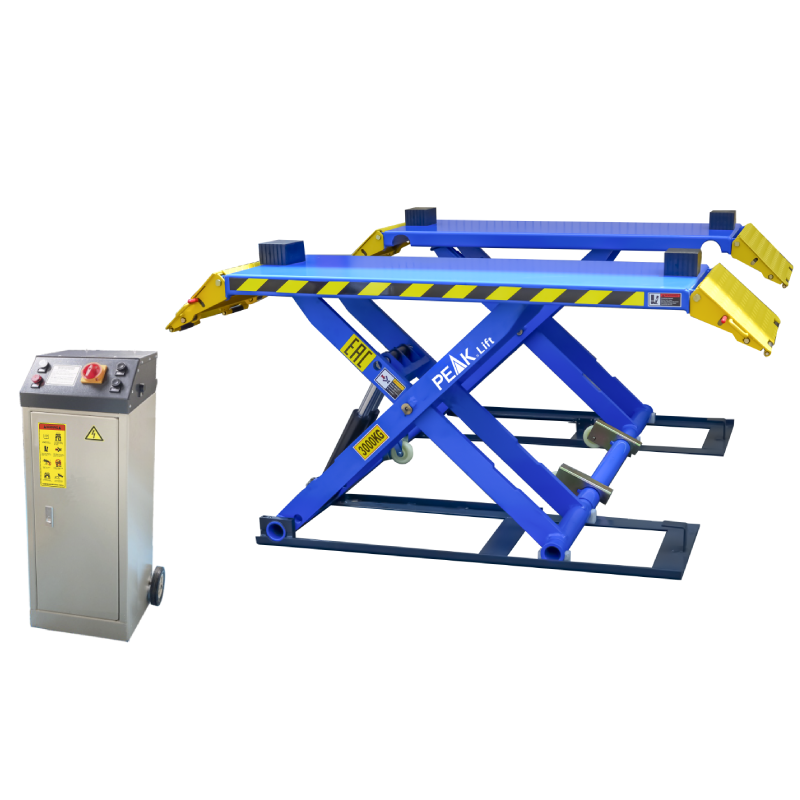

MRL-3000
Portable Mid-rise Scissors Lift
Quick to move
The MRL-3000 is an efficient quick-service lift that also offers portable convenience. It is equipped with 4 high-quality cylinders and incorporates PEAK's exclusive hydraulic technology, ensuring smooth operation and robust safety. With a 3000KG capacity, and low profile structure, MRL-3000 is ideal for servicing even low chassis vehicles and can be a lucrative addition to your business.
- Lifting capacity: 3000kg (6600lbs);
- Portable design, can be easily moved to any service bay with portable kits.
- Low profile design with a minimum height 115mm only;
- Flexible drive-in ramps can also serve as extension platforms;
- Dual oil circuit control system supported by 4 cylinders;
- Equipped with self-locking hydraulic locking system, eliminates the need for an external air source;
- Dual torsion bars enhance the absolute platform synchronization;
- Electrical control operation system, with portable control cabinet;
- Automatic safety stop device at 300mm from ground when lowering.
| Model | MRL-3000 | |
| Lifting Capacity | 3000kg | |
| Lifting Time | 23s | |
| Lifting Height | A1 | 1020mm (40 1/8") |
| Minimum Height | A2 | 115mm (4 1/2") |
| Overall length (Inc Ramps) | B | 2045mm (80 1/2") |
| Length for platform | C | 1460mm(57 1/2") |
| Overall Width | D | 1952mm (76 7/8") |
| Width Between Runways | E | 800mm (31 1/2") |
| Gross Weight | 560kg (1,235lbs) | |
| Motor | 2.0HP/3.0HP | |
| QTY of Container | 40 Units/20'GP | |
| Packing Dimension | 1600 X 1875 X 315 mm |
-
Easy flip-lock ramps, can be used as platform extension. Add extra length 585mm.
-
2 torsion bars connected with 4 cylinders ensure absolute synchronizatio.
-
Ultra thin design, minimum height only 115mm.
-
Maxium lifting height 1020mm.
Fast lifting in 23 seconds. -
Platforms adjustable from 1460mm to 2045mm. Accommodates for a vary wheelbase vehicles.
-
2 kinds of standard rubber pads:
38mm (1 1/2") & 70mm (3"). -
Exquising portable kits come as standard.
-
Portable 24V power control cabinet.
8 units as a package ( including parts box,without control cabinet)
- Gross weight for MRL-3000: 560kgs , include control cabinet gross weight 68kgs.
- 20' container can load 24 units.
-

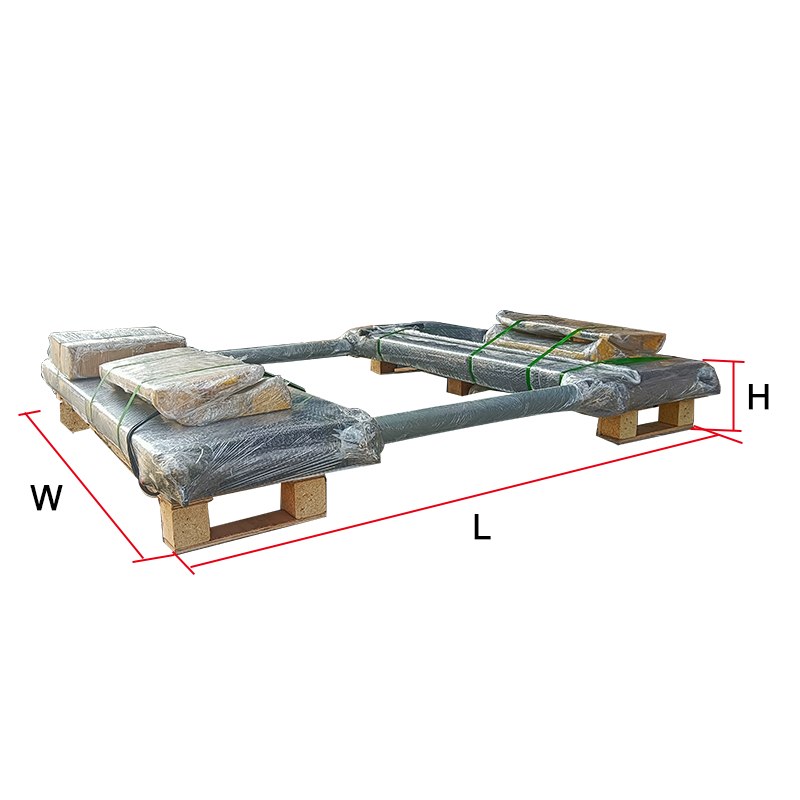

1 units/package,packing measurement (LxWxH): 1920x1610x220mm
-

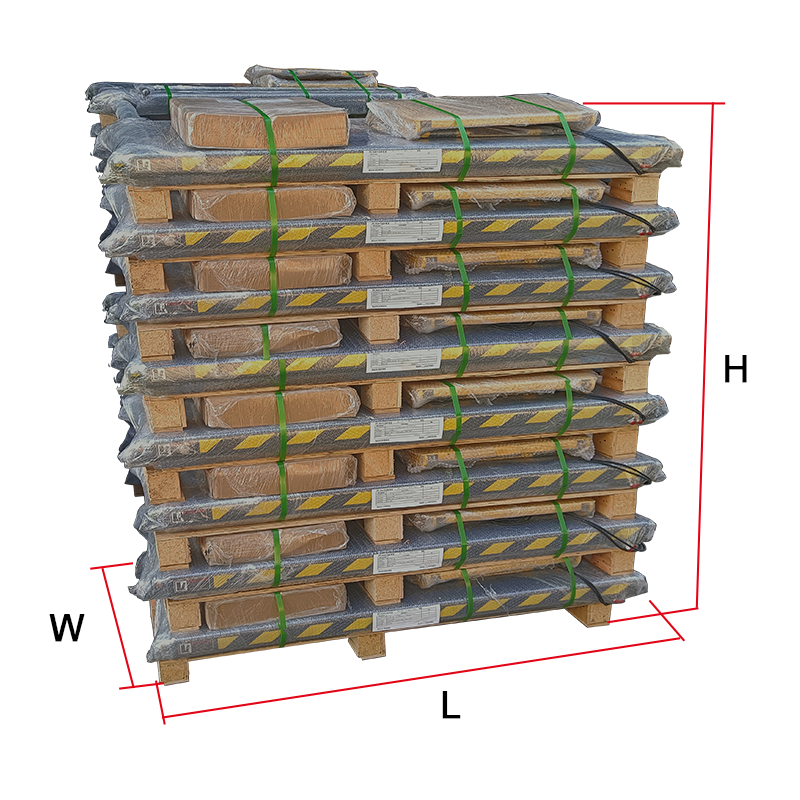

8 units/package, packing measurement (LxWxH): 1920x1610x2138mm
-

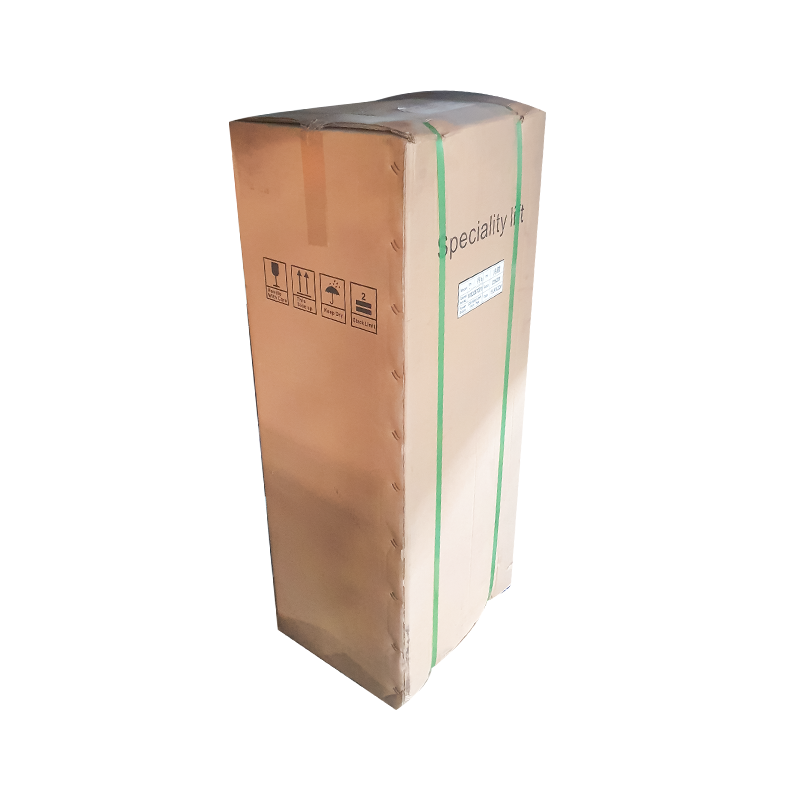

1 unit/ctn,control cabinet packing measurement (LxWxH): 378x325x1168mm
-

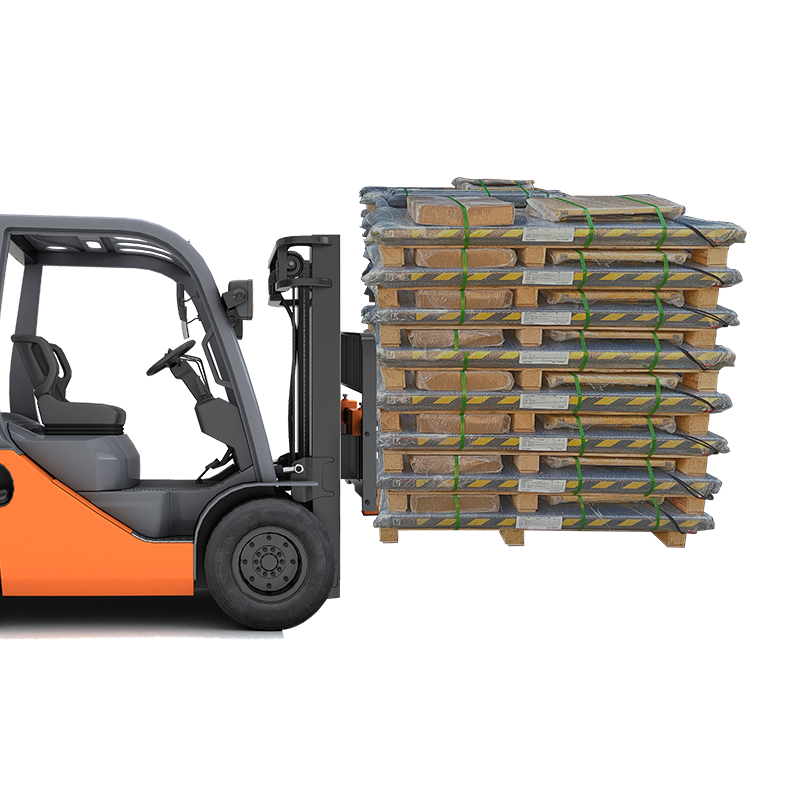

Attention to forklift loading and unloading
