MRL07

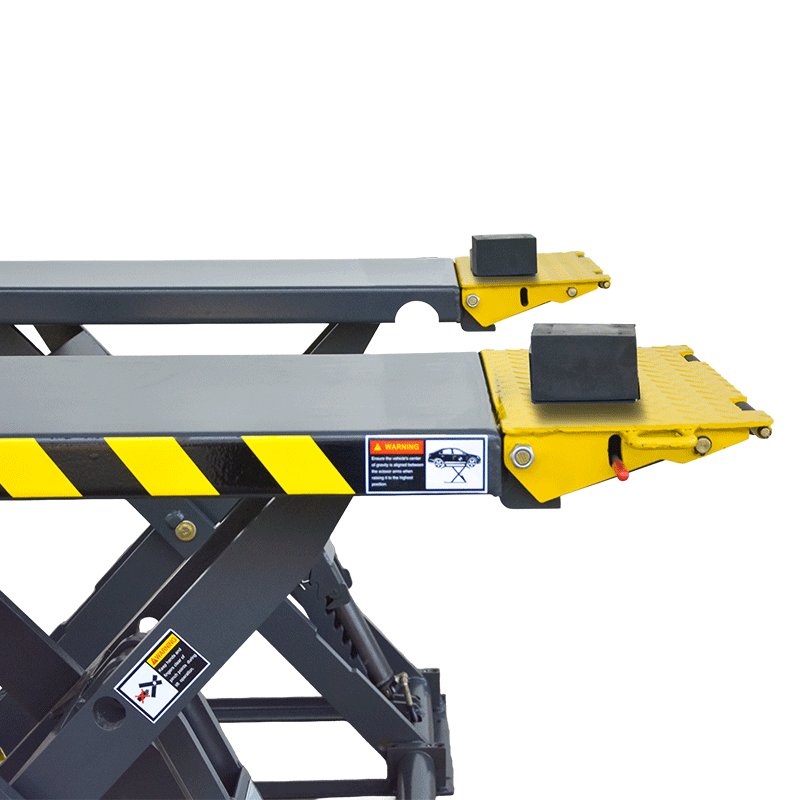

Portable Mid-rise Scissors Lift

Unlimited Mobility

Eliminating the need for an external air source, the MRL07 offers true unlimited mobility-ready to roll wherever and whenever service is needed. With a rugged, virtually maintenance-free design, this low profile model is built to perform. It also features auto-release mechanical locks that enhance operational convenience and safety, making it the ideal choice for quick service, tire changes, body work, and more.

Catalogue Downloads

Get Quotation

Lifting capacity: 3200kg;
Portable design, can be easily moved to any service bay;
Elaborate design, virtually maintenance-free.
Low profile design that fit various vehicles (min. 118mm);
Flexible drive-in ramps can also serve as extension platforms;
Dual torsion bars enhance the absolute platform synchronization;
Equipped with auto-release mechanical locks, eliminates the need for an external air source;
Both 70mm and 38mm rubber pads come standard;
Innovative detachable power unit stand with telescoping pull rod.

Model		MRL07
Lifting Capacity		3200kg (7,000lbs)
Lifting Time		23s
Max. Lifting Height	A	1070mm (42 1/8")
Minimum Height		118mm (4 5/8")
Max. Lock Height		1010mm(39 3/4")
Overall Length	B	2045mm (80 1/2")
Runway Length	C	1472mm (57 15/16")
Overall Width	D	1952mm (76 7/8")
Width Between Runways	E	800mm (31 1/2")
Gross Weight		523kg (1,153lbs)
Motor		3.0HP
QTY of Container		24 Units/20'GP

Equipped with auto-release locks, eliminates the need for an external
air source.
Low profile design that fit various vehicles (min. 118mm).
Flexible drive-in ramps can also serve as extension platforms.
Maxmum lifting height 1070mm. Fast lifting in 23 seconds.
Portable design, can be easily moved to any service bay.
Both 70mm and 38mm rubber pads come standard
