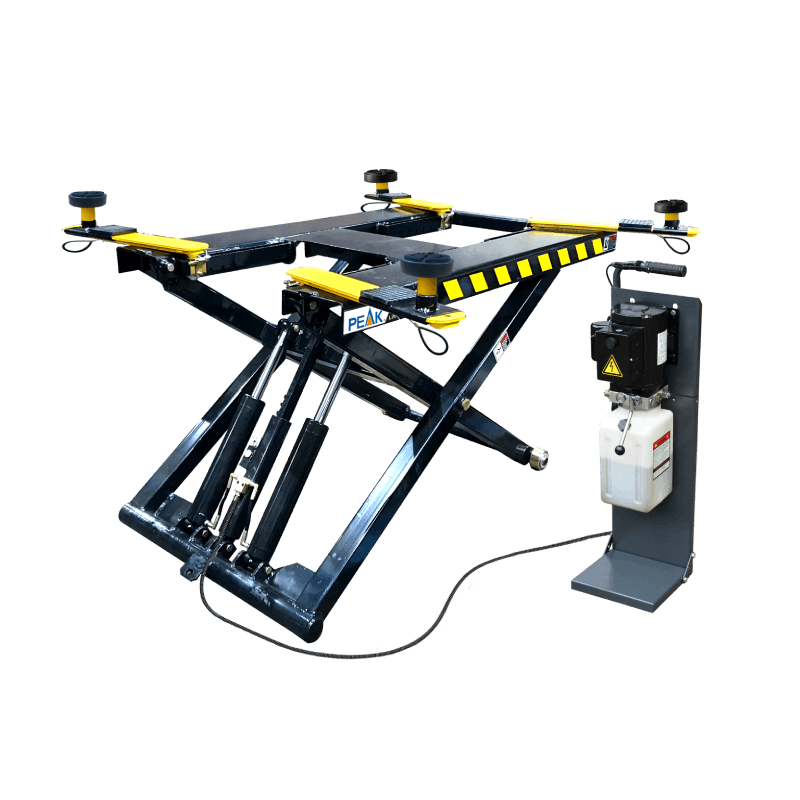

MR06
Portable Mid-rised Scissors Lift
Engineered for shops that prioritize performance and adaptability, the MR06 Mid-Rise Lift is the ideal solution for fast service for tire, brake and body repairs. It's well suited for facilities with low ceilings or that want to maximize bay flexibility
- Adjustable sliding radius arms with mechanical self-locking design;
- Strengthen manual multi-position safety locks ensure working safely at different height;
- Innovation power unit stand & telescoping Dolly Combos to move the lift easily;
- Dual hydraulic cylinders and solid platform structure provides maximum strength and stability;
- High speed: From 0-1090 mm(43”) in just 26 seconds;
- Includes height extension adapters and durable pads are suitable for various chassis vehicles.
| Model MR06 | Portable Mid-rised Lift | |
| Lifting Capacity | 2800kg | |
| Lifting Time | 26s | |
| Lifting Height | A1 | 1090mm (42 7/8") |
| Minimum Height | A2 | 125mm (4 7/8") |
| Platform Width | B | 1020mm (40 1/8") |
| Swing Width | C | 1684mm (66 1/4") |
| Overall Length |
D |
1885mm (74 1/4") |
| Gross Weight | 431kg (950lbs) | |
| Motor | 3.0HP | |
| QTY of Container | 40 Units/20'GP | |
| Packing Dimension | 1900 x 1020 x 275 mm |
-
To release the arm lock quickly by pulling the cable simply.
-
New safety lock automatic engage sufficiently and convenient to be released by manual.
-
Portable design using the new design dolly make it so easy to move the lift around.
-
Exclusive design detachable power unit stand & manual safety release device equipped.
-
Limit block to prevent arms swing beyong the platform. Two kinds of adapters as standard.
-
Adapter Kits
This 16-pieces adapter kits come standard with the MR06
8 units as a package ( including parts box,without power unit)
- Gross weight for MR06: 424kgs , include power unit gross weight 25kgs and power unit stand & dolly gross weight 13kgs.
- 20' container can load 40 units.
-

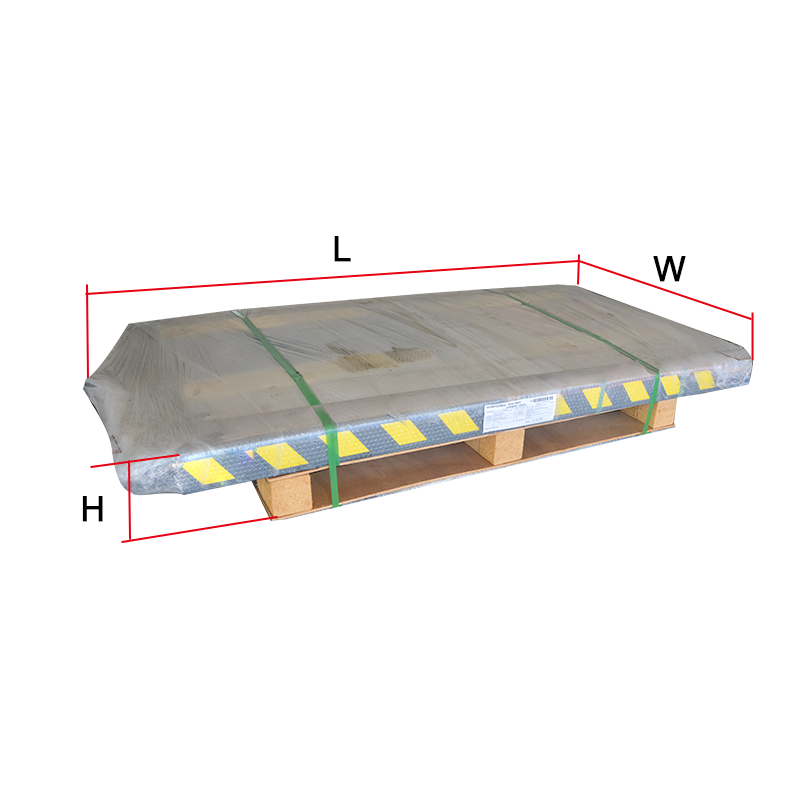

1 unit/package,packing measurement (LxWxH): 1900x1020x275mm
-

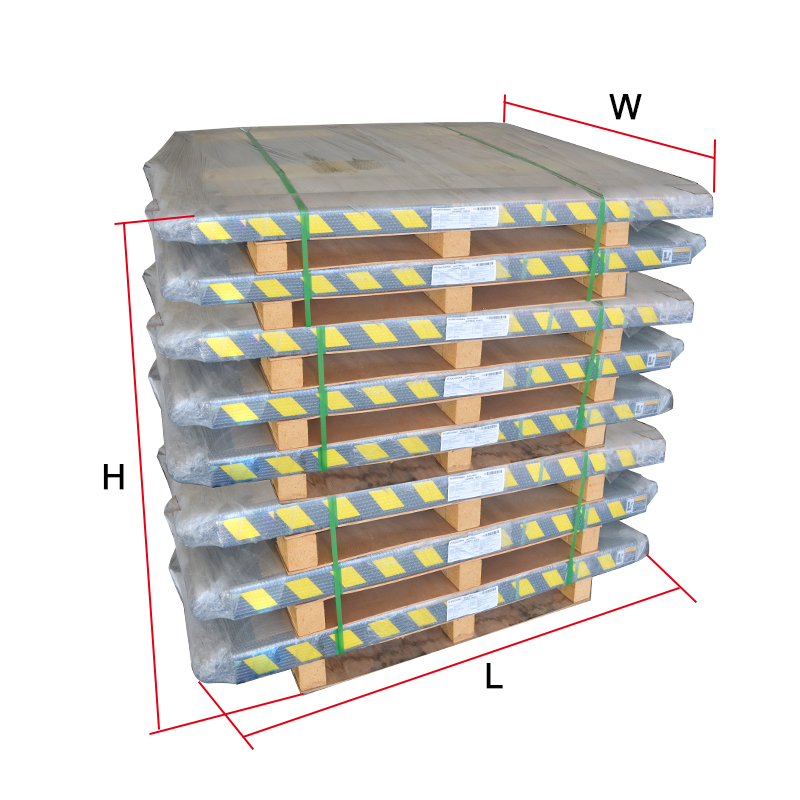

8 units/package, packing measurement (LxWxH): 1900x1020x1600mm
-

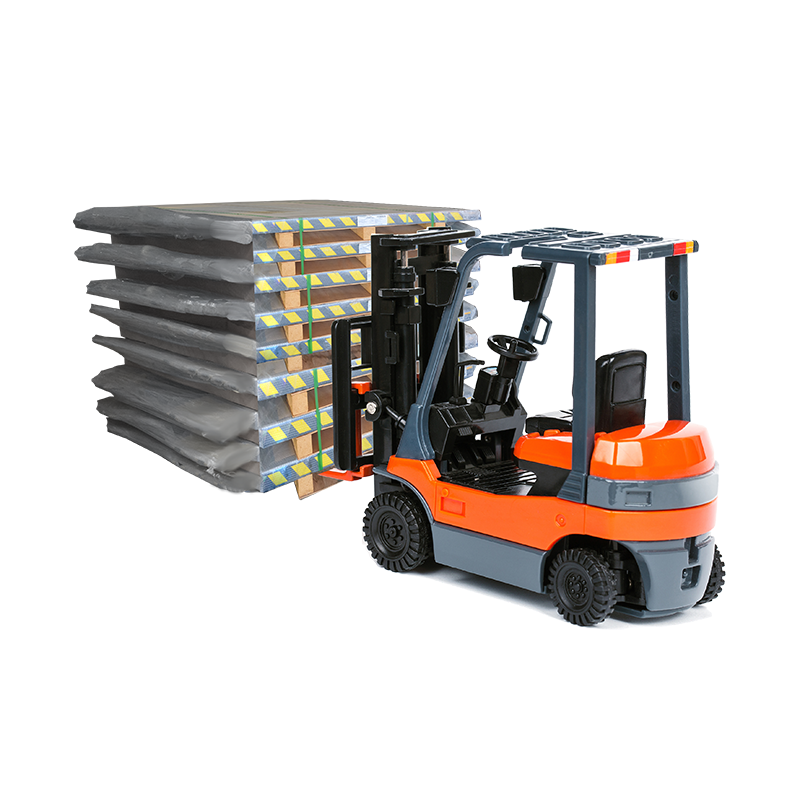

Attention to forklift loading and unloading.
