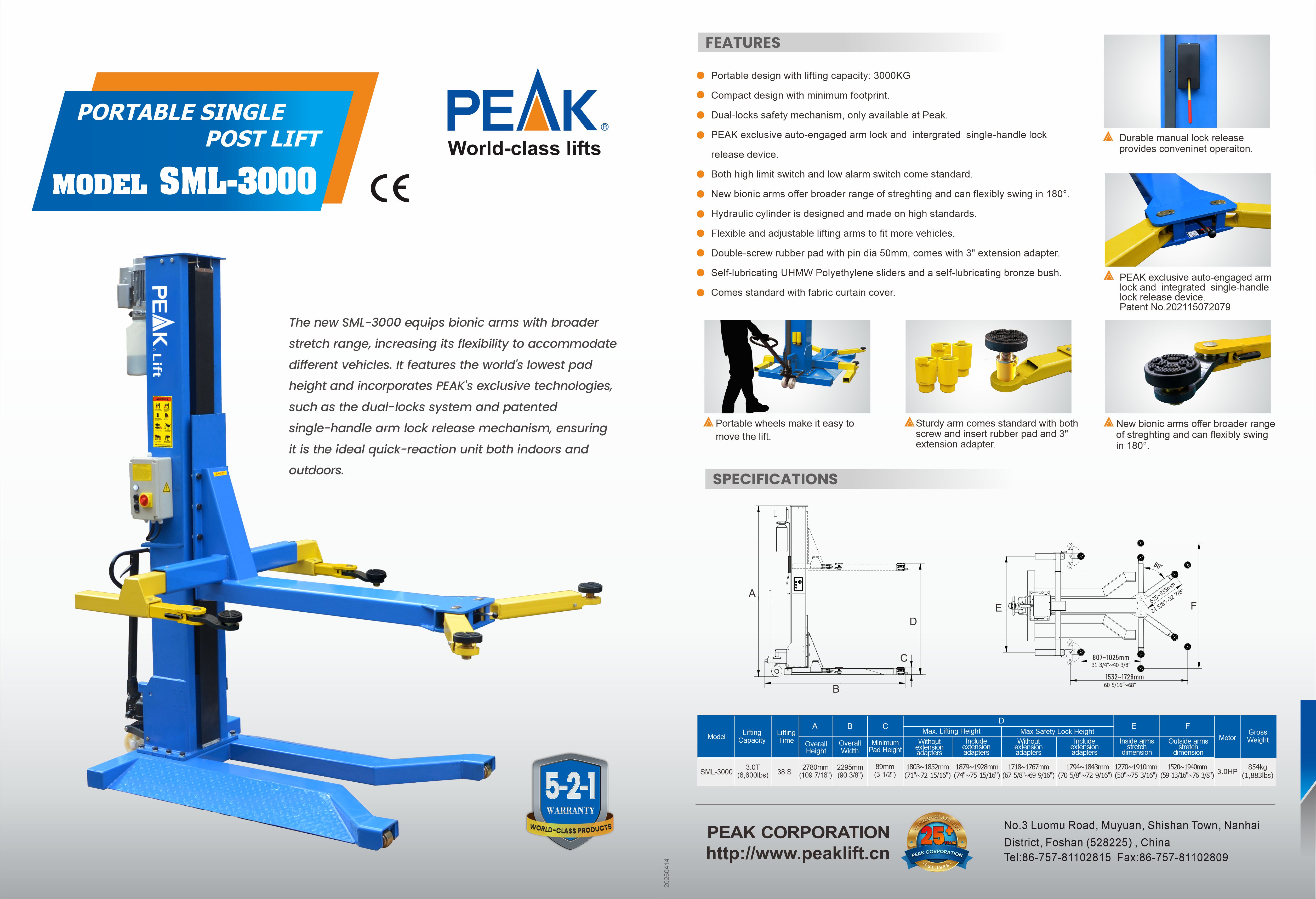

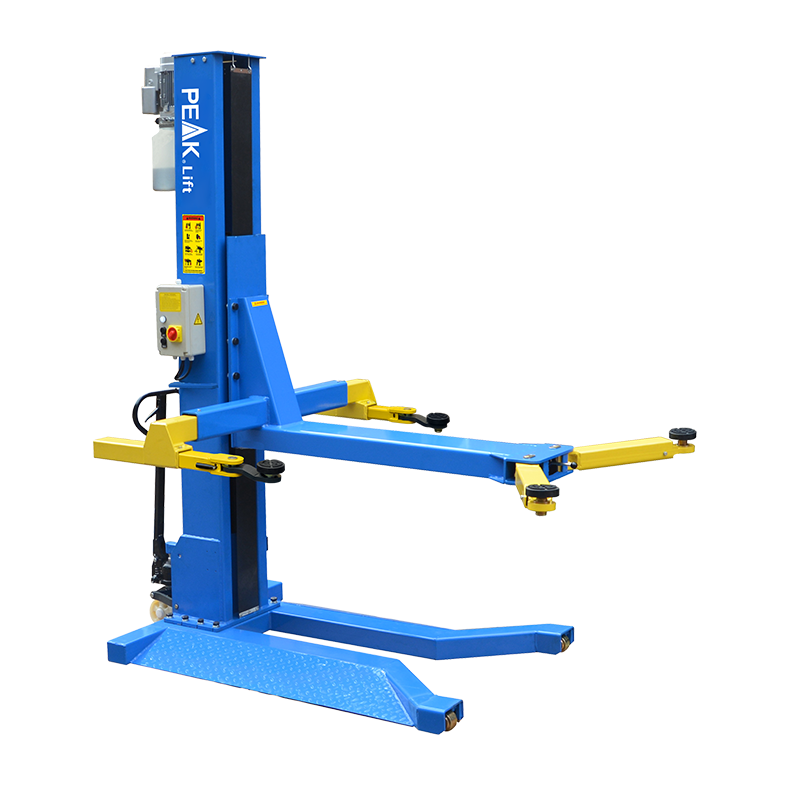

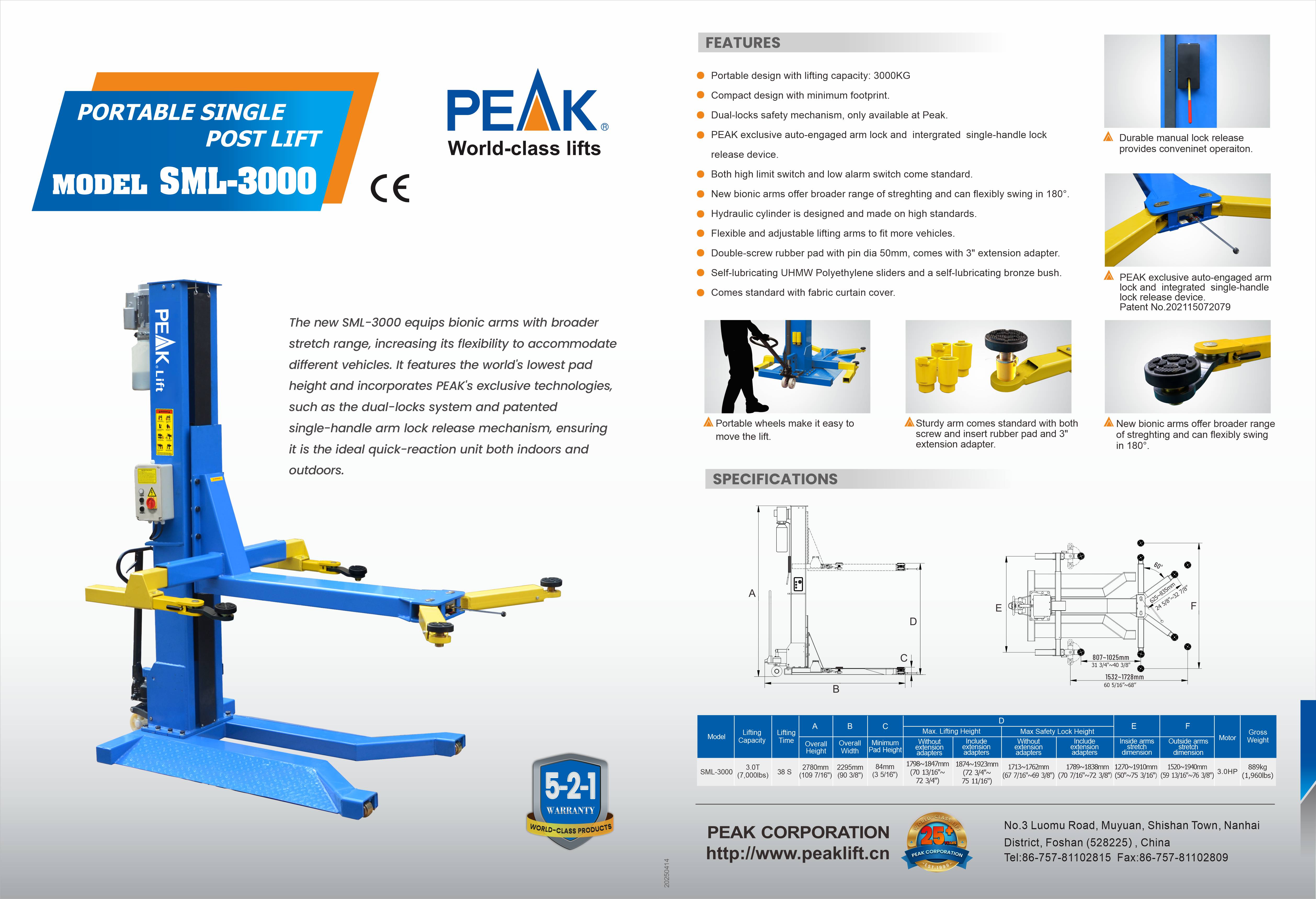

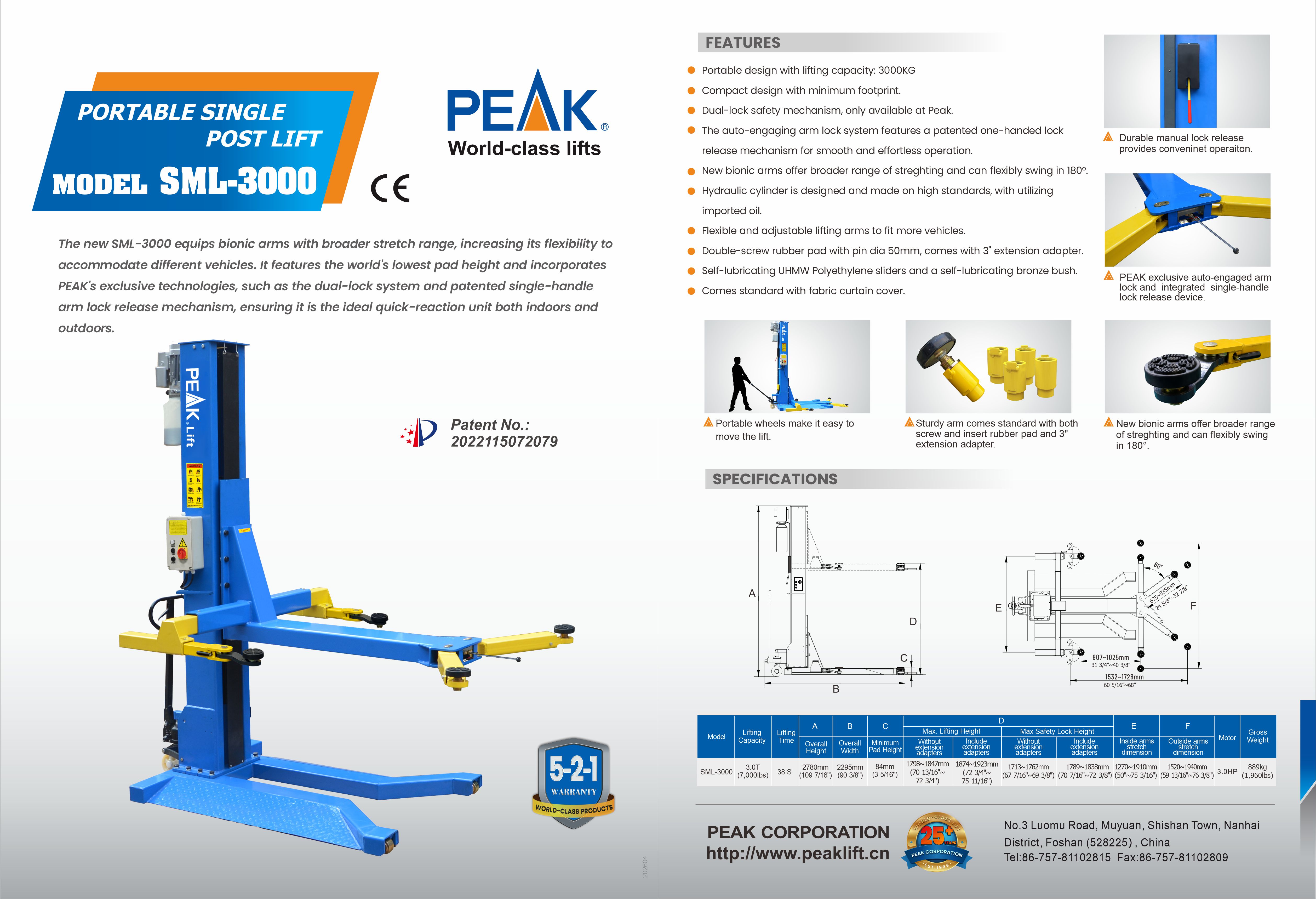

SML-3000
Portable Single Post Lift
Lift & Roll, best as well
The new SML-3000 equips bionic arms with broader stretch range, increasing its flexibility to accommodate different vehicles. It features the world's lowest pad height and incorporates PEAK's exclusive technologies, such as the dual-lock system and patented single-handle arm lock release mechanism, ensuring it is the ideal quick-reaction unit both indoors and outdoors.
• Portable design with lifting capacity: 3000KG
• Compact design with minimum footprint.
• Dual-lock safety mechanism, only available at Peak.
• PEAK exclusive auto-engaged arm lock and intergrated single-handle lock release device.
• New bionic arms offer broader range of streghting and can flexibly swing in 180°.
• Hydraulic cylinder is designed and made on high standards,with utilizing imported oil.
• Flexible and adjustable lifting arms to fit more vehicles.
• Double-screw rubber pad with pin dia 50mm, comes with 3" extension adapter.
• Self-lubricating UHMW Polyethylene sliders and a self-lubricating bronze bush.
• Comes standard with fabric curtain cover.
| Model SML-3000 | Single post lift | |
| Lifting Capacity | 3000kg (6,600 lbs) | |
| Lifting Time | 38s | |
| Max. Lifting height: (w/o extension adapter) | A | 1803~1852mm (71"~72 15/16" ) |
| Max. Lifting height: (w/ extension adapter) | 1879~1928mm (74"~75 15/16" ) | |
| Max. lock height: (w/o extension adapter) | 1718~1767mm (67 5/8"~69 9/16" ) | |
| Max. lock height: (w/ extension adapter) | 1794~1843mm (70 5/8"~72 9/16" ) | |
| Overall Height | B | 2780mm (109 7/16") |
| Overall Width | C | 2295mm (90 3/8") |
| Minimum Pad Height | D | 89mm (3 1/2") |
| Gross Weight | 854kg (1,883 lbs) | |
| Motor | 3.0HP | |
| QTY of Container | 12 Units/20'GP | |
| 24 Units/40'GP | ||
| Base plate | 1985 X 1440 X 910 mm | |
| Single unit as a package | 2740 X 510 X 440 mm |
-

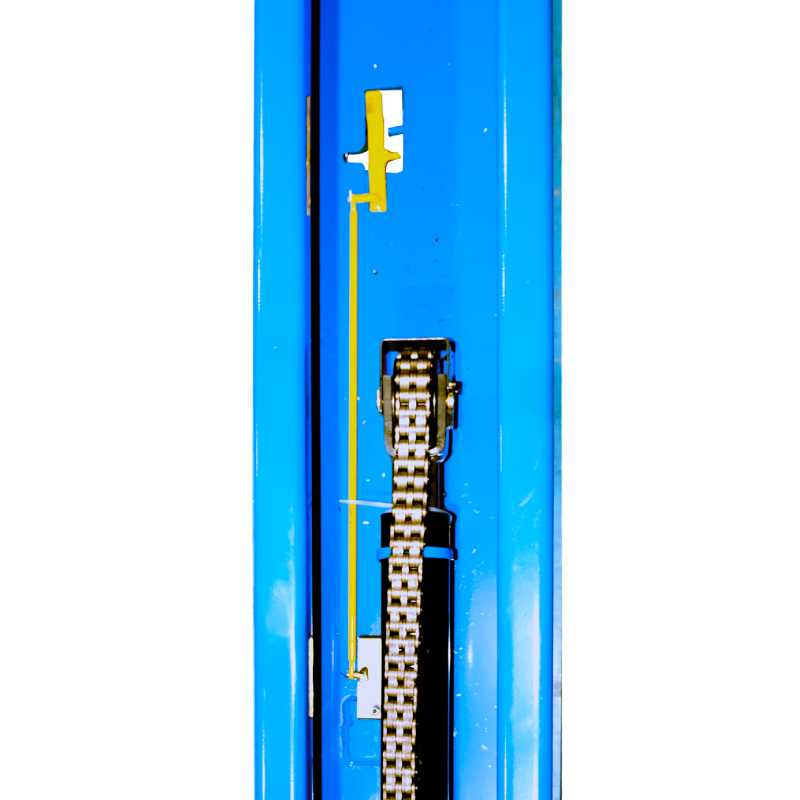

Dual-lock safety mechanism and chain-protective cover,only available at PEAK.
-

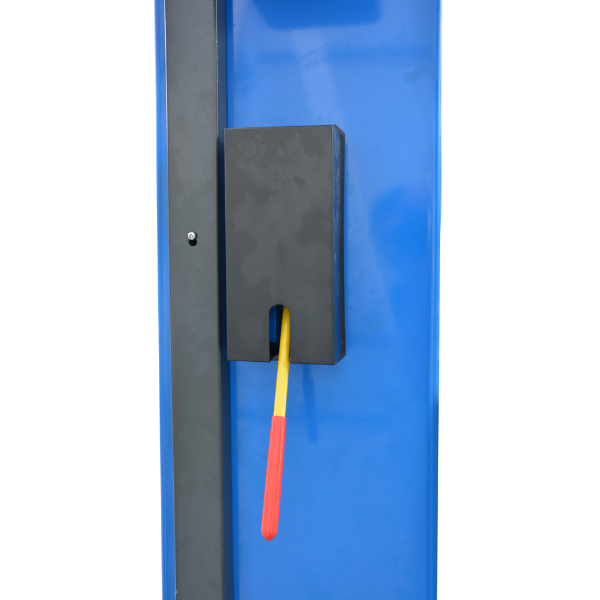

Durable manual lock release provides convenient operation.
-

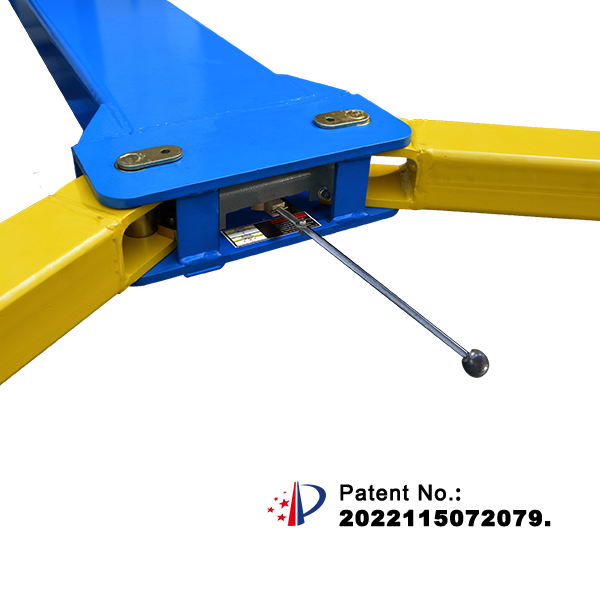

PEAK exclusive auto-engaged arm lock and integrated single-handle lock release device.
-
New bionic arms offer broader range of streghting and can flexibly swing in 180°.
-
Adjustable arms with two stage positions.
-

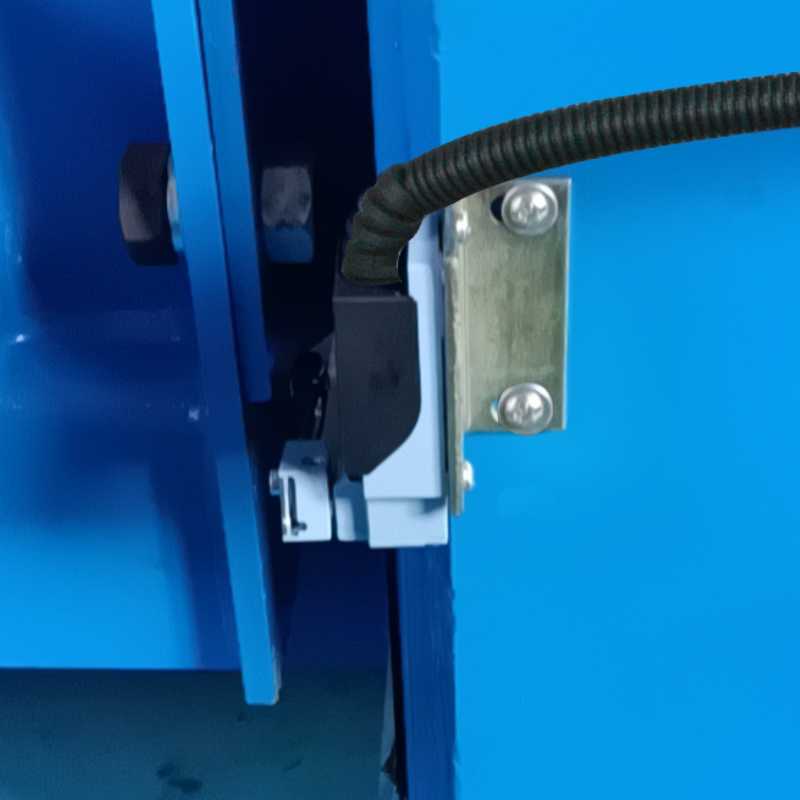

The safety stop device at the height of 300mm with tone alarm for safety.
-

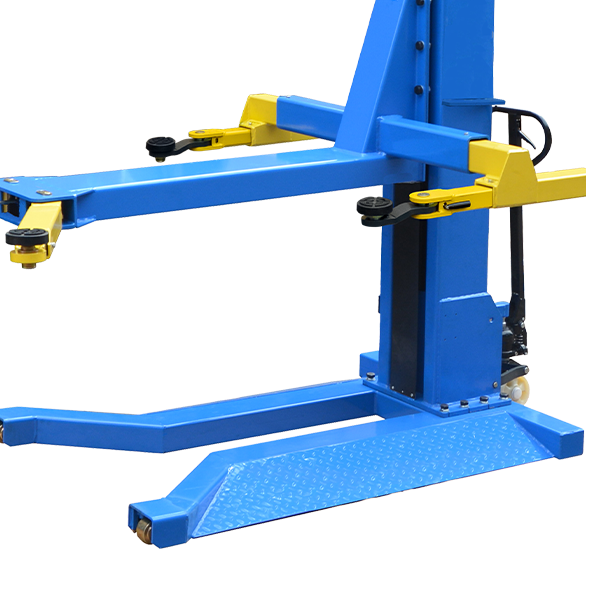

Portable wheels make it easy to move the lift.
-

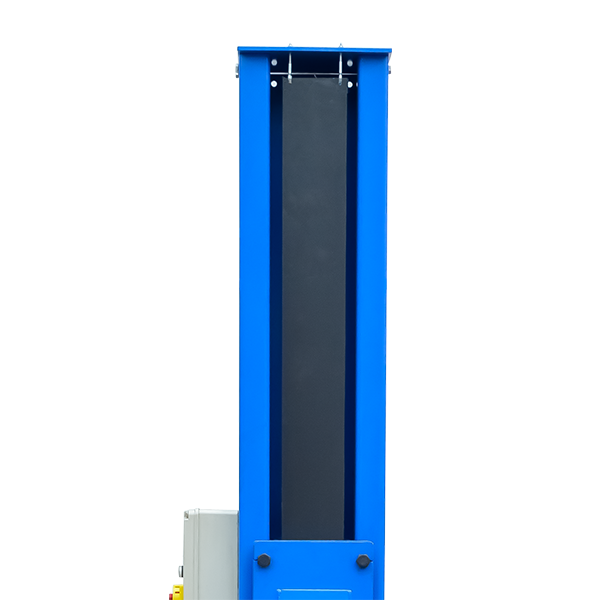

Fabric chain cover protects the cylinder and makes lift in good appearance.
-

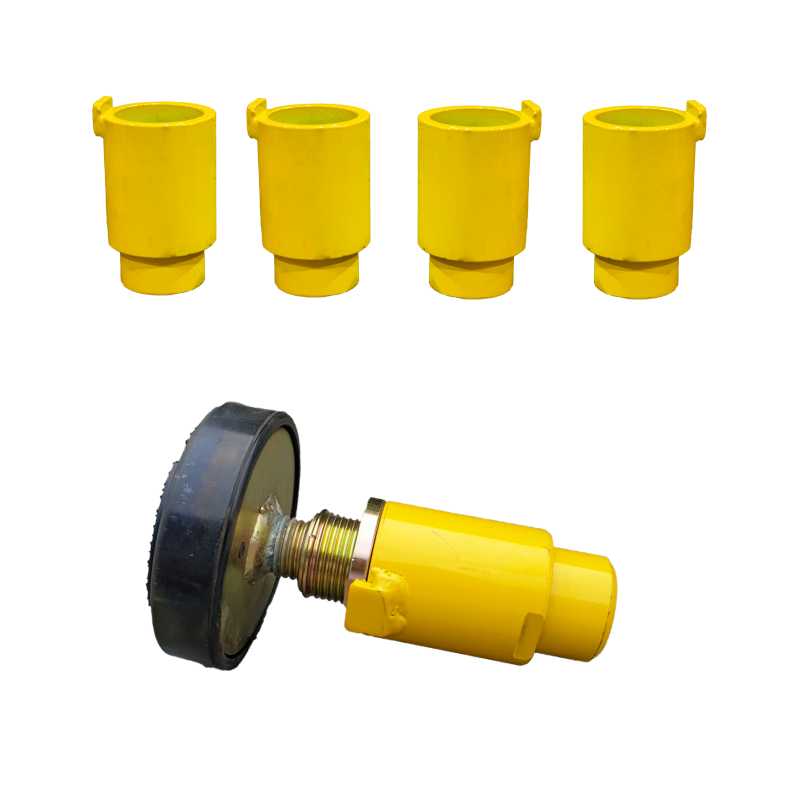

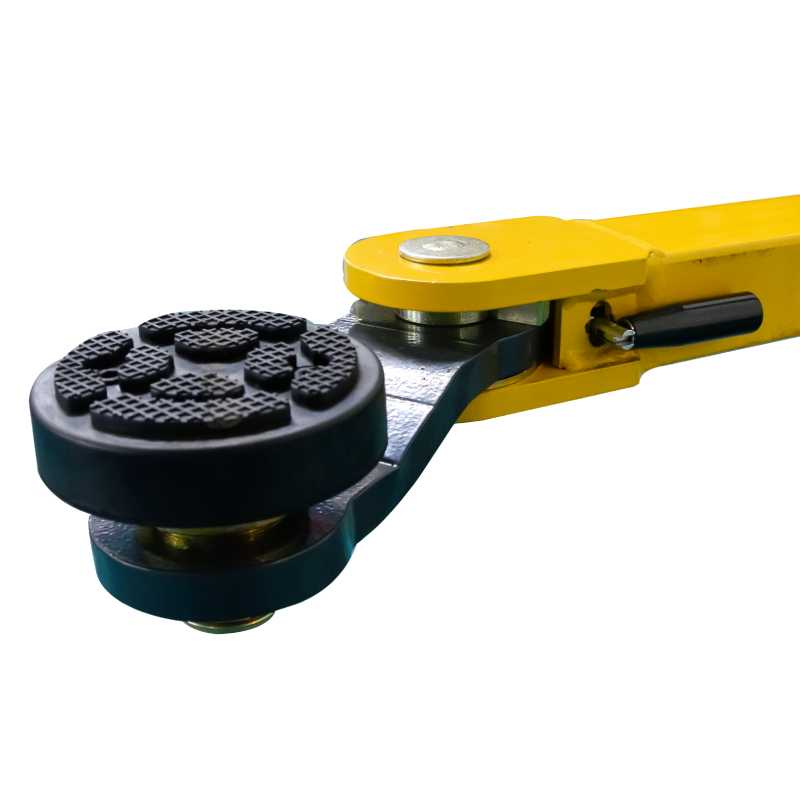

Double-screw rubber pad with pin dia 50mm, comes with 3" extension adapter.
Packing dimension of column 4 units as a package;
Packing dimension of carriage connecting component and base plate 6 units as a package.( including parts box,without hydraulic power unit )
- Gross weight for SML-3000: 854kgs , include power unit gross weight 25kgs.
- 20' container can load 12 units.
- 40' container can load 24 units.
-

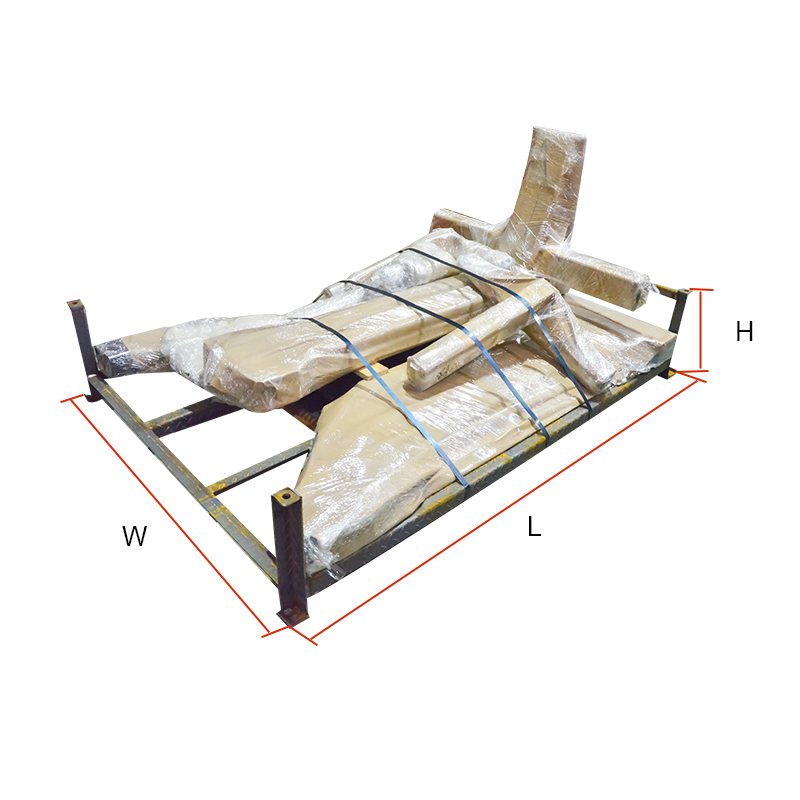

Single unit as a package
Packing dimension of carriage connecting component and base plate: 1950x1410x903mm -

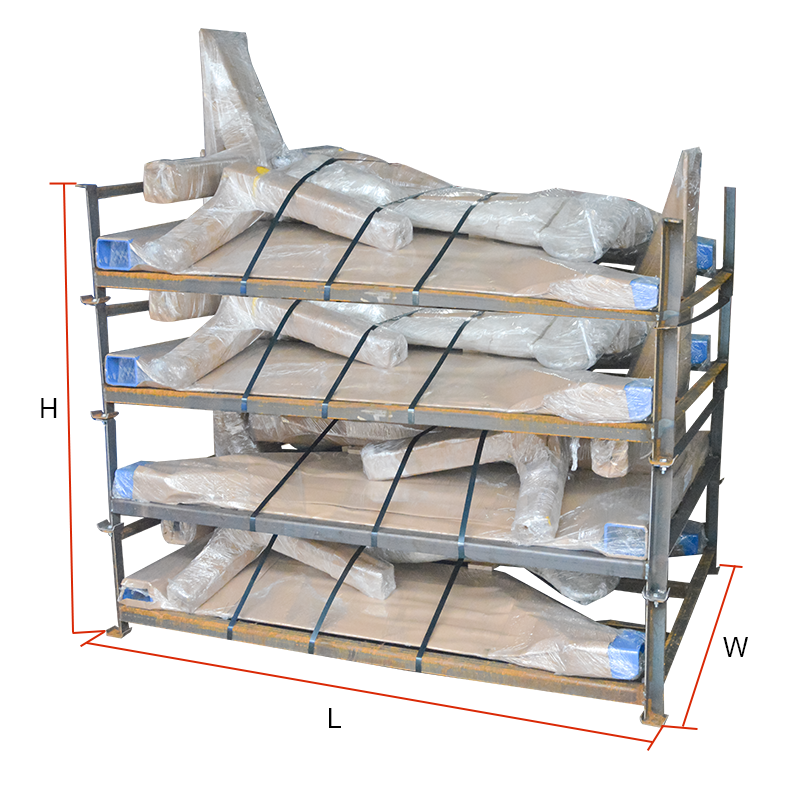

4 units as a package
Packing dimension: 1950x1410x2223mm -

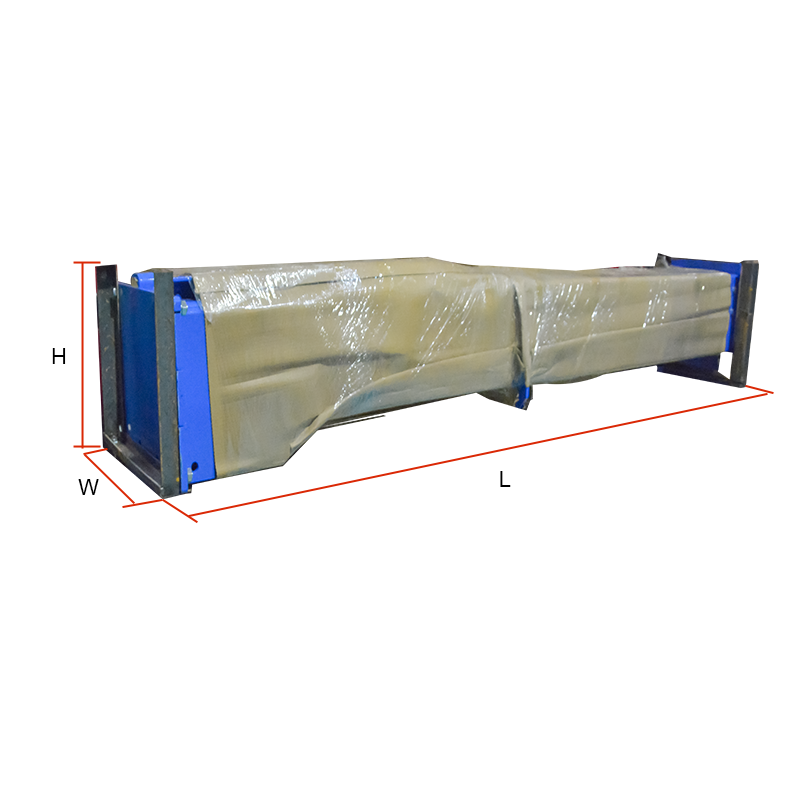

Single unit as a package
Packing dimension of column: 2770x510x375mm
-

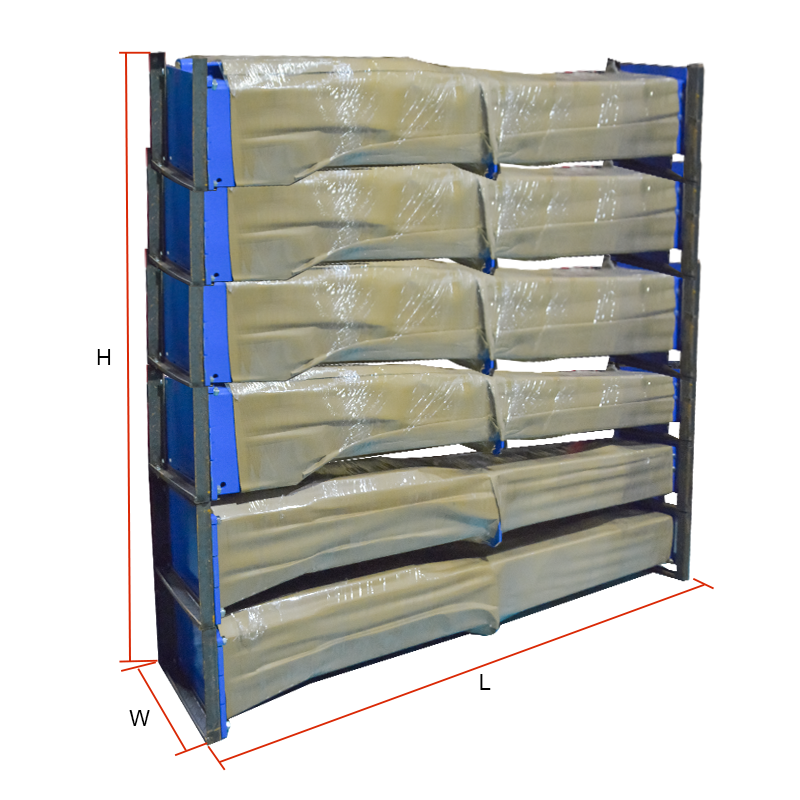

6 units as a package
Packing dimension: 2770x510x2250mm
