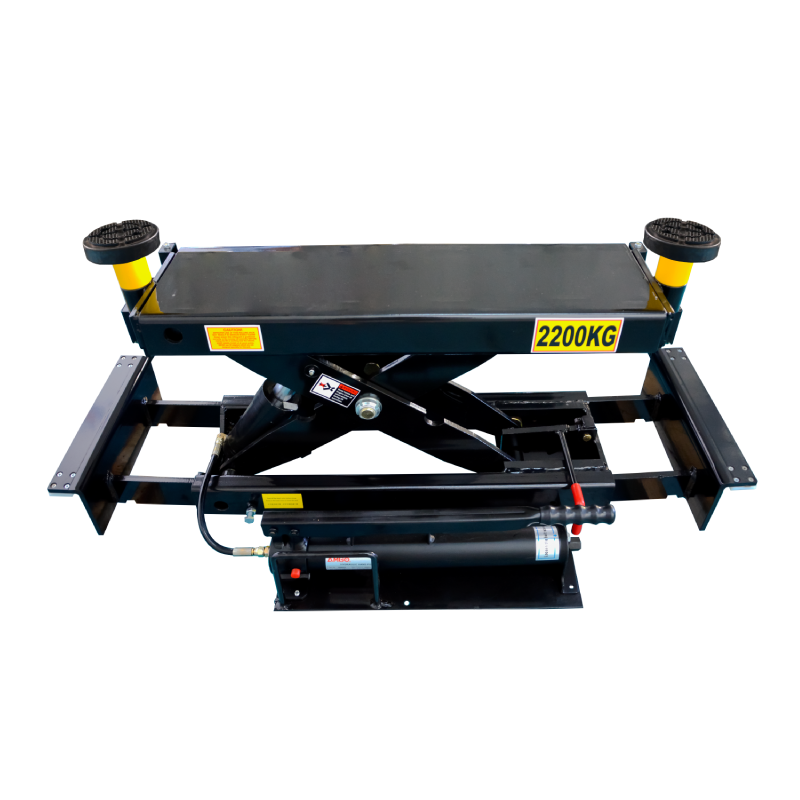

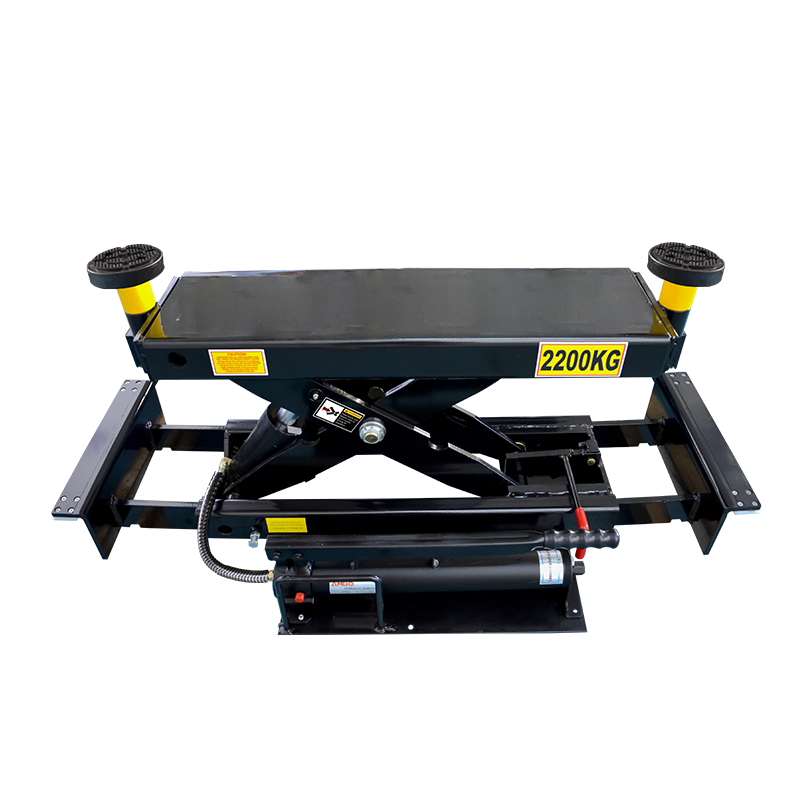

J5H
Rolling Jack
Capacity: 5,000lbs (2200kg)
The J5H is designed specially for the runways without rails like our parking lifts models 407-P,407-HP,408-P,408-HP and 409-DP. It slides on the top of runways and moved easily by hand.
- Equipped with commercial-grade hand pump to maximize convenient for operating.
- Extendable lower sliding Assy match with plastic slider provides moving smoothly along the runsways.
- Use the 2.5'' stackable adapters can meet your requirements for reach to the various vehicles chassis height.
- Come standard with sturdy rubber pads assembly
- It features arms with adjustability for easy positioning to the recommended supporting point.
- Extendable lower sliding Assy. fitting for width between runways from 905mm(35 5/8'') to 1,275mm(50 1/4'').
- Ergonomic guardrail can be regarded as a booster handle for gliding the jack.
| Model | J5H | |
| Lifting Capacity | 2200kg (5,000lbs) | |
| Lifting Time | 50s | |
| Arm Pads Reach | A | 842-1357mm (33 1/8"- 53 7/16") |
| Min. Height | B | 220mm (8 5/8") |
| Support Base Width | C | 905-1357mm (35 5/8" - 53 7/16") |
| Min. Rubber Pad Height | D | 134mm (5 1/4") |
| Max. Lifting Height(Without adapters) | E | 361mm (14 3/16") |
| Max. Lifting Height(With adapters) | 425mm (16 3/4") | |
| Overall Width | F | 510mm (20") |
| Gross Weight | 113kg (249lbs) | |
| Pump | Manual Pump |
-

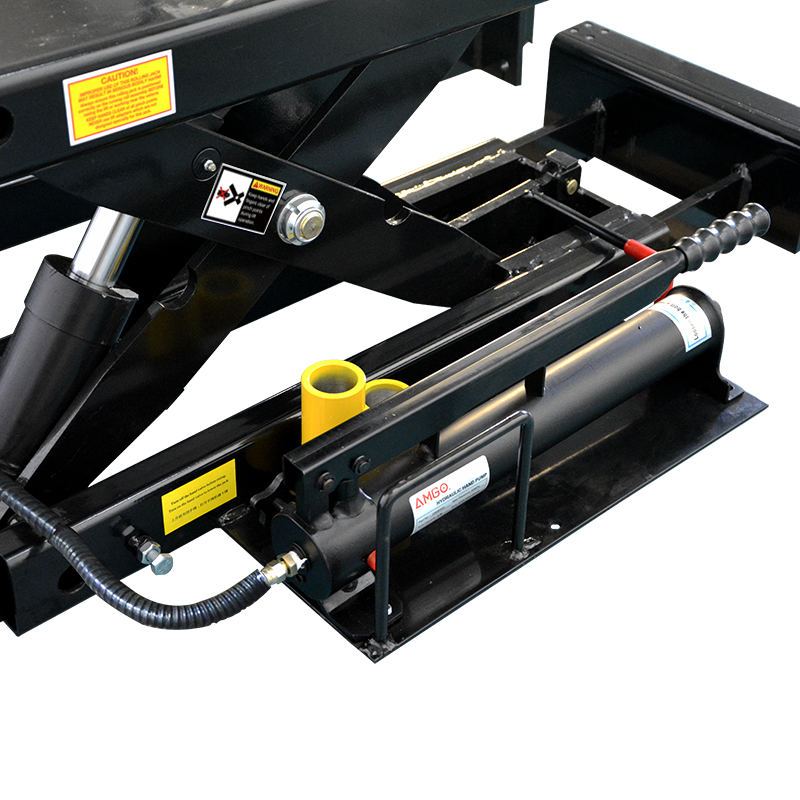

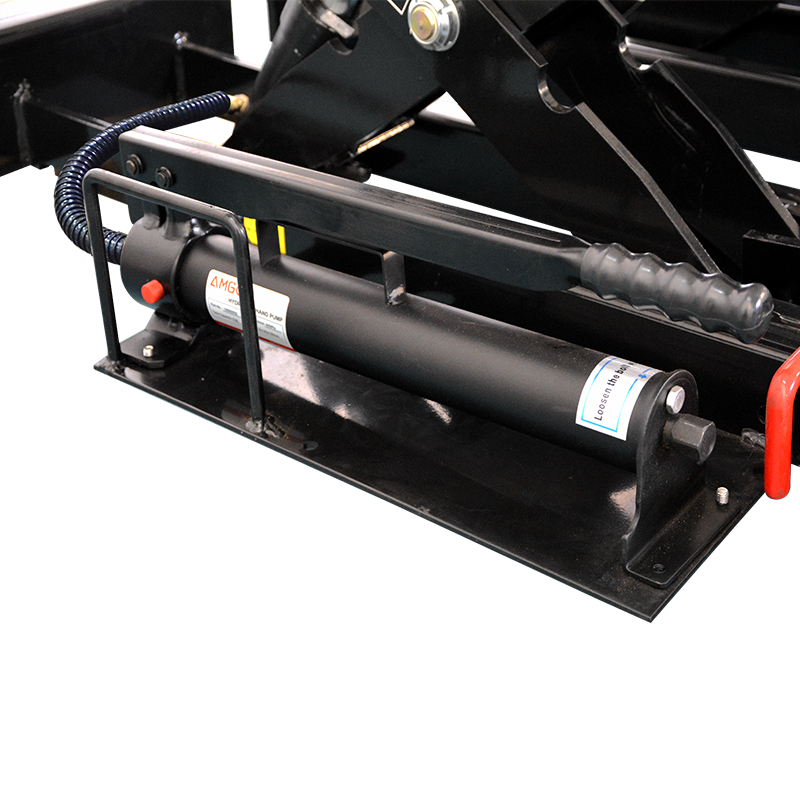

Commercial hand pump is convenient to activate work without any air source.
-

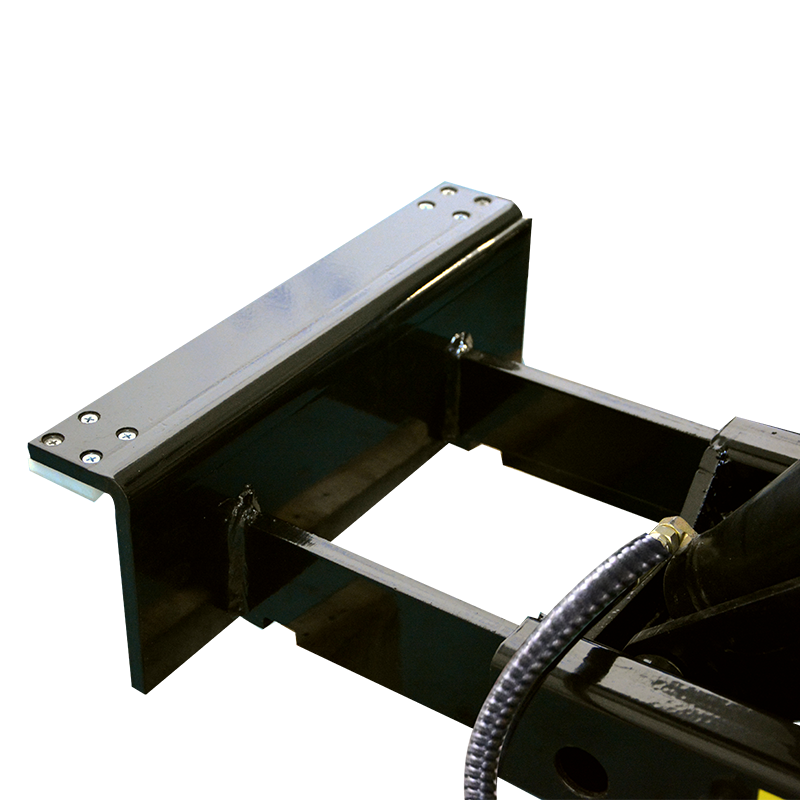

Extendable Lower Sliding Assy.
Equipped with plastic slider are good to the Jack moved smoothly and easily on the runway. -

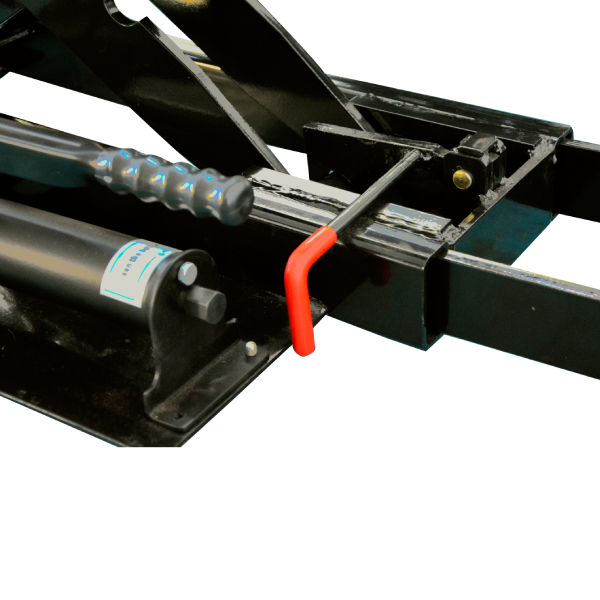

Handy operate manual safety lock help you work in comfort height.
-
The longer-reach arm and lower sliding assy.can be adjusted to appropriate width for accommodating virtually 4-post lifts & scissor lifts.
-

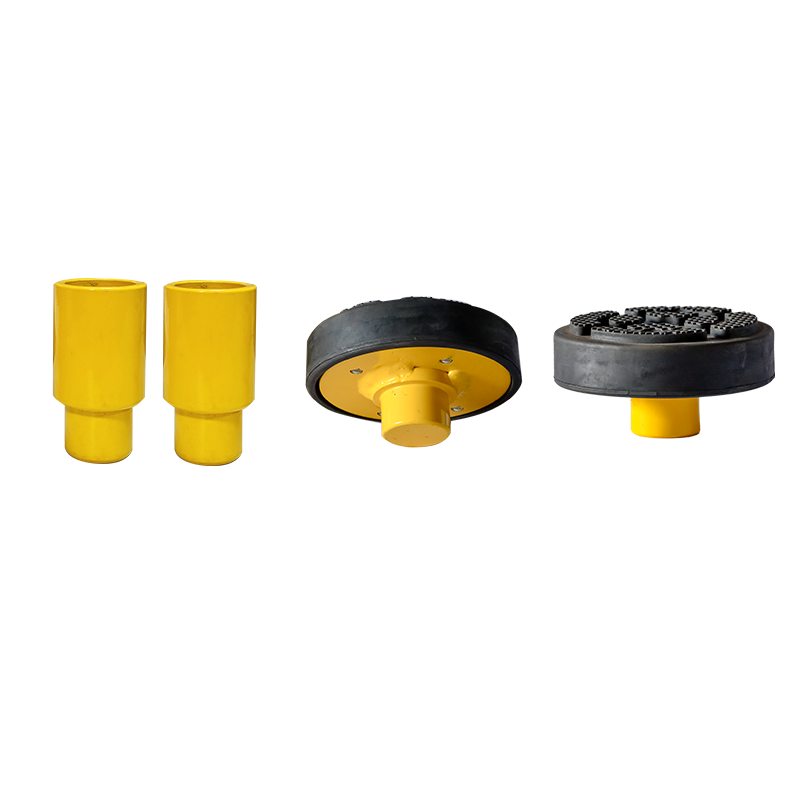

Drop in rubber pads with 2.5" extension adapters.
-
Ergonomic guardrail can assist to move the jack easily.
Gross weight for J5H: 113kg
-

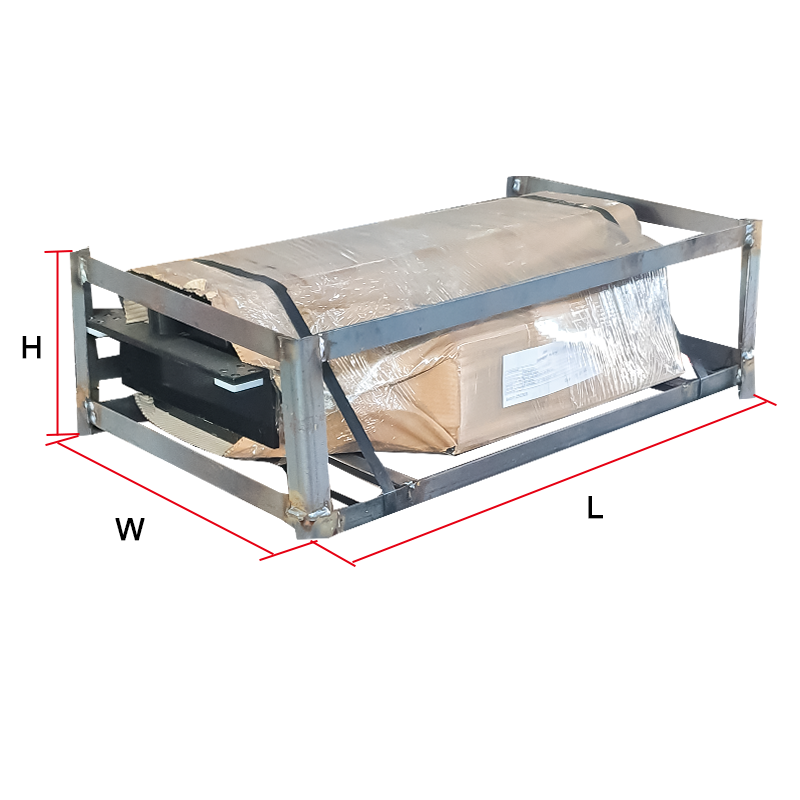

1 unit/package,packing measurement (LxWxH): 920x560x330mm
-

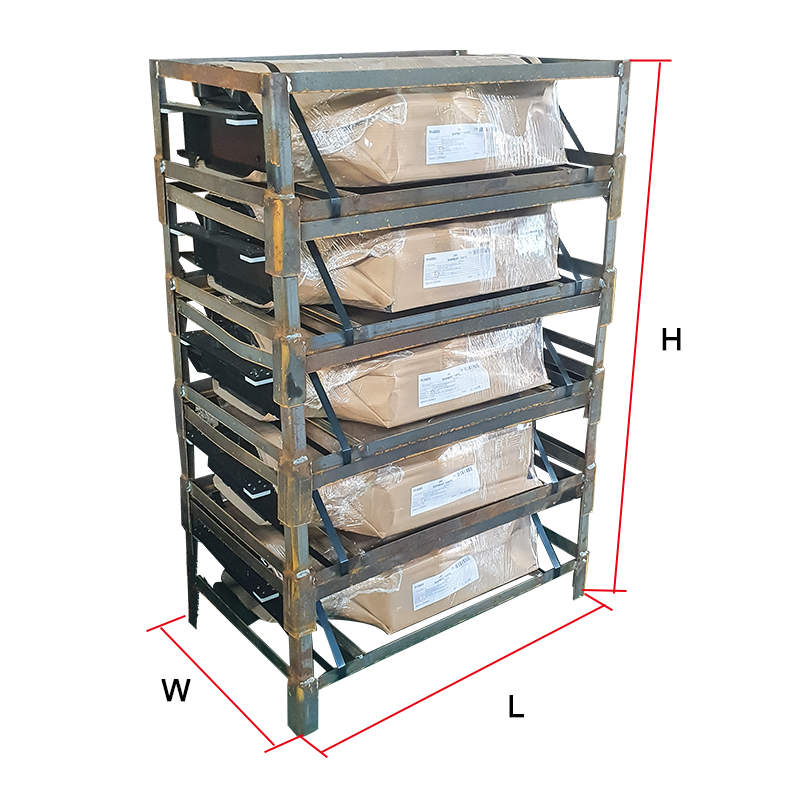

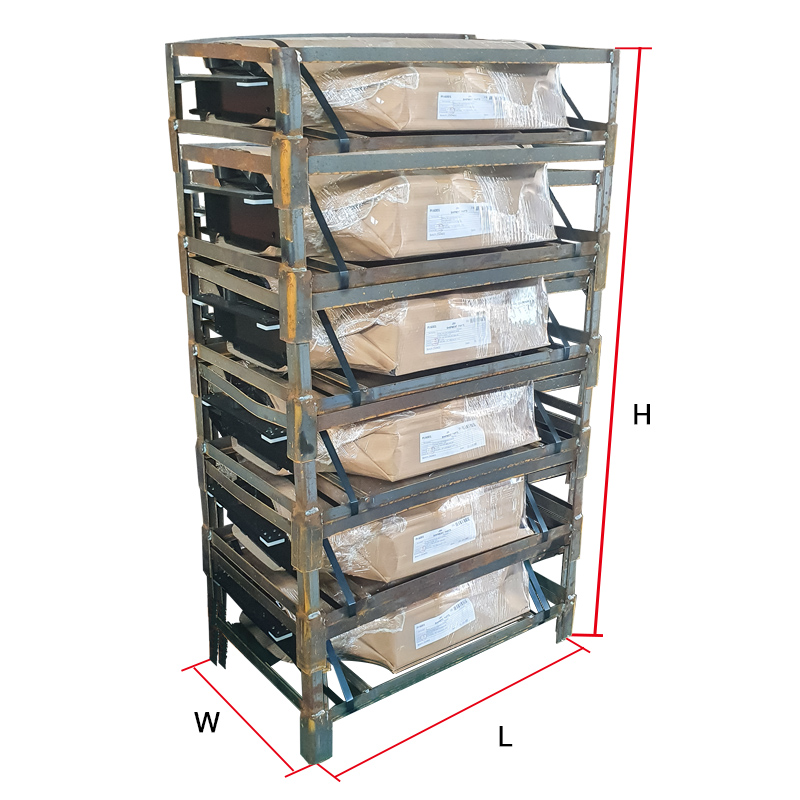

5 units/package, packing measurement (LxWxH): 920x560x1330mm
