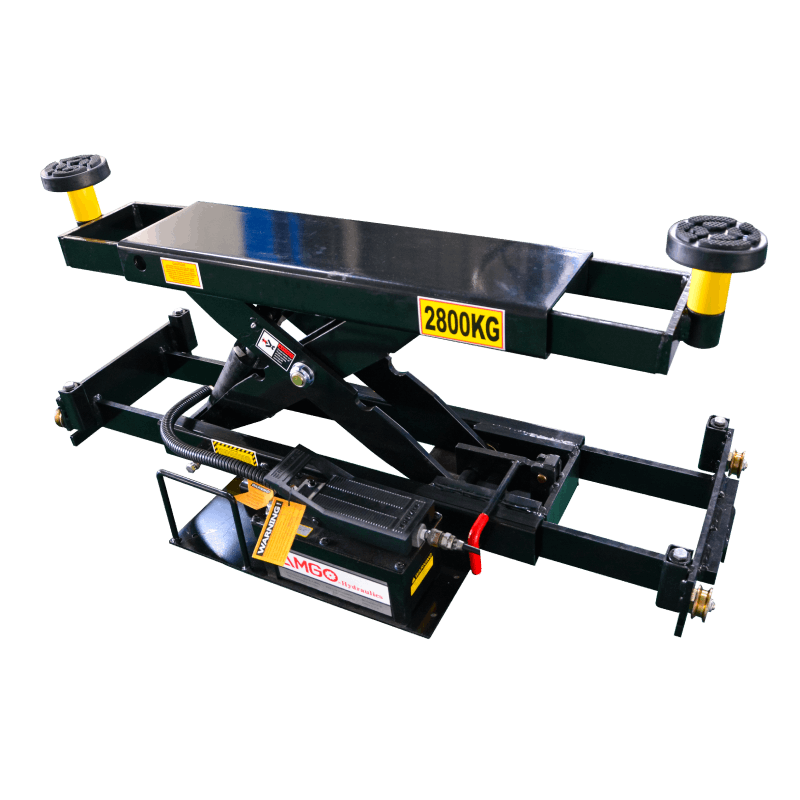

J6A
Rolling Jack
Capacity: 2800kg (6,000lbs)
J6A is a low profile rolling Jack with 2800kg (6,000-lbs) capacity that making it a perfect supplement to any four-post & scissors lifts with capacity less than 5500kg (12,000lbs). It uses our patent float rolling design technology to make the jack smoothly moved on the rail and sitting in the groove stably when lifting a vehicle.
- Equipped with commercial-grade penumatic hydraulic pump;
- Drop in rubber pads and 2.5” extension adapters come standard;
- Extendable arms allow for easy positioning at the recommended support points;
- Low-Profile Jack provides ample clearance for low-stance sports cars and other modified vehicles;
- Manual safety locks with two locking positions ensure a comfortable working height;
- The extendable lower sliding assembly offers excellent compatibility with products from various brands;
- The ergonomic guardrail doubles as a booster handle, making it easy to move the jack while protecting the oil hose;
- Patented floating system ensures the jack move smoothly on the rail and sit stably in the groove when lifting a vehicle.
| Model | J6A | |
| Lifting Capacity | 2800kg (6,000lbs) | |
| Lifting Time | 50s | |
| Arm Pads Reach | A | 843-1357mm (33 1/16"- 53 7/16") |
| Min. Height | B | 215mm (8 7/16") |
| Support Base Width | C | 848-1330mm (33 3/8" - 52 3/8") |
| Min. Rubber Pad Height | D | 219mm (8 5/8") |
| Max. Lifting Height(Without adapters) | E | 451mm (17 3/4") |
| Max. Lifting Height(With adapters) | 515mm (20 1/4") | |
| Overall Width | F | 510mm (20 1/16") |
| Gross Weight | 127kg (280lbs) | |
| Air Pressure | 0.8Mpa | |
| Pump | Pneumatic Pump |
-

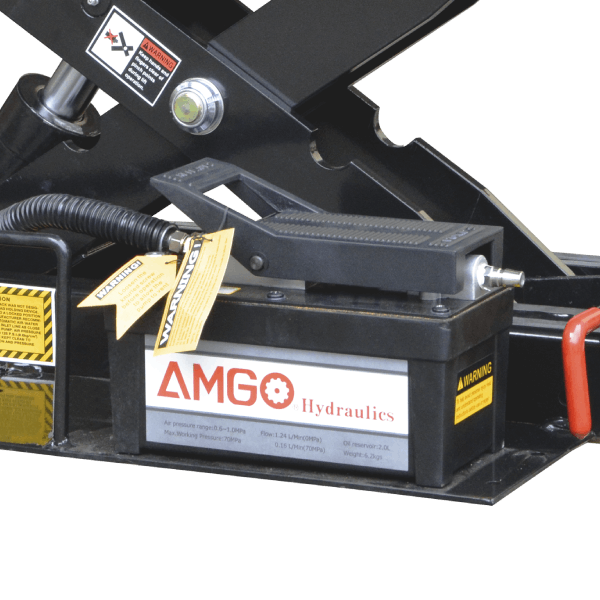

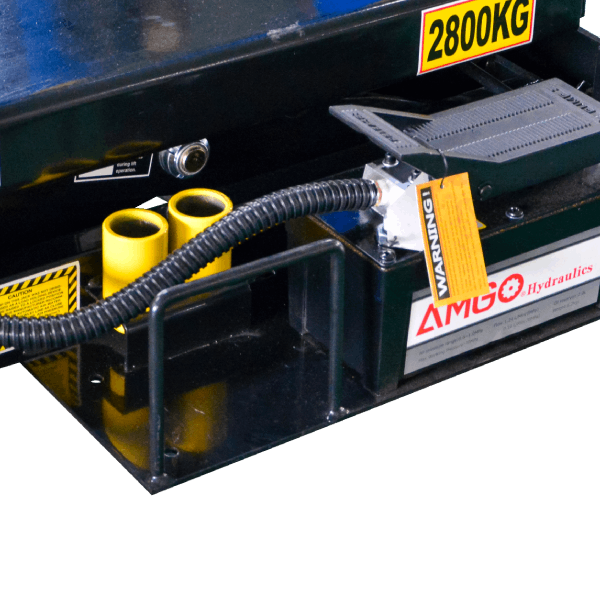

High quality pneumatic hydraulic pump with high pressure and longevity hose.
-

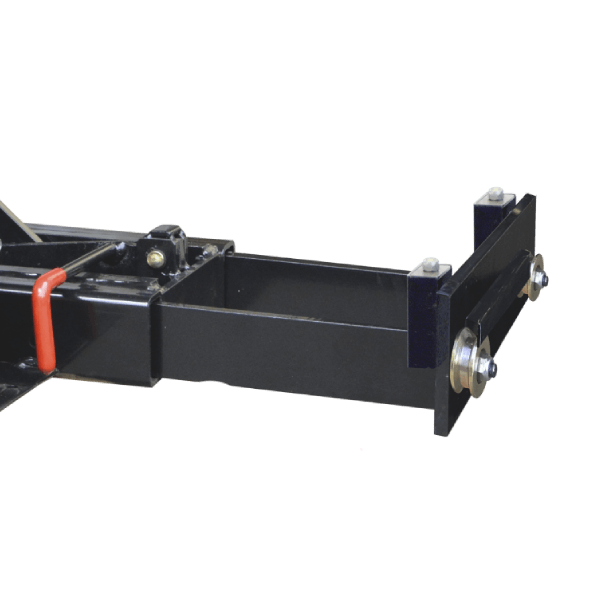

Patent float rolling device make the Jack smoothly moved on the rail and sitting in the groove stably when lifting a vehicle.
-

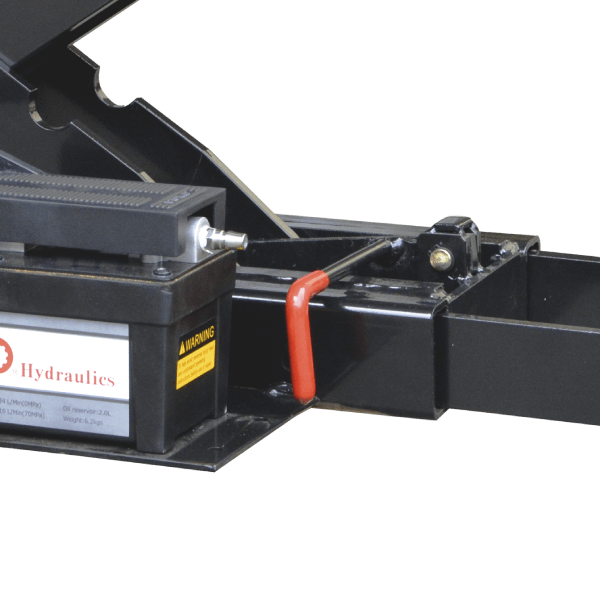

Easily control manual safety lock.
-

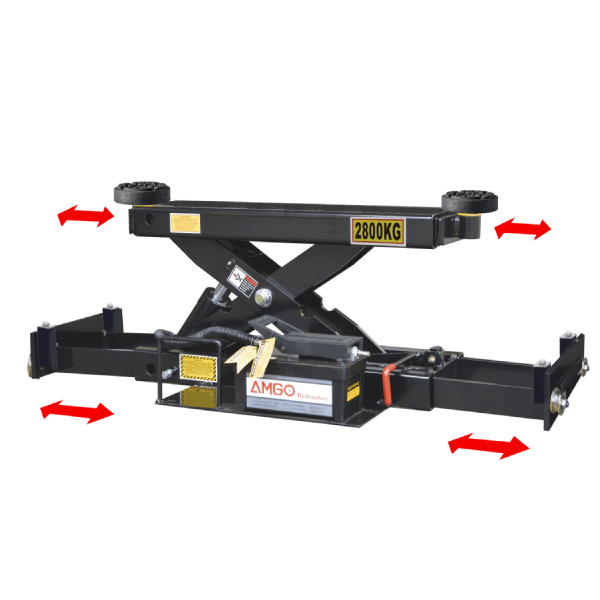

Width adjustable, suit for almost all the four post and scissors lifts.
-

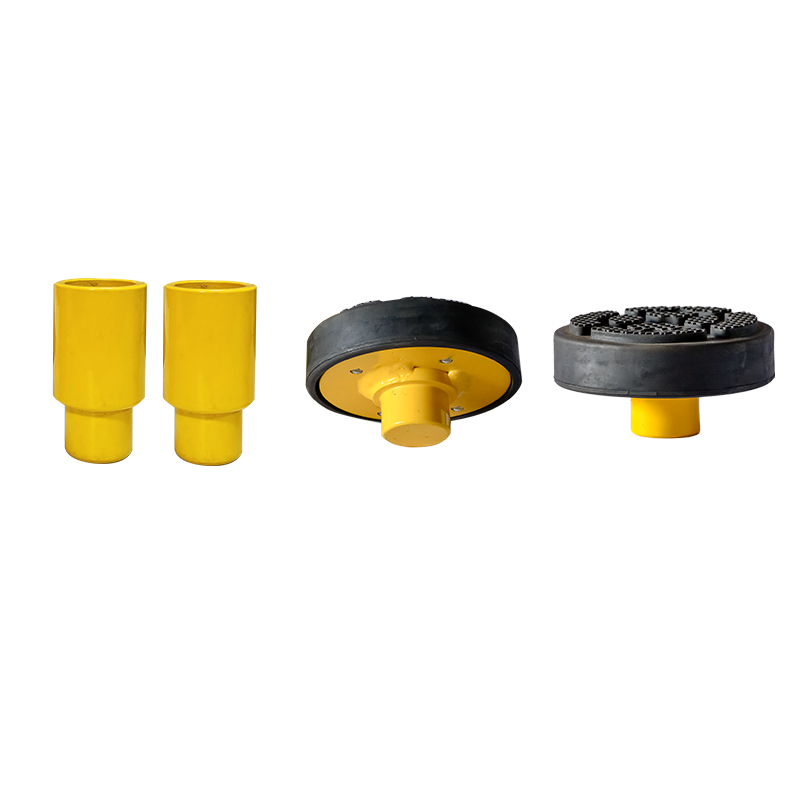

Drop in rubber pads with 2.5" extension adapters.
-
Ergonomically guardrail protecting oil hose as well as easy to move the Jack.
-

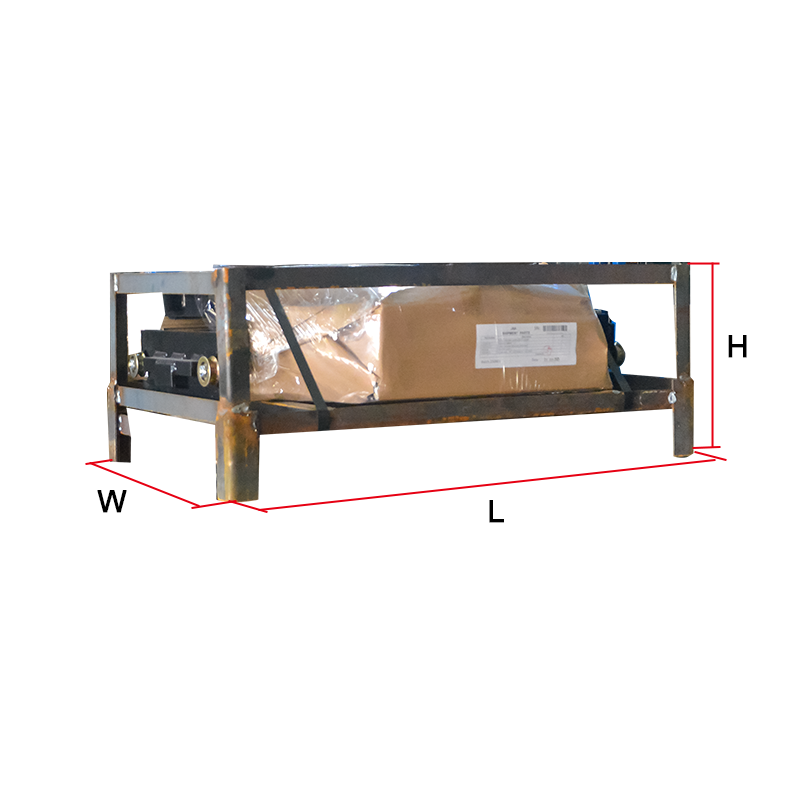

1 unit/package,packing measurement (LxWxH): 910x555x350mm
-

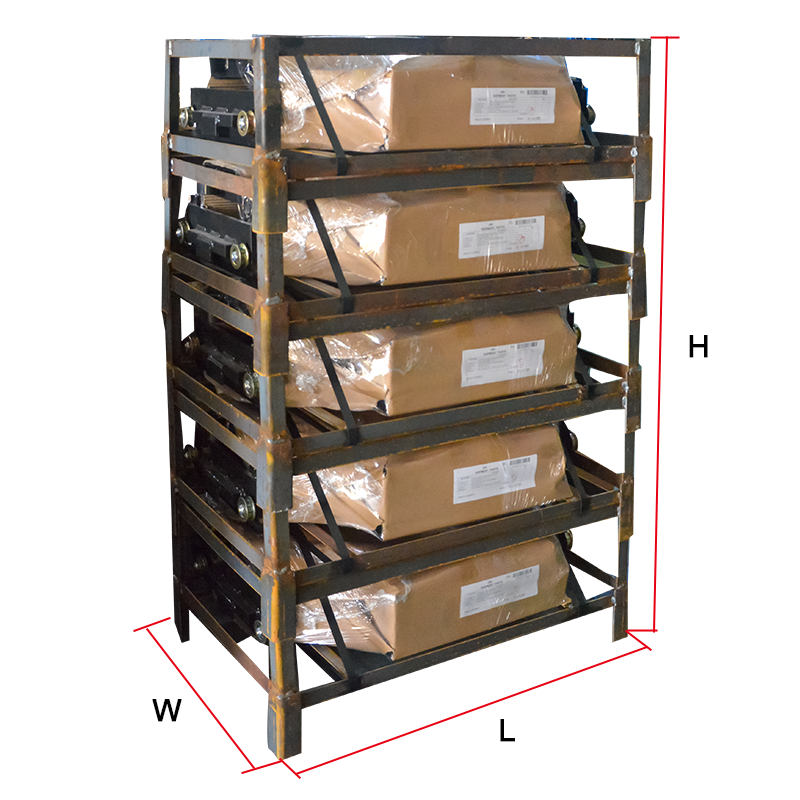

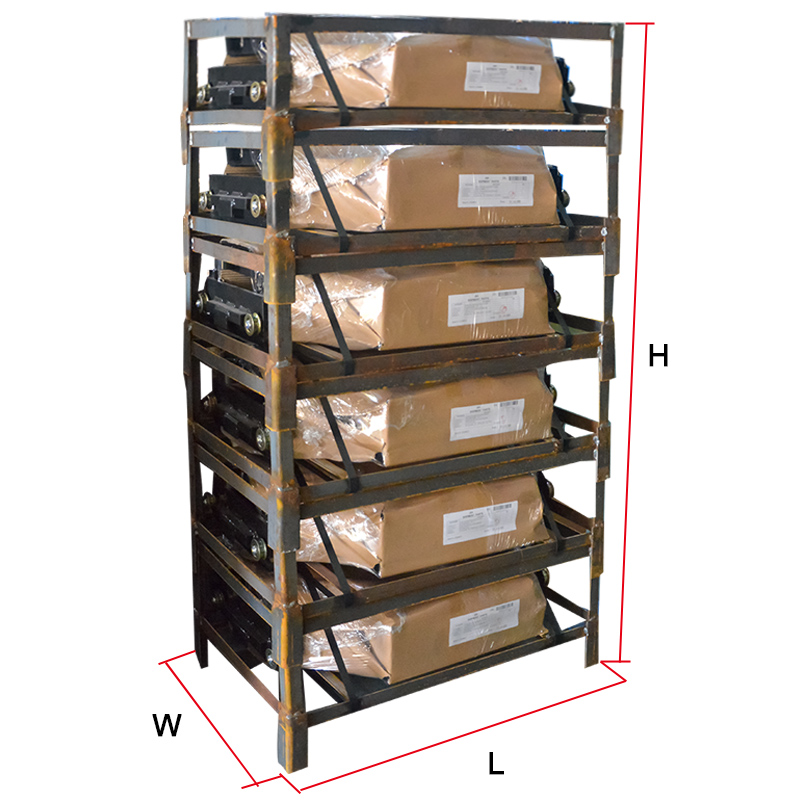

6 units/package, packing measurement (LxWxH): 920x555x1910mm
