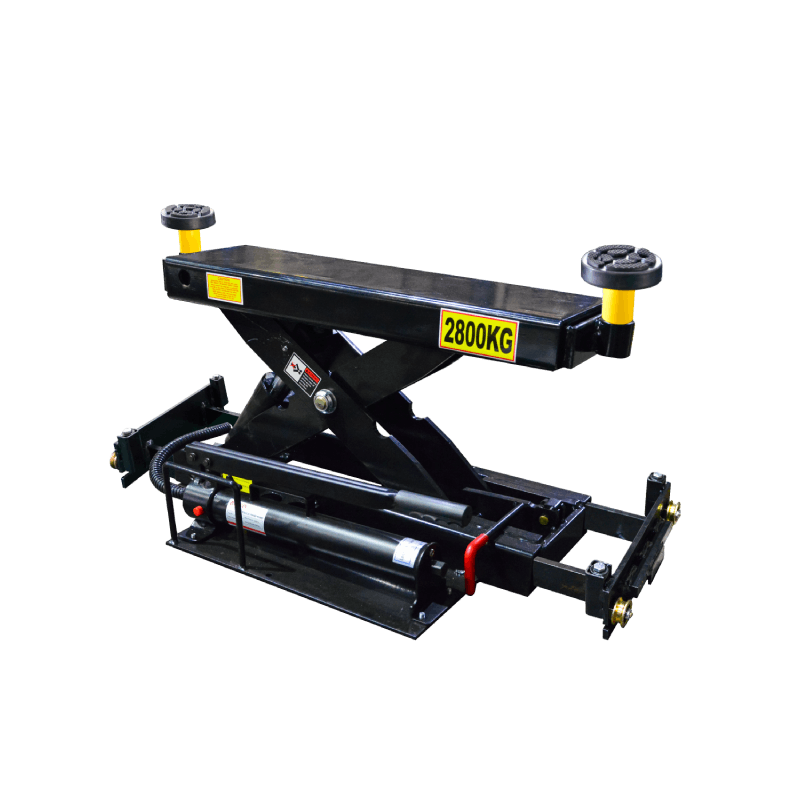

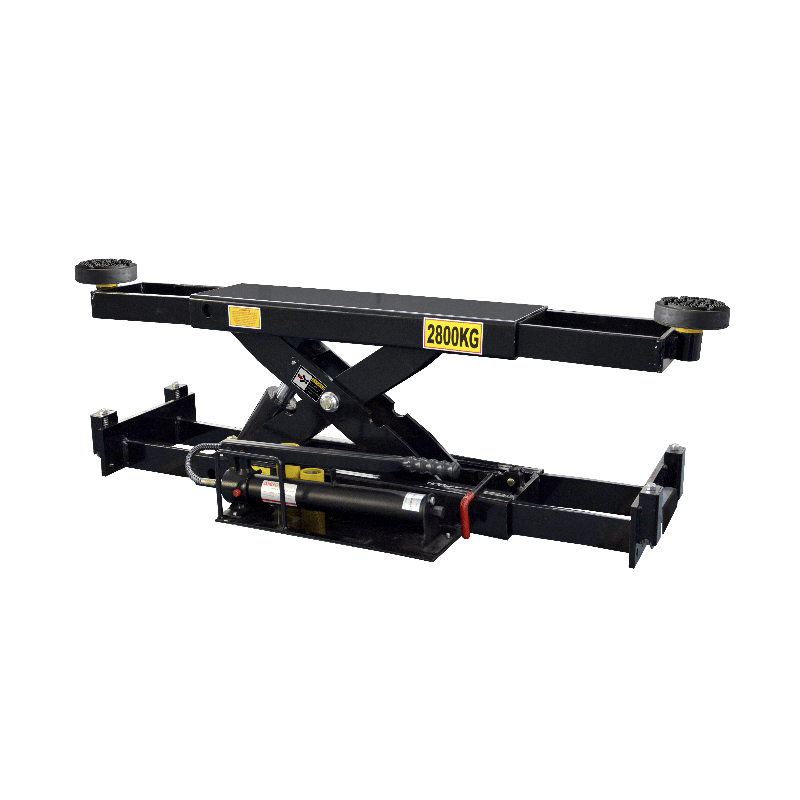

J6H
Rolling Jack
Capacity: 2800kg (6,000lbs)
J6H is designed to hold up to 6,000 lbs.and features our patent float rolling design technology and a low-profile design.With easy-to-operate hand pump that makes lifting convenience and work productivity either on lift or floor.
- Equipped with commercial-grade manual hydraulic pump (no air source required);
- Drop in rubber pads and 2.5” extension adapters come standard;
- Extendable arms allow for easy positioning at the recommended support points;
- Low-Profile Jack provides ample clearance for low-stance sports cars and other modified vehicles;
- Manual safety locks with two locking positions ensure a comfortable working height;
- The extendable lower sliding assembly offers excellent compatibility with products from various brands;
- The ergonomic guardrail doubles as a booster handle, making it easy to move the jack while protecting the oil hose;
- Patented floating system ensures the jack move smoothly on the rail and sit stably in the groove when lifting a vehicle.
| Model | J6H | |
| Lifting Capacity | 2800kg (6,000lbs) | |
| Lifting Time | 50s | |
| Arm Pads Reach | A | 843-1357mm (33 1/16"- 53 7/16") |
| Min. Height | B | 215mm (8 7/16") |
| Support Base Width | C | 848-1330mm (33 3/8" - 52 3/8") |
| Min. Rubber Pad Height | D | 219mm (8 5/8") |
| Max. Lifting Height(Without adapters) | E | 451mm (17 3/4") |
| Max. Lifting Height(With adapters) | 515mm (20 1/4") | |
| Overall Width | F | 510mm (20 1/16") |
| Gross Weight | 127kg (280lbs) | |
| Pump | Manual Pump |
-

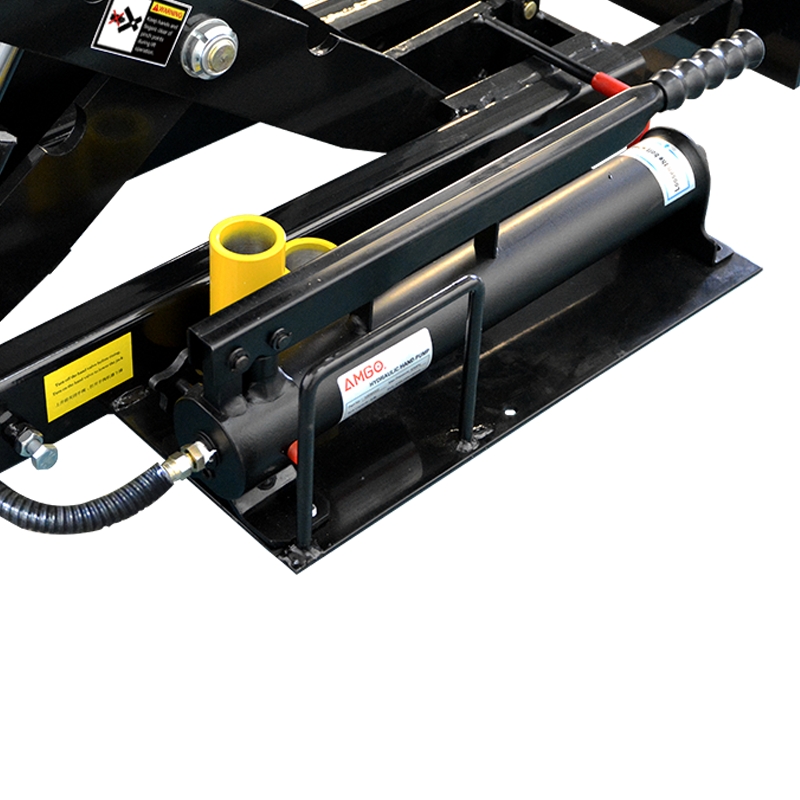

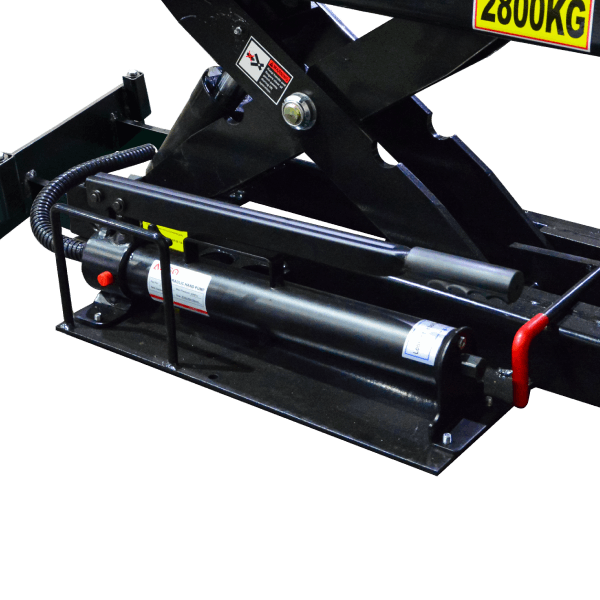

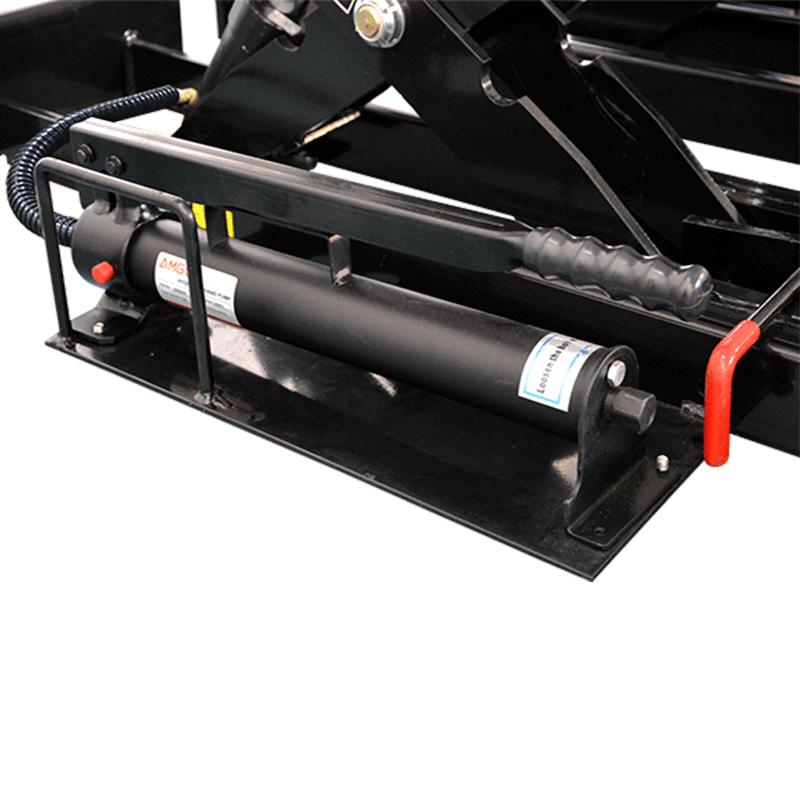

The manual pump is convenient and quick to operate.
-

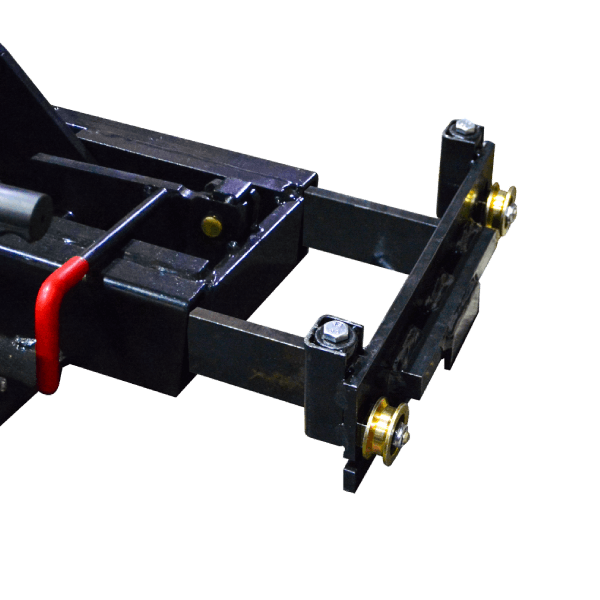

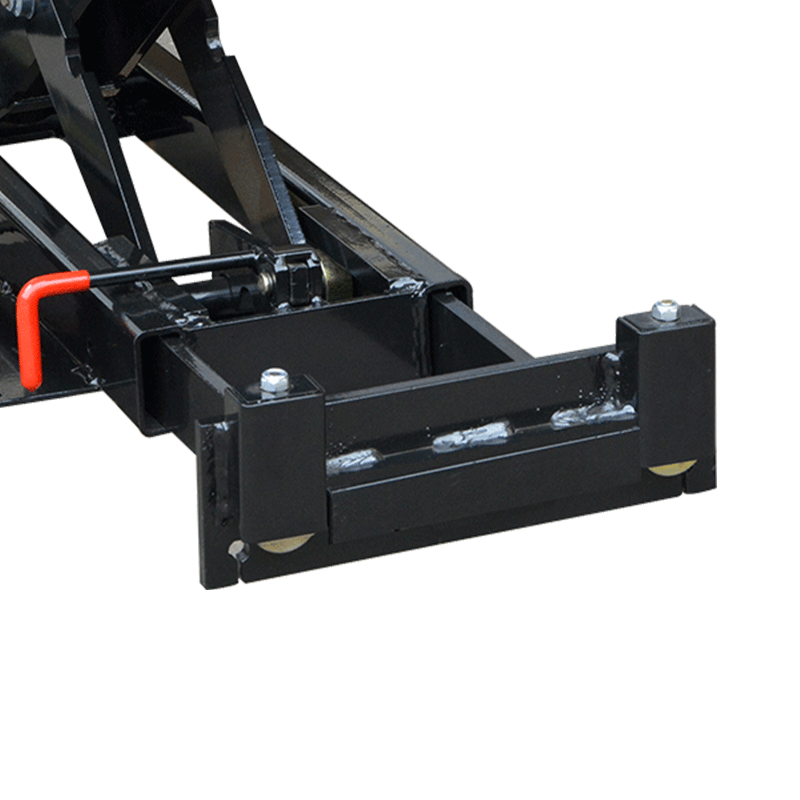

Patent float rolling device make the Jack smoothly moved on the rail and sitting in the groove stably when lifting a vehicle.
-

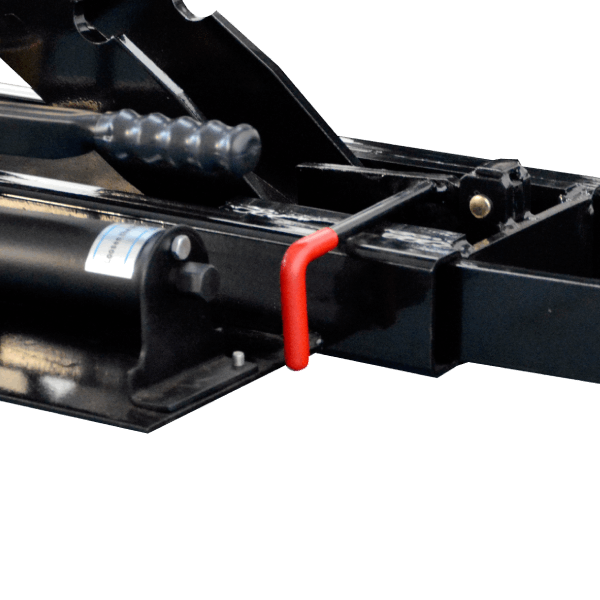

Easily control manual safety lock.
-

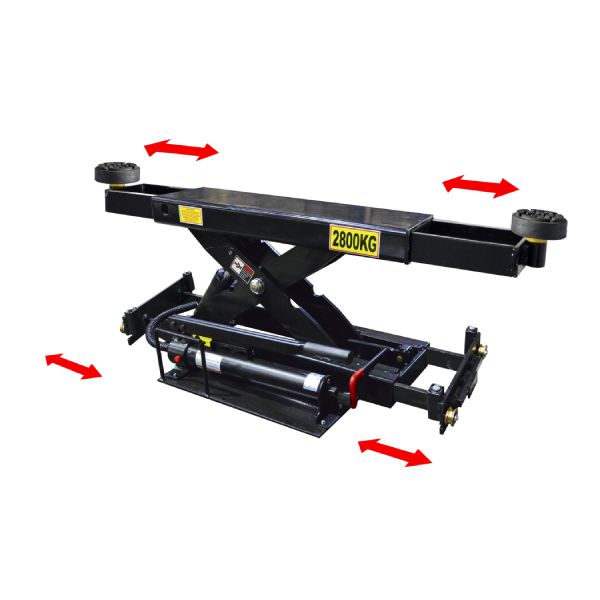

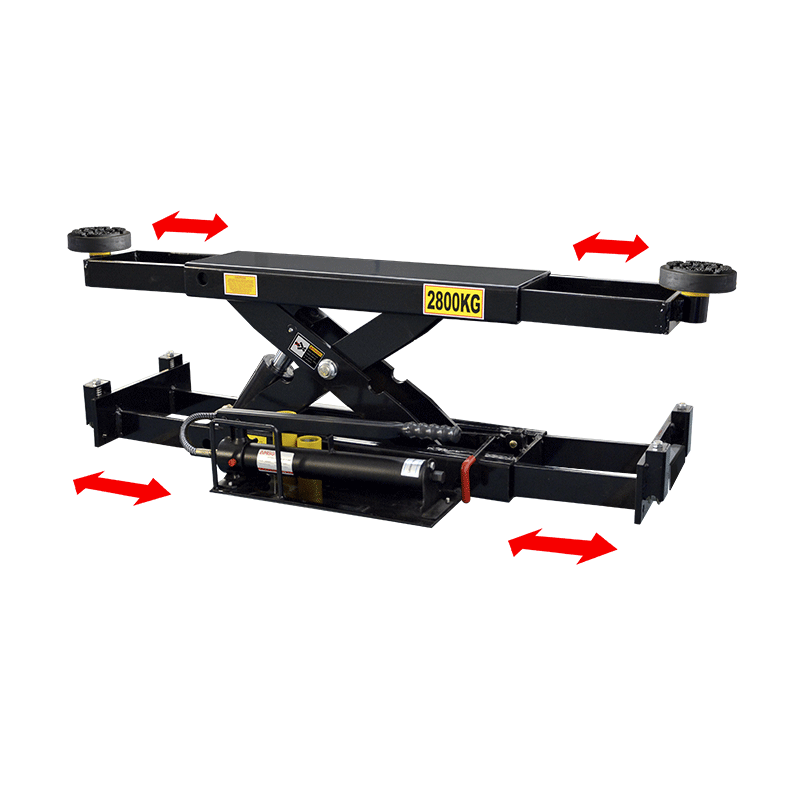

Width adjustable, suit for almost all the four post and scissors lifts.
-

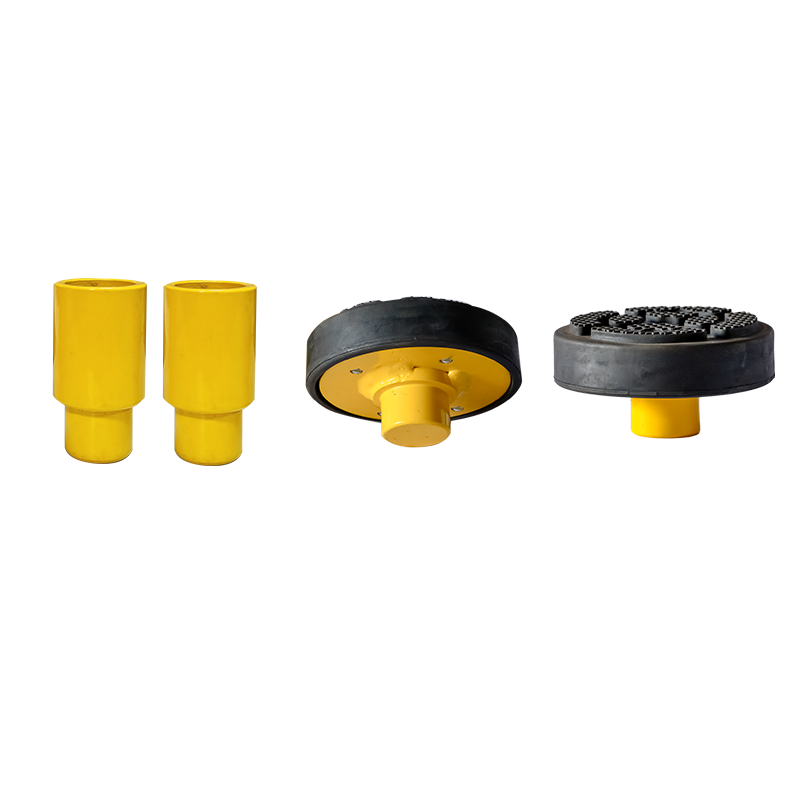

Drop in rubber pads with 2.5" extension adapters.
-
Ergonomic guardrail help to easily moving the jack.
-

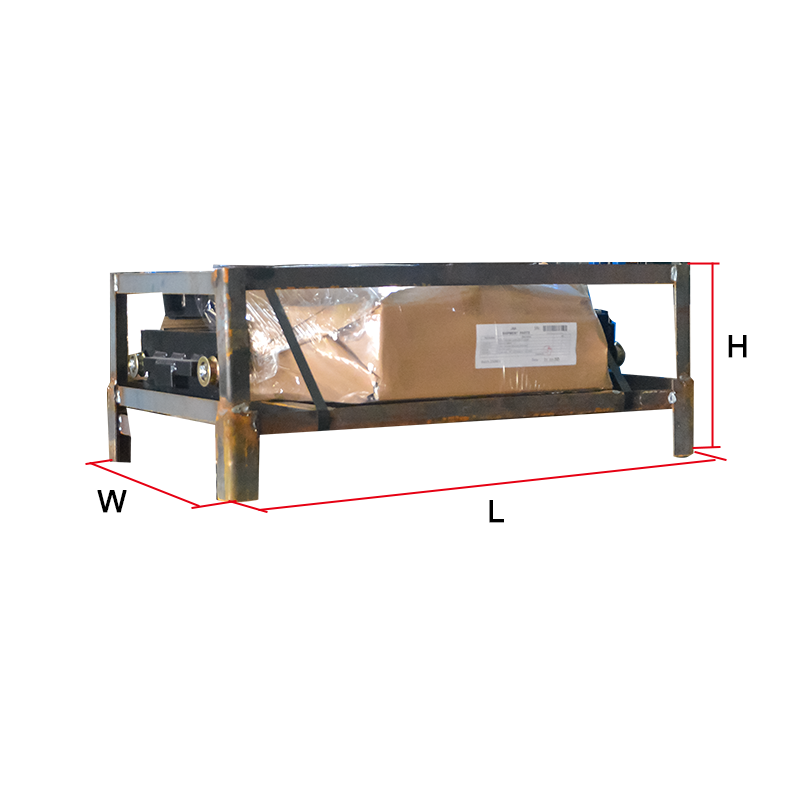

1 unit/package,packing measurement (LxWxH): 920x555x350mm
-

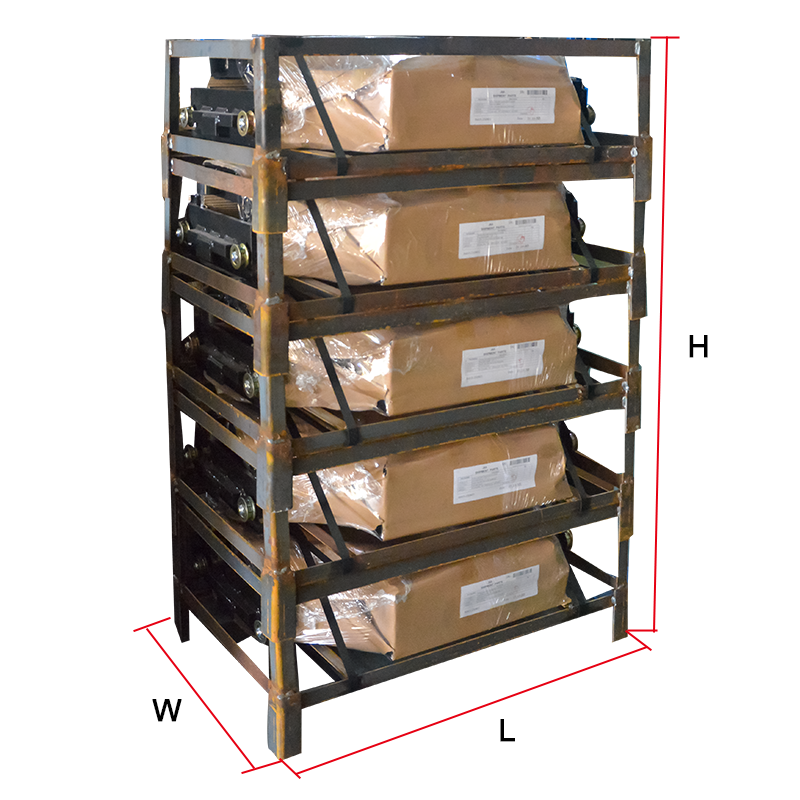

6 units/package, packing measurement (LxWxH): 920x555x1910mm
