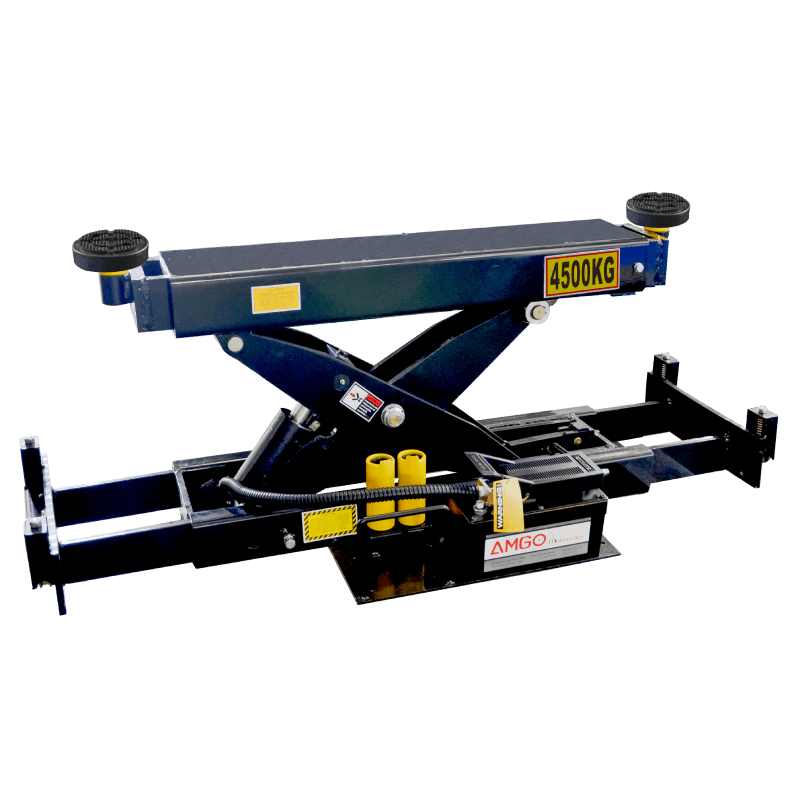

RJ-10A
Rolling Jack
Capacity: 4500kg (10,000lbs)
It is the heavy-duty design Rolling Jack for tire service. Especially recommend for use with the 4-post and scissor lifts with capacity more than 8 Ton (18,000lbs).
- Equipped with pneumatic hydraulic pump.
- Strengthened solid steel-frame scissor ensures the Jack is strongest so that perform service work more stable.
- Offer whole set of 2.5'',5'' extension adapters and super-durable Rubber Pads Assy.
- Extendable arms for easy positioning and adjustability which have maximum arm reach of 1685mm(66 11/32'') and minimum 975mm(38 13/32'').
- Designed manual safety lock with two locking position which make operators access to work more convenient and comfortable.
- Adjustable lower sliding Assy. fitting for width between runways from 1005mm(39 9/16'') to 1435mm(56 1/2'').
- Ergonomically guardrail help to protect oil hose as well as assist to move the Jack easily.
| Model | RJ-10A | |
| Lifting Capacity | 4500kg (10,000lbs) | |
| Lifting Time | 50s | |
| Arm Pads Reach | A | 975-1680mm (38 3/8"- 66 1/8") |
| Min. Height | B | 280mm (11") |
| Support Base Width | C | 1010-1435mm (39 3/4" - 56 1/2") |
| Min. Rubber Pad Height | D | 289mm (11 3/8") |
| Max. Lifting Height(Without adapters) | E | 556mm (21 7/8") |
| Max. Lifting Height(With adapters) | 747mm (29 7/16") | |
| Overall Width | F | 555mm (21 7/8") |
| Gross Weight | 200kg | |
| Air Pressure | 0.8Mpa | |
| Pump | Pneumatic Pump |
-

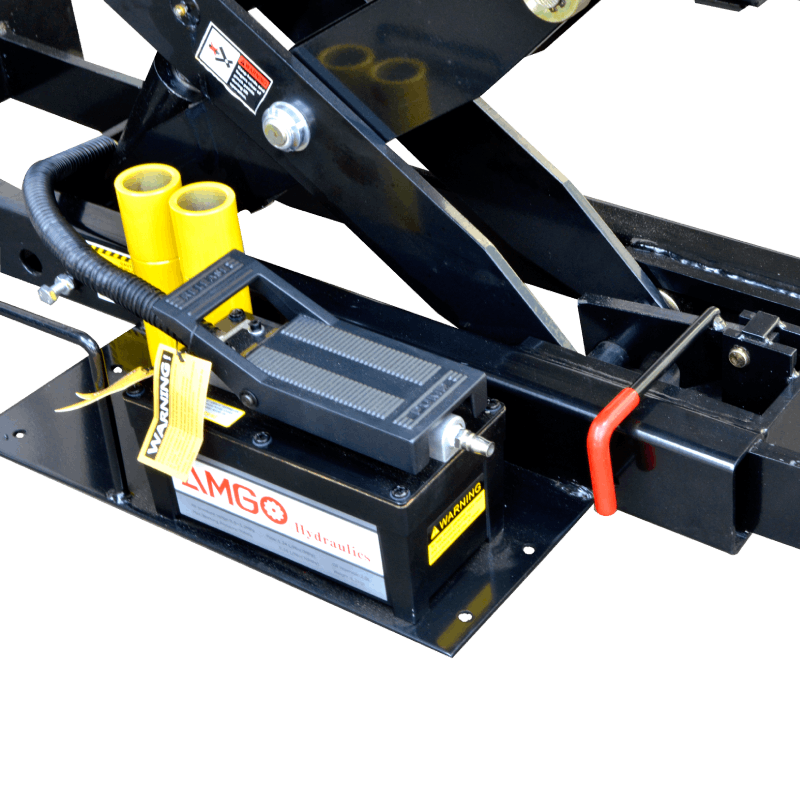

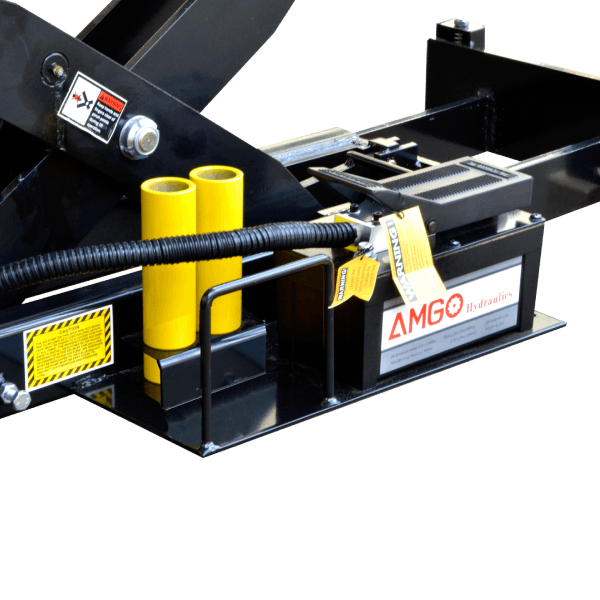

Elcellent quality pneumatic hydraulic pump match with high working pressure oil hose. Customized a special bracket for storage adapters.
-
Patented floating roller system design match with the protective box that ensures the jack to moved smoothly, sitting in the groove stably when lifting a vehicle.
-

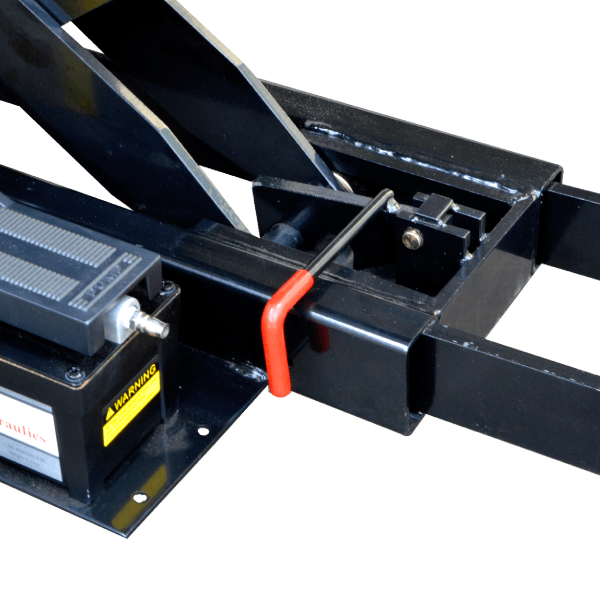

Simply operate manual safety lock allows access to multiple safety lock positions for comfortable working height.
-

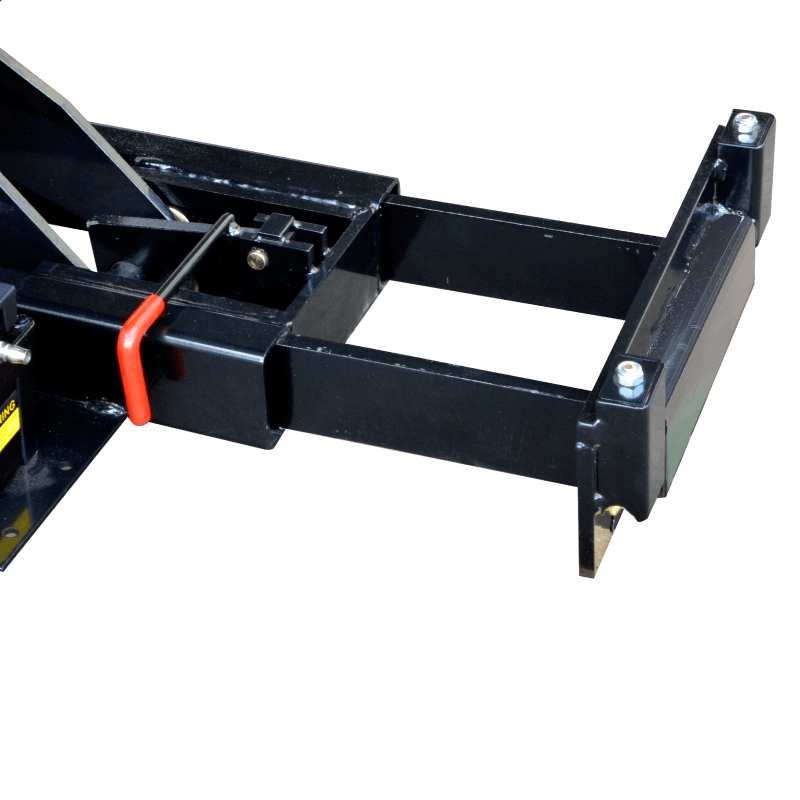

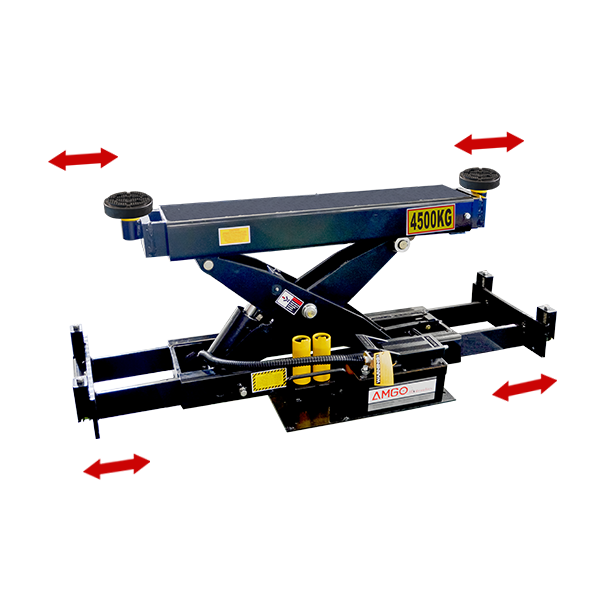

Telescoping arms which are adjusted to work for different chassis vehicles & adjustable lower sliding assy. Fit for almost all the four post and scissor lifts.
-

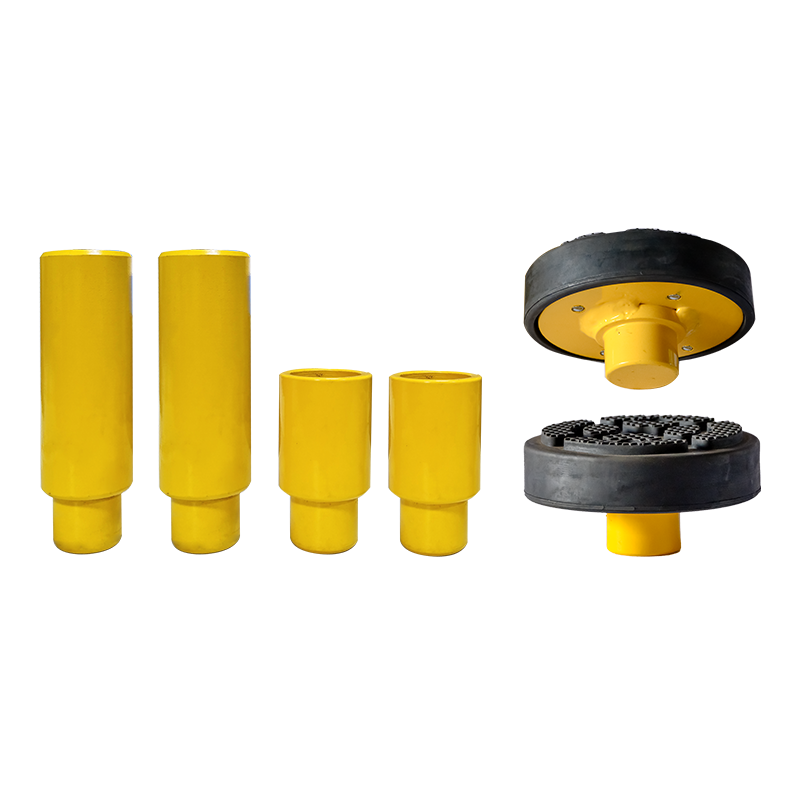

Drop in rubber pads with 2.5" and 5" extension adapters.
-
Ergonomically guardrail help to protect oil hose as well as assist to move the Jack easily.
Gross weight for RJ-10A: 200kgs
-

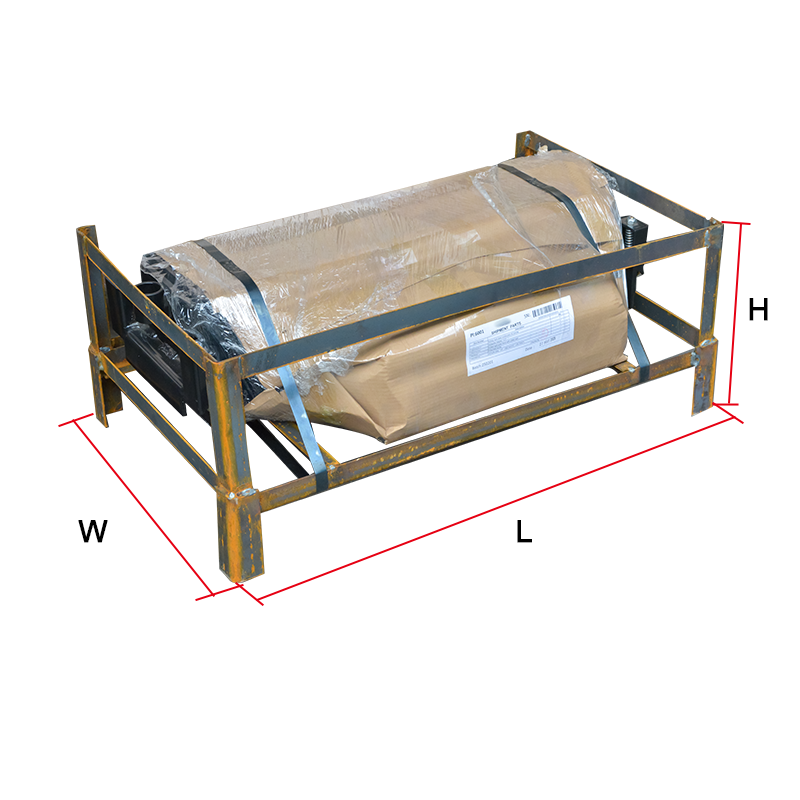

1 unit/package,packing measurement (LxWxH): 1080x600x385mm
-

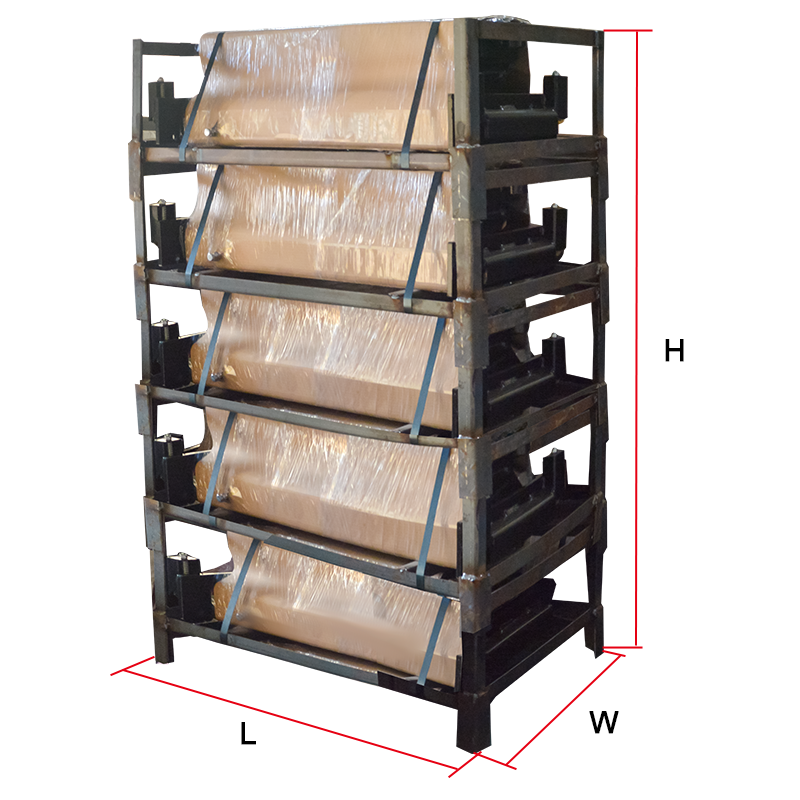

5 units/package, packing measurement (LxWxH): 1080x600x1630mm
