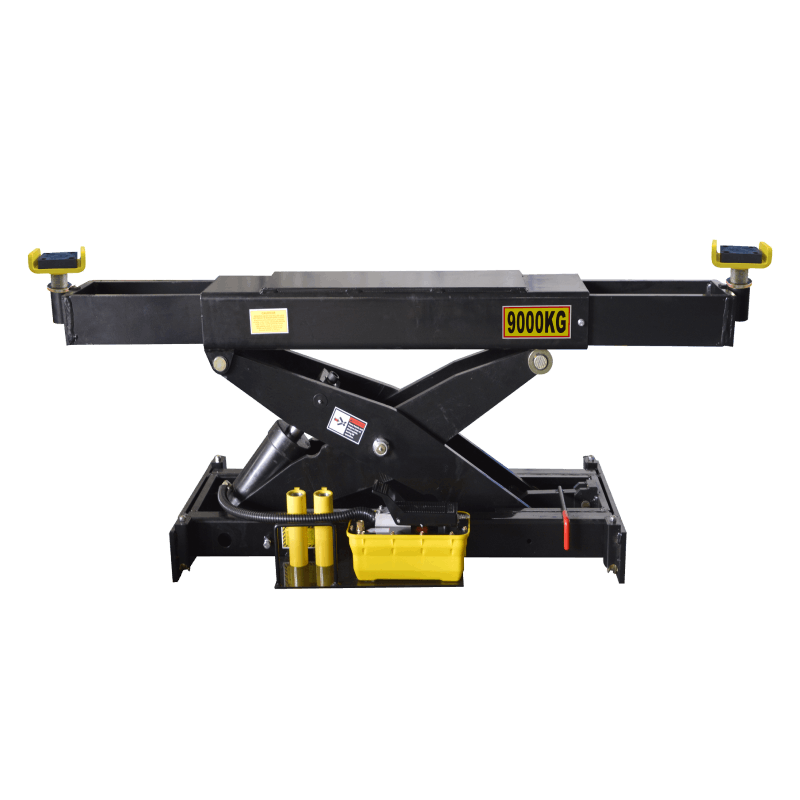

RJ-20A
Rolling Jack
Capacity: 9000kg (20,000lbs)
The most powerful RJ-20A is capable of lifting up to 9.0T(20,000 lbs.) which is perfect choice for heavy-duty trucks or massive buses. It made by strengthen and thickened structure design brings you experience impressive 'muscularity', meant to perform wheel service work in safety and comfort condition.
- Powerful pneumatic hydraulic pump with excellent performance.
- Double-screwing Frame saddle Pad Assy. provides more suitable chassis engagement and ensures more secure support when lifting a extremely heavy-duty vehicle or full-sized truck.
- 3'' & 6'' Extension adapters that are included as standard accessories are used for increasing height.
- Used the patent floating design rollers are made of hardened stainless-steeland zinc plated to increase durability.
- Reinforced scissor structure helps to provide most stable lifting work.
- Extendable lower sliding Assy. are strengthen and thickened which holding the jack steadily between the runways.
- The strongest adjustable arms are good to handle heavy-duty work and positioning lift point easily.
- Equipped with larger size hydraulic oil cylinder.
- Ergonomically guradrail works as a booster handle for moving the Jack easily and protecting oil hose.
| Model | RJ-20A | |
| Lifting Capacity | 9000kg (20,000lbs) | |
| Lifting Time | 50s | |
| Arm Pads Reach | A | 1150-1680mm (45 1/4"- 66 1/8") |
| Min. Height | B | 360mm (14 3/16") |
| Support Base Width | C | 1147-1480 (45 3/16" - 58 1/4") |
| Min. Rubber Pad Height | D | 421-455mm (16 9/16" - 17 15/16" ) |
| Max. Lifting Height(Without adapters) | E | 787-821mm (31" - 32 5/16") |
| Max. Lifting Height(With adapters) | 1016-1050mm (40" - 41 5/16") | |
| Overall Width | F | 647mm (25 1/2") |
| Air Pressure | 0.8Mpa | |
| Gross Weight | 376kg(829lbs) | |
| Pump | Pneumatic Pump |
-

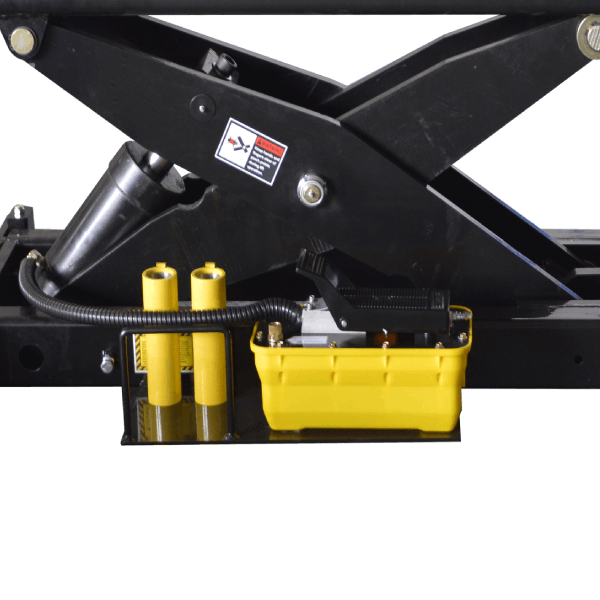

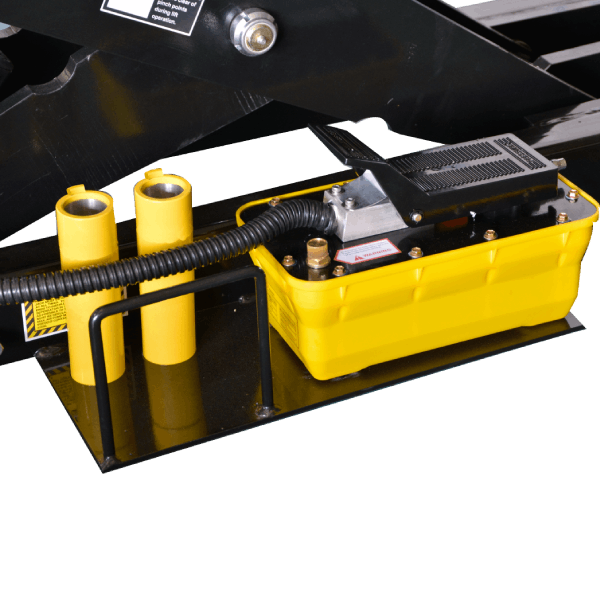

Special high pressure pneumatic hydraulic pump connected and longevity hose maintains high performance.
-

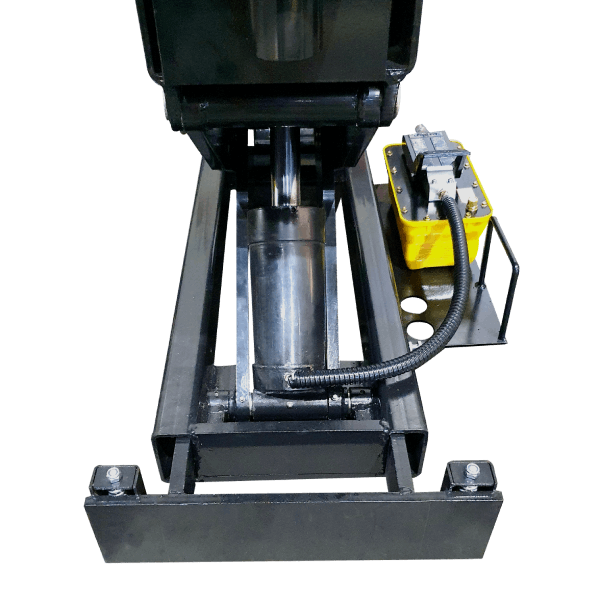

A larger version and more powerful hydraulic oil cylinder.
-

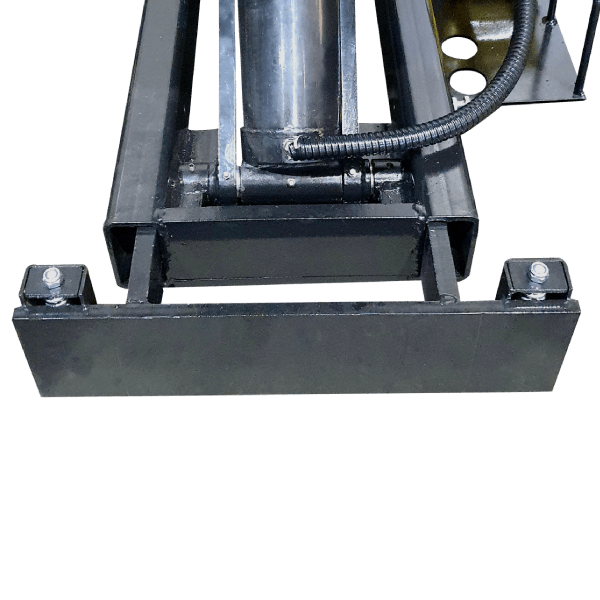

Thickened extendable lower sliding assy which equipped with Zinc Made rollers of the patent floating design.
-

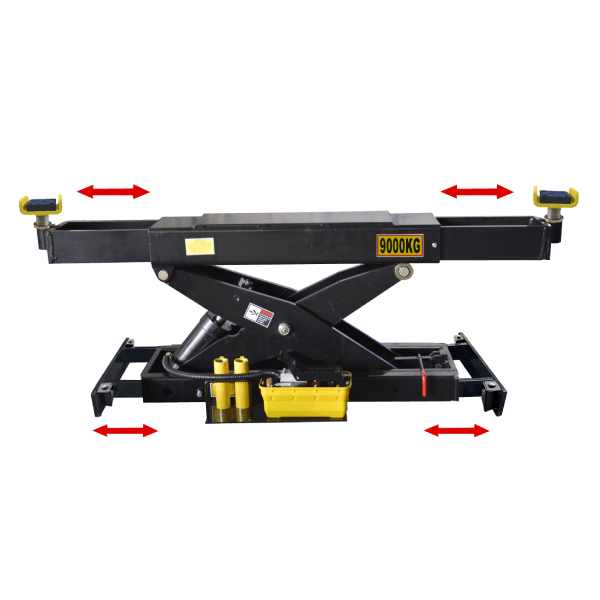

Strengthen upper support assy and adjustable arms are crafted to withstand extremely heavy loading.
-

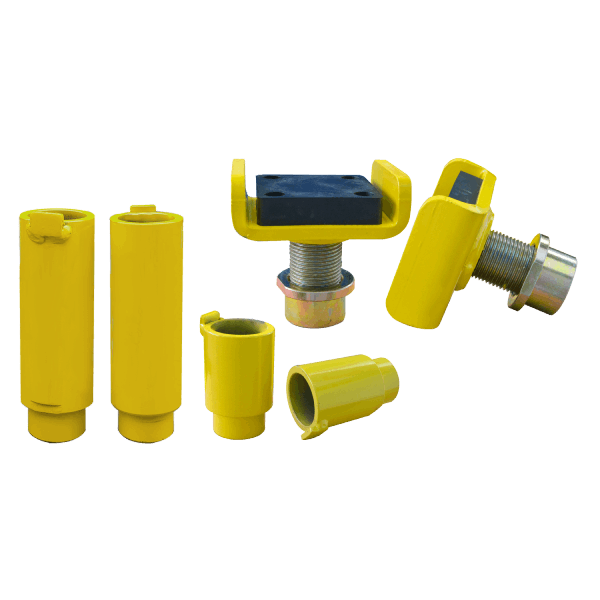

Rugged construction double-screw frame saddle pads package with 3" and 6" extension adapters.
-
Ergonomically guardrail protecting oil hose as well as easy to move the jack as a booster.
-

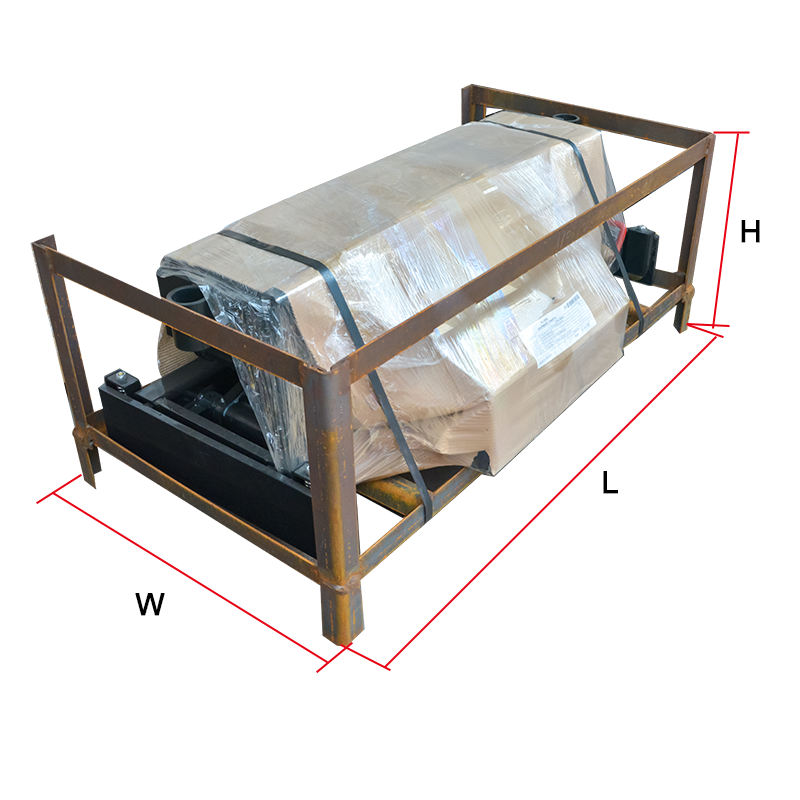

1 unit/package,packing measurement (LxWxH): 1265x680x495mm
-

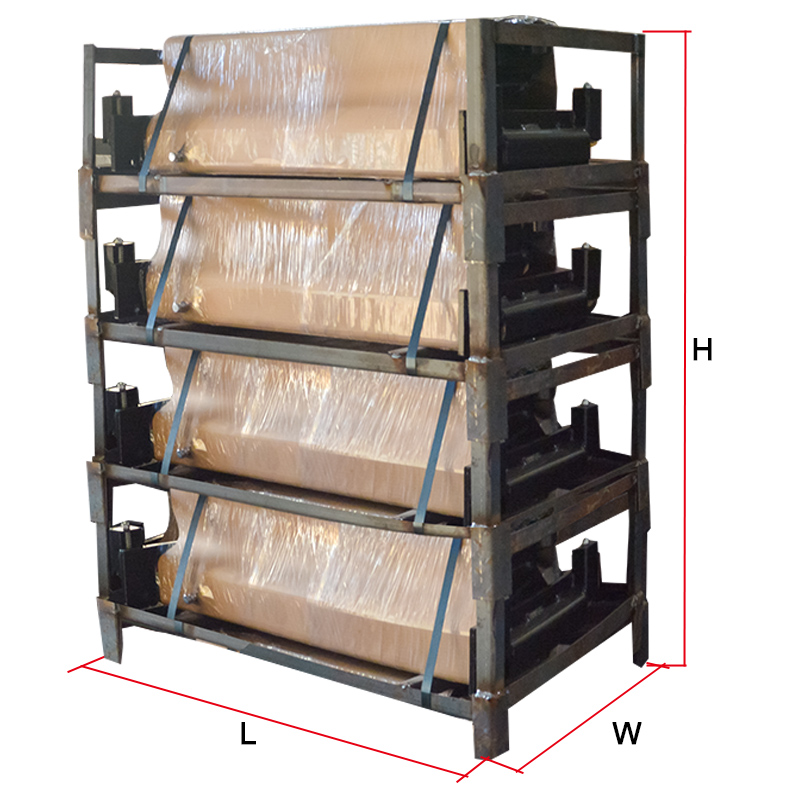

4 units/package, packing measurement (LxWxH): 1265x680x2115mm
