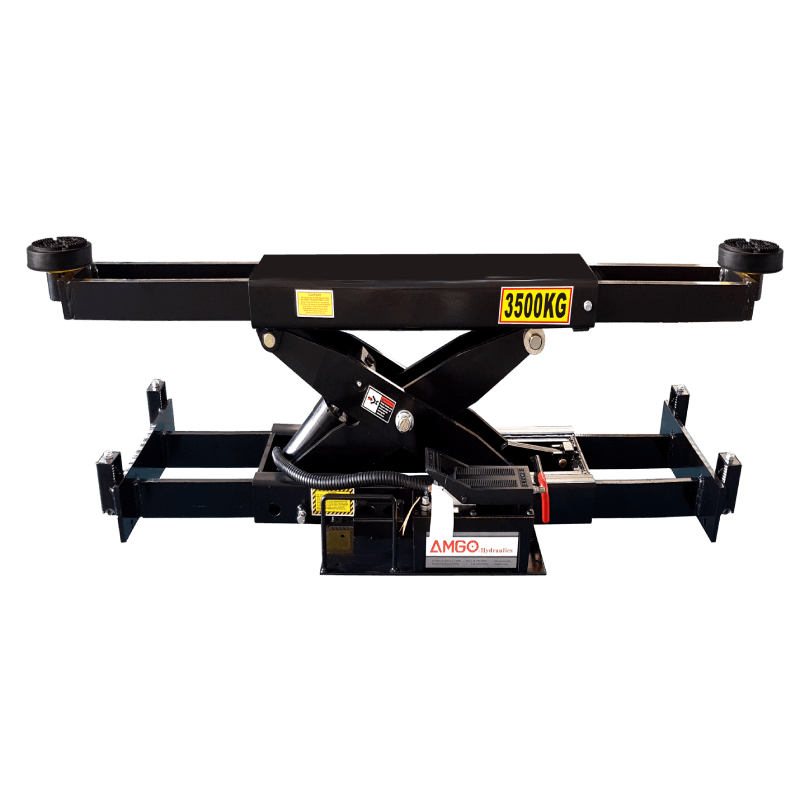

RJ-8A
Rolling Jack
Capacity: 3500kg (8,000lbs)
The RJ-8A with 3500kgs(8,000lbs) capacity can stand out more versatility performance and more widely used in shop or service bays. It's a great option for most kind of 4-post or scissor lifts if you're thinking of servicing for either Pickups or Sports car.
- Equipped with pneumatic hydraulic pump
- Whole set of 2.5'',5'' adapters & Rubber Pad Assy.which increase the lifting height so that service for most Pickups and seat high passenger cars.
- The unique patent floating roller system with protective box that ensures the jack to glide smoothly on the rail.
- Telescoping arms can be extended and positioned to the correct lifting points at any time.
- Enhance solid Scissor provides running stability
- Adjustbale lower sliding Assy. which adjust to fit many different brands of four post or scissor lifts.
- As well as fitting for width between runways from 915mm to 1435mm .
- The jack features two solid locking positions that are used when the jack raised to comfort work height.
- Convenient guradrail works as a booster handle for moving the Jack easily and protecting oil hose.
| Model | RJ-8A | |
| Lifting Capacity | 3500kg (8,000lbs) | |
| Lifting Time | 50s | |
| Arm Pads Reach | A | 875-1680mm (34 7/16"- 66 1/8") |
| Min. Height | B | 260mm (10 1/4") |
| Support Base Width | C | 915-1435mm (36" - 56 1/2") |
| Min. Rubber Pad Height | D | 269mm (10 9/16") |
| Max. Lifting Height(Without adapters) | E | 531mm (20 15/16") |
| Max. Lifting Height(With adapters) | 722mm (28 7/16") | |
| Overall Width | F | 552mm (21 3/4") |
| Gross Weight | 166kg | |
| Air Pressure | 0.8Mpa | |
| Pump | Pneumatic Pump |
-

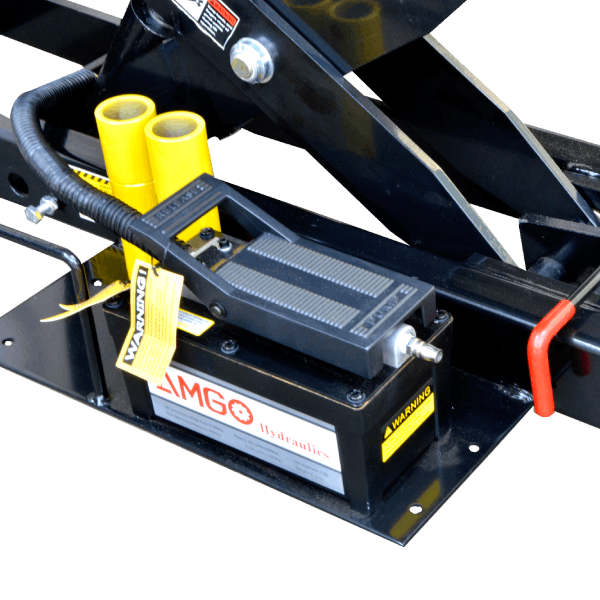

Elcellent quality pneumatic hydraulic pump match with high working pressure oil hose. Customized a special bracket for storage adapters.
-

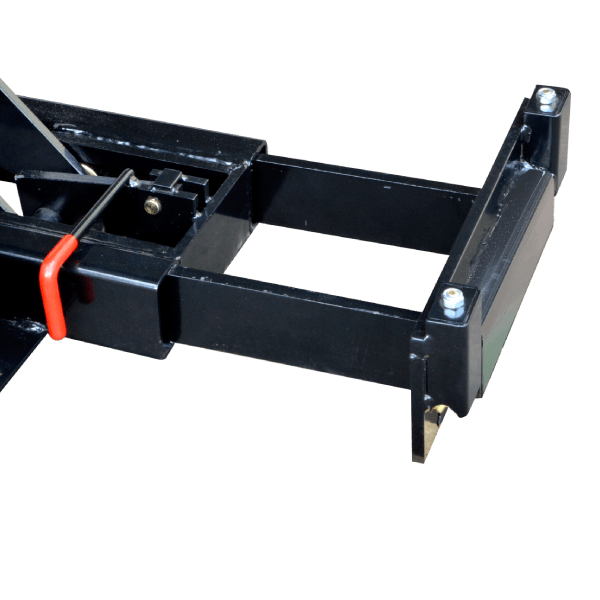

Patented floating roller system design match with the protective box that ensures the jack to moved smoothly, sitting in the groove stably when lifting a vehicle.
-

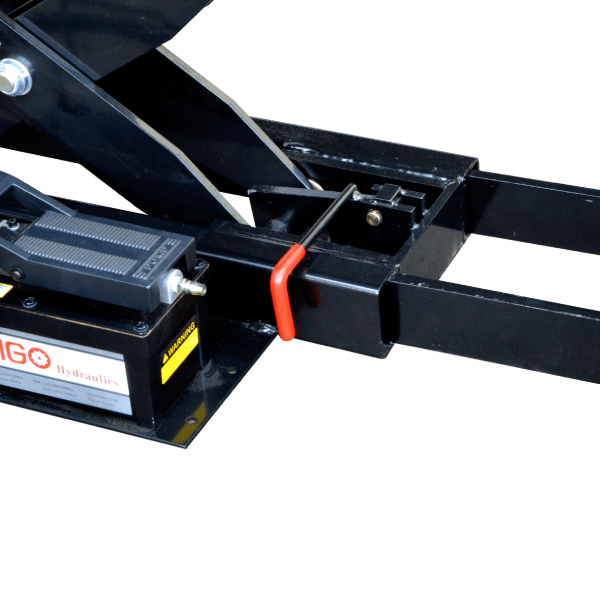

Simply operate manual safety lock allows access to multiple safety lock positions for comfortable working height.
-

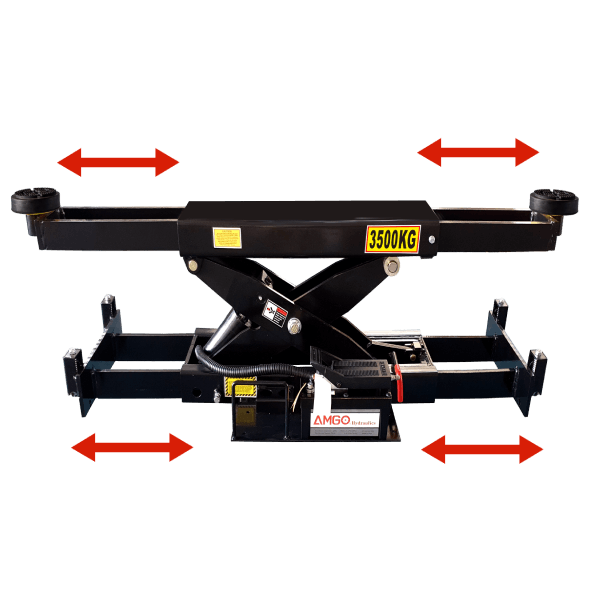

Telescoping arms which are adjusted to work for different chassis vehicles & adjustable lower sliding assy. Fit for almost all the four post and scissor lifts.
-

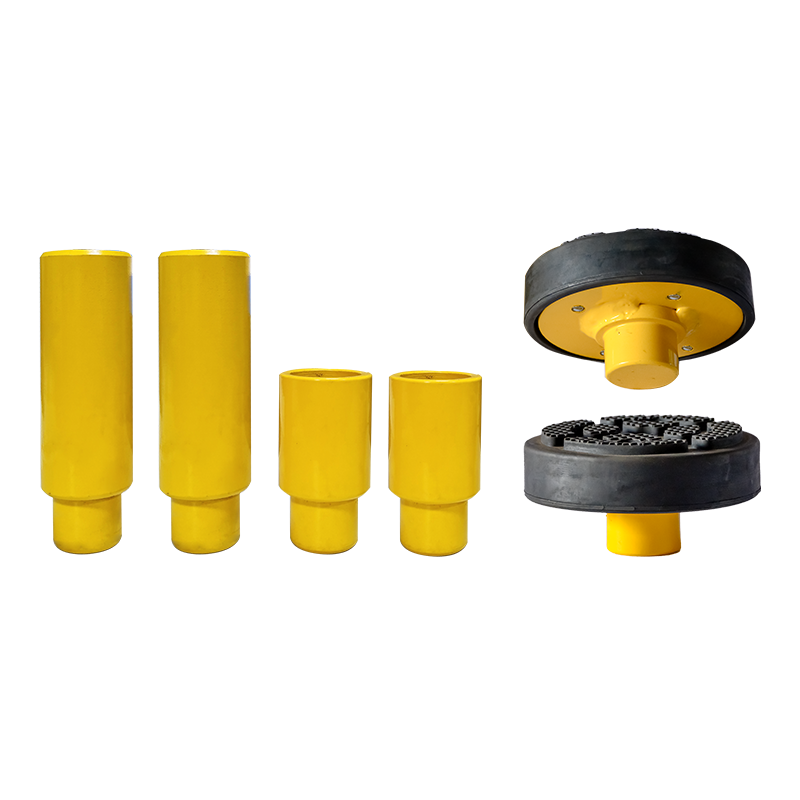

Drop in rubber pads with 2.5" and 5" extension adapters.
-

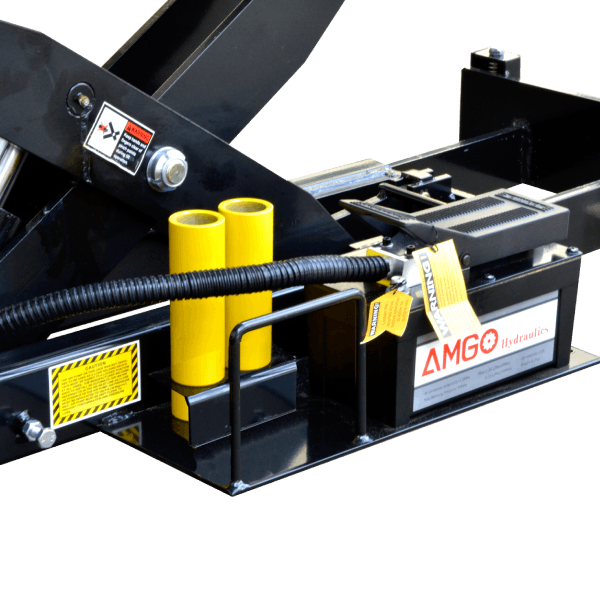

Ergonomically guardrail help to protect oil hose as well as assist to move the Jack easily.
Gross weight for RJ-8A: 166kgs
-

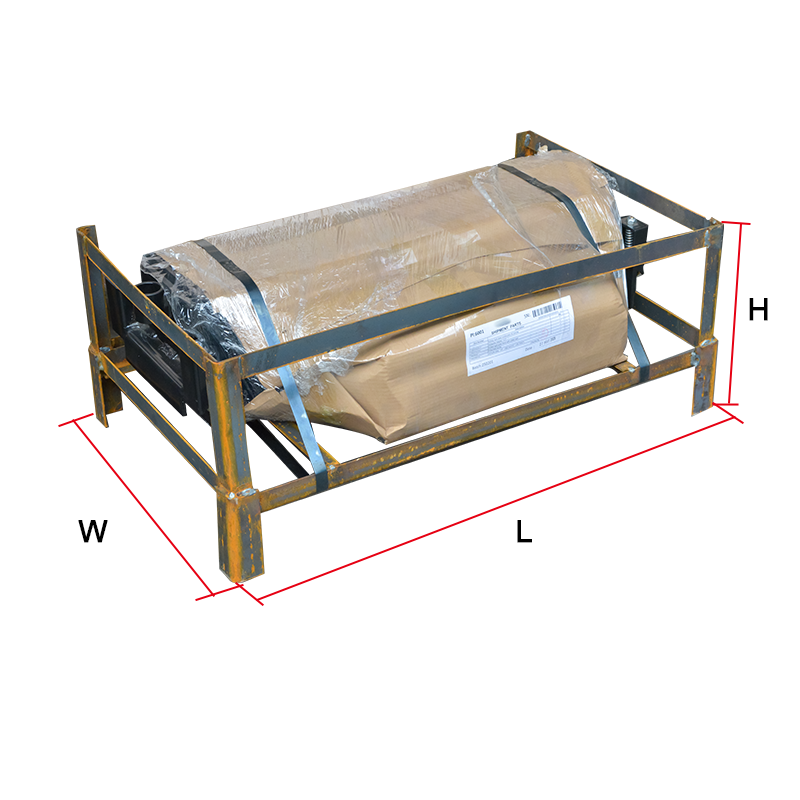

1 unit/package,packing measurement (LxWxH): 970x600x360mm
-

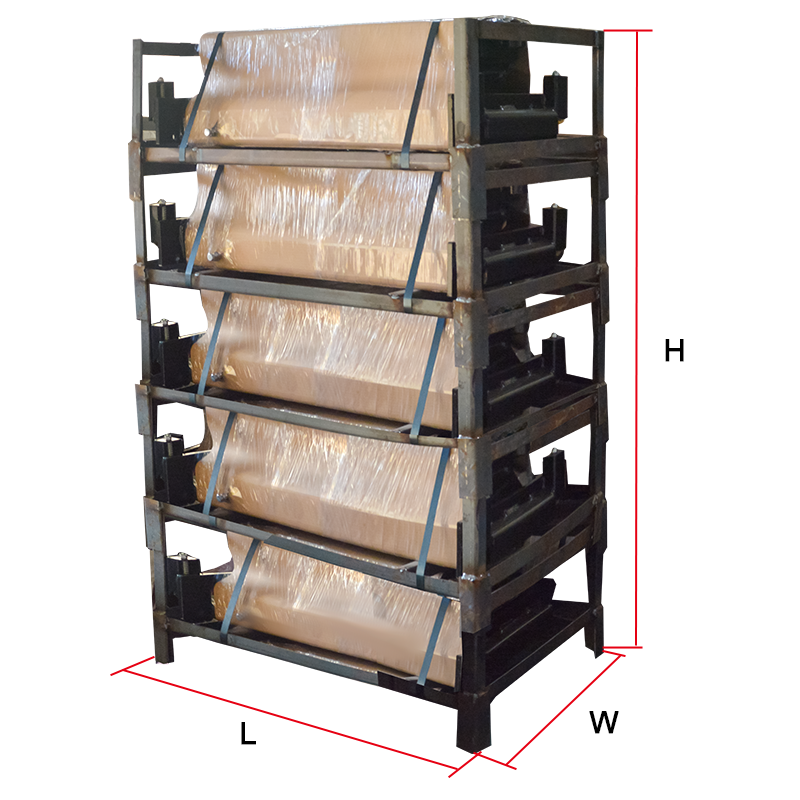

5 units/package, packing measurement (LxWxH): 970x600x1330mm
