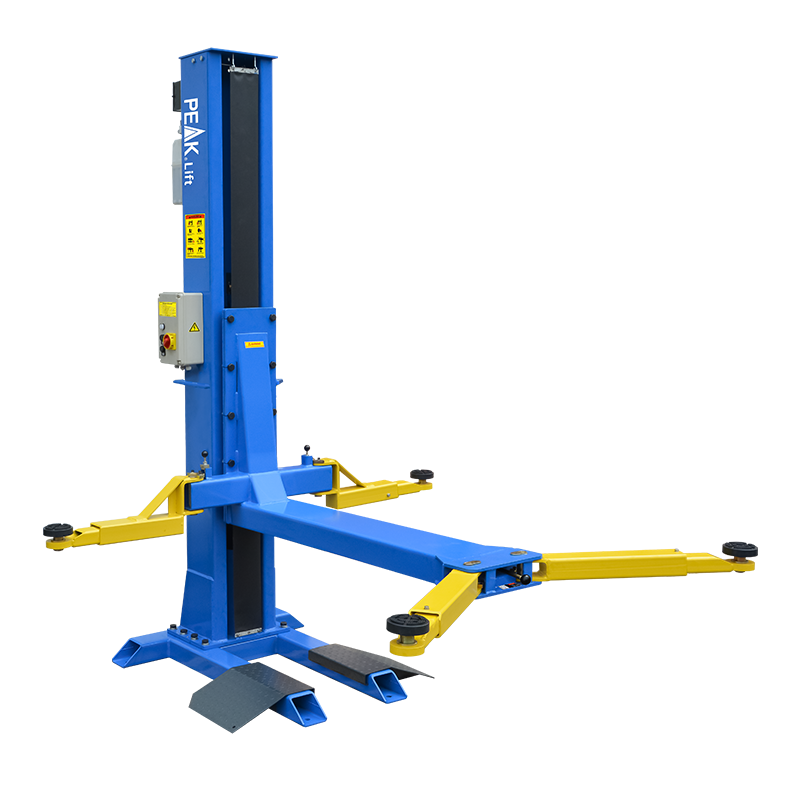

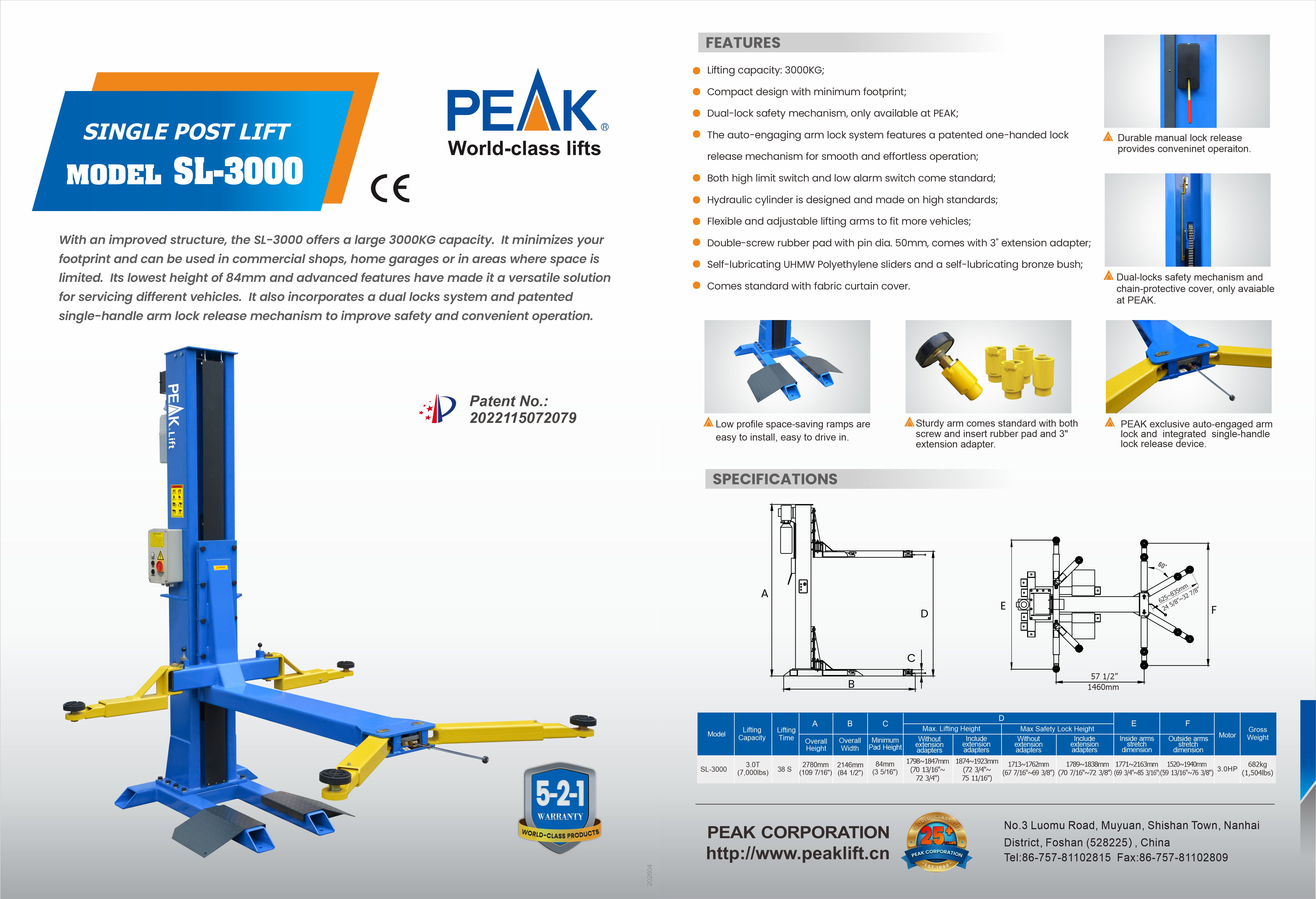

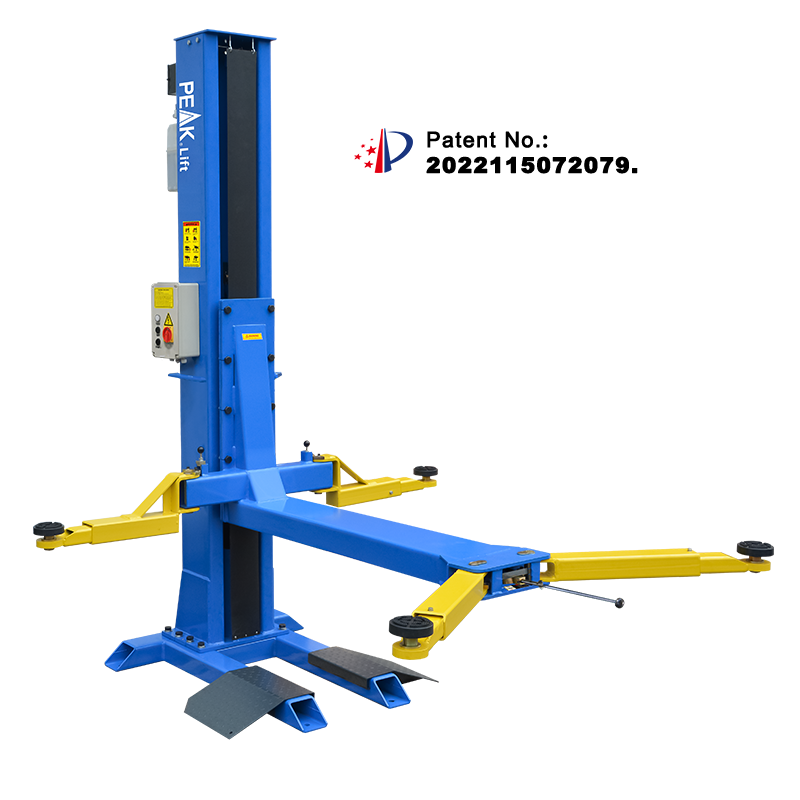

SL-3000
Single Post Lift
Expert for heavy & quick lifting
With an improved structure, the SL-3000 offers a large 3000KG capacity. It minimizes your footprint and can be used in commercial shops, home garages or in areas where space is limited. Its lowest height of 89mm and advanced features have made it a versatile solution for servicing different vehicles. It also incorporates a dual-lock system and patented single-handle arm lock release mechanism to improve safety and convenient operation.
- Lifting capacity: 3000KG
- Compact design with minimum footprint.
- Dual-lock safety mechanism, only available at Peak.
- PEAK exclusive auto-engaged arm lock and intergrated single-handle lock release device.
- Both high limit switch and low alarm switch come standard.
- Hydraulic cylinder is designed and made on high standards.
- Flexible and adjustable lifting arms to fit more vehicles.
- Double-screw rubber pad with pin dia.50mm, comes with 3" extension adapter.
- Self-lubricating UHMW Polyethylene sliders and a self-lubricating bronze bush.
- Comes standard with fabric curtain cover.
| Model SL-3000 | Single post lift | |
| Lifting Capacity | 3000kg (6,600 lbs) | |
| Lifting Time | 38s | |
| Max. Lifting height: (w/o extension adapter) | A | 1803~1852mm (71"~72 15/16" ) |
| Max. Lifting height: (w/ extension adapter) | 1879~1928mm (74"~75 15/16" ) | |
| Max. lock height: (w/o extension adapter) | 1718~1767mm (67 5/8"~69 9/16" ) | |
| Max. lock height: (w/ extension adapter) | 1794~1843mm (70 5/8"~72 9/16" ) | |
| Overall Height | B | 2780mm (109 7/16") |
| Overall Width | C | 2146mm (84 1/2") |
| Minimum Pad Height | D | 89mm (3 1/2") |
| Gross Weight | 688kg (1,517 lbs) | |
| Motor | 3.0HP | |
| QTY of Container | 12 Units/20'GP | |
| 24 Units/40'GP | ||
| Base plate | 1950 X 1410 X 903 mm | |
| Single unit as a package | 2770 X 510 X 375 mm |
-

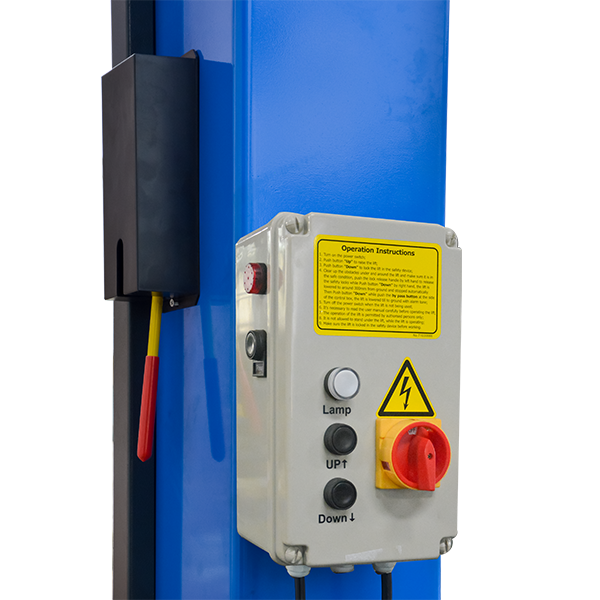

24V safe operating control system.
-

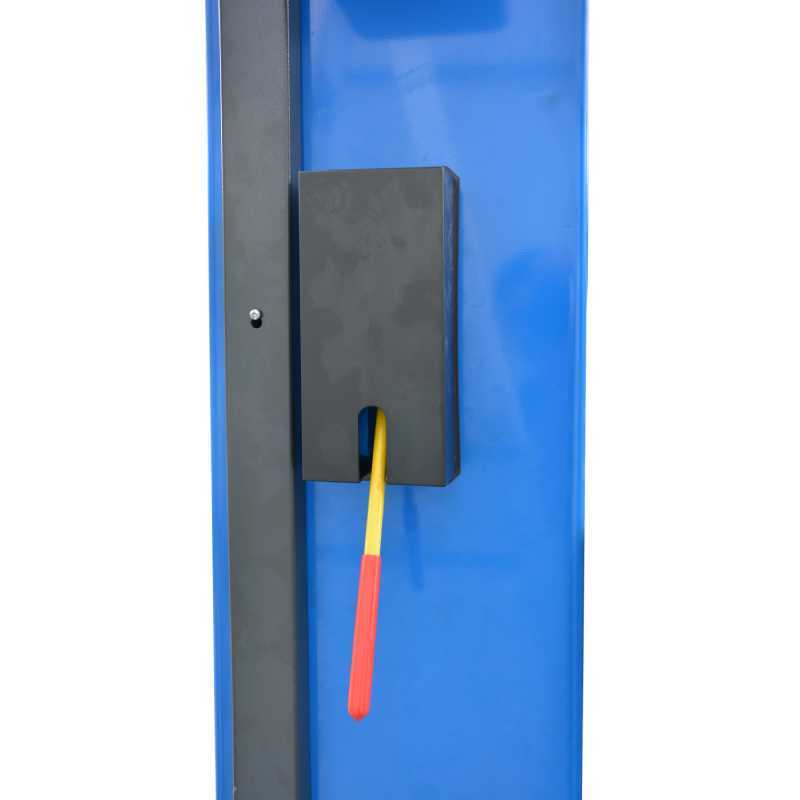

Durable manual lock release provides convenient operation.
-

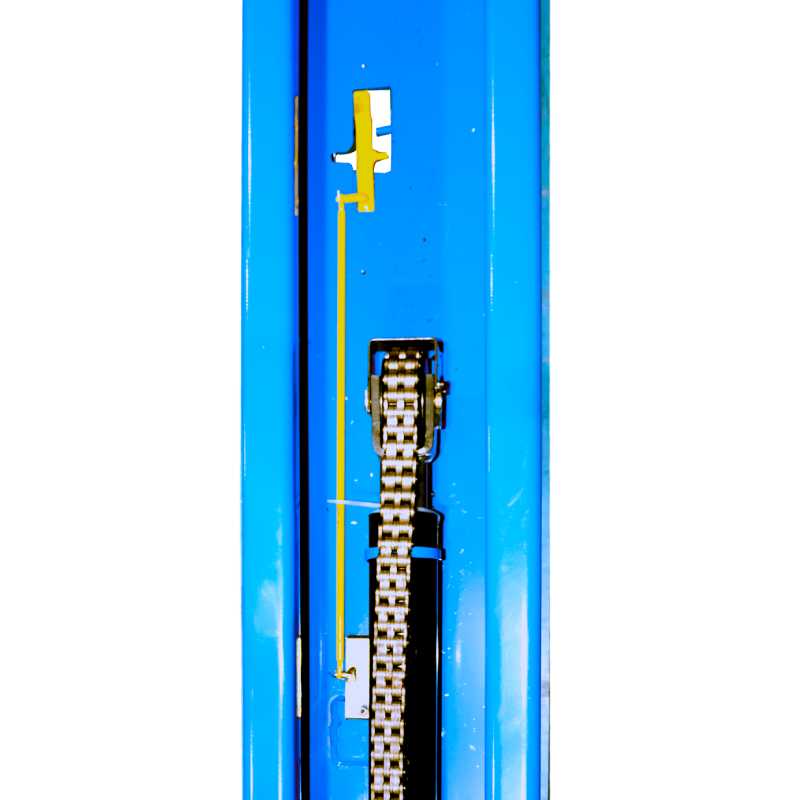

Dual-lock safety mechanism and chain-protective cover,only available at PEAK.
-

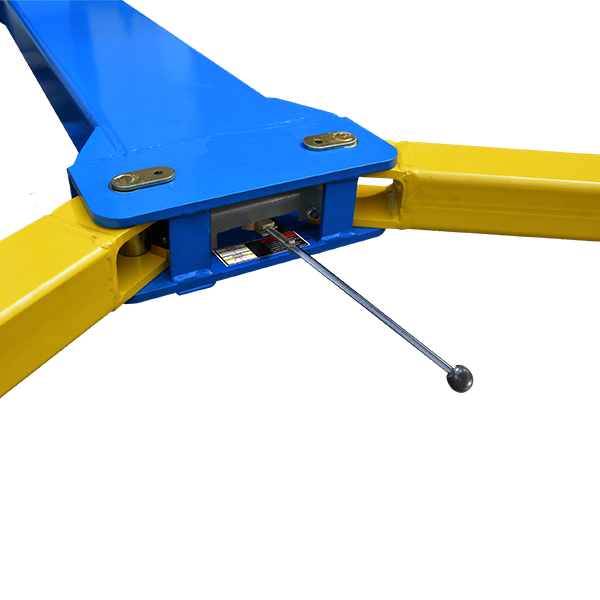

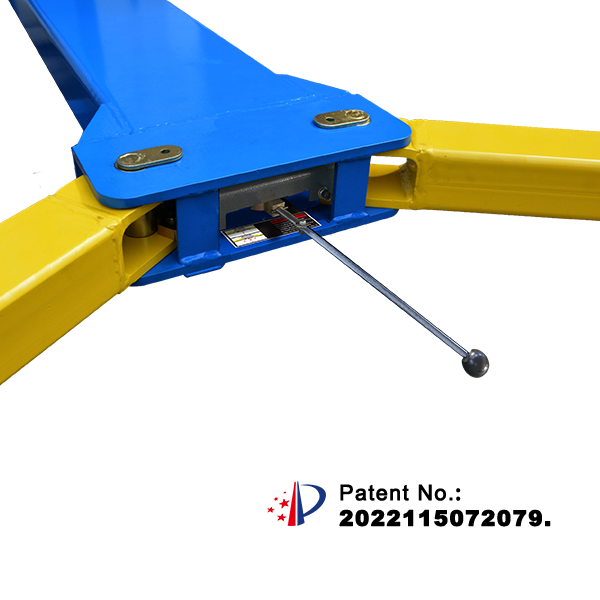

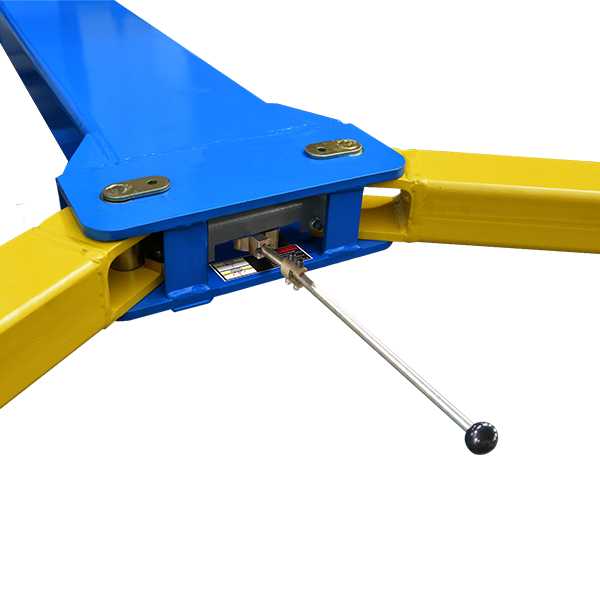

PEAK exclusive auto-engaged arm lock and intergrated single-handle lock release device.
-

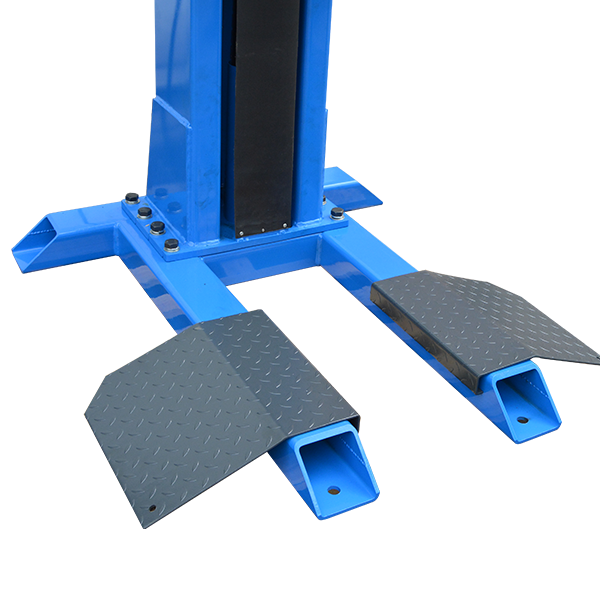

Low profile space-saving ramps are easy to install,easy to drive in.
-

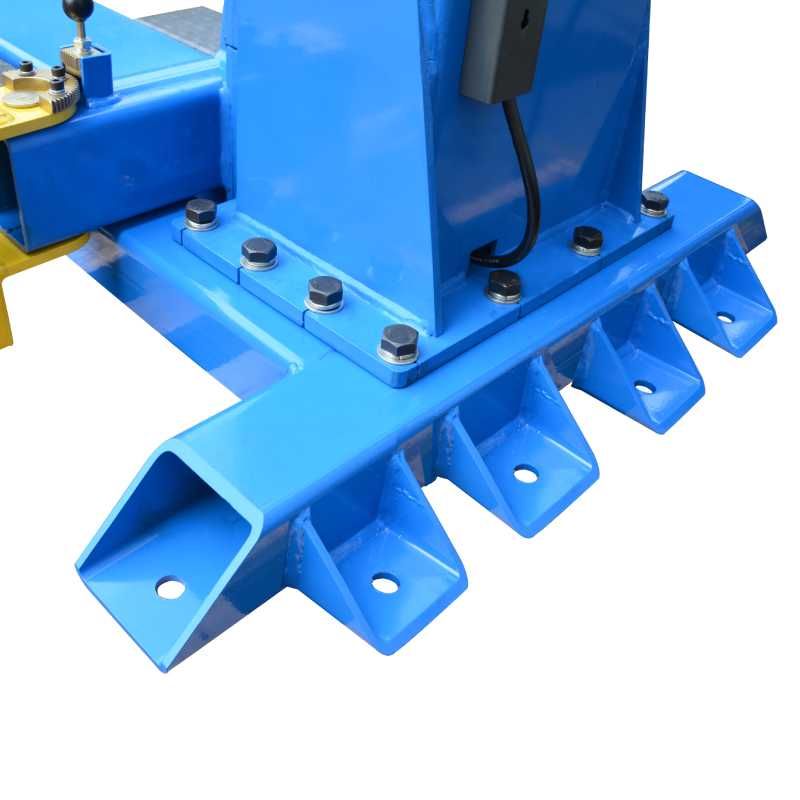

Thickened steel structure ensures more safety and stability.
-

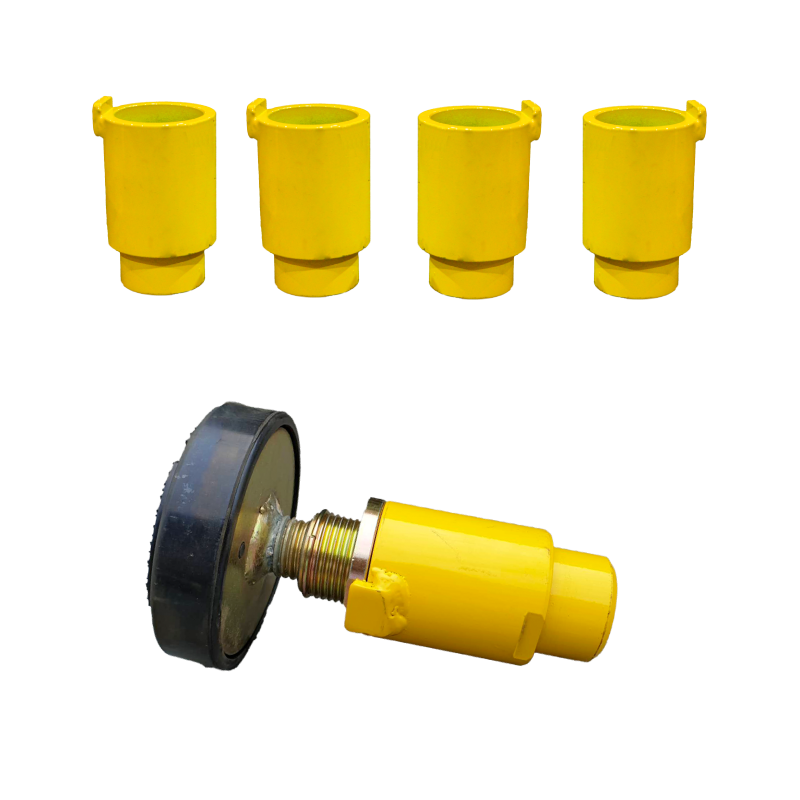

Double-screw rubber pad with pin dia 50mm,comes with 3" extension adapter.
-

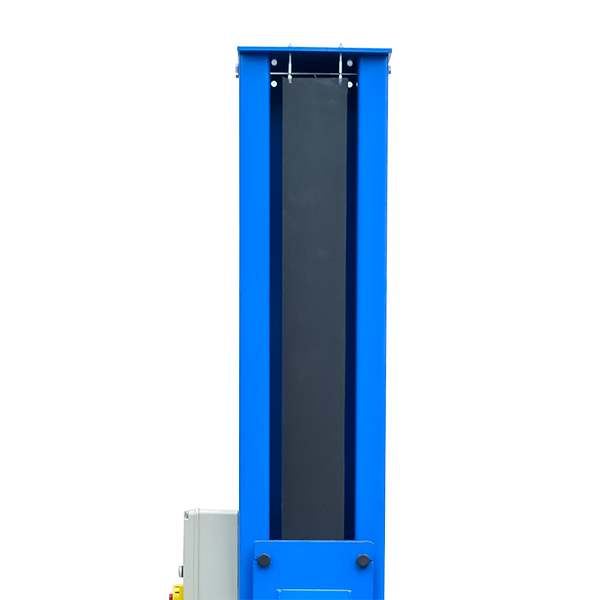

Fabric chain cover protects the cyliner and makes lift in good appearance.
Packing dimension of column 4 units as a package;
Packing dimension of carriage connecting component and base plate 6 units as a package.( including parts box,without hydraulic power unit )
- Gross weight for SL-3000: 688kgs , include power unit gross weight 25kgs.
- 20' container can load 12 units.
- 40container can load 24 units
-

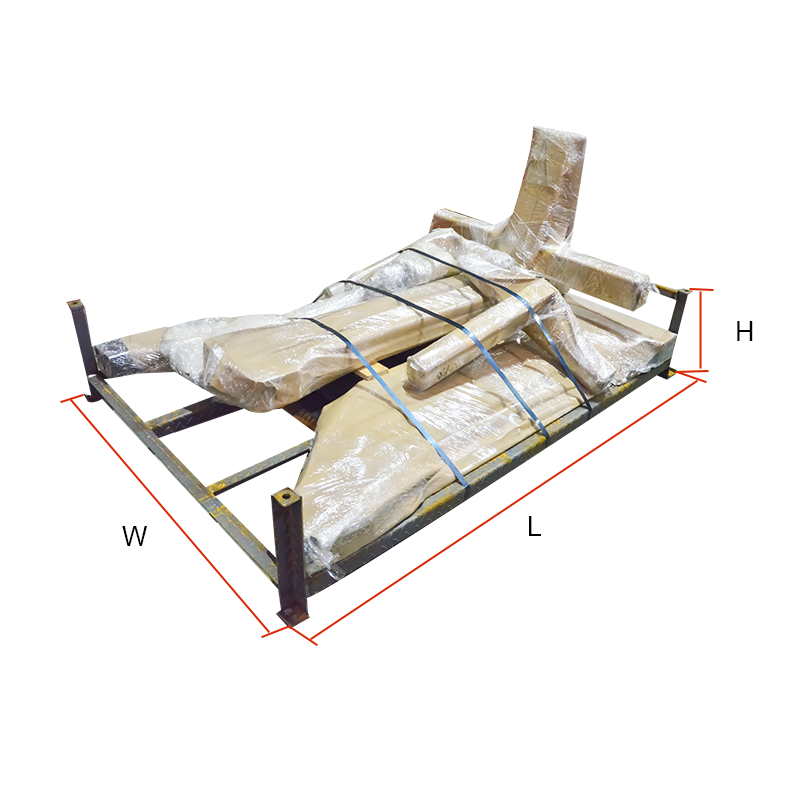

Single unit as a package

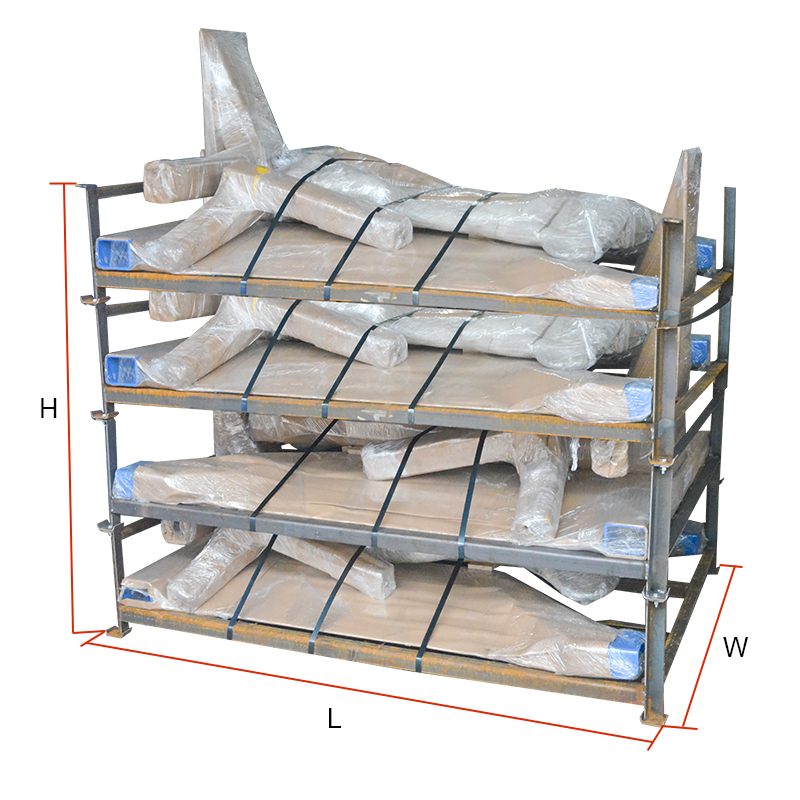

Packing dimension of carriage connecting component and base plate: 1950x1410x903mm -
4 units as a package, packing dimension: 1950x1410x2223mm
-
Single unit as a package

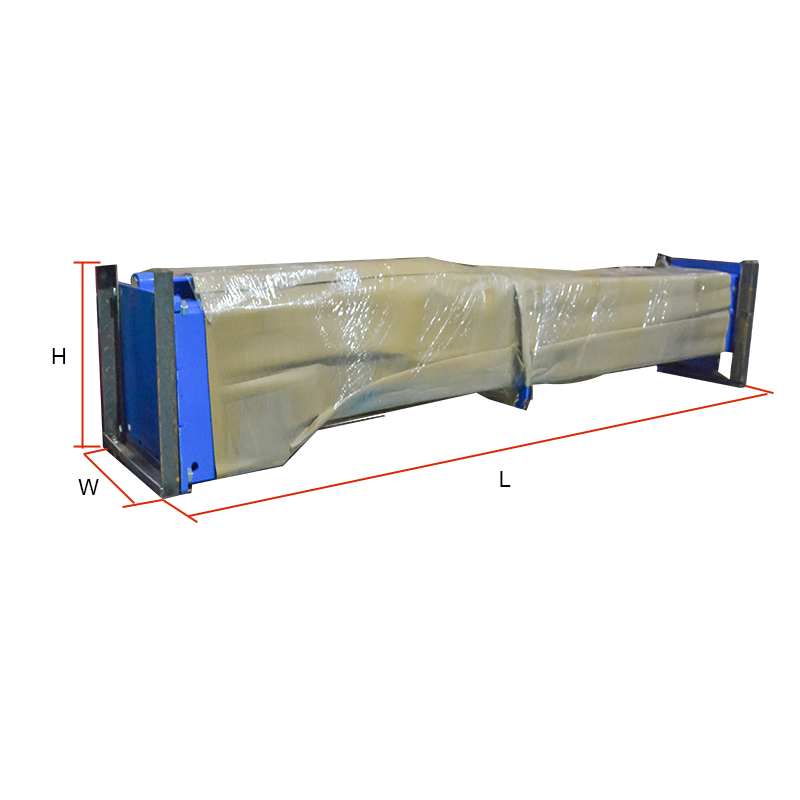

Packing dimension of column: 2770x510x375mm -

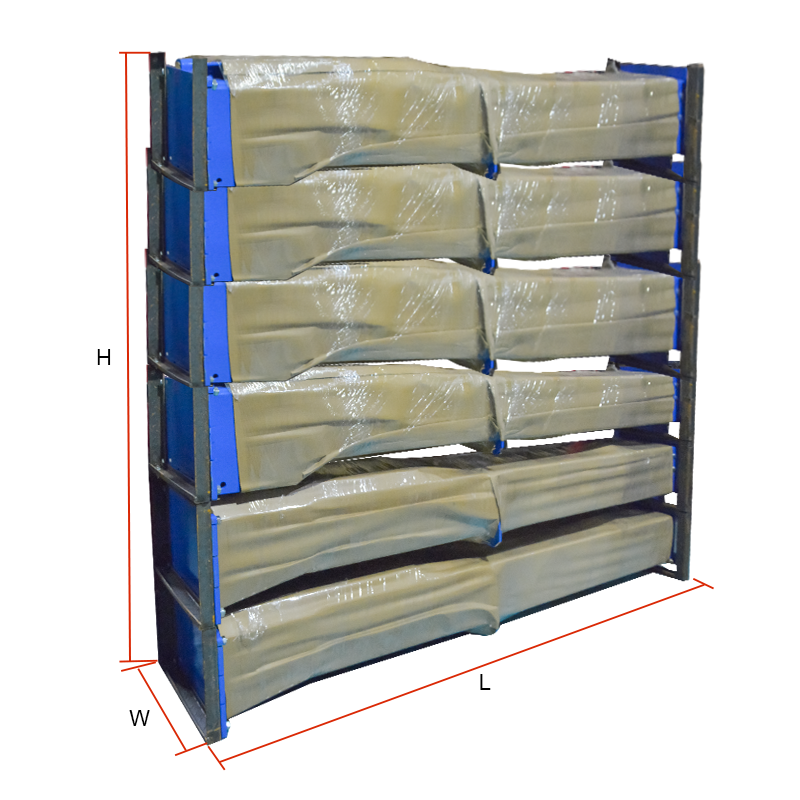

6 units as a package
Packing dimension: 2770x510x2250mm
