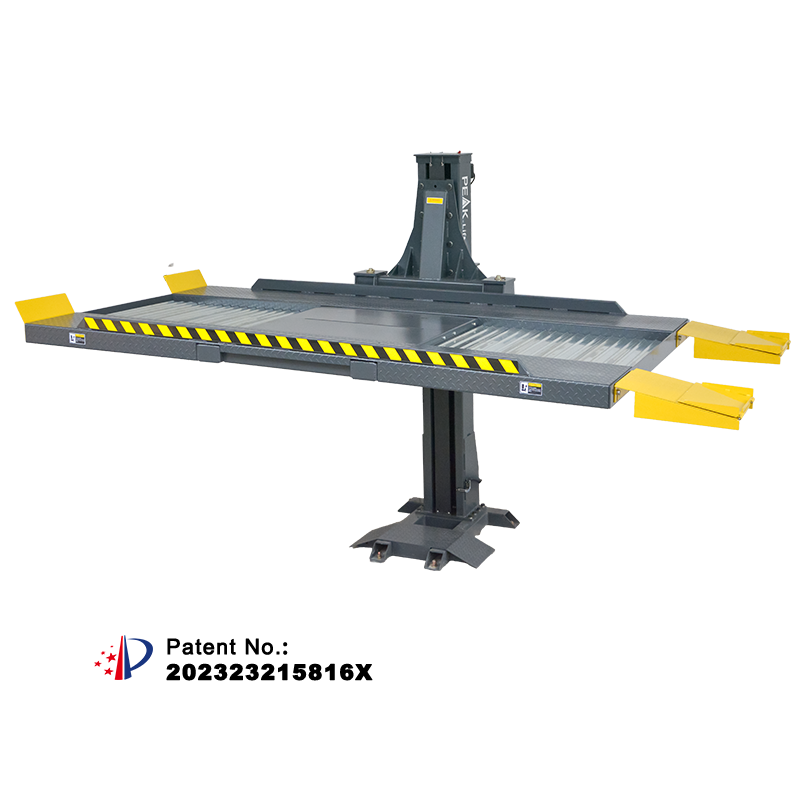

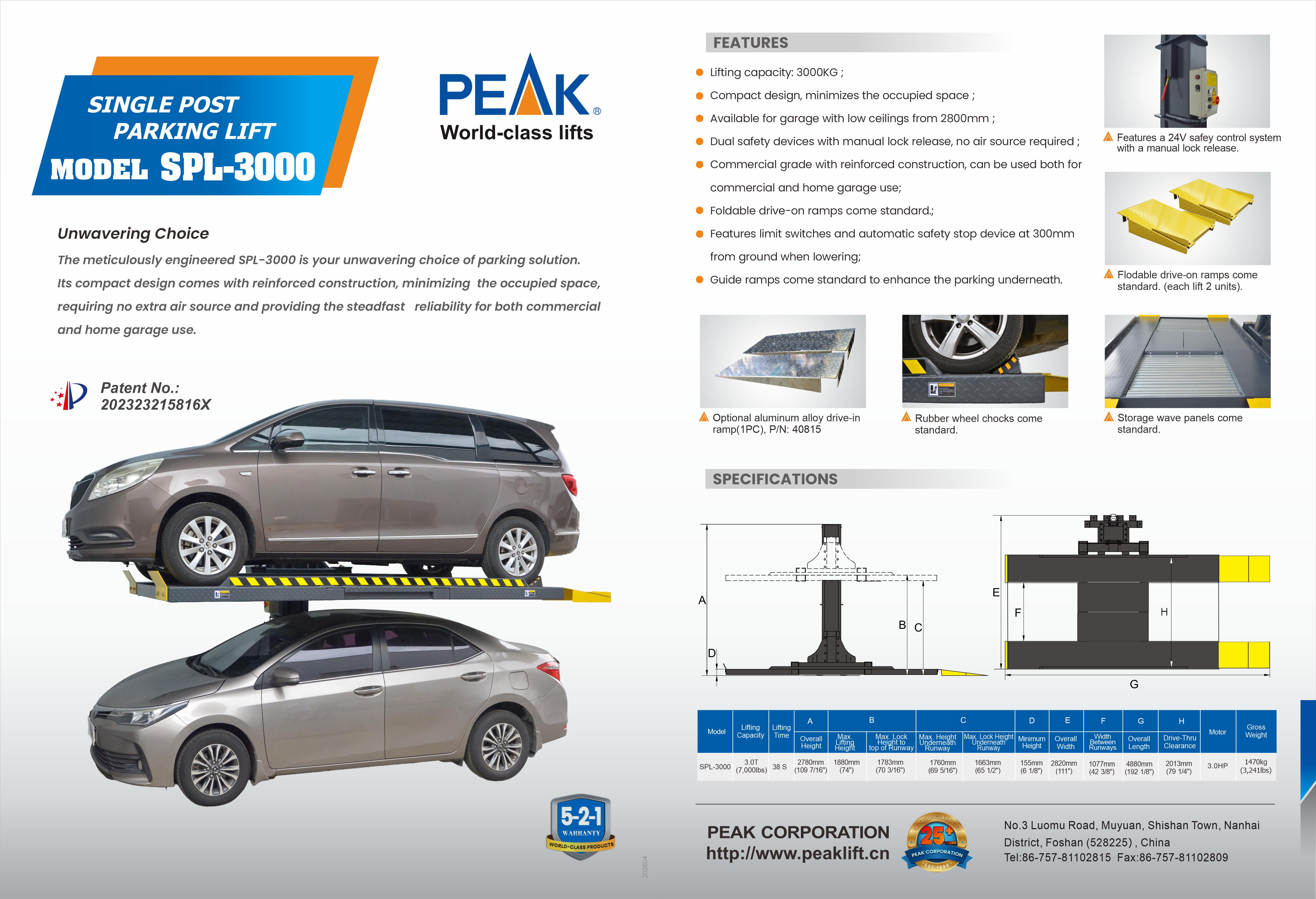

SPL-3000
Single-Post Parking Lift
Unwavering Choice
The meticulously engineered SPL-3000 is your unwavering choice of parking solution. Its compact design comes with reinforced construction, minimizing the occupied space, requiring no extra air source and providing the steadfast reliability for both commercial and home garage use.
- Lifting capacity: 3000KG ;
- Features a 24V safe operating control system;
- Compact design, minimizes the occupied space;
- Available for garage with low ceilings from 2800mm;
- Dual safety devices with manual lock release, no air source required;
- Commercial grade with reinforced construction,can be used both for commercial and home garage use;
- Foldable drive-on ramps come standard;
- Features limit switches and automatic safety stop device at 300mm from ground when lowering;
- Storage wave panels come standard;
- Guide ramps come standard to enhance the parking underneath.
| Model SPL-3000 | Single Post Parking Lift | |
| Lifting Capacity | 3000kg (7,000lbs) | |
| Lifting Time | 38s | |
| Overall Height | A | 2780mm (109 7/16") |
| Max. Lifting Height | B | 1880mm (74") |
| Max. Lock Height to top of Runway | 1783mm (70 3/16") | |
| Max. Height Underneath Runway | C | 1760mm (69 5/16") |
| Max. Lock Height Underneath Runway | 1663mm (65 1/2") | |
| Minimum Height | D | 155mm (6 1/8") |
| Overall Width | E | 2820mm (111") |
| Width Between Runways | F | 1077mm (42 3/8") |
| Overall Length | G | 4880mm (192 1/8") |
| Gross Weight | 1373kg (3,027lbs) | |
| Motor | 3.0HP | |
| QTY of Container |
12 Units/20'GP |
-

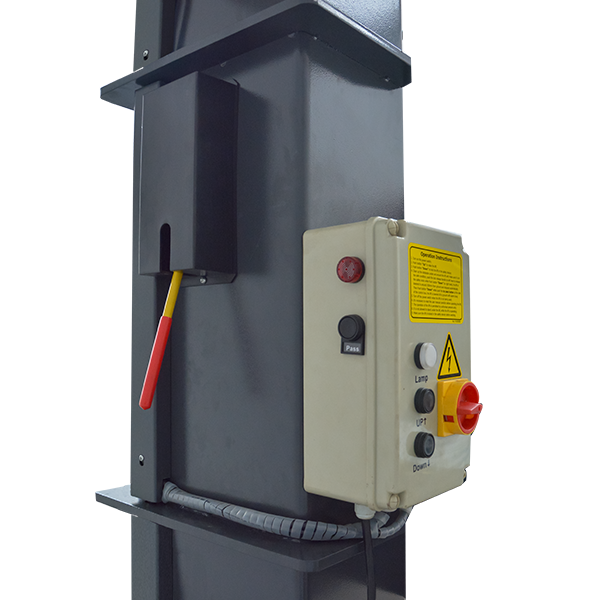

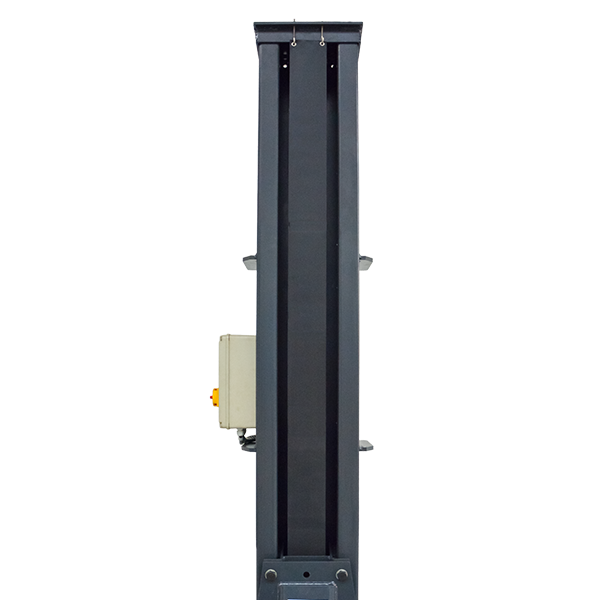

Features a 24V safey control system with a manual lock release.
-
Fabric chain cover offers good appreance and protects the cylinder.
-

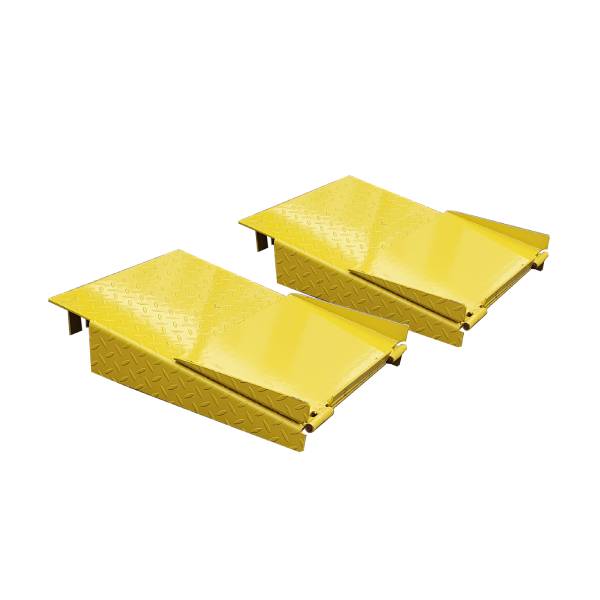

Foldable drive-on ramps come standard (each lift 2 units).
-

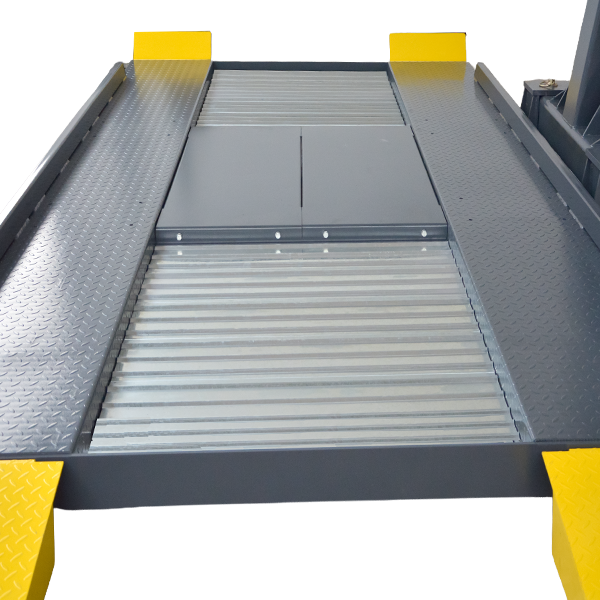

Storage wave panels come standard.
-

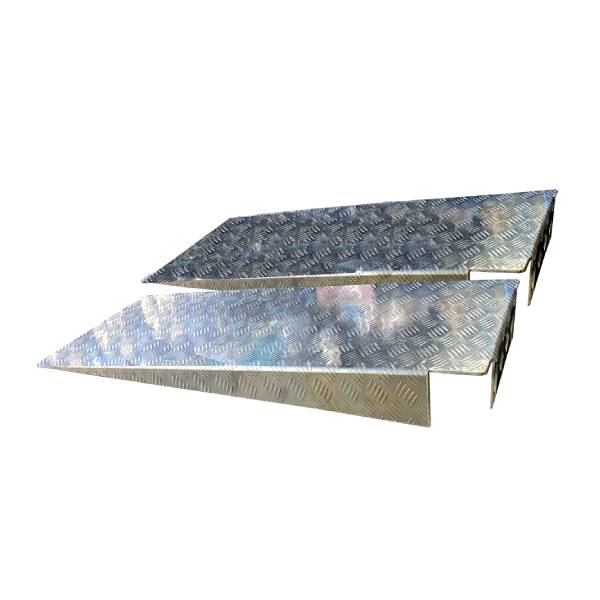

Optional aluminum alloy drive-in ramp(1PC), P/N: 40815
-

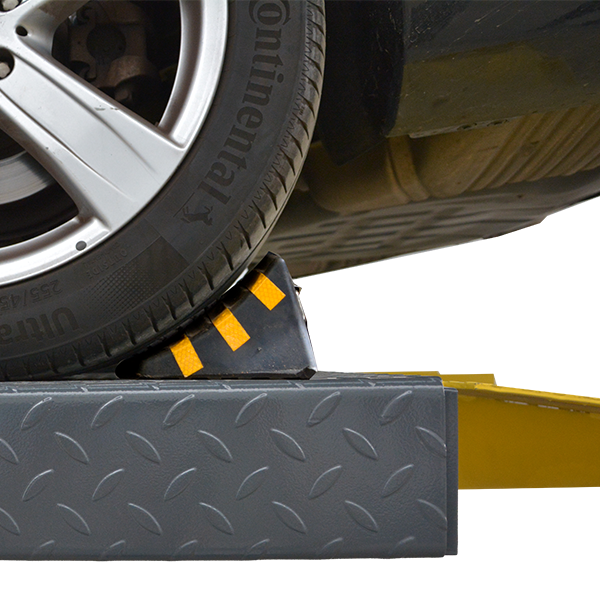

Optional rubber wheel chock (1PC), P/N: 40811
-

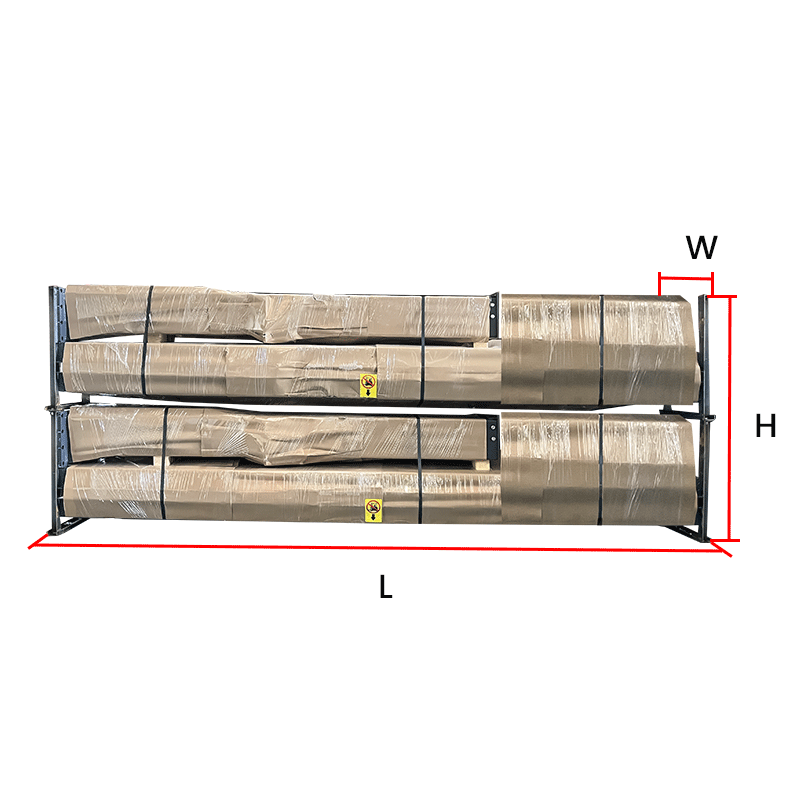

Carriage connecting component and base plate: Single unit packing dimension: 1260x1050x368mm；

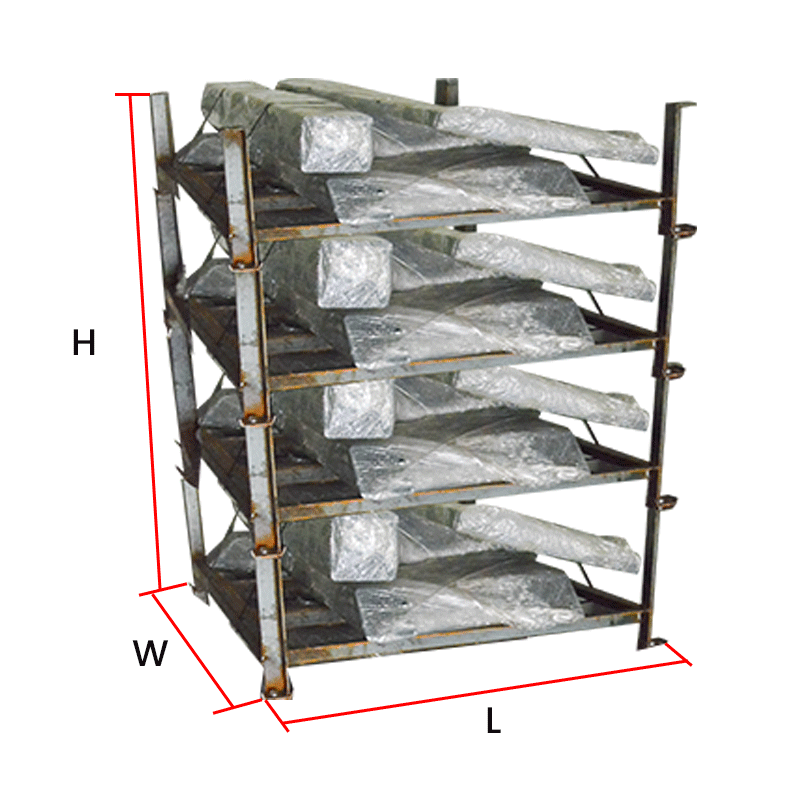

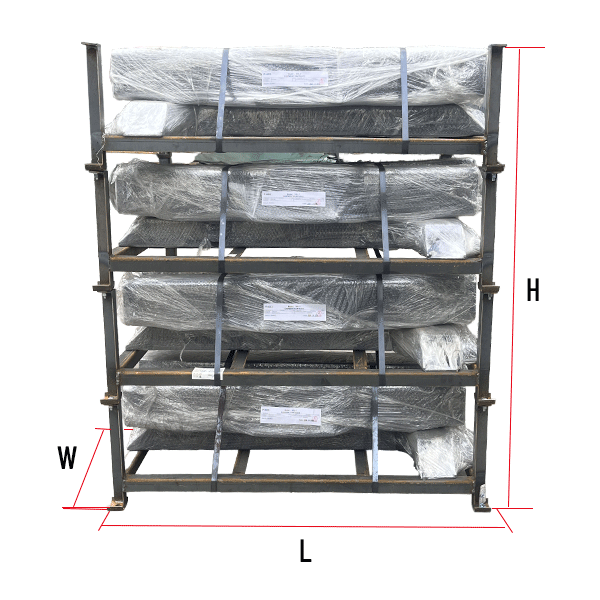

6 units packing dimension: 1260x1050x2208mm -
1 unit/ctn, power unit packing dimension: 705x300x320mm
