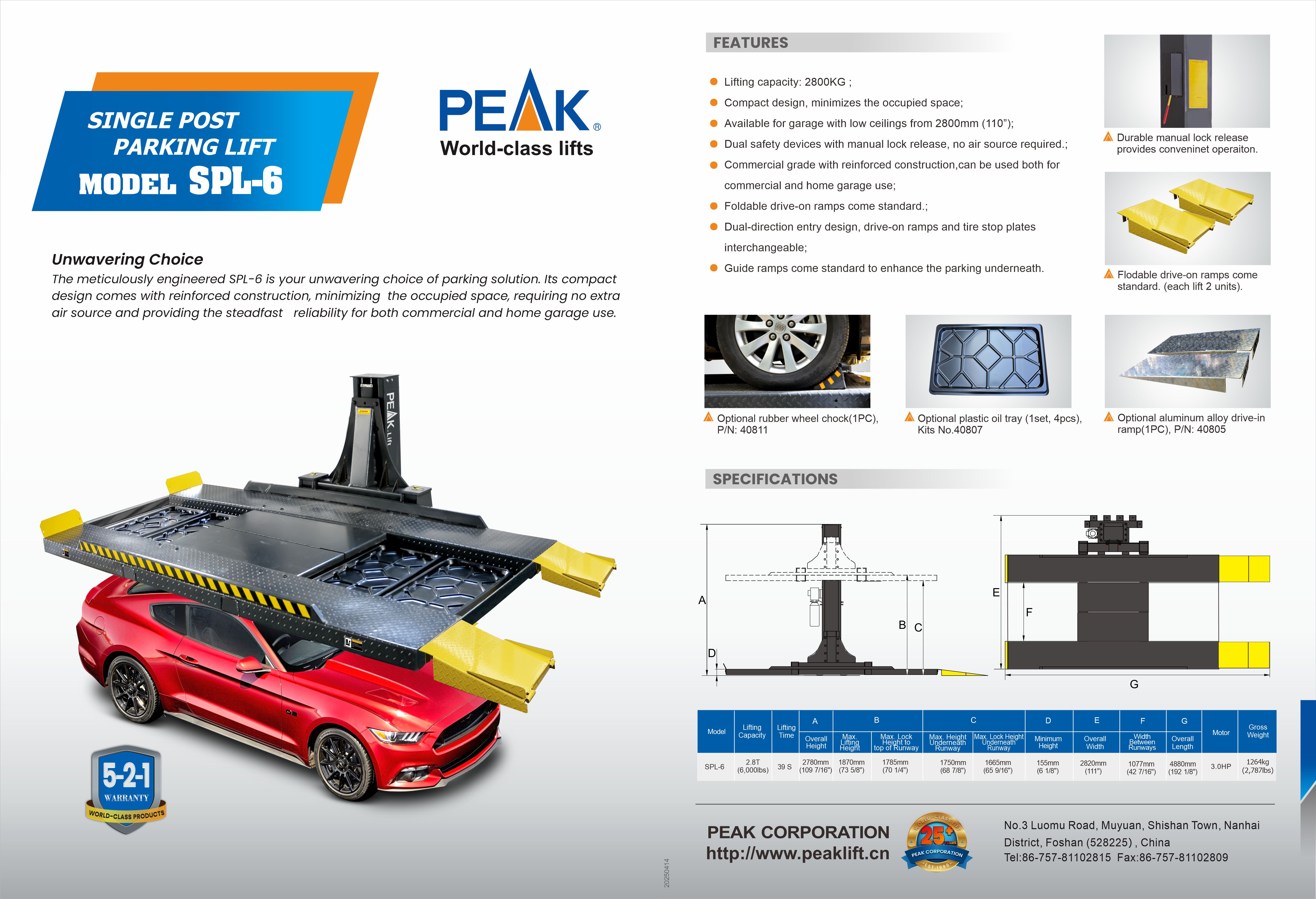

SPL-6
Single-Post Parking Lift
Unwavering Choice
The meticulously engineered SPL-6 is your unwavering choice of parking solution. Its compact design comes with reinforced construction, minimizing the occupied space, requiring no extra air source and providing the steadfast reliability for both commercial and home garage use.
- Lifting capacity: 2800KG ;
- Compact design, minimizes the occupied space;
- Available for garage with low ceilings from 2800mm (110”);
- Dual safety devices with manual lock release, no air source required.;
- Commercial grade with reinforced construction,can be used both for commercial and home garage use;
- Foldable drive-on ramps come standard.;
- Dual-direction entry design, drive-on ramps and tire stop plates interchangeable;
- Guide ramps come standard to enhance the parking underneath.
| Model SPL-6 | Single Post Parking Lift | |
| Lifting Capacity | 2800kg (6,000lbs) | |
| Lifting Time | 39s | |
| Overall Length | A | 2780mm(109 7/16") |
| Max. Lifting Height | B | 1870mm (73 5/8") |
| Max. Lock Height to top of Runway | 1785mm (70 1/4") | |
| Max. Height Underneath Runway | C | 1750mm (68 7/8") |
| Max. Lock Height Underneath Runway | 1665mm (65 9/16") | |
| Minimum Height | D | 155mm (6 1/8") |
| Overall Width | E | 2820mm (111") |
| Width Between Runways | F | 1077mm (42 7/16") |
| Overall Length | G | 4880mm (192 1/8") |
| Gross Weight | 1264kg (2,787lbs) | |
| Motor | 3.0HP | |
| QTY of Container |
12 Units/20'GP 24 Units/40'GP |
|
| Packing Dimension | 3980 x 540 x 775mm |
-
Manual lock release with two-stages safety locks, no extra air source required.
-
Foldable drive-on ramps come standard (each lift 2 units).
-
Optional aluminum alloy drive-in ramp (1pc), P/N: 40805
-
Fabric chain cover protects the cylinder and makes lift in good appearance.
-
Optional plastic oil tray (1 set, 4pcs), Kits No.: 40807
-
Optional rubber wheel chock (1PC), P/N: 40811
Packing dimension of column 3 units as a package;
Packing dimension of carriage connecting component and base plate 6 units as a package.( including parts box,without hydraulic power unit )
- Gross weight for SPL-6: 1264kgs , include power unit gross weight 25kgs.
- 20' container can load 12 units.
-

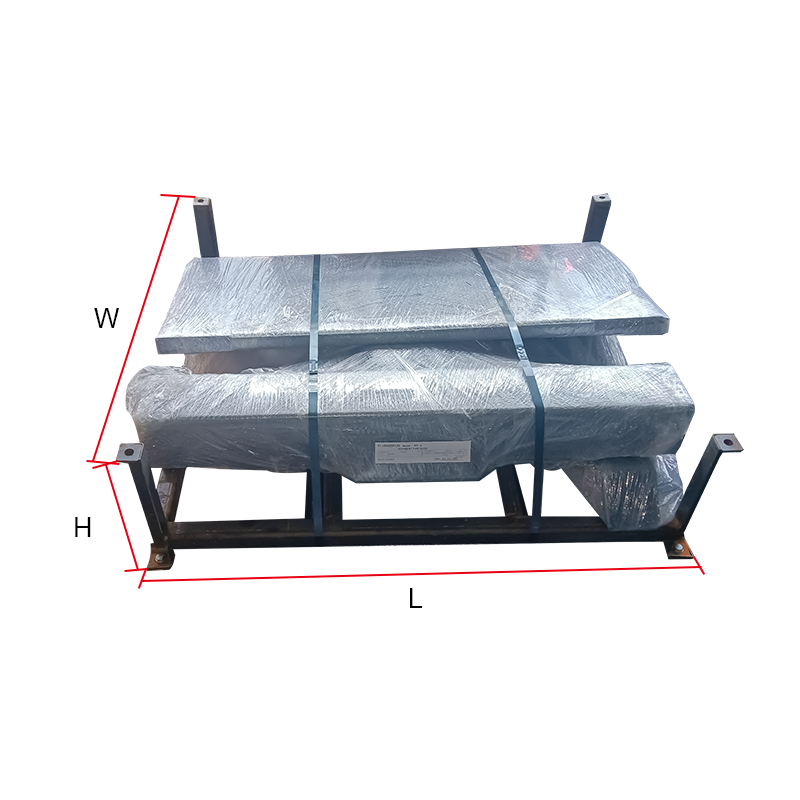

Single unit packing dimension of carriage connecting component and base plate: 1260x1050x368mm；
6 units packing dimension: 1260x1050x2208mm -

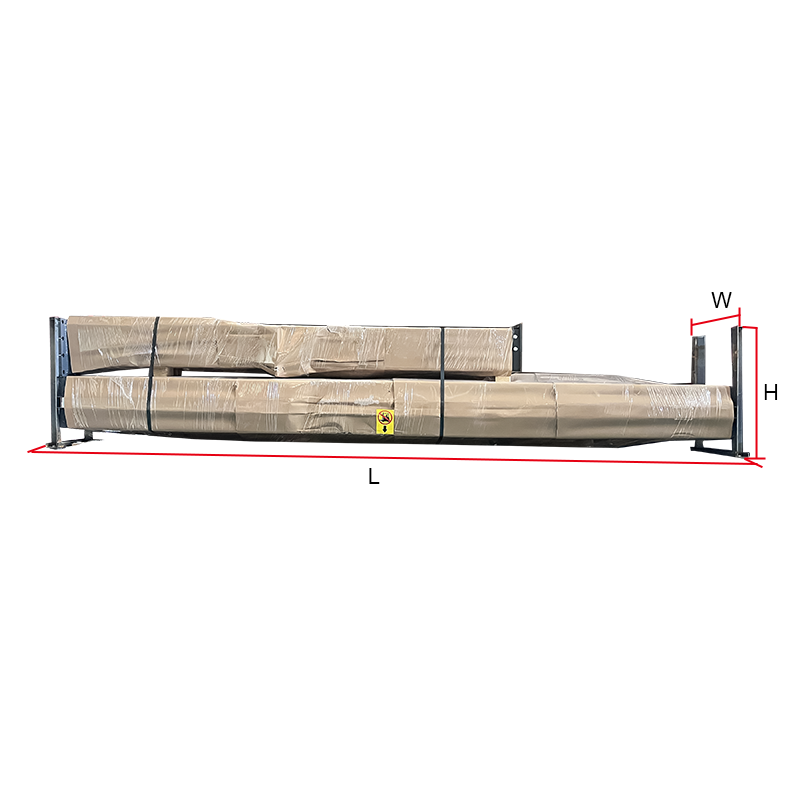

Single unit as a package
Packing dimension of column: 3980x540x772mm -

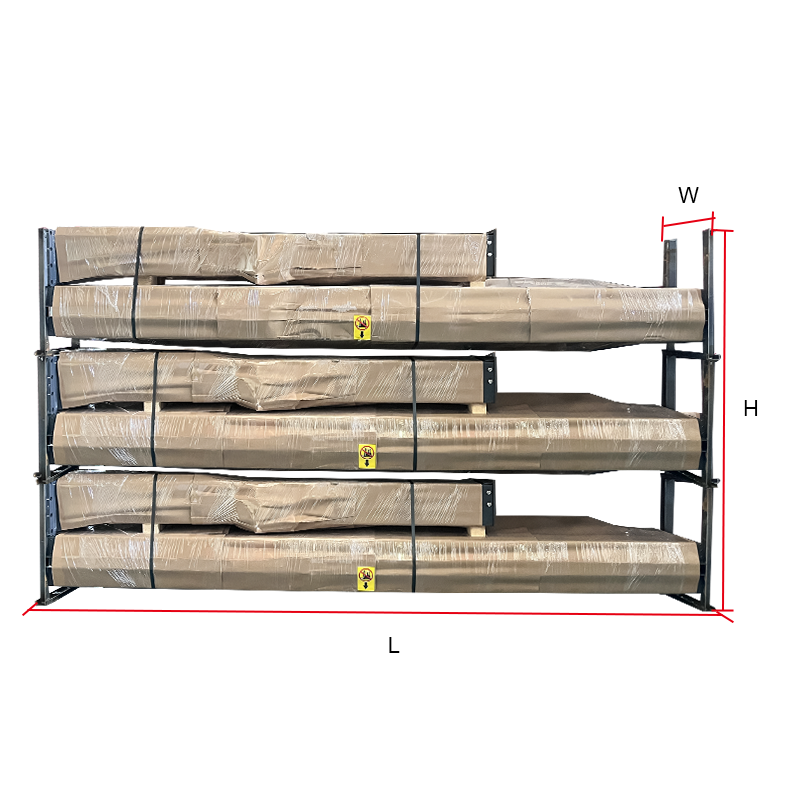

3 units as a package
Packing dimension: 3980x540x2213mm -
1 unit/ctn, power unit packing dimension: 705x300x360mm
