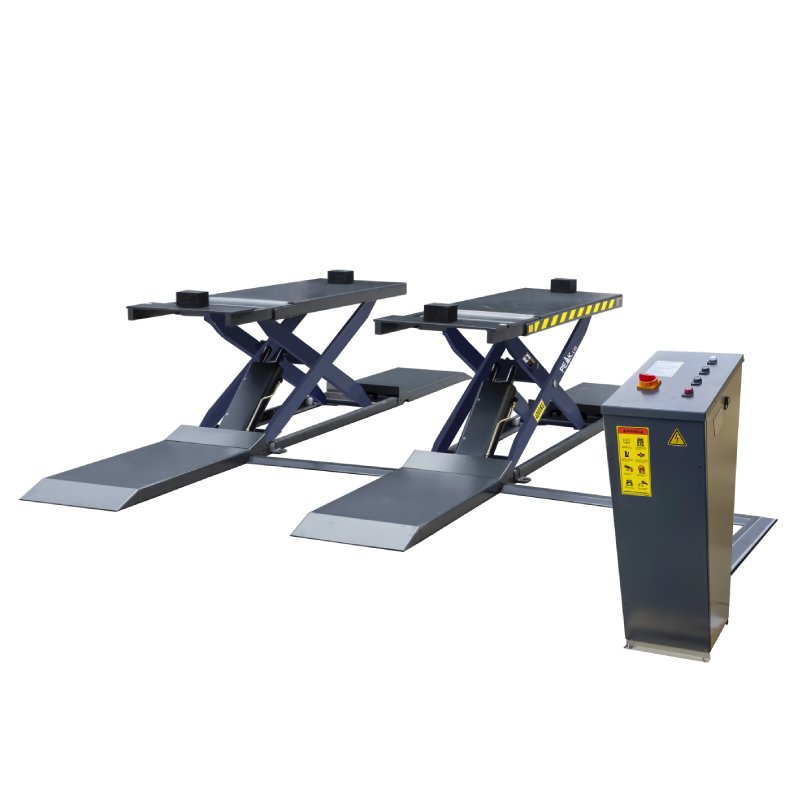

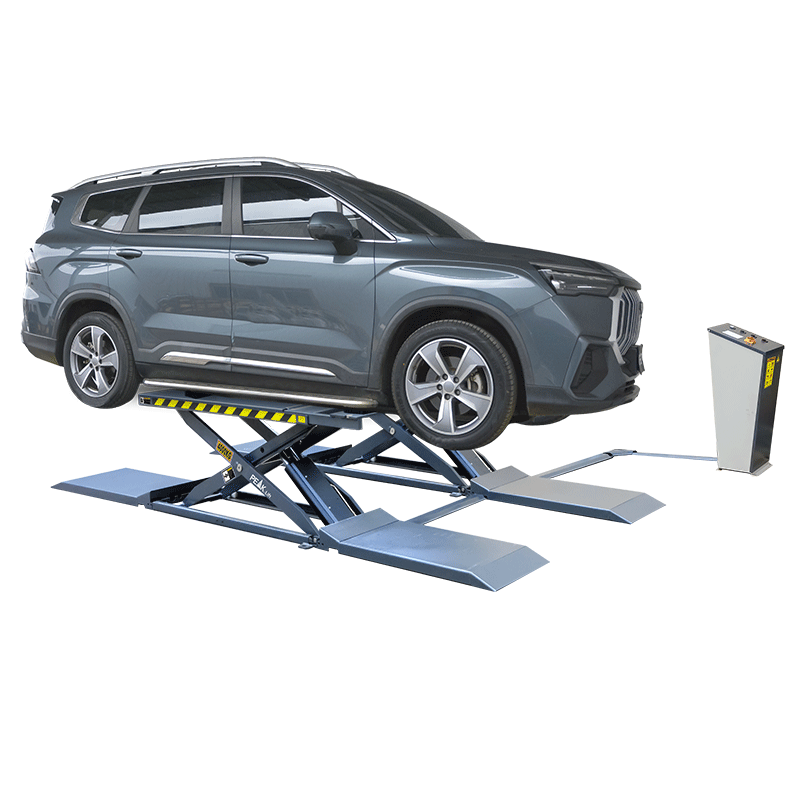

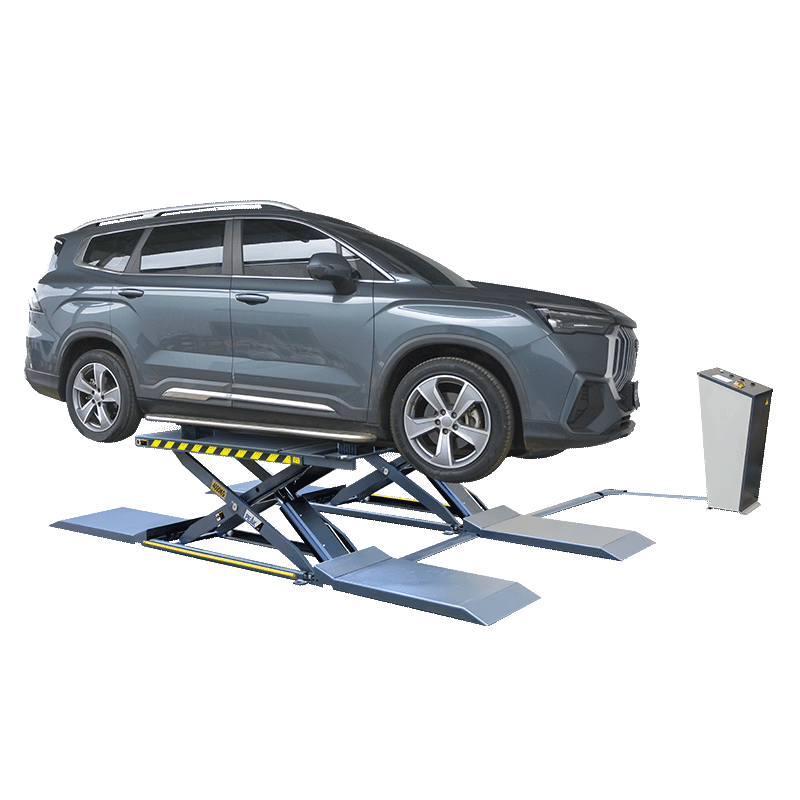

MRL-4000
Stationary Mid-rise Scissors Lift
Dependable quick-service lift
The MRL-4000 boasts 2-stage ramps, with exceptionally long primary guid ramps for easy access from both directions, even for very low chassis vehicles. Its robust design incorporates Peak hydraulic lock technology, enabling wheel-free quick service for various vehicles weighing up to 4000KG. It's the perfect stationary lift for your workshops.
- Lifting capacity: 4000kg (9000lbs);
- Low profile design with primary ramps height only 65mm;
- Dual 2-stage ramps allow for easy double entrance;
- On-surface or flush mount installation available;
- Dual oil circuit control system supported by 4 cylinders;
- Equipped with self-locking hydraulic locking system, eliminates the need for an external air source;
- Electrical control operation system, with control cabinet;
- Automatic safety stop device at 300mm from ground when lowering;
- Extendable platform can add max 400mm length from 1560mm to 1960mm.
| Model | MRL-4000 | |
| Lifting Capacity | 4000kg (9,000lbs) | |
| Lifting Time | 29s | |
| Max. Lifting Height | A | 1200mm (47 1/4") |
| Minimum Height | B | 140mm (5 1/2") |
| First Stage Rmap Height | C | 65mm (2 1/2") |
| Overall length (Inc Ramp) | D | 3980mm (156 3/4") |
| Overall Width | E | 1950mm (76 3/4") |
| Width Between Runways | F | 750mm (29 1/2") |
| Runway Length | G | 1560-1960mm (61 3/8" - 77 1/8") |
| Gross Weight | 811kg (1,788lbs) | |
| Motor | 3.0HP | |
| QTY of Container | 26 Units/20'GP | |
| Packing Dimension | 1710 x 620 x 640 mm (Lift) | |
| Packing Dimension | 1250 x 478 x 428 mm (Control Cabinet) |
-

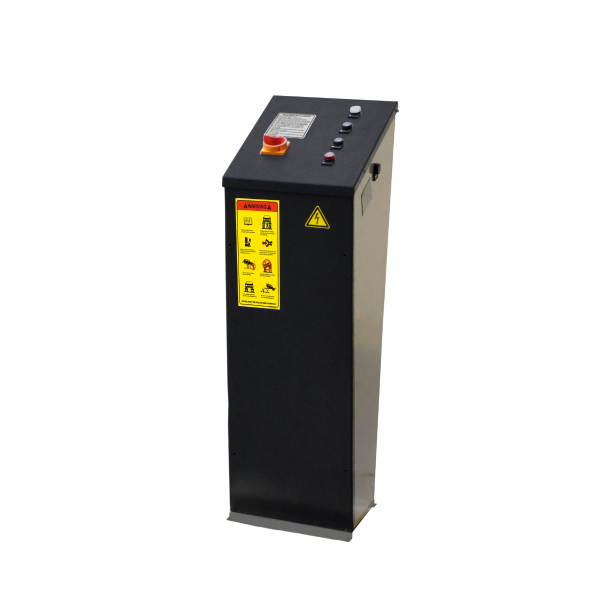

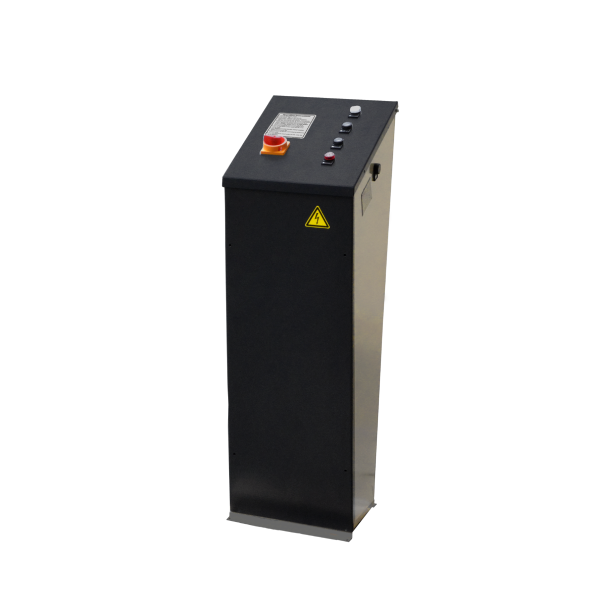

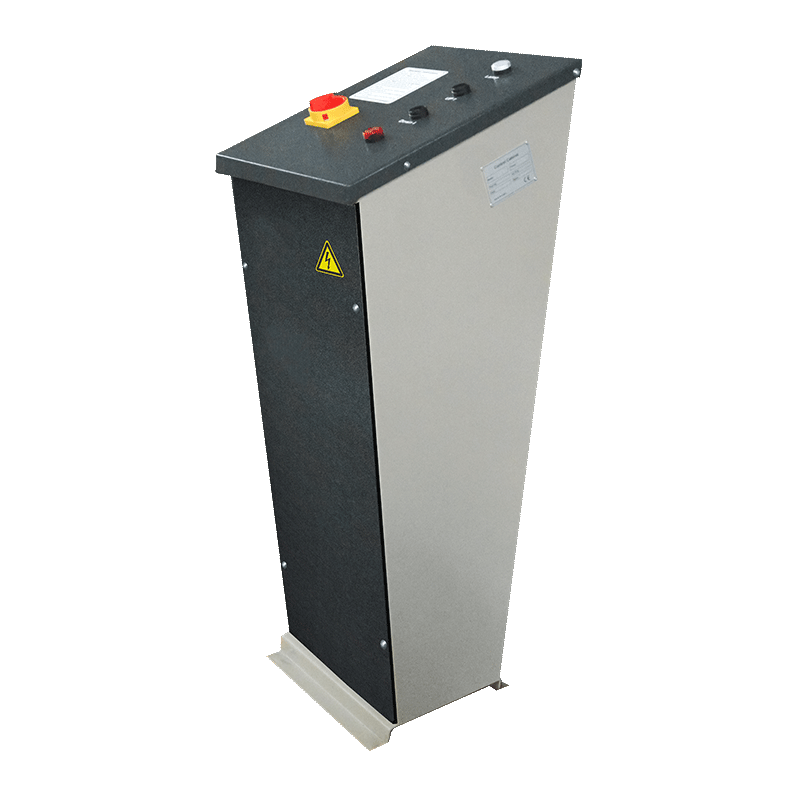

Comfortable operation with 24V control cabinet.
-

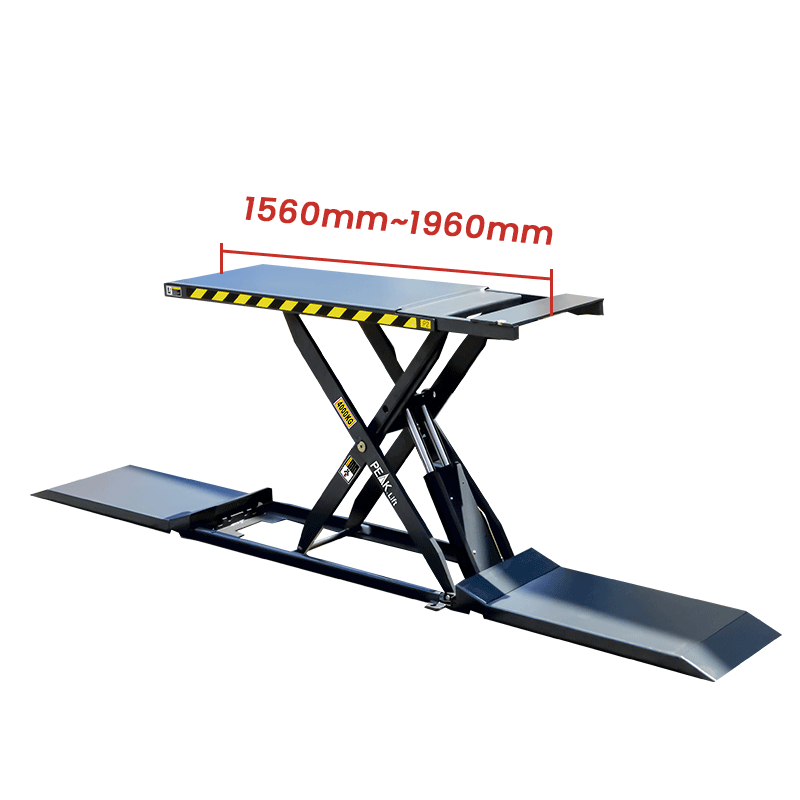

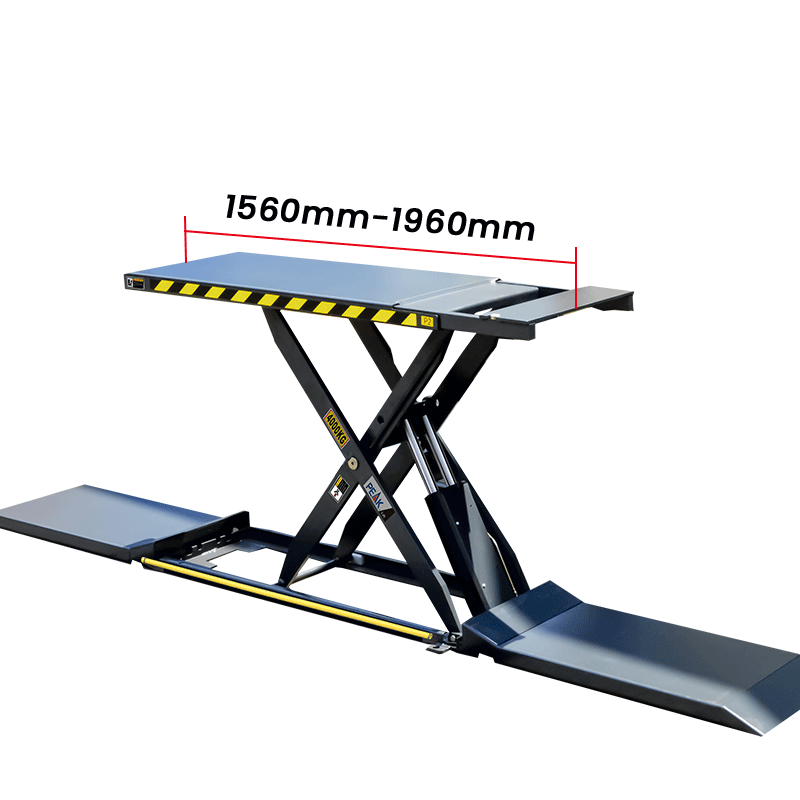

Extendable platforms from 1560mm to 1960mm.
-

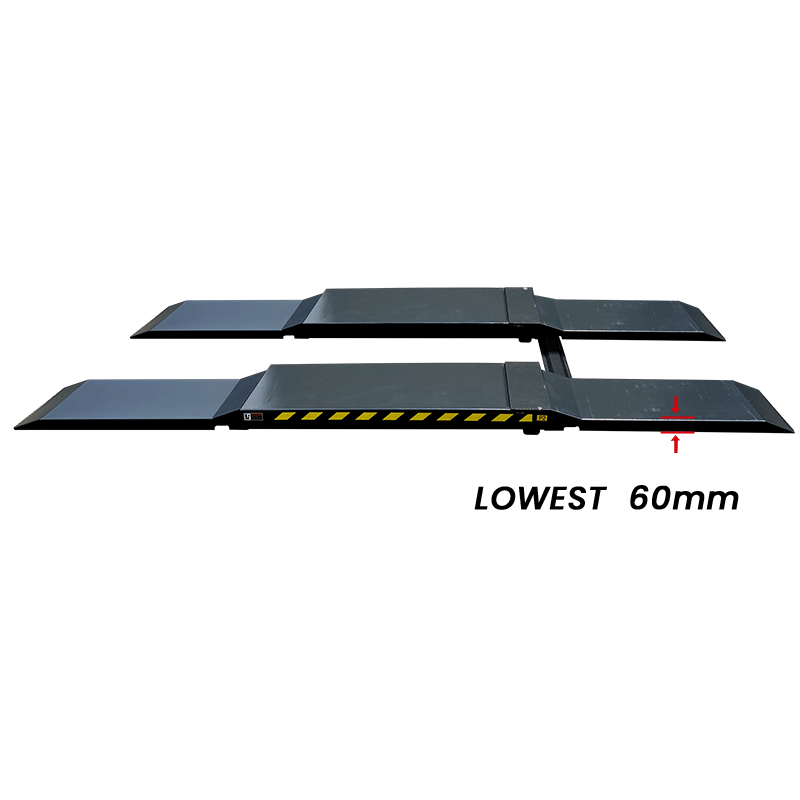

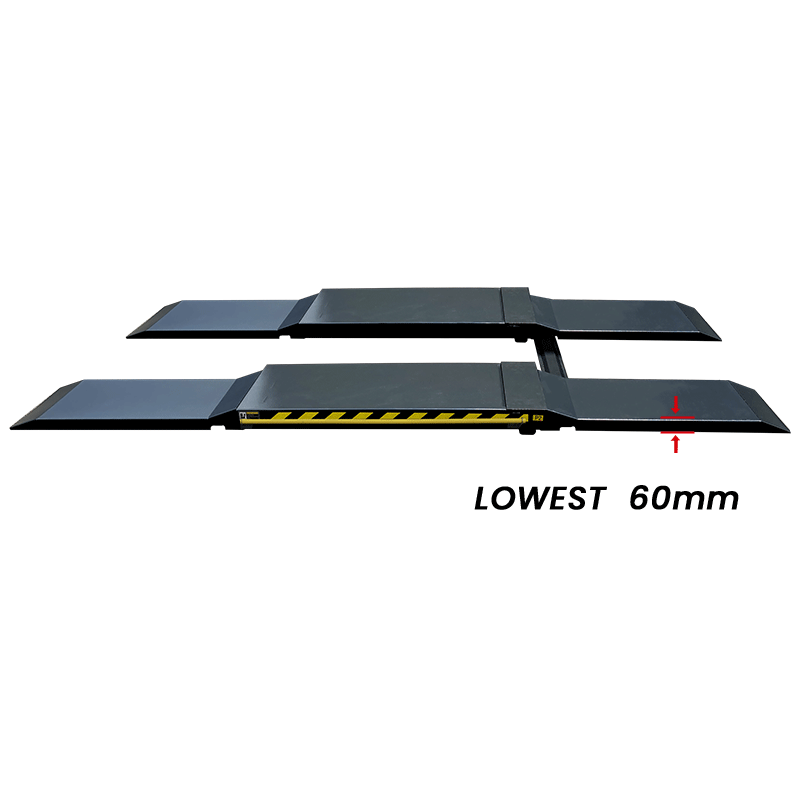

Only 65mm (2 1/2") height for primary guide ramps.
-

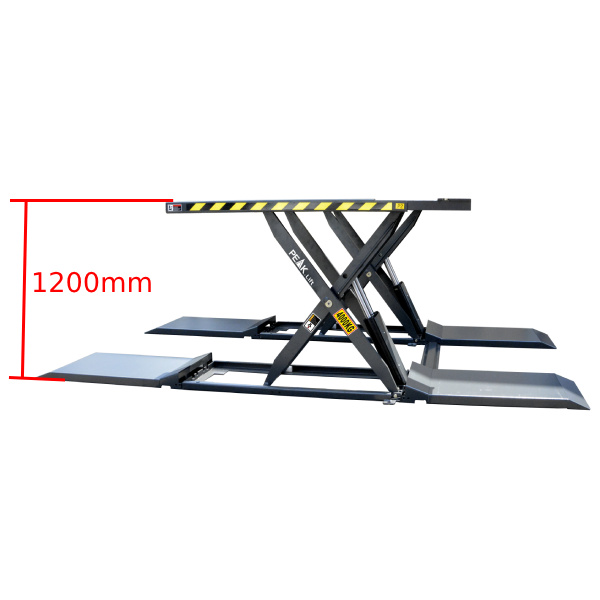

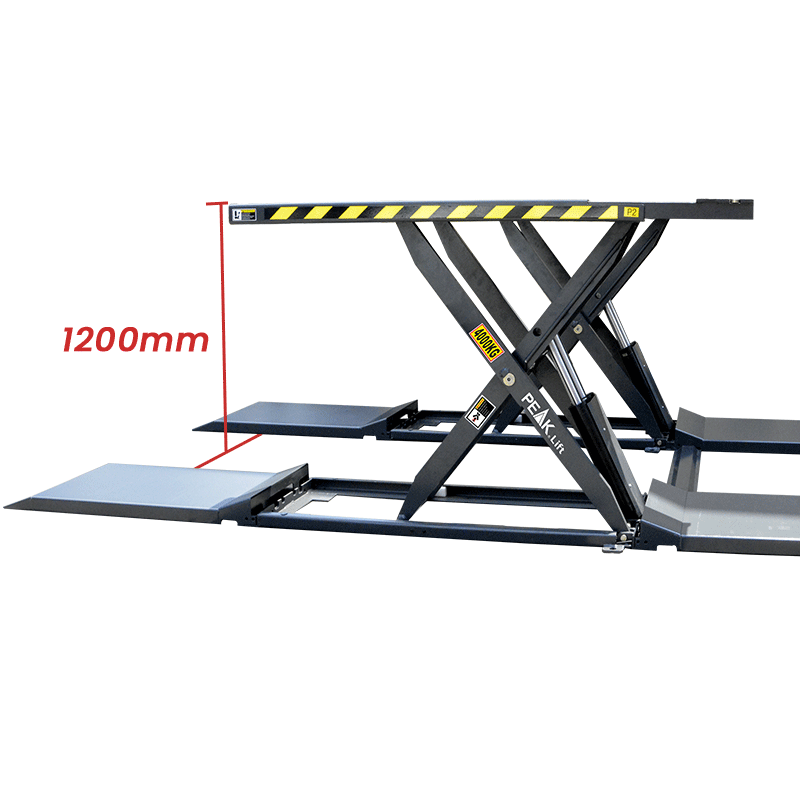

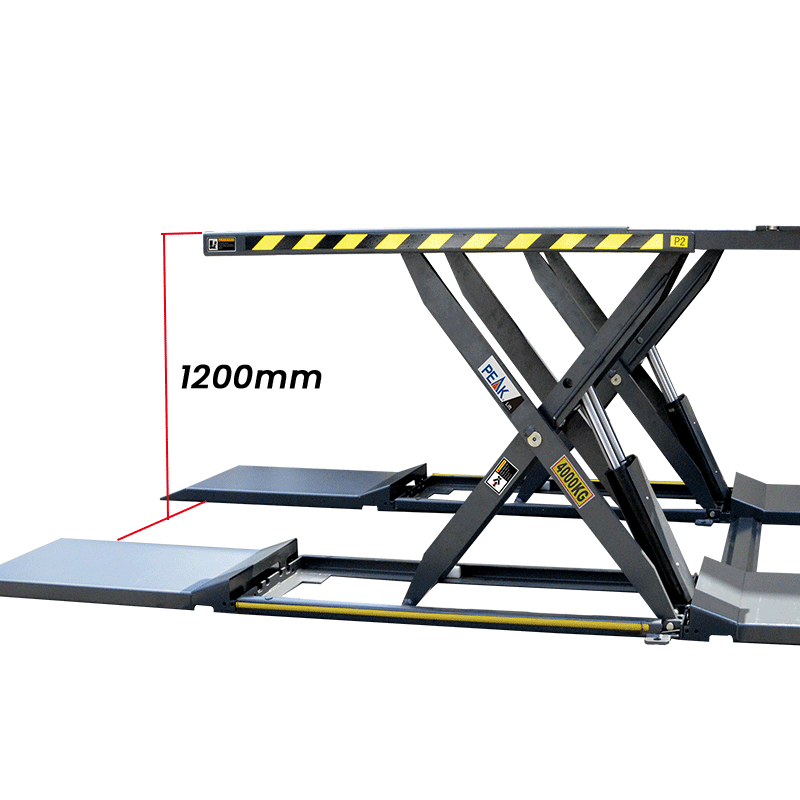

Max lifting height 1200mm.
Fast lifting in 29s. -

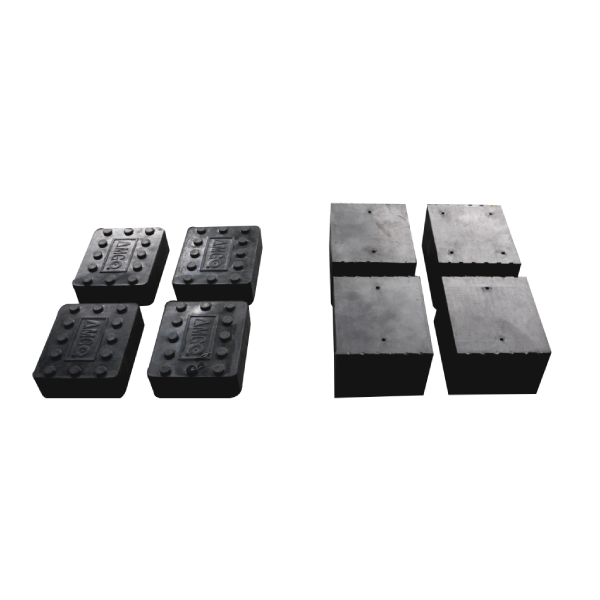

Both 38mm (1 1/2") and 70mm (3") height rubber pads included as standard supply.
-

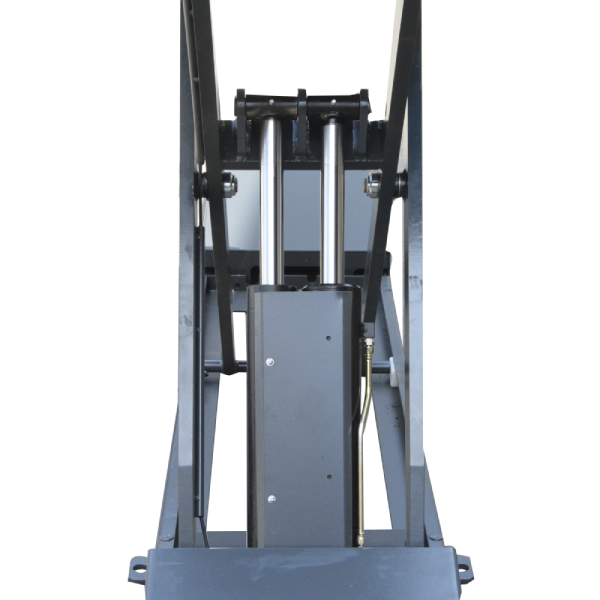

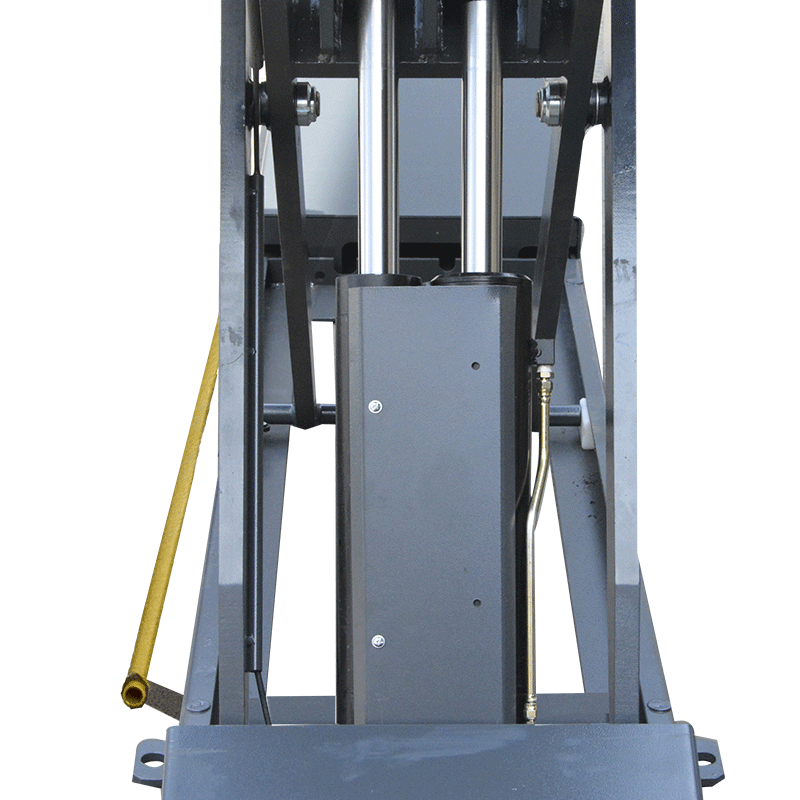

Dual hydraulic synchronization & hydraulic locking system.
3 units as a package ( including parts box,without control cabinet)
- Gross weight for MRL-4000: 811kgs , include control cabinet gross weight 69kgs.
- Packing measurement (Lx WxH): 1710 x 620 x 640mm.
- 20' container can load 26 units.
-

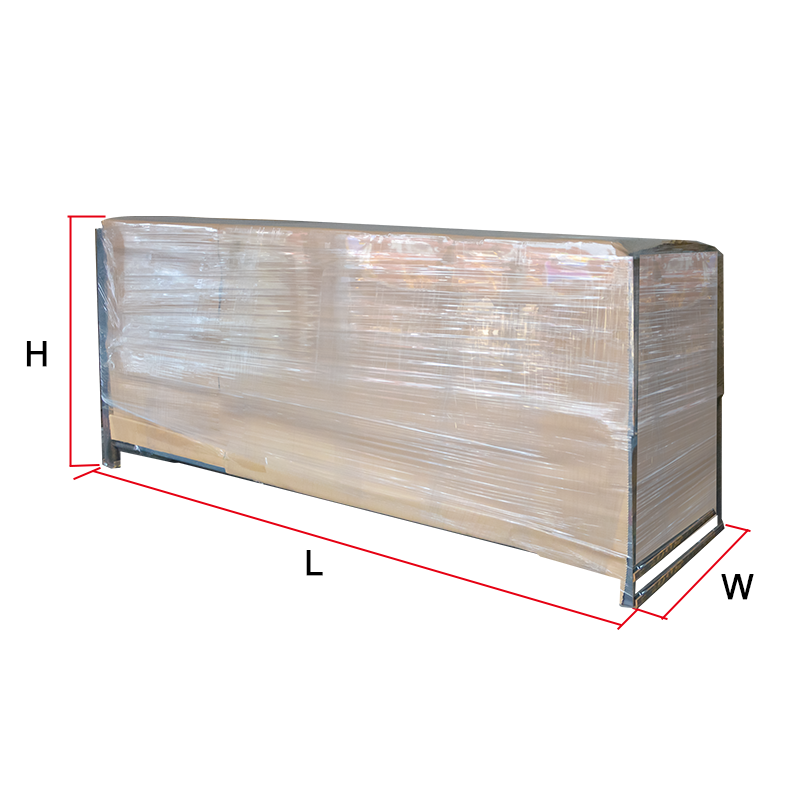

1 unit/package,packing measurement (LxWxH): 1705x610x660mm
-

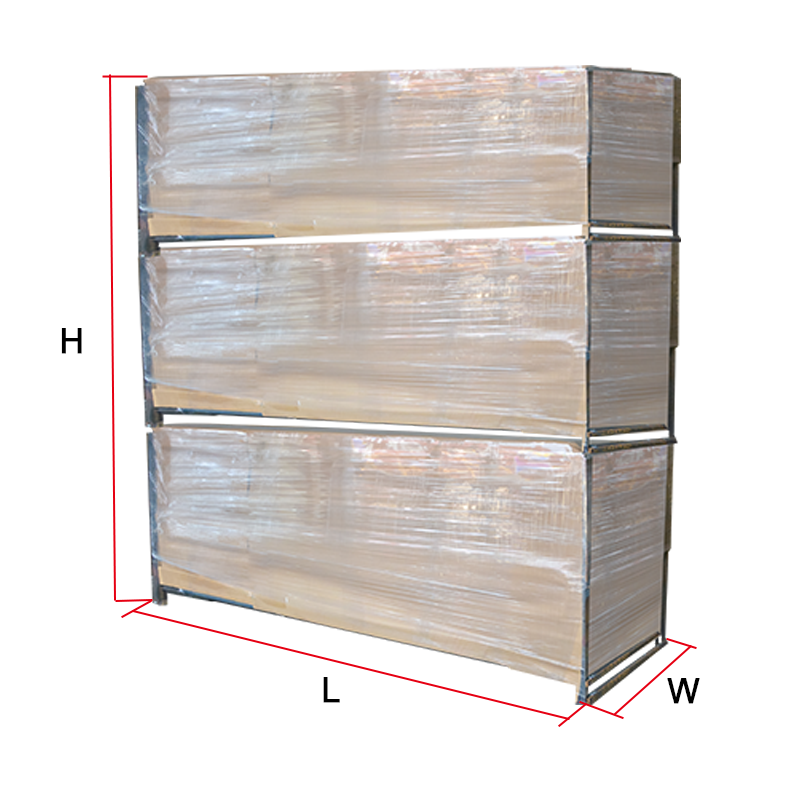

3 units/package, packing measurement (LxWxH): 1705x610x2010mm
-

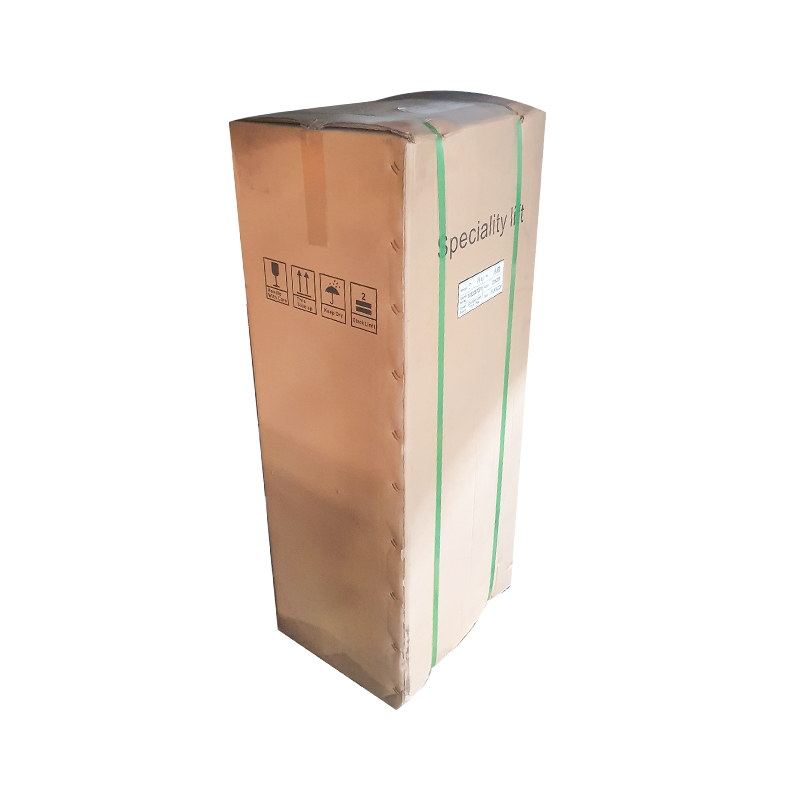

1 unit/ctn,packing measurement (LxWxH): 478x428x1235mm
-
Attention to forklift loading and unloading
