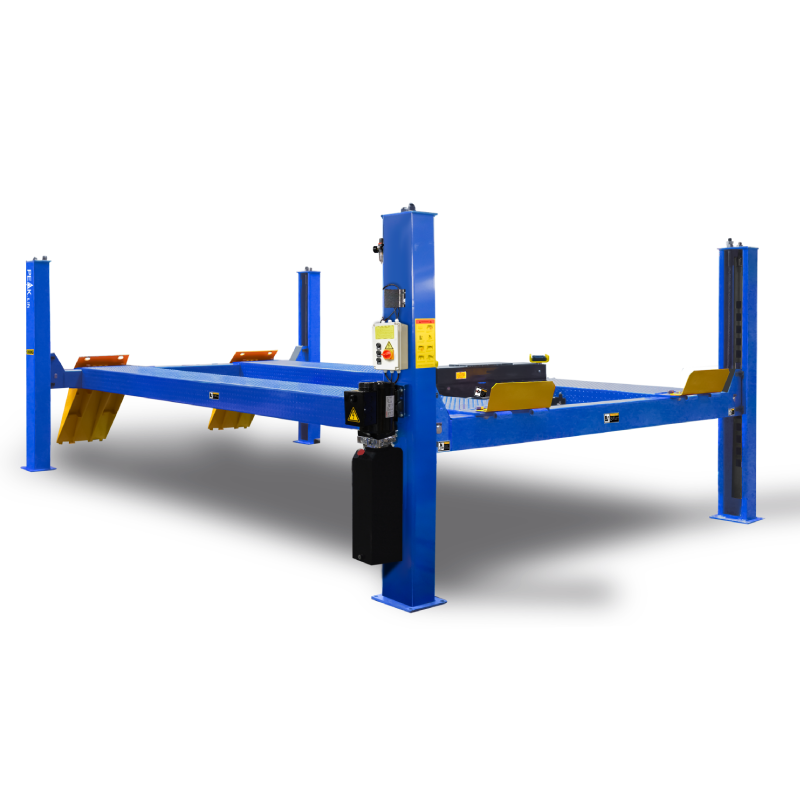

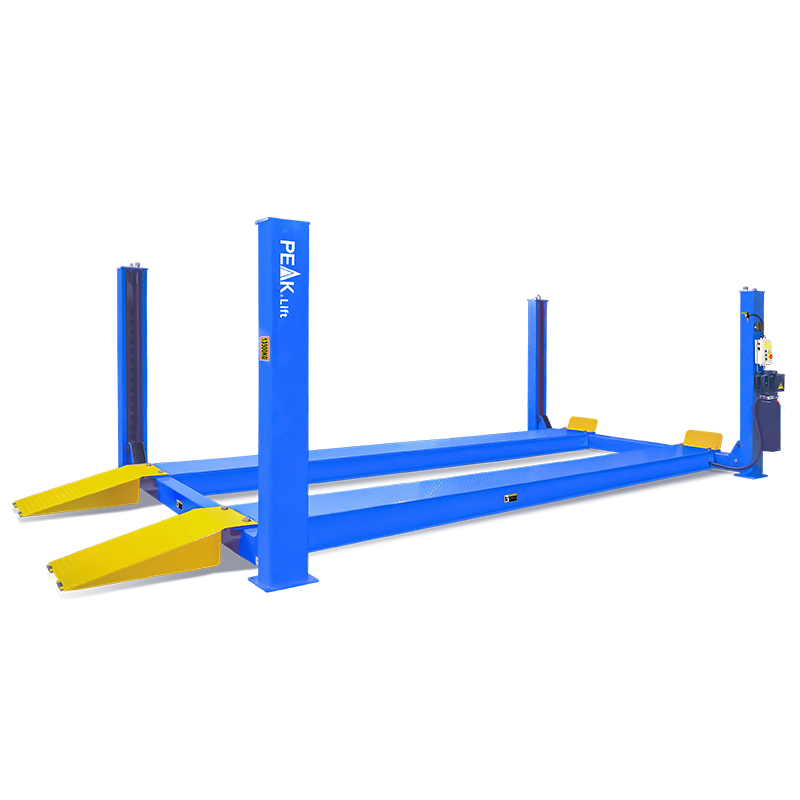

430E
Super Duty General Service Four Post Lift
Extended comfort
PEAK 430E is constructed with a reinforced universal beam structure, offering an additional 1500mm in length compared to the 430 model. This design enhancement allows for the lifting of longer super duty vehicles and enhances overall comfort.
- Super design, 13500KG (30,000 lbs) capacity;
- General service design, accommodate various vehicles;
- Features extreme long platforms, 1500mm longer than 430;
- 24V safe electrical operation system;
- Width between platforms offer two options to fit various vehicles; ;
- Integrated non-skid diamond platforms;
- Standard self-locking mechanical lock and air-drive safety lock;
- Standard primary safety locks and cable-slack protection mechanism;
- High quality hydraulic cylinder design and manufactured at high standard.
| Model 430E | Super Duty General Service Four Post Lift | |
| Lifting Capacity | 13500kg (30,000 Ibs) | |
| Lifting Time | 116s | |
| Overall Length (Inc Ramps) | A | 9300mm (366 1/8") |
| Overall Length (No Ramps) | B | 8014mm (315 1/2") |
| Overall Width | C | 3794mm (149 3/8") |
| Width Between Columns | D | 3348mm (131 13/16") |
| Max. Lifting Height | E | 1920mm(75 9/16") |
| Max. Lock Height to top of runway | 1820mm(71 11/16") | |
| Overall Height | F | 2332mm(91 13/16") |
| Minimum Height | G | 240mm (9 7/16") |
| Max. Underneath Height | H | 1694mm (66 11/16") |
| Max. Lock Underneath Runway | 1595mm (62 3/4") | |
| Drive-Thru Clearance | I | 2992mm (117 13/16") |
| Width Between Runways | J |
1140mm (44 7/8")/1390mm(54 3/4") |
| Outside Edge of Runways | K |
2360mm (92 15/16")/2610mm(102 3/4") |
| Gross Weight | 3040kg (6,702lbs) | |
| Motor | 4.0HP | |
| Packing Dimension | 8060 x 620 x 1000mm |
-

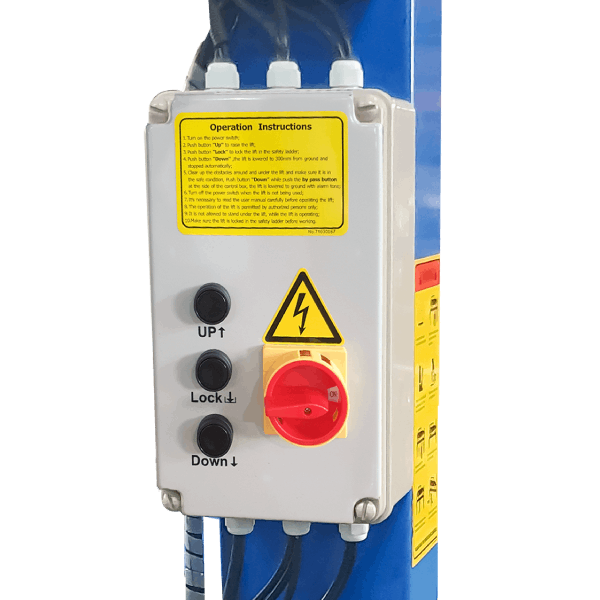

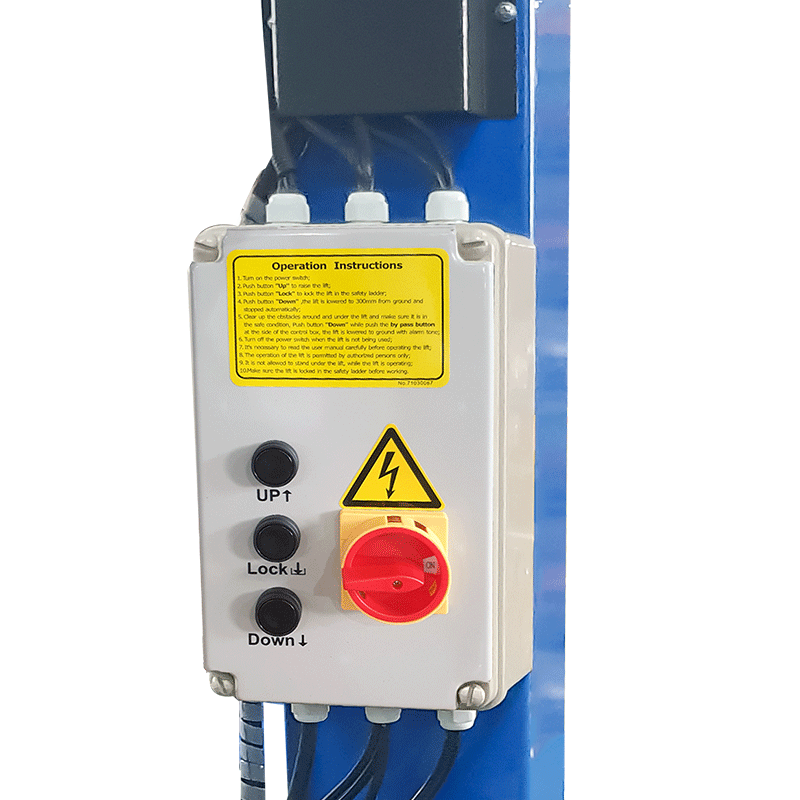

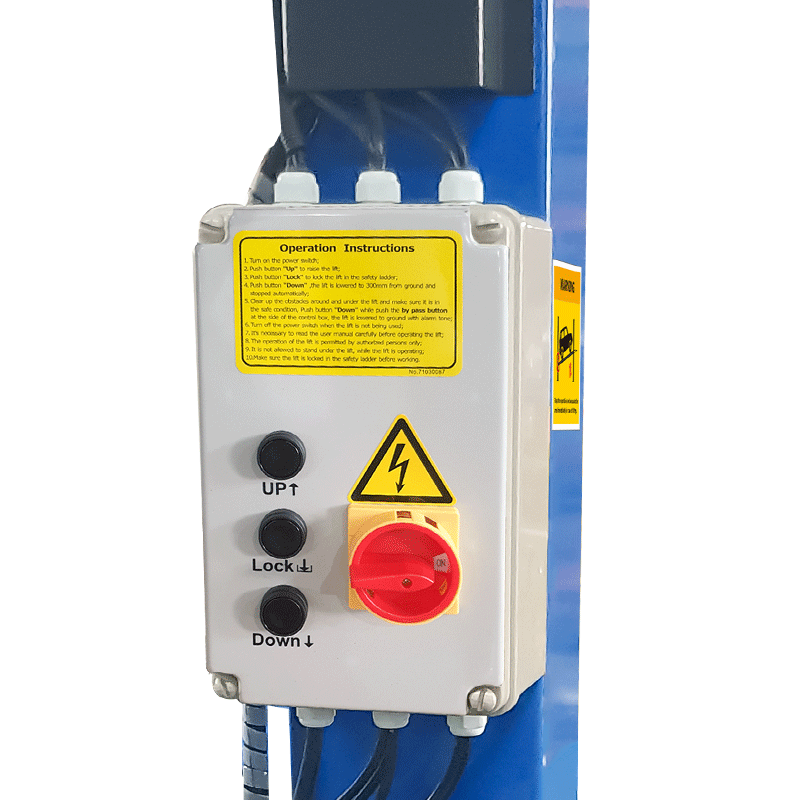

Electric control device with UP, LOCK and DOWN buttons.
-

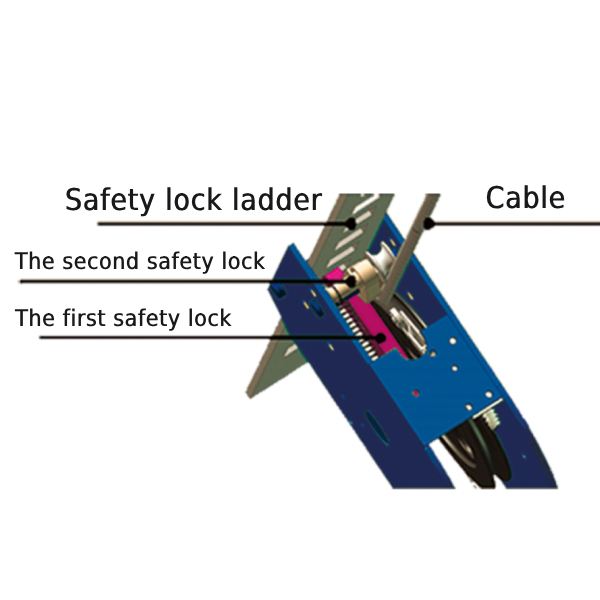

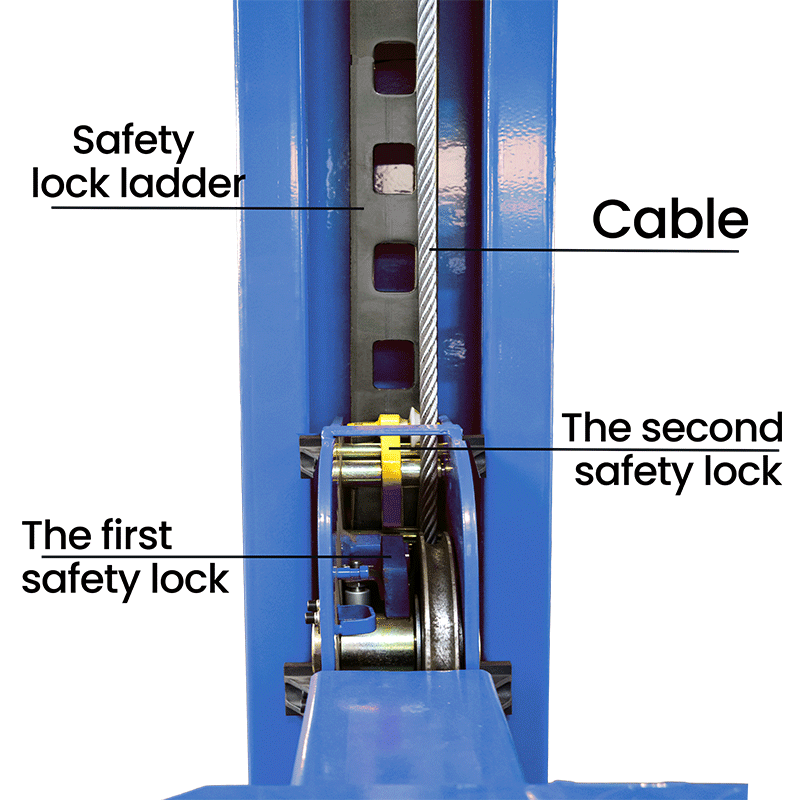

Double safety locks provide additional safety.
-
Oil-water separator and solenoid air valve are installed on the power side column.
-
Non-slip diamond platforms come as standard.
-

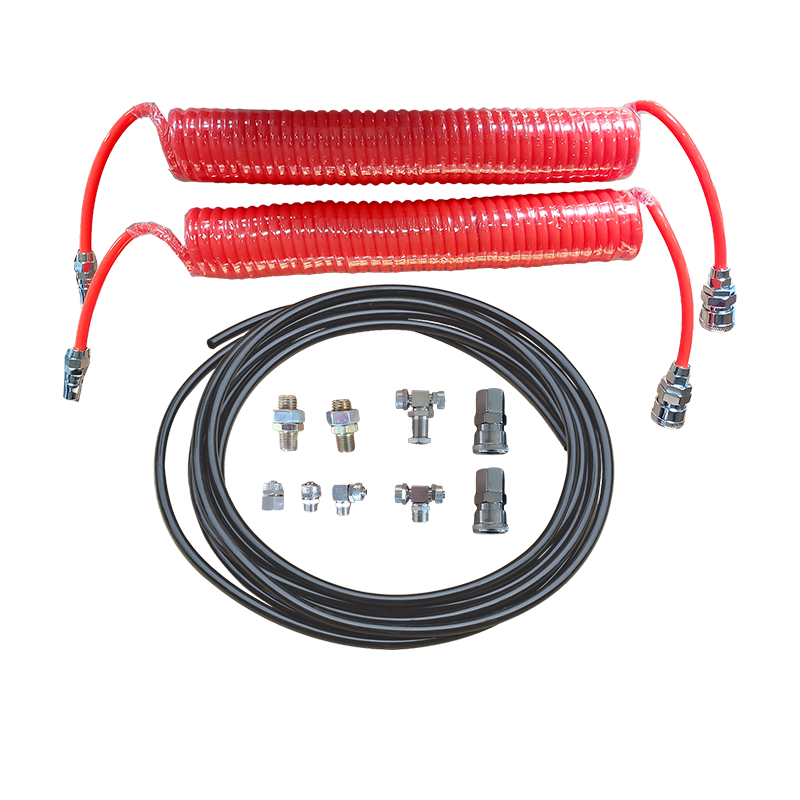

Optional Air Line Kits
All peak four post lifts are designed to use the air line kits for rolling jack.
Kits No.: 40106 -
Optional Platform extension kits add an extra 737mm (29") length to the platform.
Kits No.: 43001 -

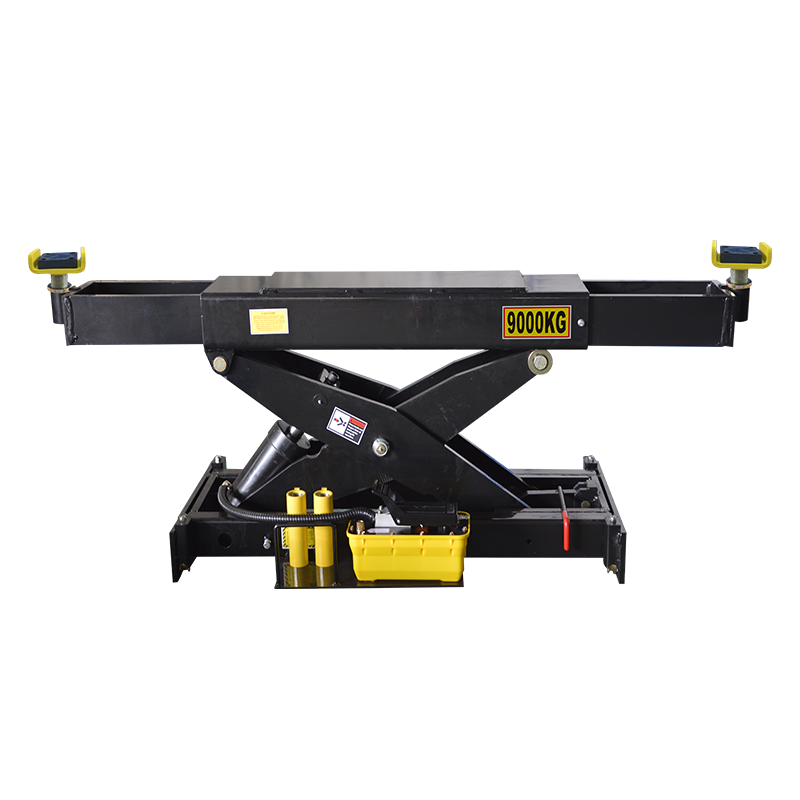

Optional Rolling Jacks
RJ-20A: pneumatic hydraulic type 9,000kg.
1 or 2 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 430E: 3040kgs , include power unit gross weight 40kgs.
- 40' container can load 6 units.
-

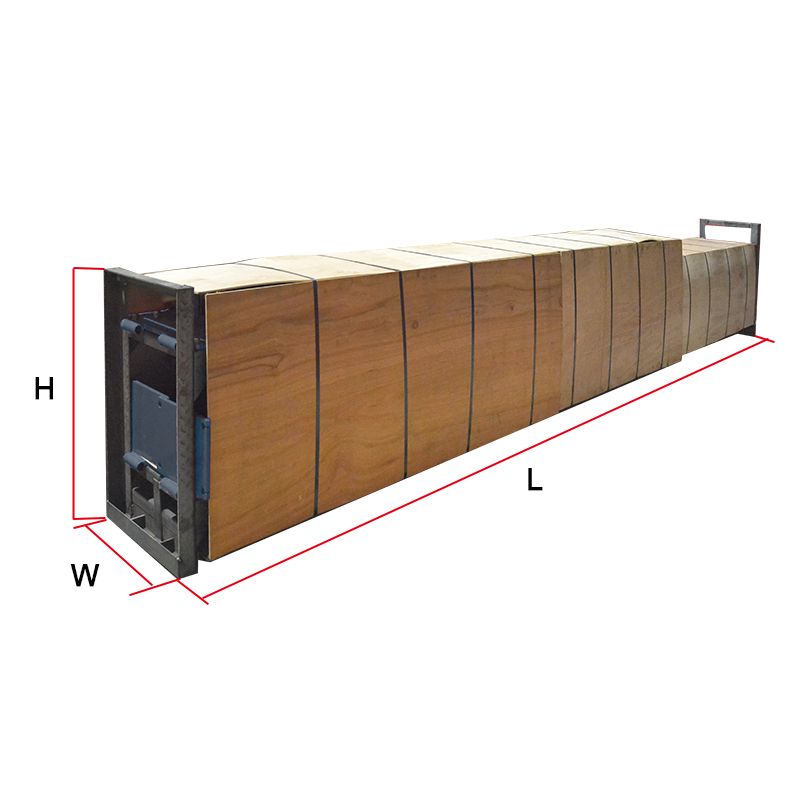

1 unit/package,packing measurement (LxWxH): 8060x660x1000mm
-

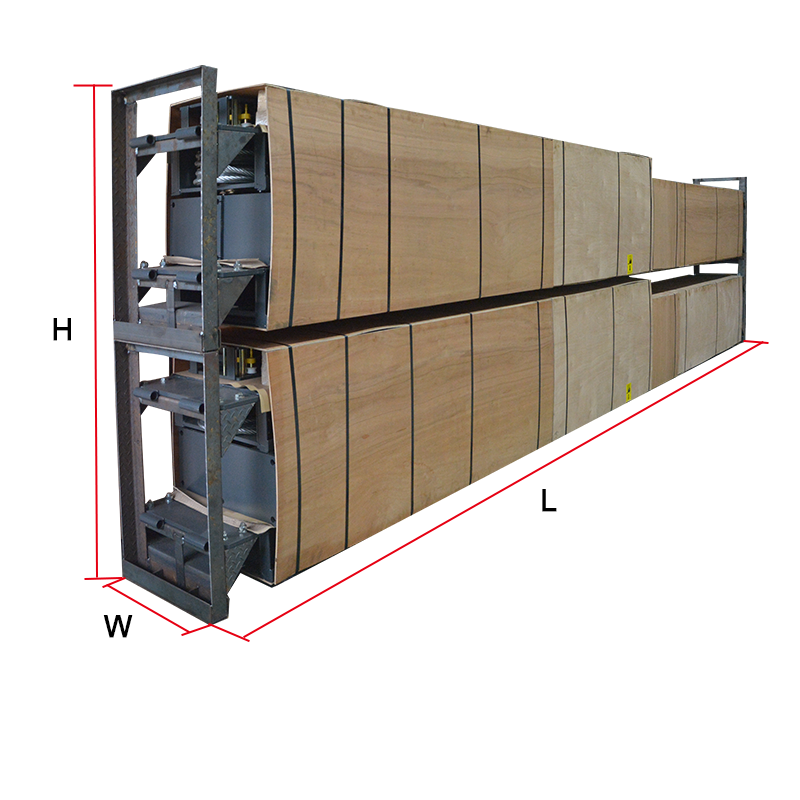

2 units/package, packing measurement (LxWxH): 8060x660x2000mm
-
1 unit/ctn,packing measurement (LxWxH): 1005x300x360mm
-

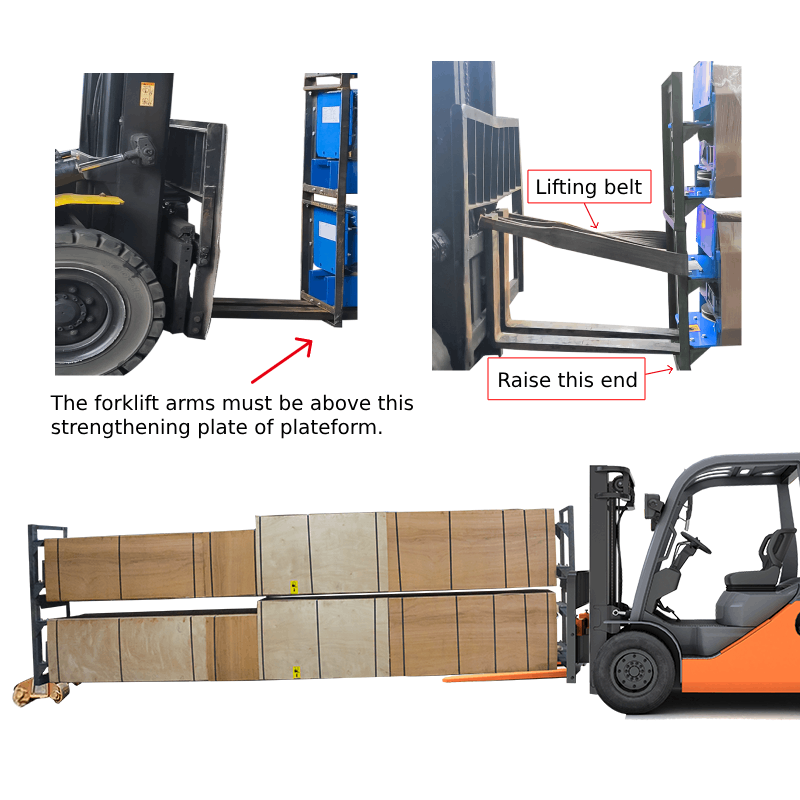

Use a forklift to lift up one end of the machine about 50-100mm from the ground, and pull the machine out from the container with the assistance of lifting belt or other cables.
-

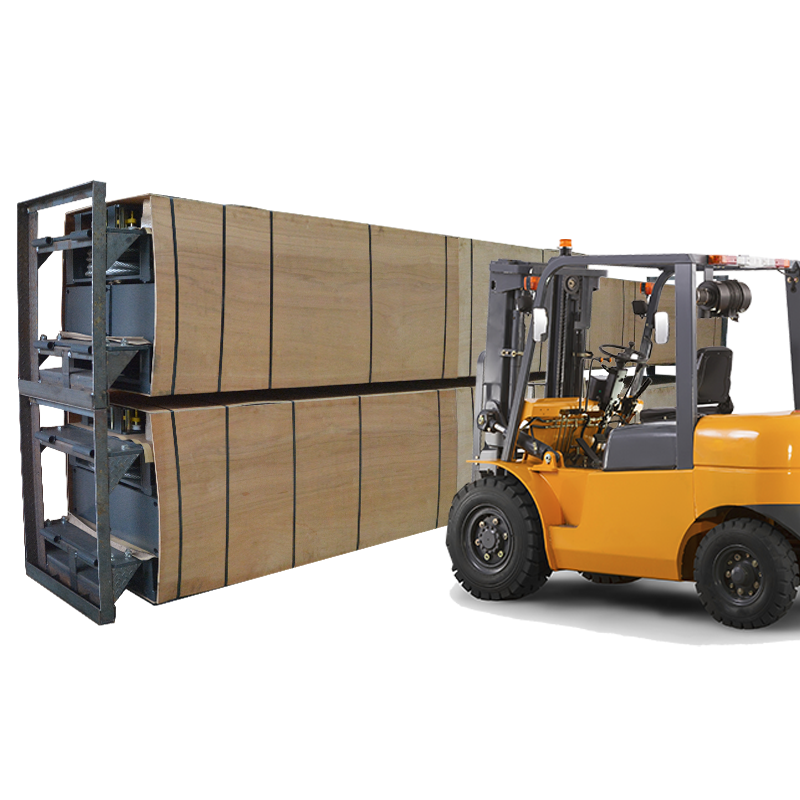

After the machine is pulled out from the container, use the forklift to lift the machine from the middle position.
-
Wrong operation: It is not allowed to use the forklift to lift the machine completely from one end, which will easily cause the machine to be deformation.
