440

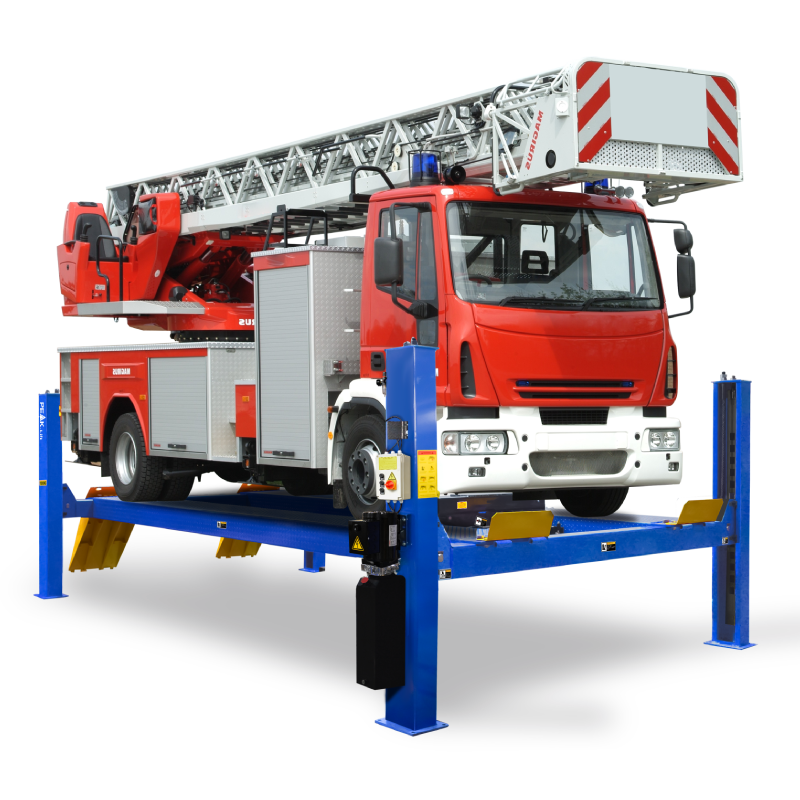

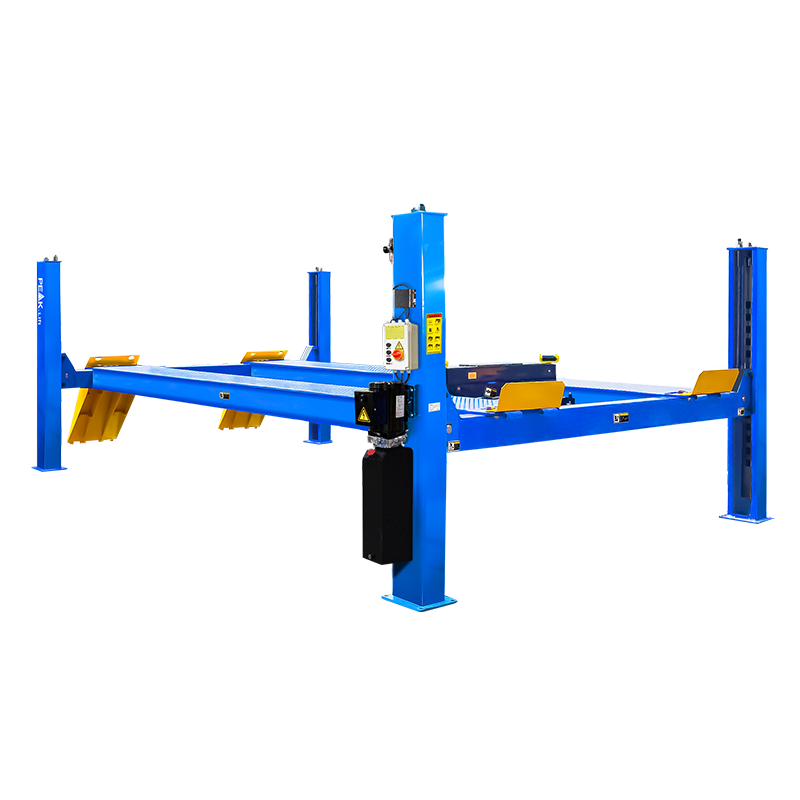

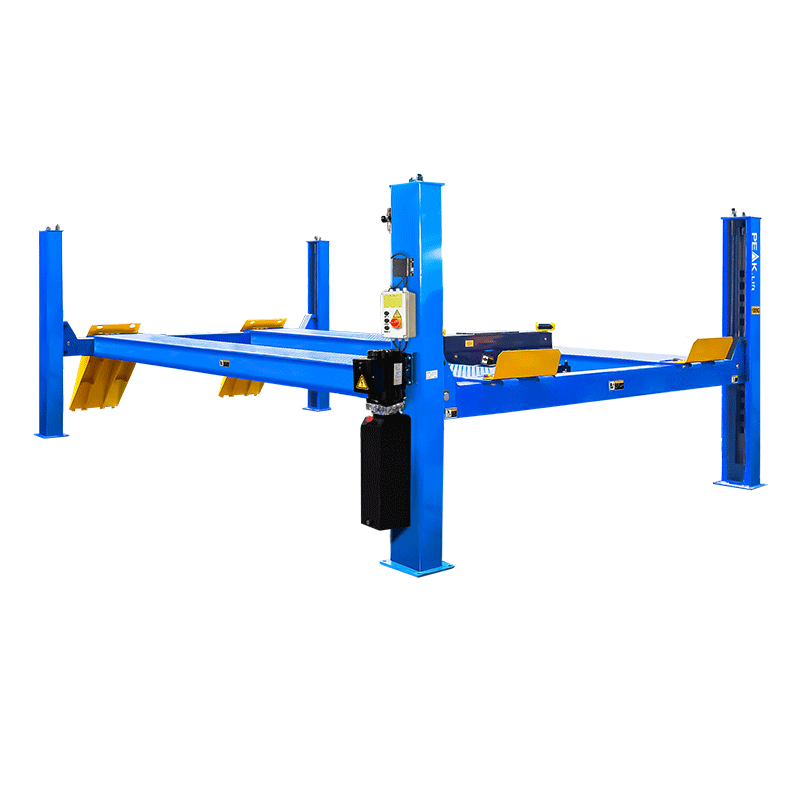

Super Duty General Service Four Post Lift
Absolutely surpass expection
PEAK 440 absolutely surpasses your expectations.It can effortelessly handle nearly any massive heavy vehicles with a capcity of 18000KG. It embodies PEAK'S leading technologies on safety, top perfermance and user-friendly operations.
- Super duty design, 18000KG (40,000 lbs) capacity;
- General service design, accommodate various vehicles;
- 24V safe electrical operation system;
- Width between platforms offer two options to fit various vehicles; ;
- Integrated non-skid diamond platforms;
- Standard self-locking mechanical lock and air-drive safety lock;
- Standard primary safety locks and cable-slack protection mechanism;
- High quality hydraulic cylinder design and manufactured at high standard.
| Model 440 | Super Duty General Service Four Post Lift | |
| Lifting Capacity | 18000kg (40,000 Ibs) | |
| Lifting Time | 160s | |
| Overall Length (Inc Ramps) | A | 9300mm (366 1/8") |
| Overall Length (No Ramps) | B | 8014mm (315 1/2") |
| Overall Width | C | 4100mm (161 7/8") |
| Width Between Columns | D | 3654mm (143 13/16") |
| Max. Lifting Height | E | 1924mm(75 3/4") |
| Max. Lock Height to top of runway | 1820mm(71 11/16") | |
| Overall Height | F | 2332mm(91 13/16") |
| Minimum Height | G | 244mm (9 5/8") |
| Max. Underneath Height | H | 1698mm (66 7/8") |
| Max. Lock Underneath Runway | 1595mm (62 3/4") | |
| Drive-Thru Clearance | I | 3298mm (129 7/8") |
| Width Between Runways | J |
1246mm (49 1/16")/ 1496mm(58 7/8") |
| Outside Edge of Runways | K |
2666mm (104 15/16")/ 2916mm(114 13/16") |
| Gross Weight | 3784kg (8,342lbs) | |
| Motor | 4.0HP | |
| Packing Dimension | 8060 x 720 x 1000mm |
-

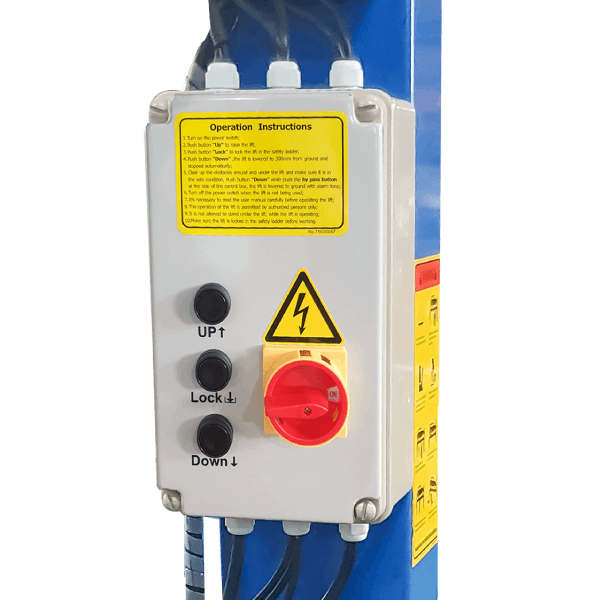

Electric control device with UP, LOCK and DOWN buttons.
-

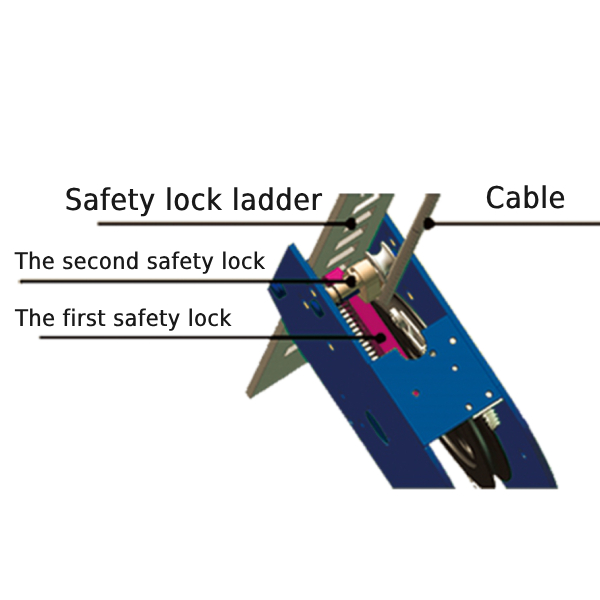

Double safety locks provide additional safety.
-
Oil-water separator and solenoid air valve are installed on the power side column.
-

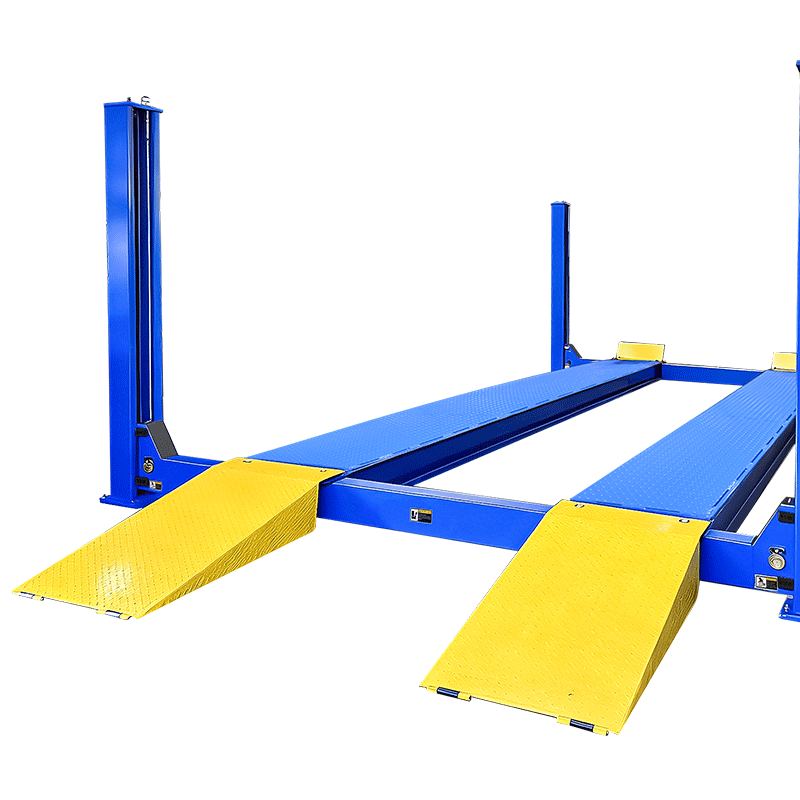

Non-slip diamond platforms come as standard.
-

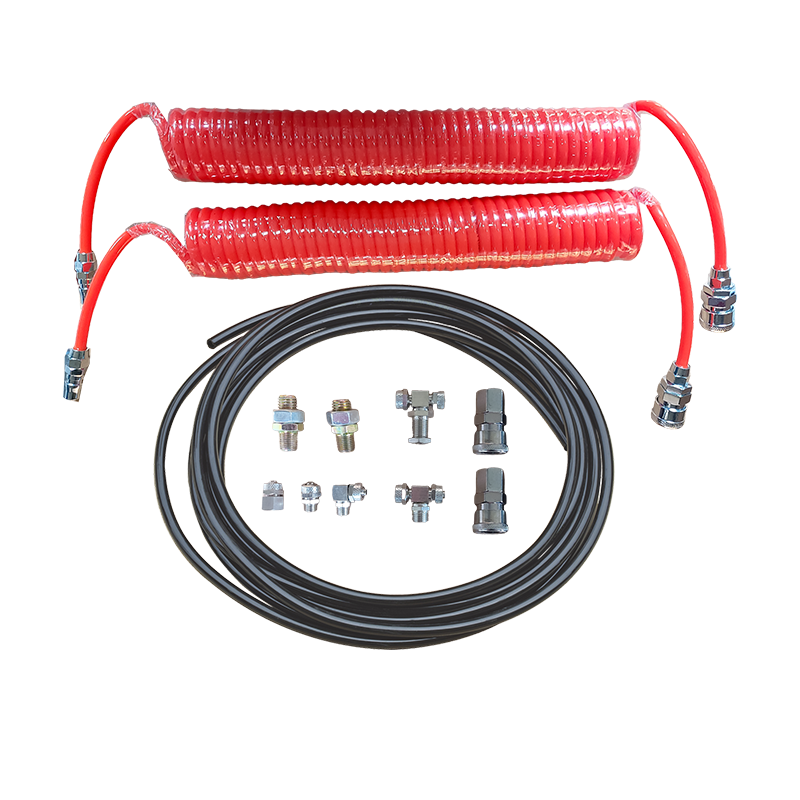

Optional Air Line Kits
All peak four post lifts are designed to use the air line kits for rolling jack.
Kits No.: 40106 -

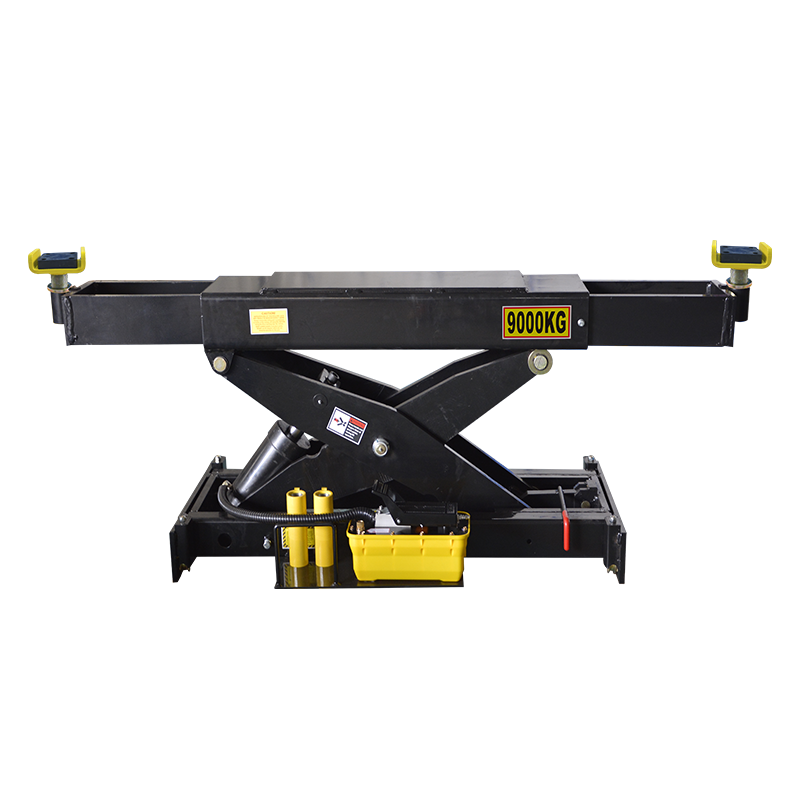

Optional Rolling Jacks
RJ-20A: pneumatic hydraulic type 9,000kg.
1 or 2 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 440: 3784kgs , include power unit gross weight 40kgs.
- 40' container can load 6 units.
-

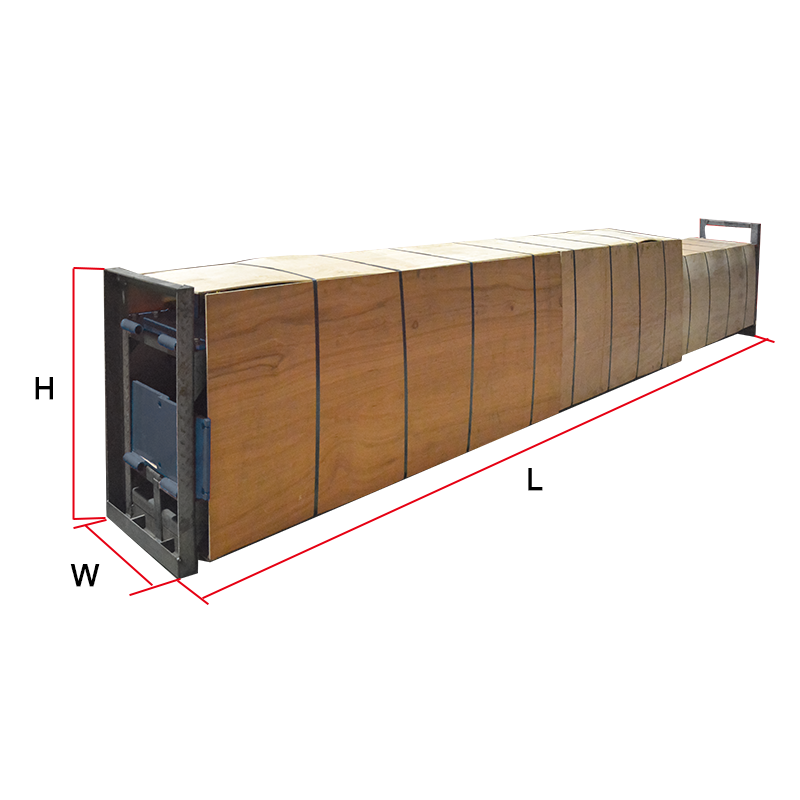

2 units/package,packing measurement (LxWxH): 8060x760x1030mm
-

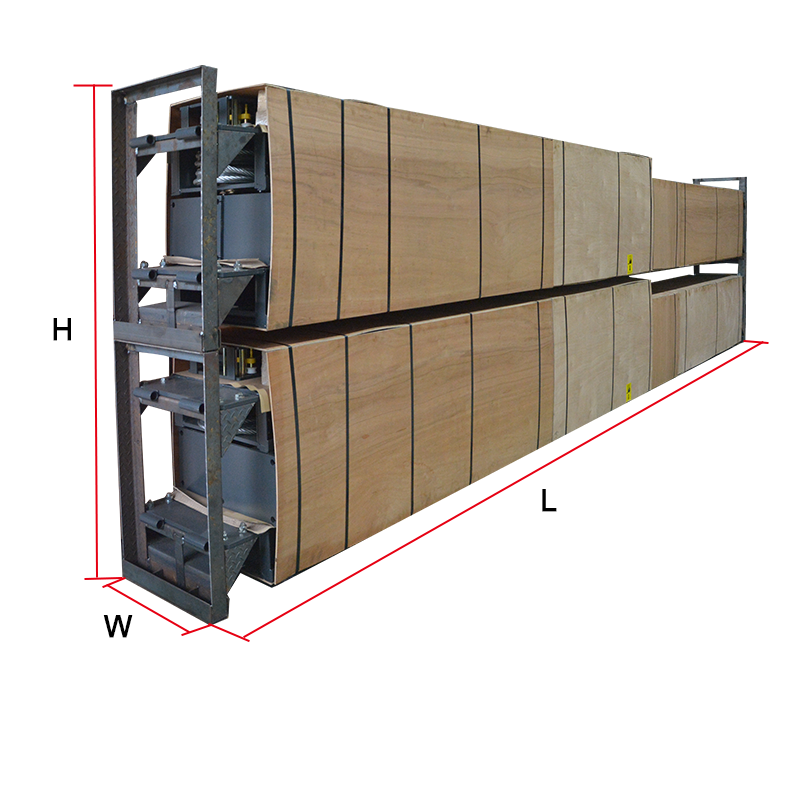

3 units/package, packing measurement (LxWxH): 8060x760x2030mm
-
1 unit/ctn,packing measurement (LxWxH): 1005x300x360mm
-

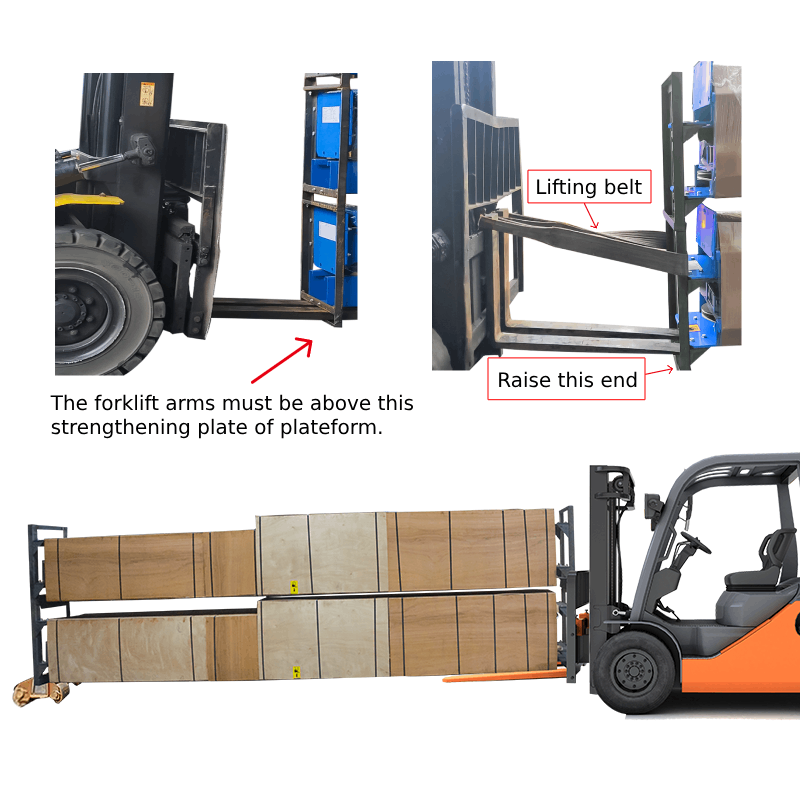

Use a forklift to lift up one end of the machine about 50-100mm from the ground, and pull the machine out from the container with the assistance of lifting belt or other cables.
-
After the machine is pulled out from the container, use the forklift to lift the machine from the middle position.
-
Wrong operation: It is not allowed to use the forklift to lift the machine completely from one end, which will easily cause the machine to be deformation.
