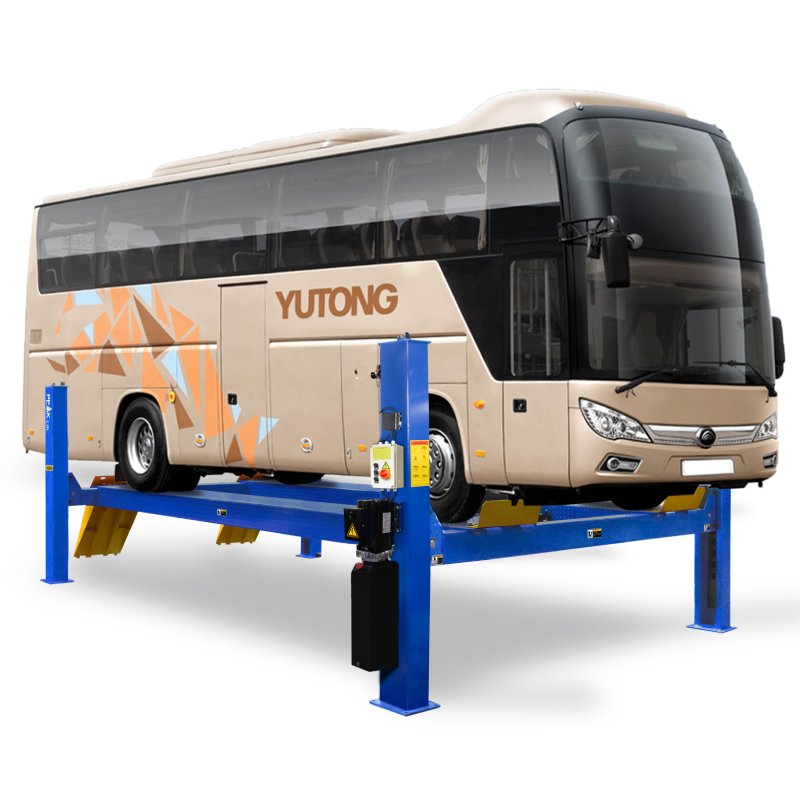

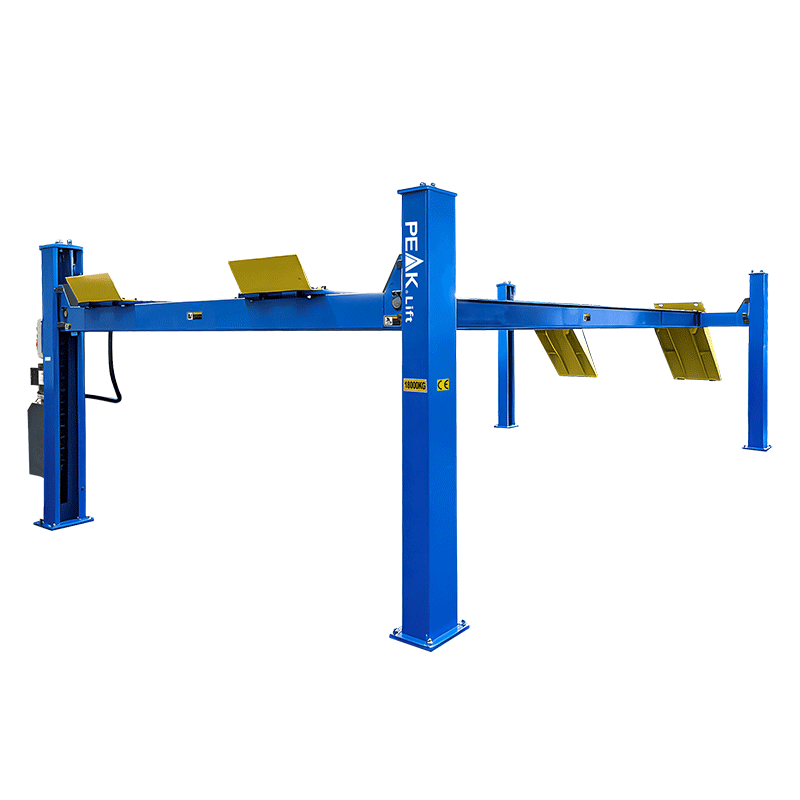

440E
Super Duty General Service Four Post Lift
Absolutely for Longest and Heavist

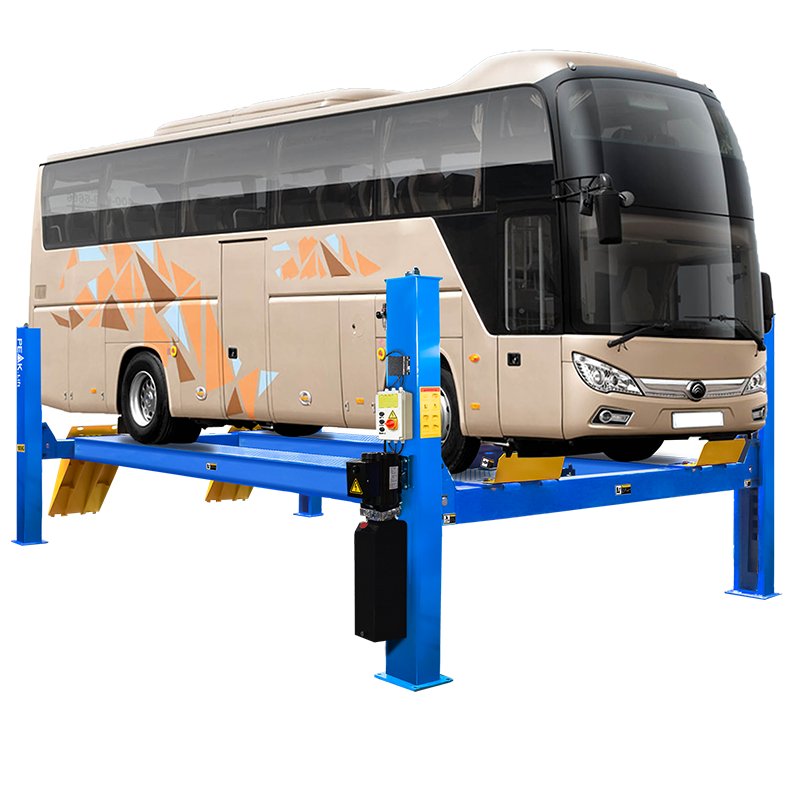

Built with an additional 1500mm in length in comparison to the PEAK 440, the 440E stands as the most powerful equipment for professional servicing of the longest and heaviest vehicles on the road. It represents the ultimate solution for massive commercial vehicles, heavy-duty trucks, and other professional large vehicles.
- Super duty design, 18000KG (40,000 lbs) capacity;
- General service design, accommodate various vehicles;
- Features extreme long platforms, 1500mm longer than 440;
- 24V safe electrical operation system;
- Width between platforms offer two options to fit various vehicles; ;
- Integrated non-skid diamond platforms;
- Standard self-locking mechanical lock and air-drive safety lock;
- Standard primary safety locks and cable-slack protection mechanism;
- High quality hydraulic cylinder design and manufactured at high standard.
| Model 440E | Super Duty General Service Four Post Lift | |
| Lifting Capacity | 18000kg (40,000 Ibs) | |
| Lifting Time | 160s | |
| Overall Length (Inc Ramps) | A | 10800mm (425 3/16") |
| Overall Length (No Ramps) | B | 9514mm (374 9/16") |
| Overall Width | C | 4100mm (161 7/8") |
| Width Between Columns | D | 3654mm (143 13/16") |
| Max. Lifting Height | E | 1924mm(75 3/4") |
| Max. Lock Height to top of runway | 1820mm(71 11/16") | |
| Overall Height | F | 2332mm(91 13/16") |
| Minimum Height | G | 244mm (9 5/8") |
| Max. Underneath Height | H | 1694mm (66 7/8") |
| Max. Lock Underneath Runway | 1595mm (62 3/4") | |
| Drive-Thru Clearance | I | 3298mm (129 7/8") |
| Width Between Runways | J |
1246mm (49 1/16")/ 1496mm(58 7/8") |
| Outside Edge of Runways | K |
2666mm (104 15/16")/ 2916mm(114 13/16") |
| Gross Weight | 4234kg (9,334lbs) | |
| Motor | 4.0HP | |
| Packing Dimension | 9560 x 720 x 1000mm |
-

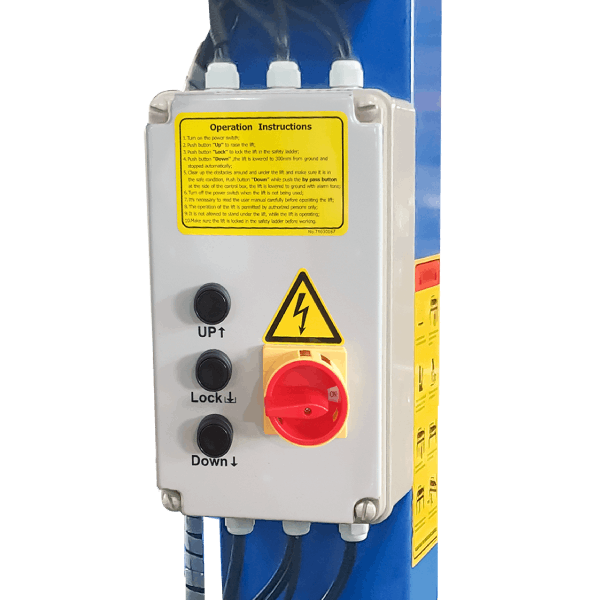

Electric control device with UP, LOCK and DOWN buttons.
-

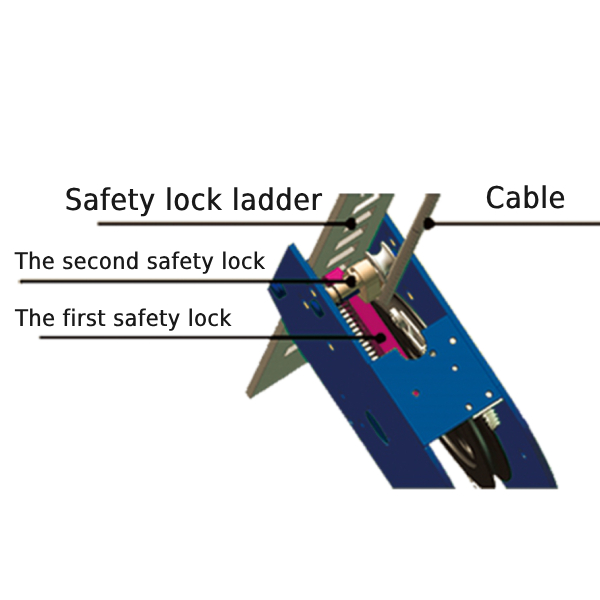

Double safety locks provide additional safety.
-
Oil-water separator and solenoid air valve are installed on the power side column.
-

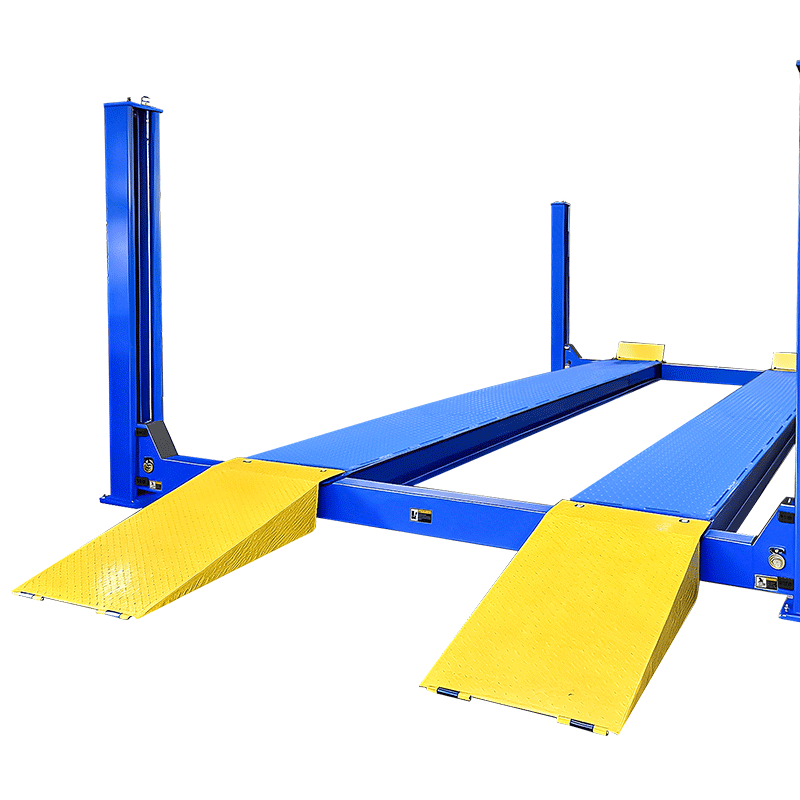

Non-slip diamond platforms come as standard.
-

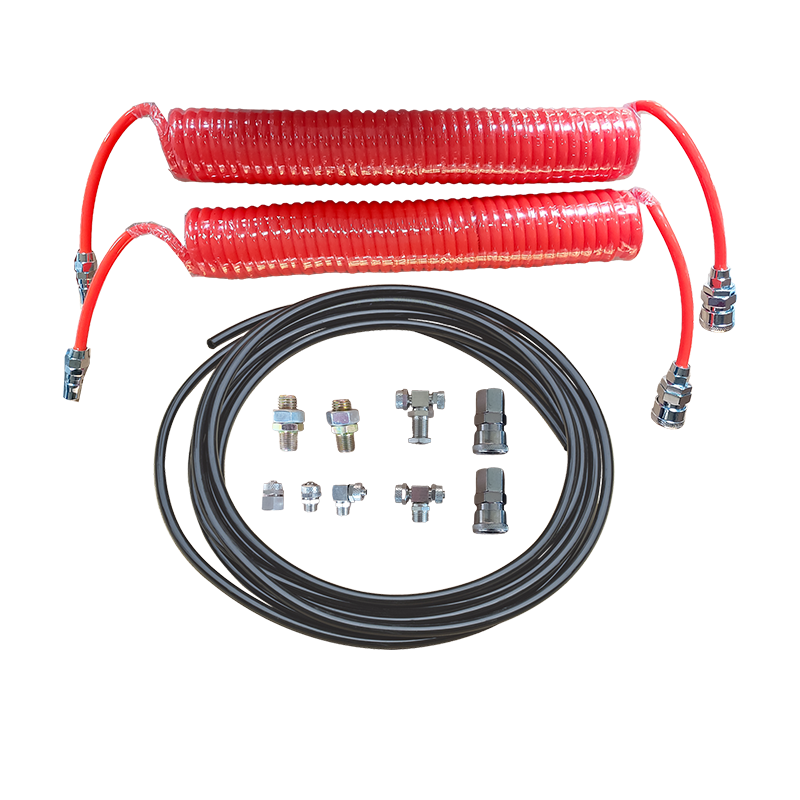

Optional Air Line Kits
All peak four post lifts are designed to use the air line kits for rolling jack.
Kits No.: 40106 -
Optional Rolling Jacks

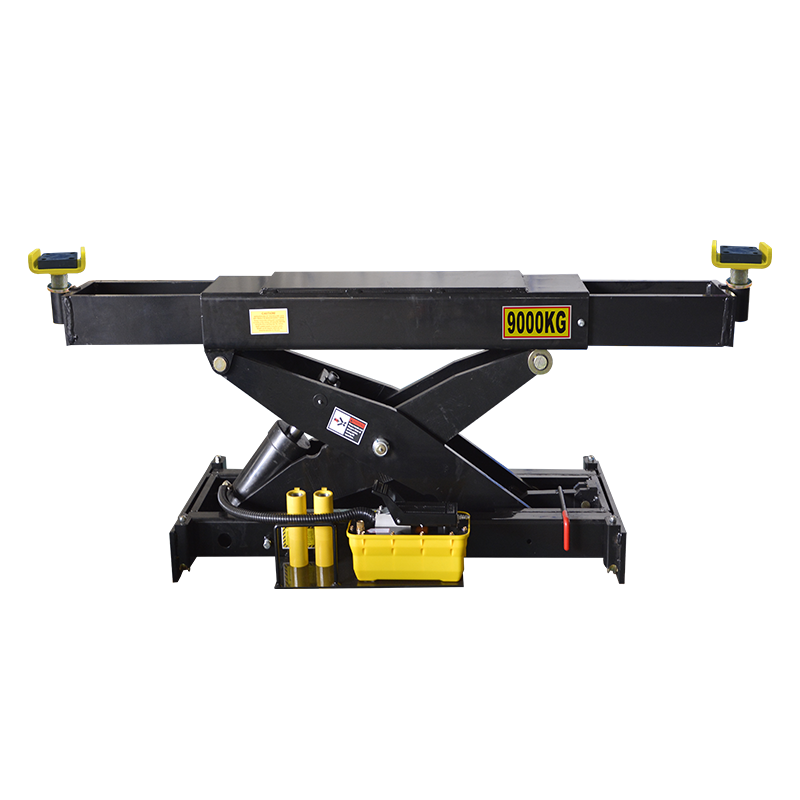

RJ-20A: pneumatic hydraulic type 9,000kg.
1 or 2 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 440E: 4234kgs , include power unit gross weight 40kgs.
- 40' container can load 6 units.
-

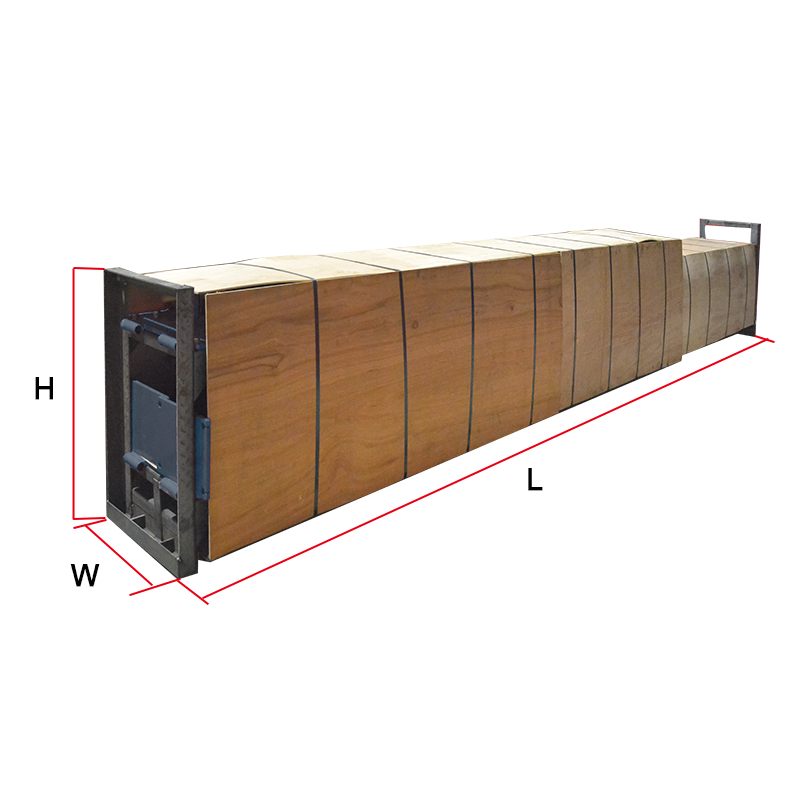

1 unit/package,packing measurement (LxWxH): 9560x760x1030mm
-

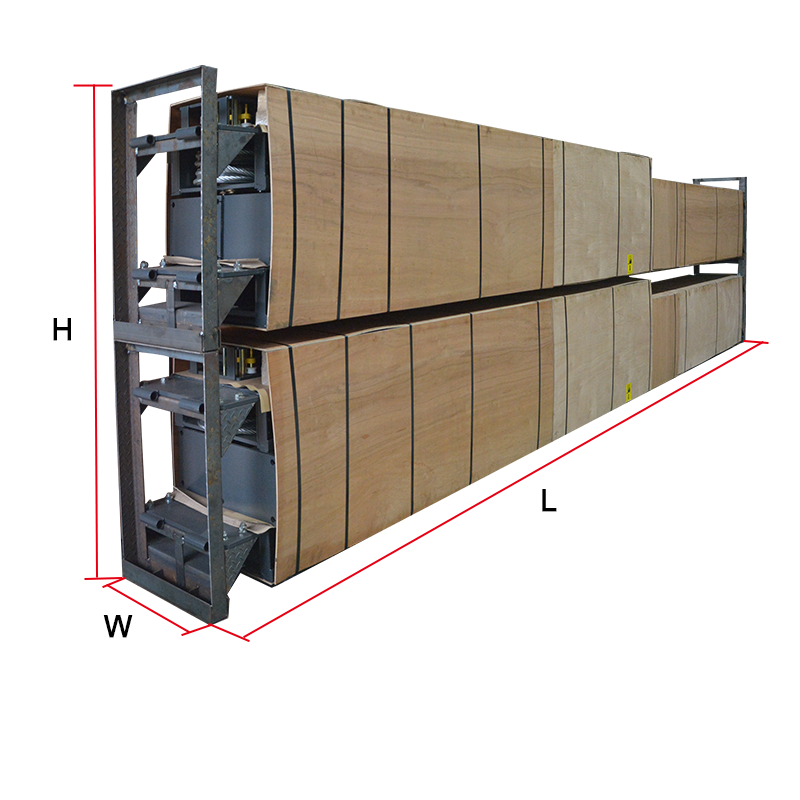

2 units/package, packing measurement (LxWxH): 9560x760x2030mm
-
1 unit/ctn,packing measurement (LxWxH): 1005x300x360mm
-

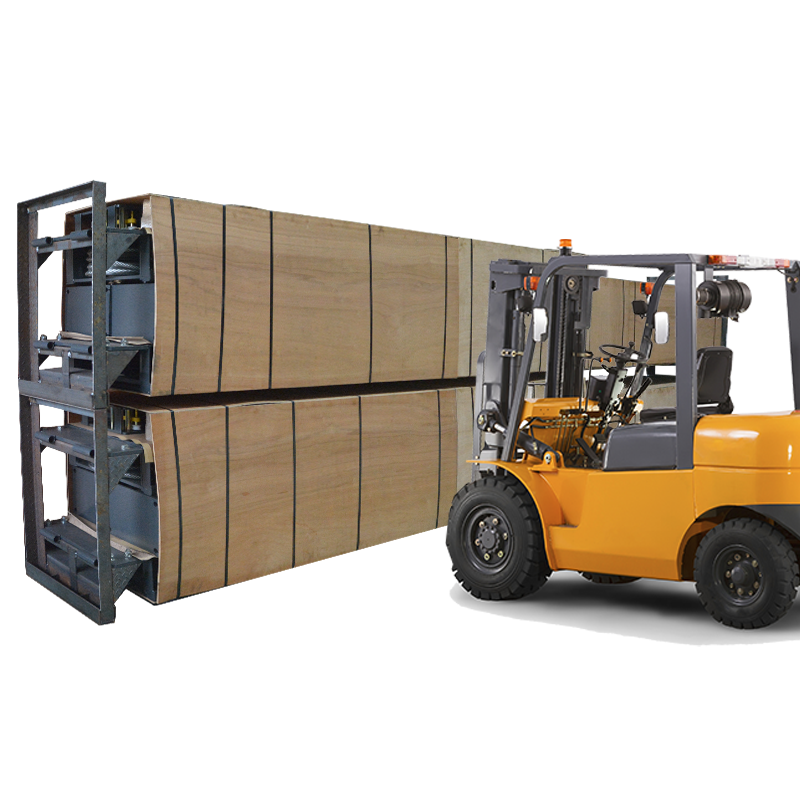

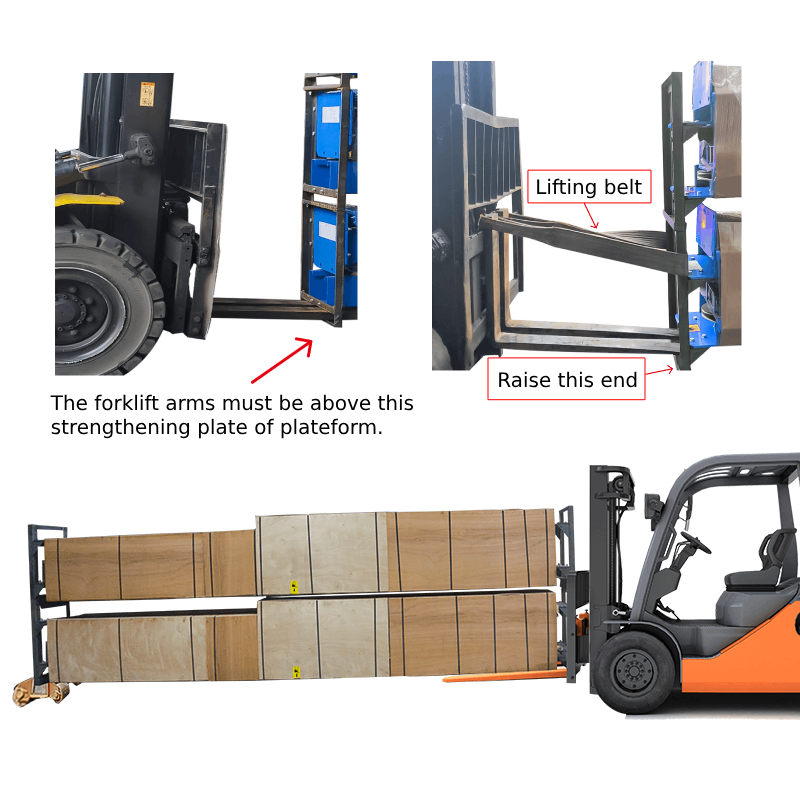

Use a forklift to lift up one end of the machine about 50-100mm from the ground, and pull the machine out from the container with the assistance of lifting belt or other cables.
-
After the machine is pulled out from the container, use the forklift to lift the machine from the middle position.
-
Wrong operation: It is not allowed to use the forklift to lift the machine completely from one end, which will easily cause the machine to be deformation.
