20806

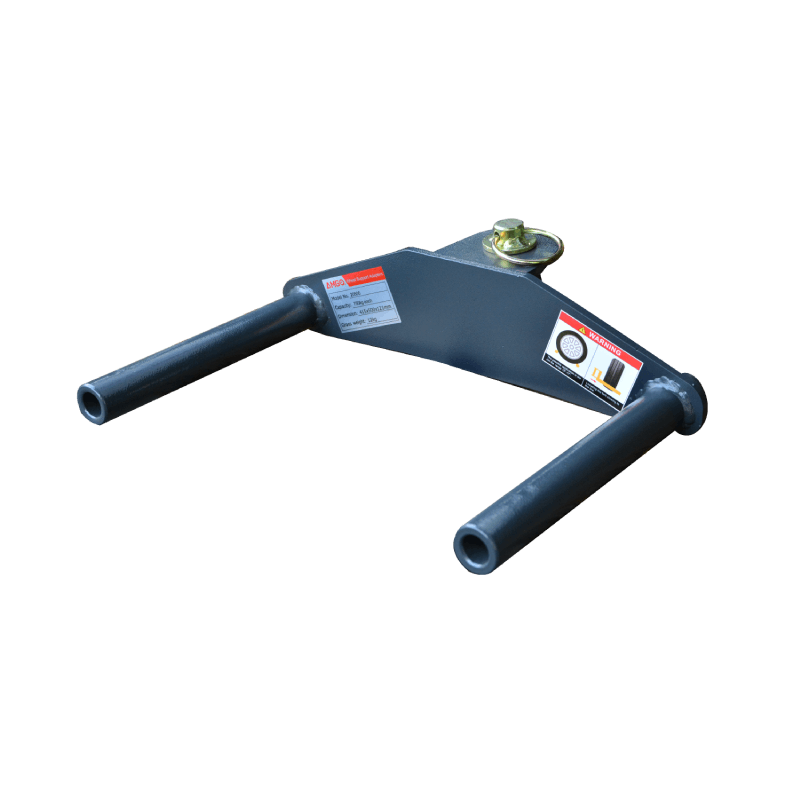

Wheel Support Adapters
Part No.: 20806
Wheel Support Adapter are suitable for most of 2 post lifts in the market, changing the 2 post lifts from chassis-support to wheel-support. It is also available for low-chassis or electric vehicles maintenance & battery replacement.
- Capacity: 750kg(1,650lbs) each;
- Optional accessories changing the lift from chassis-support to wheel-support;
- Install on 2-post lift arms, with smart design, easy to fix or remove; suitable for all 2-post lifts of PEAK and most of the 2-post lifts in the market;
- The best application to tire Rim Dia. range 15"-17";
- Suitable for the arm of 1 1/2'' or 2'' diameter hole;
- Highly recommend for extremely low-chassis or electric vehicles maintenance & battery replacement;
- G.W. 12KG each.
| Model No. | 20806 | |
| Capacity | 750kg (1,650lbs) each | |
| Dimension | 415 x 500 x 121 mm | |
| Gross weight | 12kg each |
-
4 sets wheel support adapters.
-

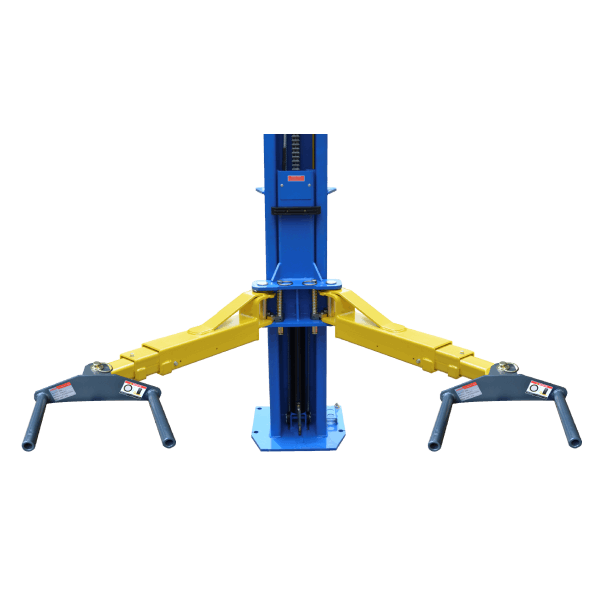

Symmetric installed on each 2-post lift arm.
-
Very well lifted by supporting tire. Fit for Rim Dia range 15"-17" tire.
Gross weight for Wheel Support Adapters: 12kg each
Packing measurement (L x W x H): 500 x 415 x 121mm
-

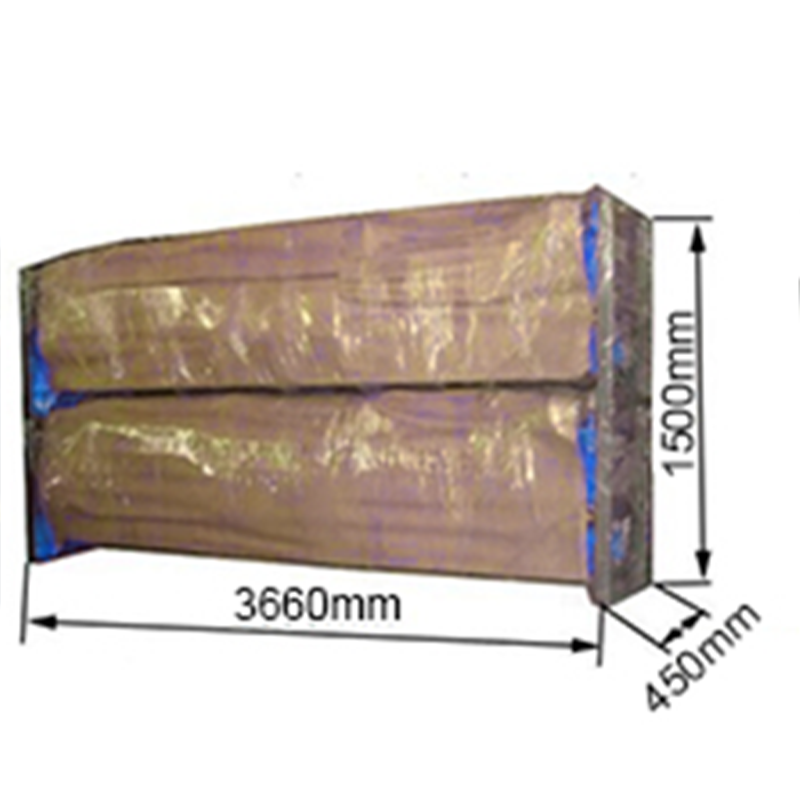

2 units/package
-

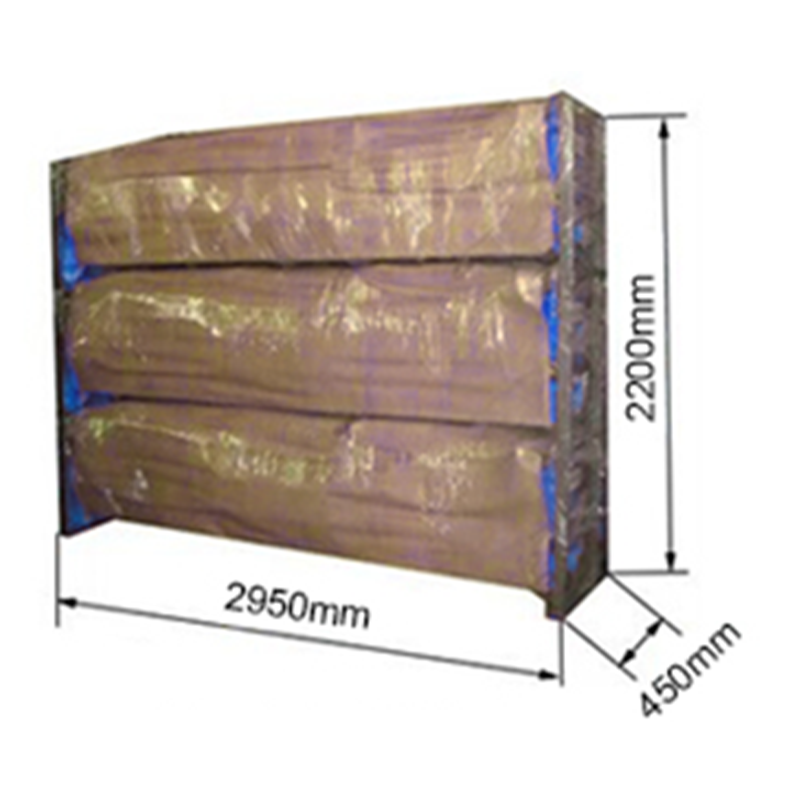

3 units/package
-
Forklift loading and unloading
